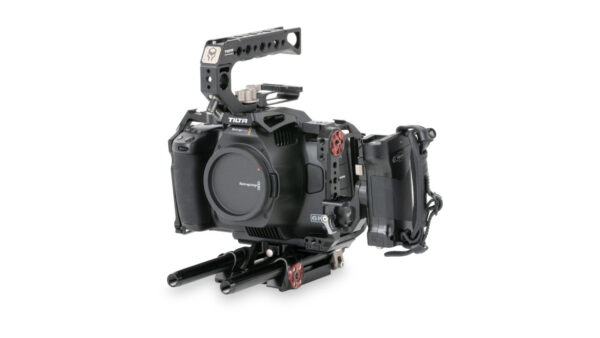

Tilta Advanced kit for BMPCC 6K Pro- Black

Compatible with the original battery grip from Blackmagic Design. Under the half cage setup, remove the bottom plate and secure it to the bottom of the battery grip.
With the original battery grip mounted, the 15mm rod holder and 15mm rods can be installed to mount a follow focus, lens support, etc.
Newly patented viewfinder extension. Provides a fully immersive operating experience.
Find your best viewing angle. Easily adjustable for different user’s operating needs. Provides the best view for operating.
Extremely adjustable. The connecting joint supports 360° adjustment. The support arm can be adjusted both horizontally and vertically.
The top plate has 3 built-in cold shoe mounts and 1/4”-20 screw holes for mounting various accessories.
Supports the new Tilta M.2 SSD case. Easily mounts onto any 1/4”-20 screw holes on the camera cage.
Compatible with T5 and T7 SSD drives.
Includes ARRI Compatible Rosette, 1/4”-20 Screw Holes with Locating Points, and NATO Rail.
90° angled cable adapter for more secured mounting. Provides more efficient operating and data protection.
With the NATO rail adapter mounted, it can be installed to any 1/4”-20 screw hole.
Reserved space for securing an M.2 SSD case.
From Blackmagic Design.
Arm your camera with the Tiltaing Camera Cage for the Blackmagic Pocket Cinema Camera 6K Pro and 6K G2.
This Basic Kit for the BMPCC6K Pro/G2 provides protective armor for the camera body and includes relevant accessories to improve functionality.
The Full Cage offers several 1/4”-20 threads with locating pins, cold shoe receivers, a NATO Rail for Type IV and VI Side Handles, as well as Rod Attachment Ports for our Single Rod Holders.
It also features ARRI compatible rosettes, which are specifically designed for our Adjustable Top Handle Plus for more flexible operating and handling.
The right side arm module can be removed to turn this Full Cage into a Half Cage.
This offers more flexibility in situations where lighter builds are required such as when using a gimbal.
The Bottom Plate provides several ¼”-20 mounting points for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.
When using the Half Cage, the bottom plate can be extended to support the Black Magic Design Battery Grip.
A 15mm rod mount can be installed to support 15mm rods in front of the camera body when using the Battery Grip in a Half Cage setup.
When not using the Battery Grip, the included Quick Release Plate can be used to connect the camera cage to the included 15m LWS Baseplate Type VI.
The 15mm LWS Baseplate adds 15mm rod support to the system and allows you to mount rod based accessories such as matte boxes and follow focus systems.
The bottom of this baseplate natively connects to our Tilta Standard Dovetails and also supports various quick release plates via 1/4″-20 and 3/8″-16 threads.
The Advanced Power Handle mounts to the left side of the cage via a NATO Rail connection.
This handle features a 12V Micro DC Port (3.5/1.35mm) and an 8V USB-C port for powering your camera body or other accessories like our Nucleus Nano Wireless Lens Control System.
The handle is also able to control Run Stop on the BMPCC 6K Pro/G2 via an included Run Stop Cable.
The rotation of the handle and additional hand strap allows for comfortable and flexible operation of your camera system when shooting handheld.
The included Quick Release Top Handle can be attached to the top of the cage via a cold shoe receiver and can be further secured by a 1/4”-20 screw.
This provides an extremely secure connection to comfortably handle and operate your camera when shooting low angles.
The Top Handle features additional 1/4”-20 threads, cold shoe receivers and a horizontal 15mm rod holder for mounting external monitors or EVFs.
The SSD Drive Holder attaches directly to the cage via a 1/4″-20 screw and locating pin.
It can then clamp onto a m.2 SSD drive, securing it to your camera setup and allowing you to record footage onto a separate SSD card.
The included USB-C cable is then able to screw into the SSD Holder and the Side Panel of the Cage near the USB-C Port.
This creates an extremely secure connection between your camera and drive.
The 90 Degree HDMI Adapter mounts to the cage near the camera’s HDMI port and offers a secure connection that limits wear on the port itself.
NOTE: If you receive a kit with a T7 Holder, please contact us at: [email protected]
1:Full Camera Cage for BMPCC 6K Pro *1
2:Tiltaing Quick Release Handle *1
3:Tiltaing SSD Drive Holder for T5 *1
4:Tiltaing Left Side Advanced Power Handle with Run/Stop (F570 Battery) *1
5:Tiltaing Advanced Left Side Handle Attachment Type VI *1
6:Advanced Side Handle Run/Stop Cable for USB-C Port(RS-TA3-USBC)*1
7:Tiltaing 15mm LWS Baseplate Type VI *1
8:HDMI 90-Degree Adapter for BMPCC 4K/6K（TA-T01-HDA-90）*1
9:90-Degree USB-C Cable (30cm) for BMPCC 4K/6K（CB-USBC-30）*1
10:Aluminum rod 15*200mm Black *2
11:Aluminum rod 15*100mm Black *2
12:Connection Screw for 15mm Rod *2
13:Accessory Mounting Bracket for BMPCC 6K Pro Battery Grip *1
Dimensions: 13 x 6.5 x 3.5 inches
Weight: 3.1 lbs
Net Weight: 0.4 lbs
Materials: Aluminum alloy, stainless steel
Color: Black, Tactical Gray
