Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas – V Mount

Pre-Order

3G-SDI/HDMI Transmitter & Receiver Set
Supports 6 GHz Frequency Band
Supports up to 4K30 Resolution HDMI Input
Receives HD Video from up to 750′ LoS
Output Video up to 4K30 via HDMI
Internal Antennas Transmitter & Receiver
Cross-Compatibility Bolt 4K series with zero delay using the 5 GHz band
Bluetooth Mobile App, Spectrum Analyzer
AES-256 Encryption|RSA-1024 Key Exchange
V-Mount Battery Plate

$5,498.00

Description
Specification

Transmit and receive lossless HD video at ranges up to 750ft line of sight with the V-mount Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas from Teradek. This kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver, both with internal antennas, that support the 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support. The receiver comes with a V-mount battery plate to power it with a high-capacity battery.

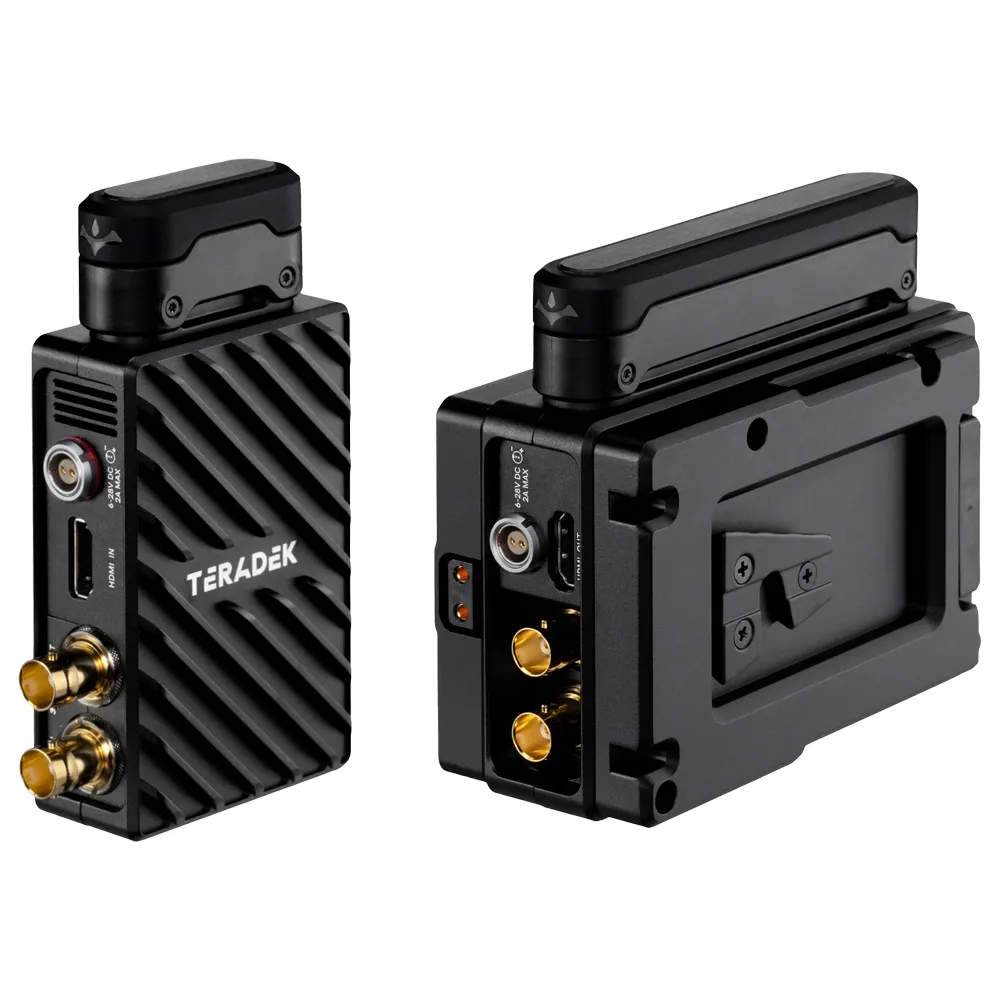

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas

Transmit lossless HD video up at distances up to 750ft with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek. The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band. This transmitter unit provides a powerful signal that can travel up to 750ft line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (V-Mount)

Receive lossless HD video from up to 750ft away along the line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas from Teradek. This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR, output video via an HDMI or 3G-SDI port, and it comes in a sleek form with all antennas tucked inside. It features a bright OLED display and support for the 6 GHz wireless band. The receiver comes with a V-mount battery plate to power it with a high-capacity battery.

Sleek Design with Internal Antennas

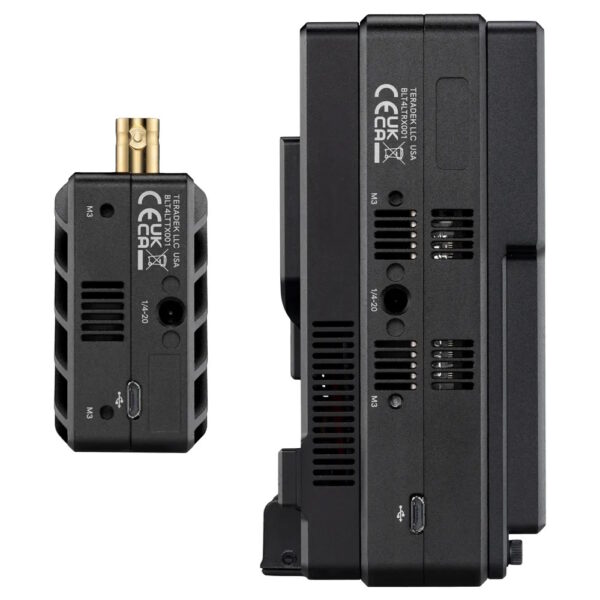

The antennas in this receiver are all tucked inside, producing a sleek, compact form. There are 1/4″-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

SKU: TER-53.10-2260-VII Category: Video and photo transmitters Brand: Teradek
