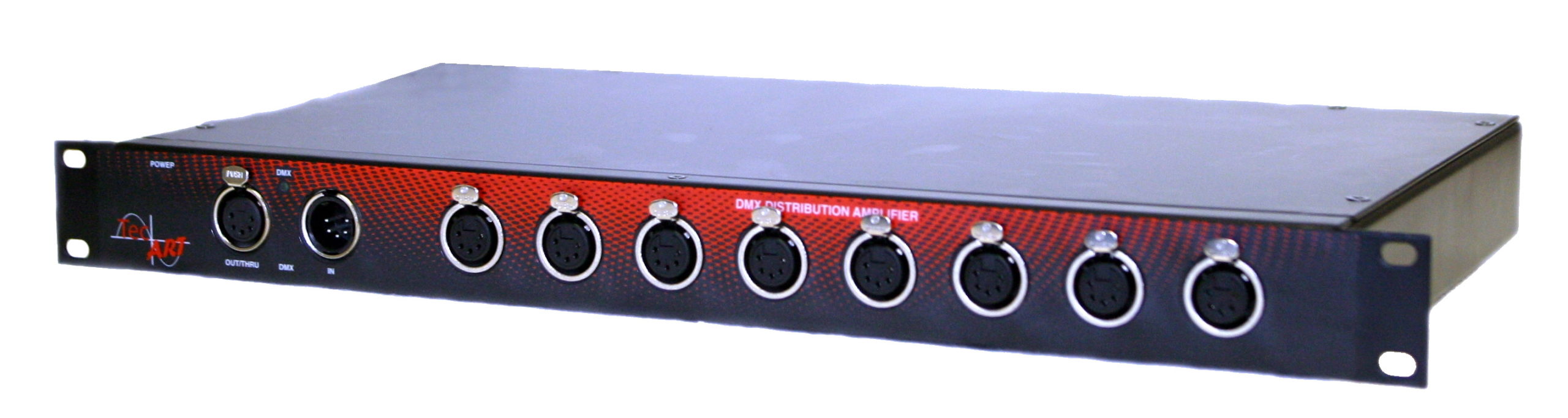

TecArt Splitter Rack Mount RDM 8 way
The TecArt range of data splitters are available as 19” rack mount units.
The units are available with a choice of 3 or 5 pin connectors. Each output has a separate driver, opto-isolator and power supply to ensure the highest possible level of protection.
Related products
-
Data and DMX distribution
TecArt Splitter DIN Rail RDM 4 way
The TecArt range of data splitters are available as DIN Rail mountable units.
Each output has a separate driver and opto-isolator to ensure the highest possible level of protection.
The unit is available as a standard DMX splitter or with the option of RDM.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
DMXS4DR can be supplied with an external 12 – 48VDC power supply.
FEATURES
• DMX-512 In/Out/Thru.
• External Power Supply 12 – 48VDC.
• Terminal Strip Output and Input Connector.
• 2 Main indication LEDs.SPECIFICATIONS
• Input voltage: 12 – 48VDC.
• Power supply: External.
• Total power: 6W @ 24VDC.
• Dimension: 105mm (L) 85mm (W) 60mm (H).
• Mounting method: DIN Rail.
• DMX signal input: Terminal block.
• DMX signal output: Terminal block.
• Outputs: 4 Opto isolated.
• Temperature: 0 – 40 degree Celsius.SKU: n/a -
Data and DMX distribution
Chauvet DJ Xpress 1024 DMX USB Interface with Software
The Chauvet DJ Xpress 1024 is a powerful USB DMX interface that lets you control your lighting fixture with the ShowXpress lighting software. It is compatible with both Windows® and Mac OS X systems with a live control app. This means that you can use it with a smartphone device.
SKU: CDJ-XPRESS1024 -
Data and DMX distribution
TecArt RDM Toolbox in a Pelican Case
The TecArt RDM Toolbox is a diagnostic tool for professional lighting technicians.
FEATURES
• DMX Transmit and Receive (512 channels).
• DMX Testing.
• Remote DMX Addressing (with compatible luminaires).
• RDM Discovery.
• RDM Query and Device Configuration.
• RDM Monitoring.
• Rugged Pelican™ Water and Dust-resistant Case.
• Battery-powered.SPECIFICATIONS
• Supply: 240VAC.
• Internal Battery: Rechargeable.
• DMX In/Out: 5-pin XLR.SKU: n/a -
Data and DMX distribution
TecArt Splitter Truss Mount RDM 4 way
The TecArt range of data splitters are available as truss mount units.
The units are available with a choice of 3 or 5 pin connectors and have 4 outputs. Each output has a separate driver, opto-isolator and power supply to ensure the highest possible level of protection.
The unit is available as a standard DMX splitter or with the option of RDM.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
SKU: n/a -
Data and DMX distribution
TecArt Splitter Desktop DMX 4 way
The TecArt range of data splitters are available as desktop units.
Each output has a separate driver and opto-isolator to ensure the highest possible level of protection.
The unit is available as a standard DMX splitter or with the option of RDM.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
DMXS4DT can be supplied with an external 12 – 48VDC power supply.
FEATURES
• DMX-512 In/Out/Thru.
• External Power Supply 12 – 48VDC.
• 2 Main indication LEDs.SPECIFICATIONS
• Input voltage: 12 – 48VDC.
• Power supply: External.
• Total power: 6W @ 24VDC.
• Dimension: 105mm (L) 85mm (W) 60mm (H).
• Mounting method: Desktop.
• DMX signal input: XLR.
• DMX signal output: XLR.
• Outputs: 4 Opto isolated.
• Temperature: 0 – 40 degree Celsius.SKU: n/a
