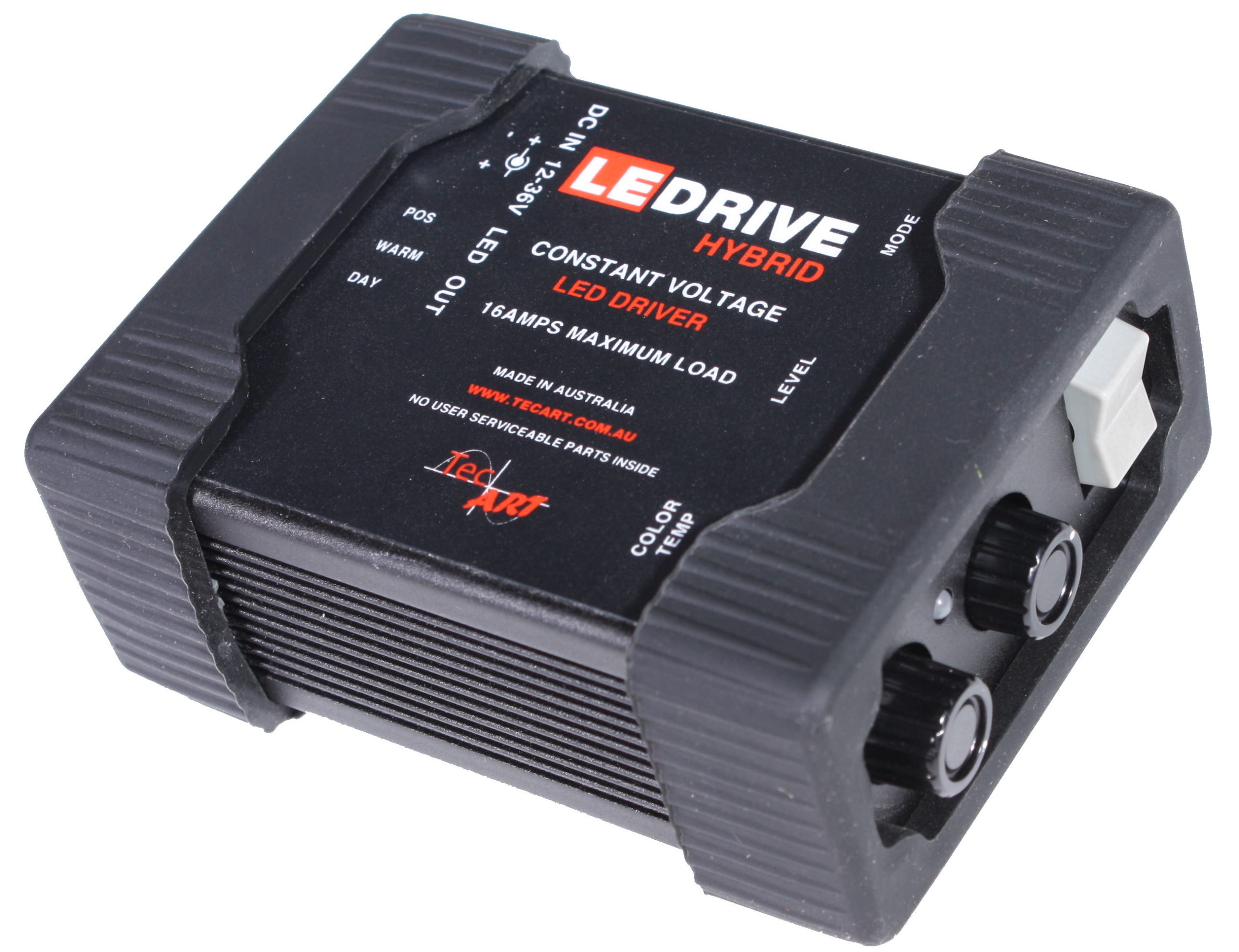

TecArt LEDrive CV Hybrid Desktop
LEDrive CV Hybrid is a desktop stand alone controller for constant voltage LEDs. High PWM frequency (31.5 KHz) makes it flicker free and film and TV compatible. The unit is controlled via two potentiometers, which allows you to control the brightness and colour temperature of the LEDs. It features different modes and built-in effects. The unit has driving capacity of 8A (male barrel input) and 16A (Phoenix connector).
LEDrive CV Hybrid can be supplied with an external 12 – 36VDC power supply.
FEATURES
• Potentiometer control.
• External power supply 12 – 36VDC.
• Terminal strip output.
• 1 multicoloured indication LED.
• Overdrive mode and fire effect included.
SPECIFICATIONS
• Input voltage: 10 – 36VDC.
• Power supply: External.
• Dimensions: 100mm (L) x 70mm (W) x 40mm (H).
• Mounting method: Desktop.
• Outputs: 2 channels.
• Driving capacity: Up to 8A (male barrel input) and 16A (Phoenix connector).
• Output voltage: Equal to input voltage – stabilised voltage (PWM).
• Temperature: 0 – 40 degrees Celsius.
