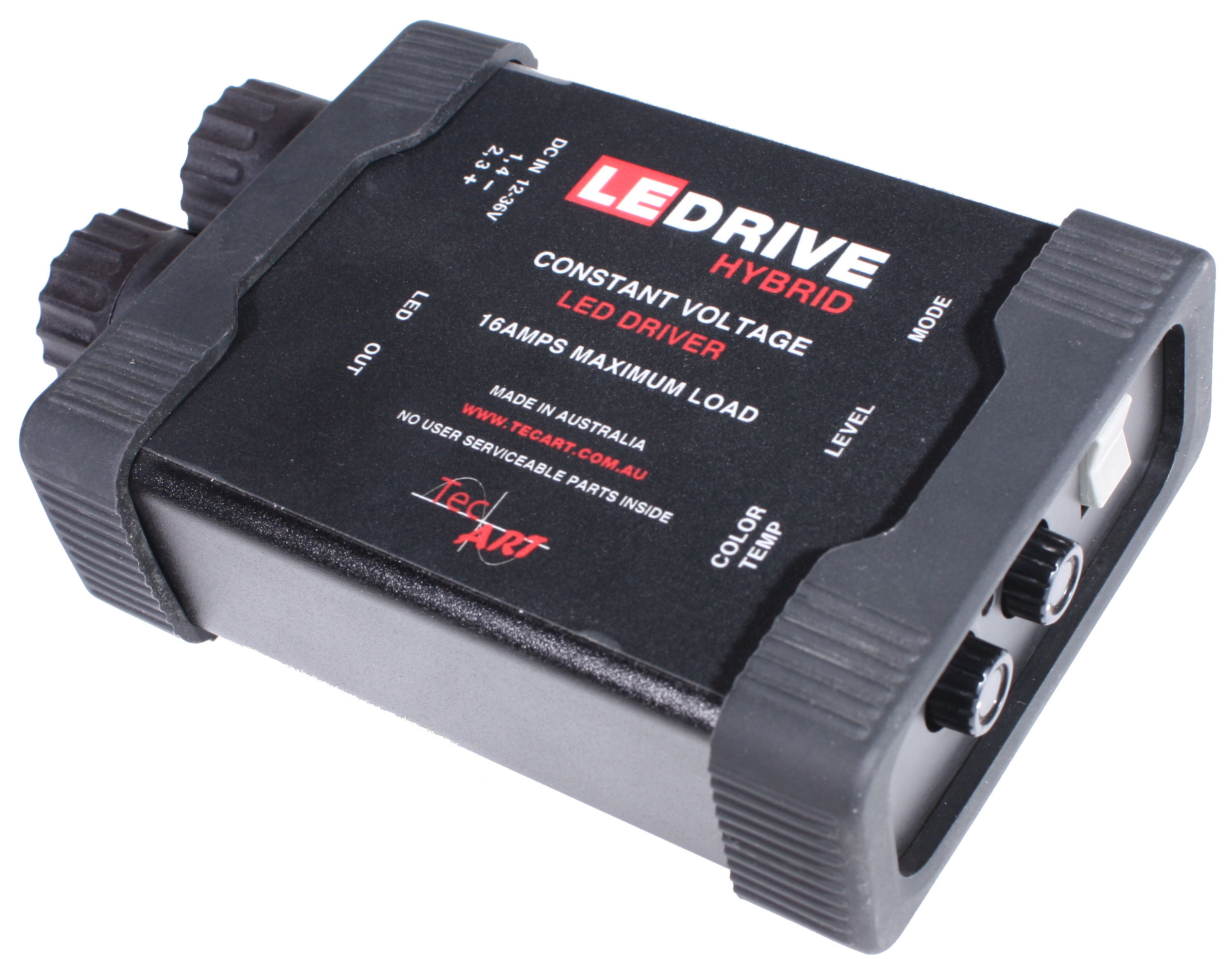

TecArt LEDrive CV Hybrid 4X Desktop
LEDrive CV Hybrid 4X is a desktop stand alone controller for constant voltage LEDs. High PWM frequency (31.5 KHz) makes it flicker free and film and TV compatible. The unit is controlled via two potentiometers, which allows you to control the brightness and colour temperature of the LEDs. It features different modes and built-in effects. The unit has a PL7 locking connector and driving capacity of 24A.
LEDrive CV Hybrid 4X can be supplied with an external 12 – 36VDC power supply.
FEATURES
• Potentiometer control.
• External power supply 12 – 36VDC.
• PL7 locking connector output.
• 1 multicoloured indication LED.
• Overdrive mode and fire effect included.
SPECIFICATIONS
• Input voltage: 10 – 36VDC.
• Power supply: External.
• Dimensions: 160mm (L) x 100mm (W) x 40mm (H).
• Mounting method: Desktop.
• Outputs: 2 channels.
• Driving capacity: Up to 24A.
• Output voltage: Equal to input voltage – stabilised voltage (PWM).
• Temperature: 0 – 40 degrees Celsius.
