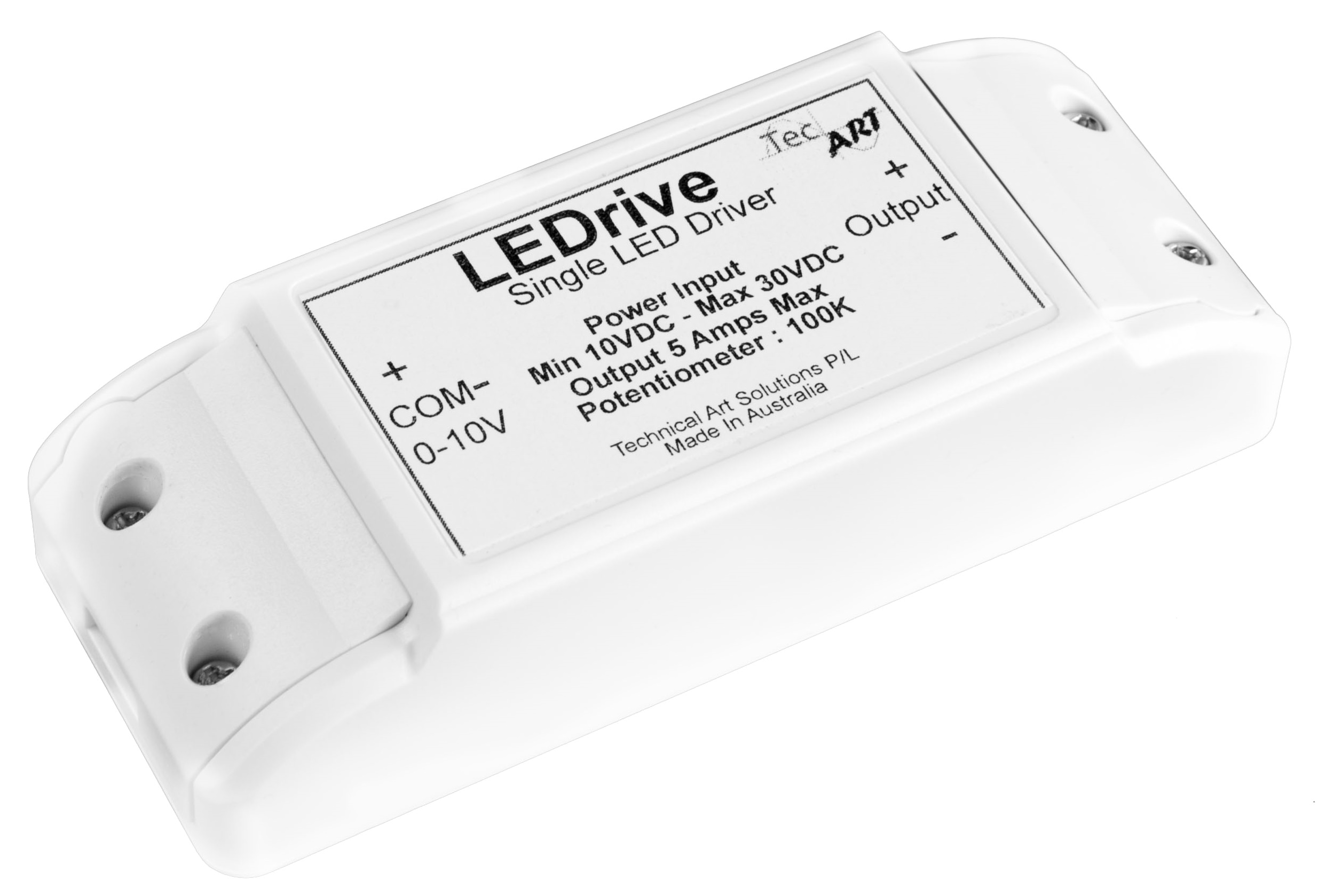

TecArt LEDrive CV 1 Desktop Push Dimm
LEDrive CV 1 Desktop is a high output single channel desktop driver for constant voltage LEDs. This unit is controlled via potentiometer or push dimm. It features terminal strip output and input connector and 5A driving capacity.
LEDrive CV 1 Desktop can be supplied with an external 12 – 36VDC power supply.
FEATURES
• Potentiometer or push dimm control.
• External power supply 12 – 36VDC.
• Terminal strip output.
SPECIFICATIONS
• Input voltage: 10 – 36VDC.
• Power supply: External.
• Dimensions: 120mm (L) x 30mm (W) x 30mm (H).
• Mounting method: Desktop.
• Control input: Terminal strip.
• Outputs: 1 channel.
• Driving capacity: Up to 5A per channel.
• Output voltage: Equal to input voltage – stabilised voltage (PWM).
• Temperature: 0 – 40 degrees Celsius.
