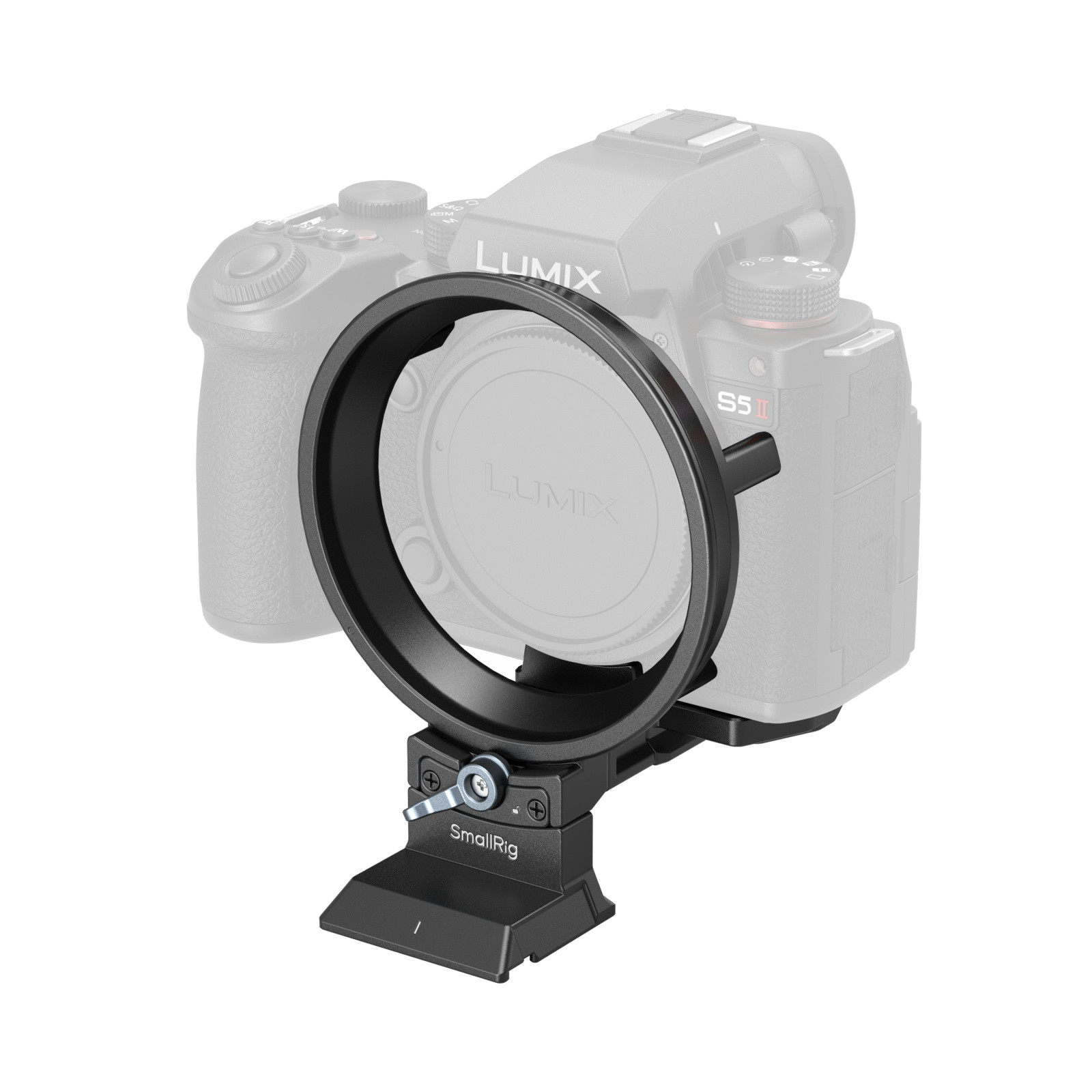

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II 4702
1. Quickly switches between horizontal and vertical modes without adjusting the lens’s optical axis.
2. Gives full access to buttons and ports (LCD flip screen, battery door, card slot).

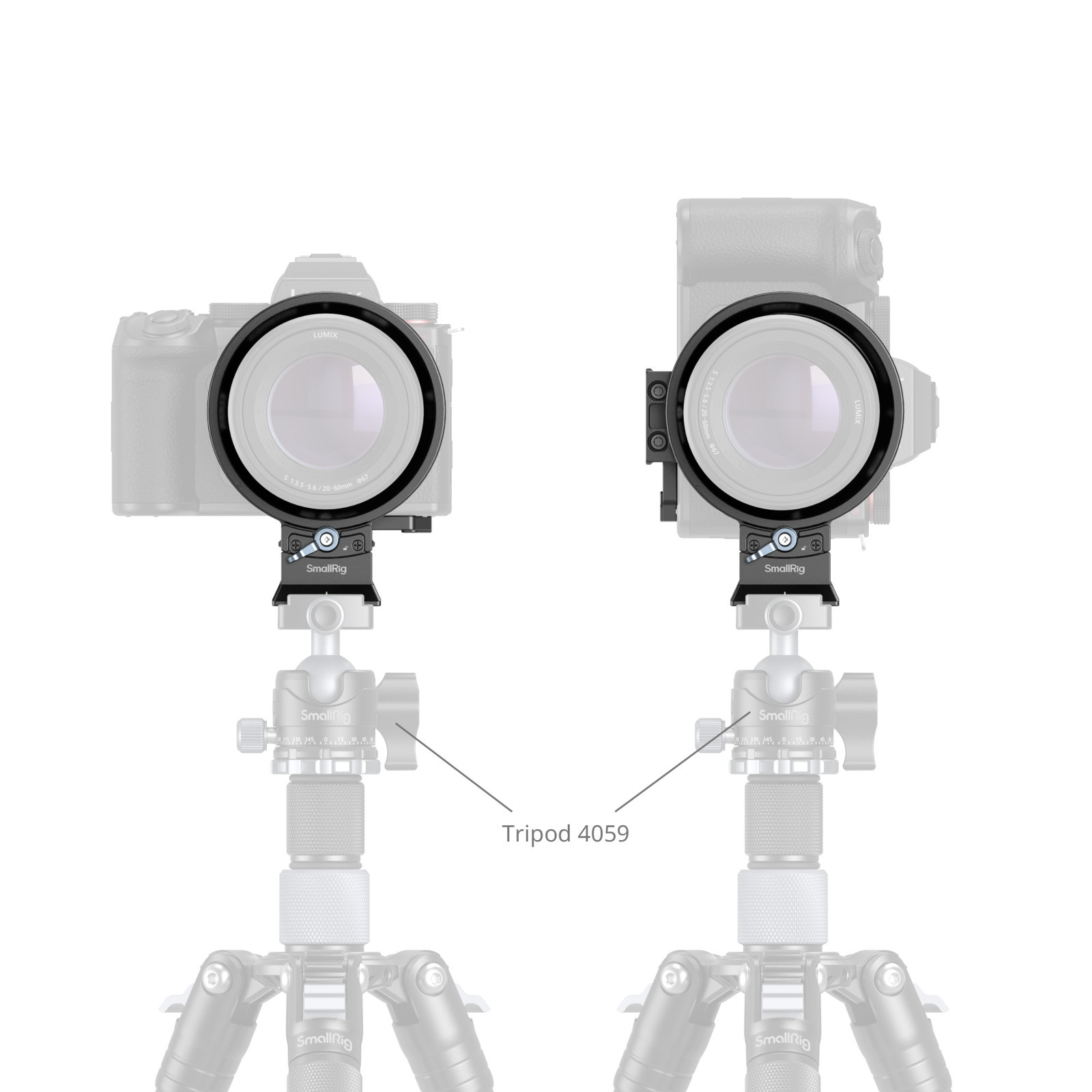

3. Multi-scene switching: Compatible with Arca-Swiss / Manfrotto RC2 tripods.

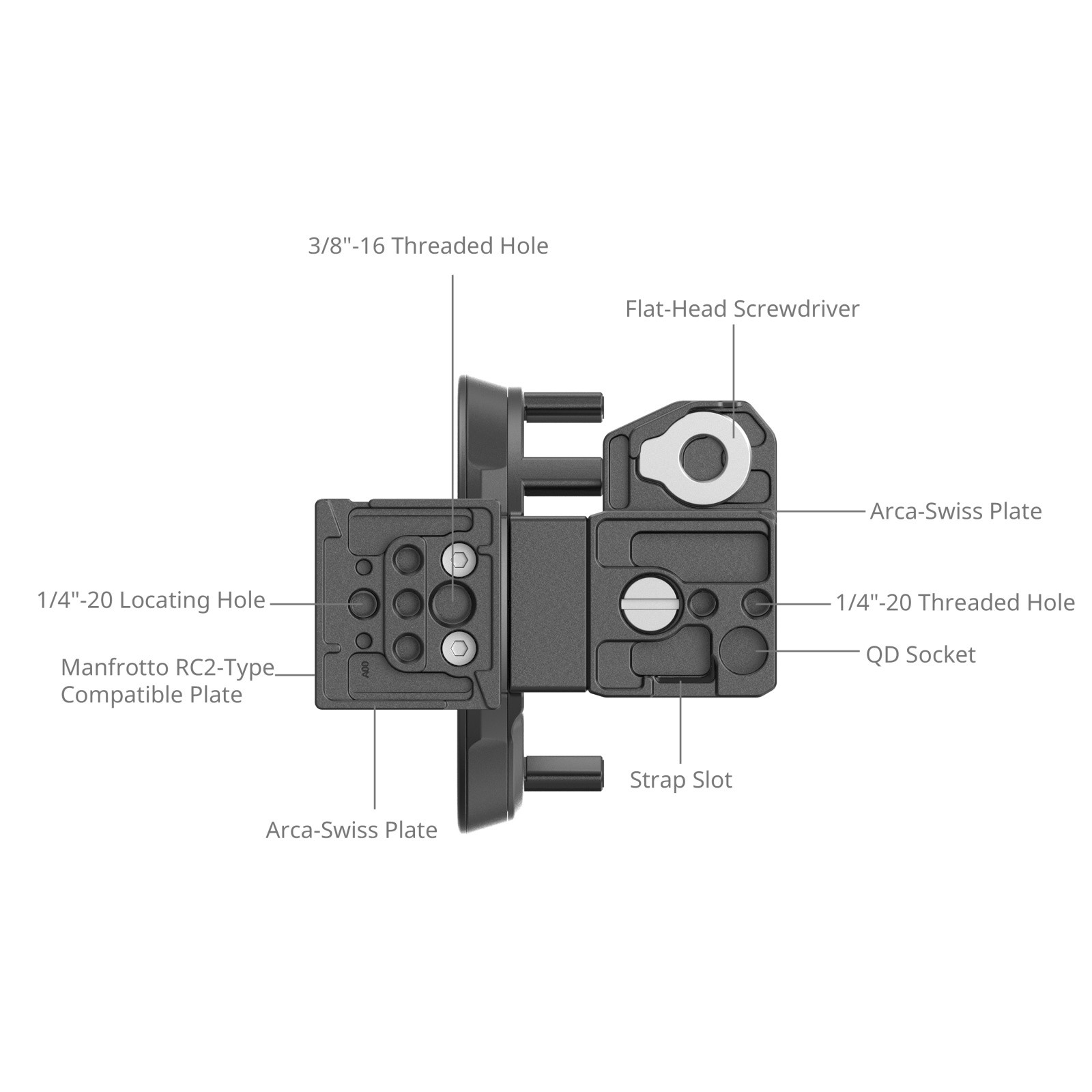

4. Features multiple mounting points, such as 1/4″-20 threaded holes, 1/4″-20 locating hole?3/8″-16 threaded hole, strap slot, QD mount, for handle, magic arm, plate, wrist strap, etc.
$116.90
SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II 4702
SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II 4702 is designed to quickly switch between horizontal and vertical shooting without adjusting the lens optical axis. It maintains full access to LCD flip screens and ports and features built-in pads that prevent scratches and twists. The rotatable mount plate can rotate by 90 degrees by merely unlocking a knob to switch between horizontal and vertical shooting. Quick-release plate with support ring is compatible with Arca-type / Manfrotto RC2 tripod, its bottom 1/4″-20 and 3/8″-16 threaded holes can be used to expand the side handle or other quick-release plates. In the baseplate, there are QD mount, a strap hole for Wrist Strap 3848, and a magnetic dual-head wrench for easy installation and release.
Note:
1. Please remove the lens before installation/removal.
2. It is not recommended to use this product with lenses with Lens Support Collar.
3. This product is compatible with LUMIX S series lenses, if the lens has AF/MF, POWER O.I.S, and other buttons on the lens, this product will with affect the use of the buttons.
4. This product is compatible with Panasonic LUMIX G / LEICA DG series lenses except the following two lenses, if there are buttons on the lens such as electronic POWER ZOOM, AF/MF, POWER O.I.S, etc., this product will be with the use of the affected buttons.
LEICA DG VARIO-ELMAR 100-400mm / F4.0-6.3 II ASPH. / POWER O.I.S.
LEICA DG VARIO-ELMAR 100-400mm / F4.0-6.3 ASPH. / POWER O.I.S.
Work With
Panasonic LUMIX S5 II
Panasonic LUMIX S5 IIX
Panasonic LUMIX G9 II

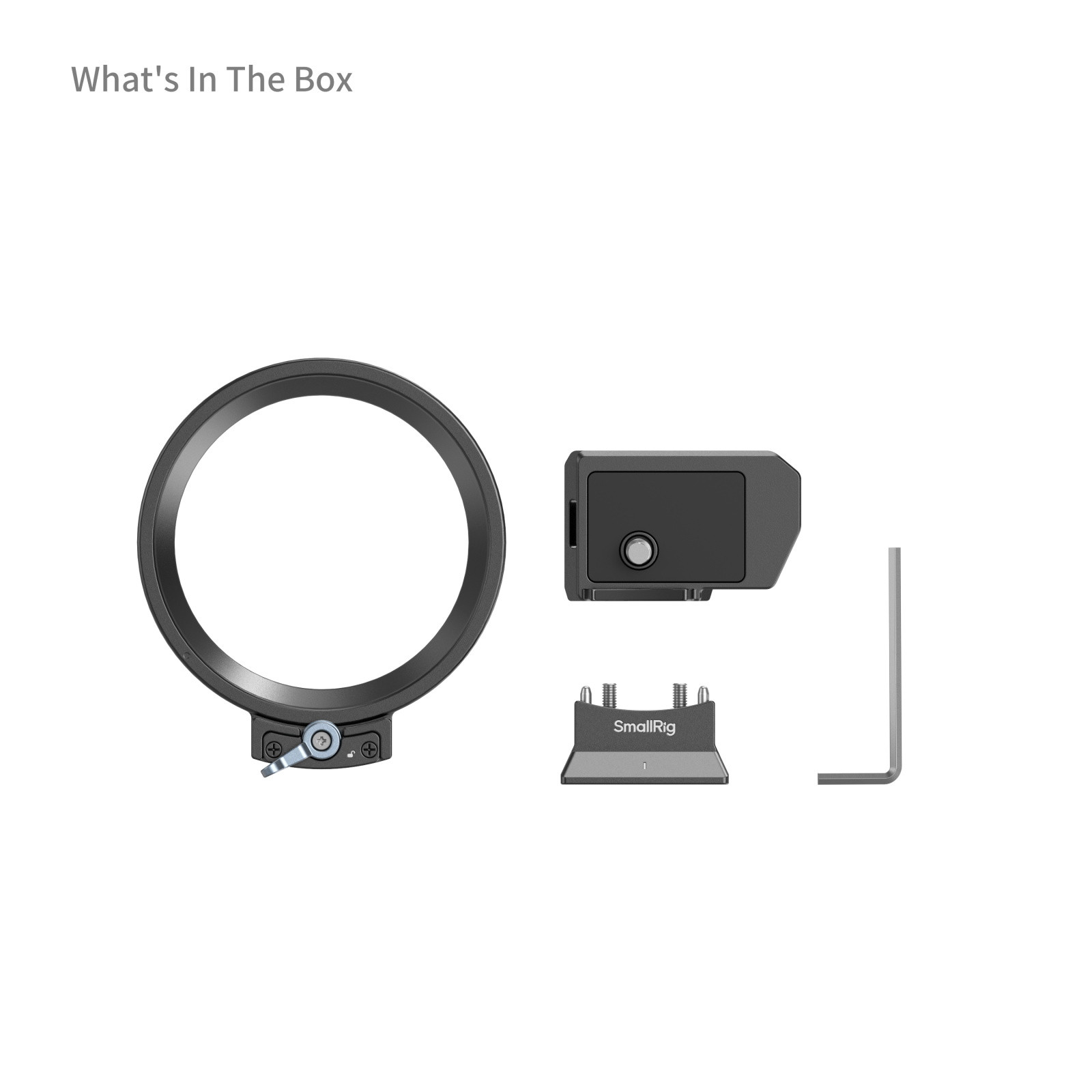

Packing List
Rotatable Horizontal-to-Vertical Support Ring x 1
Rotatable Horizontal-to-Vertical Support Ring Quick Release Plate x 1
Baseplate x 1
Allen Wrench x 1
M4 Screws x 2
Operating Introduction x 1
Guarantee Card x 1
Technical Data

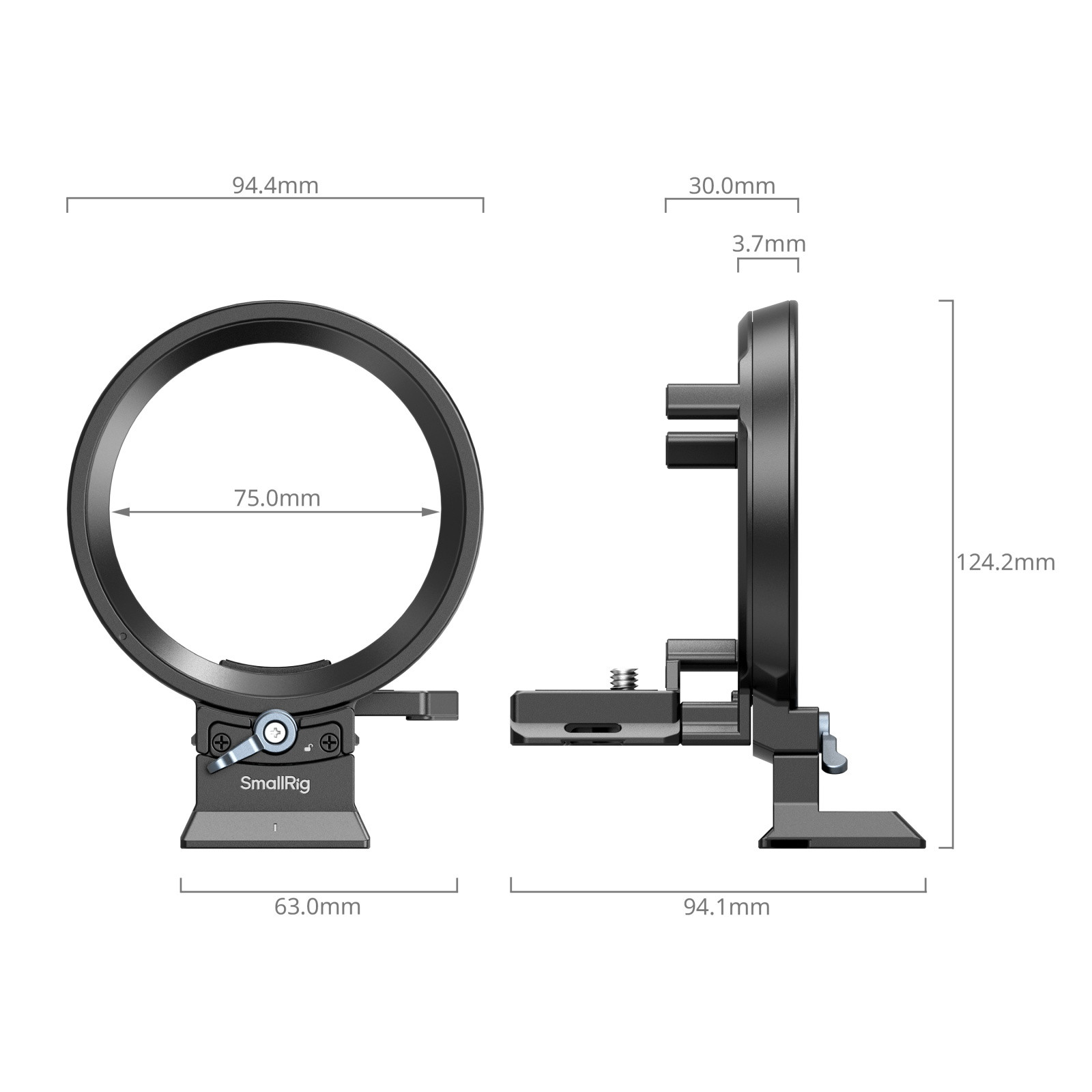

Product Dimensions: 124.0 ? 94.4 ? 94.1mm
Package Dimensions: 136.0 ? 102.5 ? 51.0mm
Product Weight: 157.0?5.0g
Package Weight: 210.0?5.0g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
