SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341

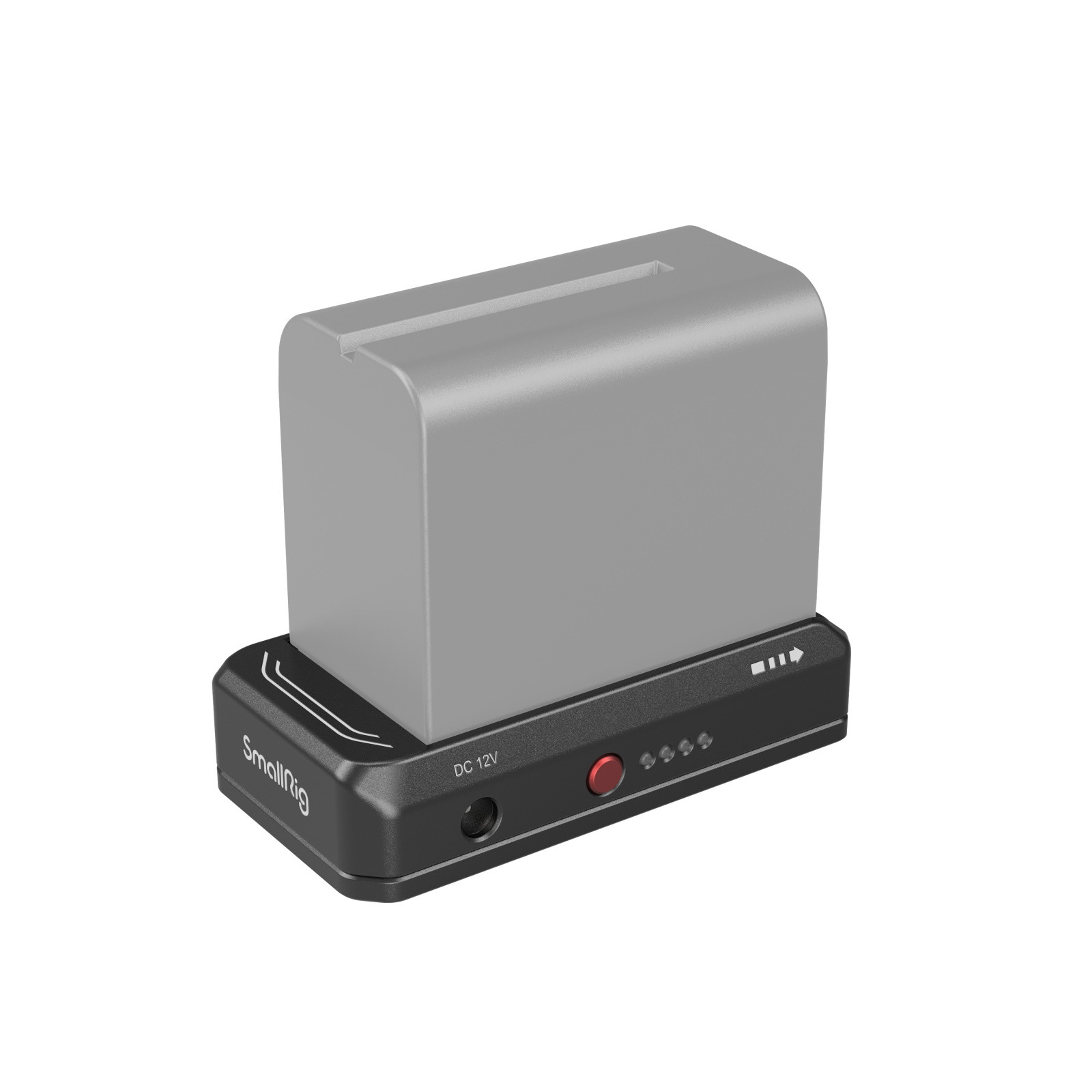

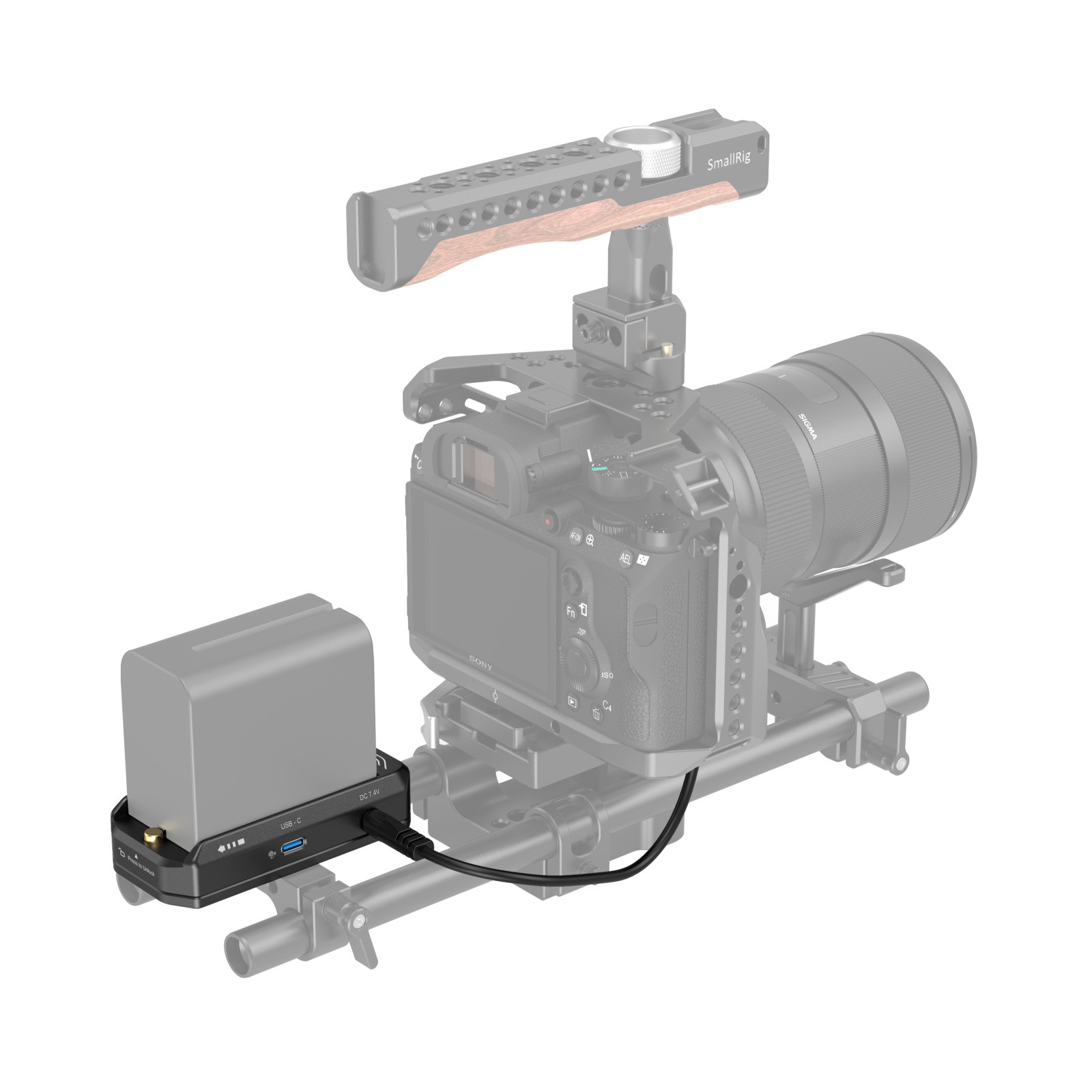

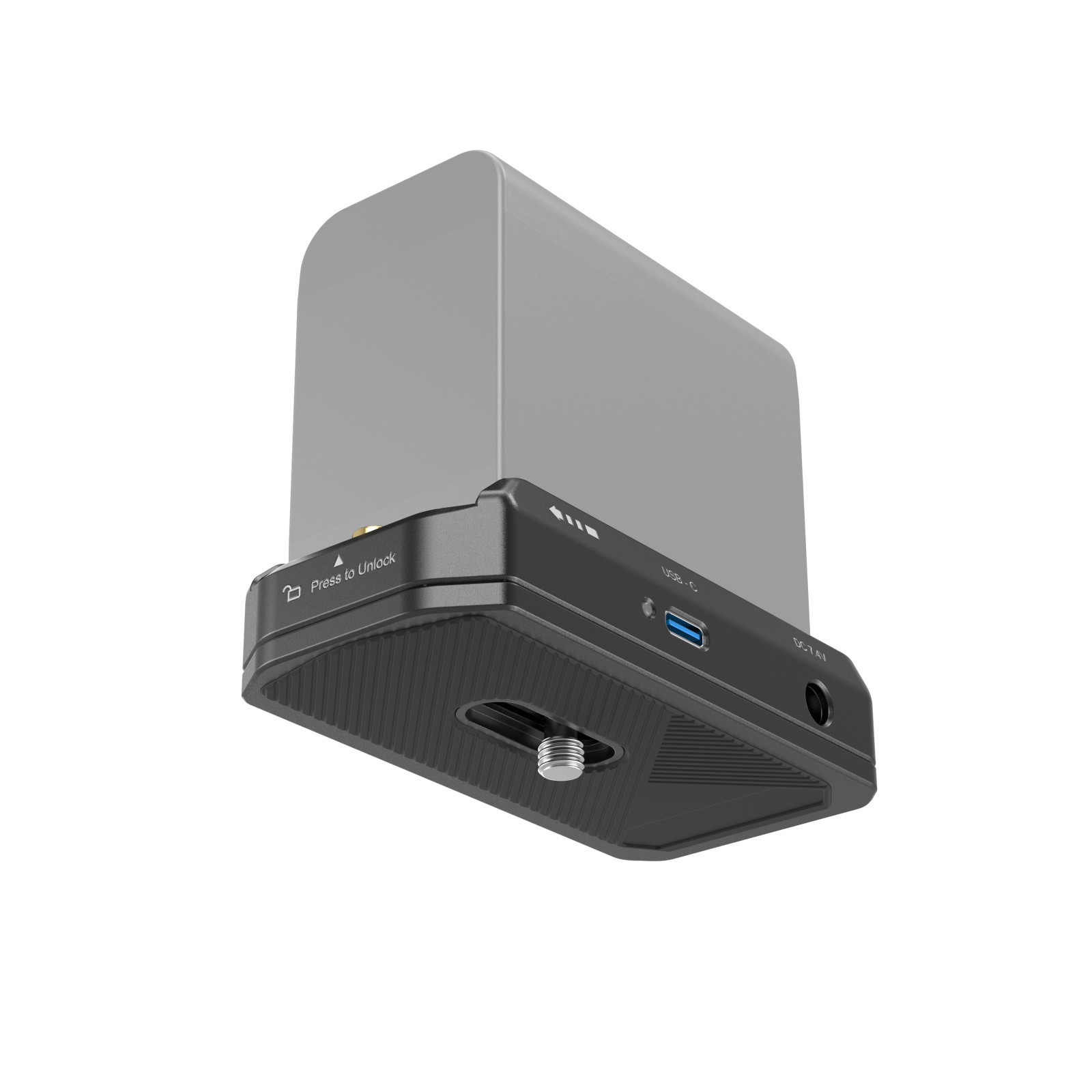

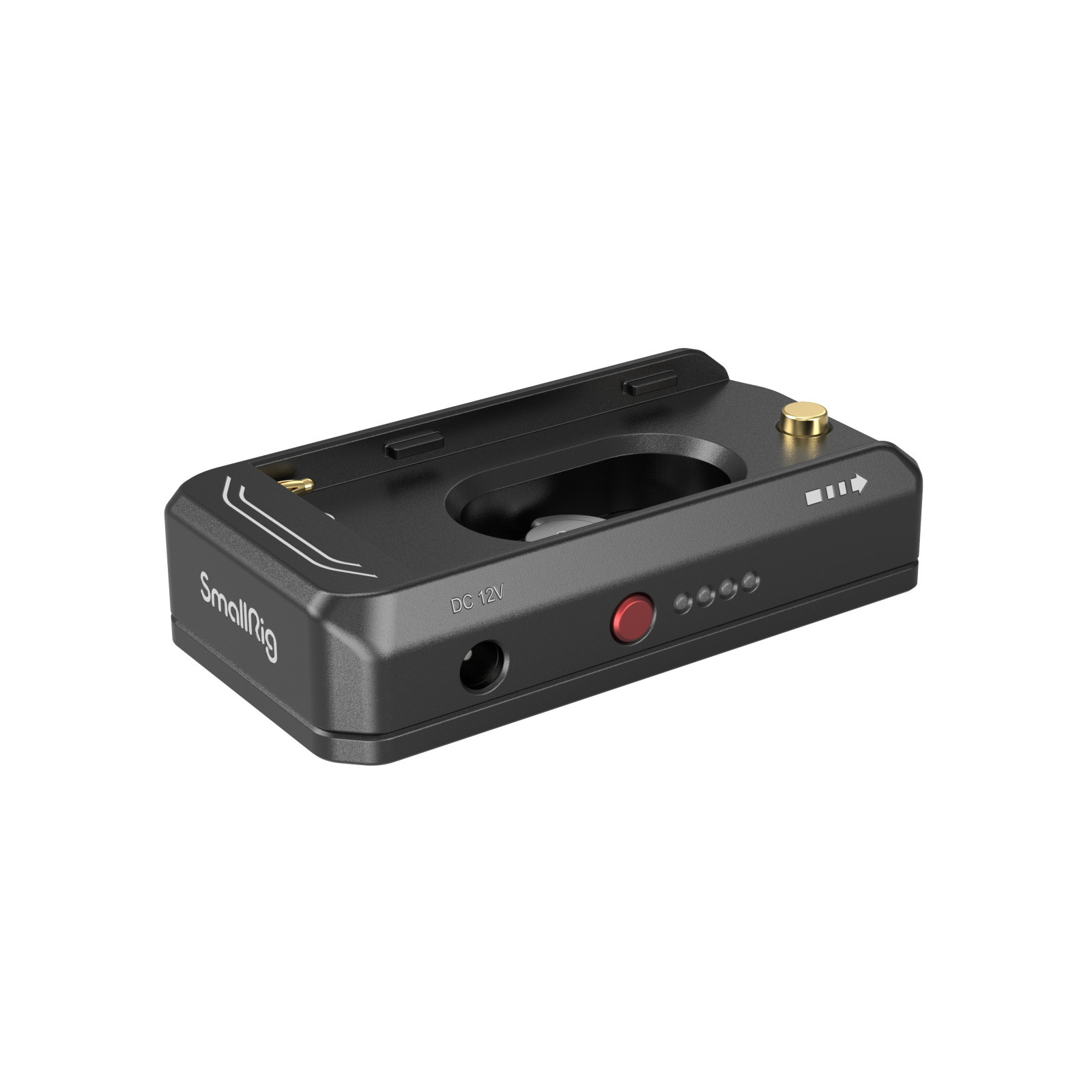

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341 is designed to enable NP-F batteries on the market (including Sony original and third-party batteries) to power Sony FX3 / FX30/ ?7CR / ?7C II / ?7 IV/ ZV-E1 and various mirrorless cameras, the set can achieve long-lasting power supply. The NP-F Battery Plate is made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4”-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.
Certification: FCC?UKCA?CE?ISED?RoHS
NP-F Battery Adapter Mount Plate Specifications:
The maximum operating power of the whole machine: ? less than battery power (based on NP-F battery capacity)
Standby power (static reference power): ?0.2W

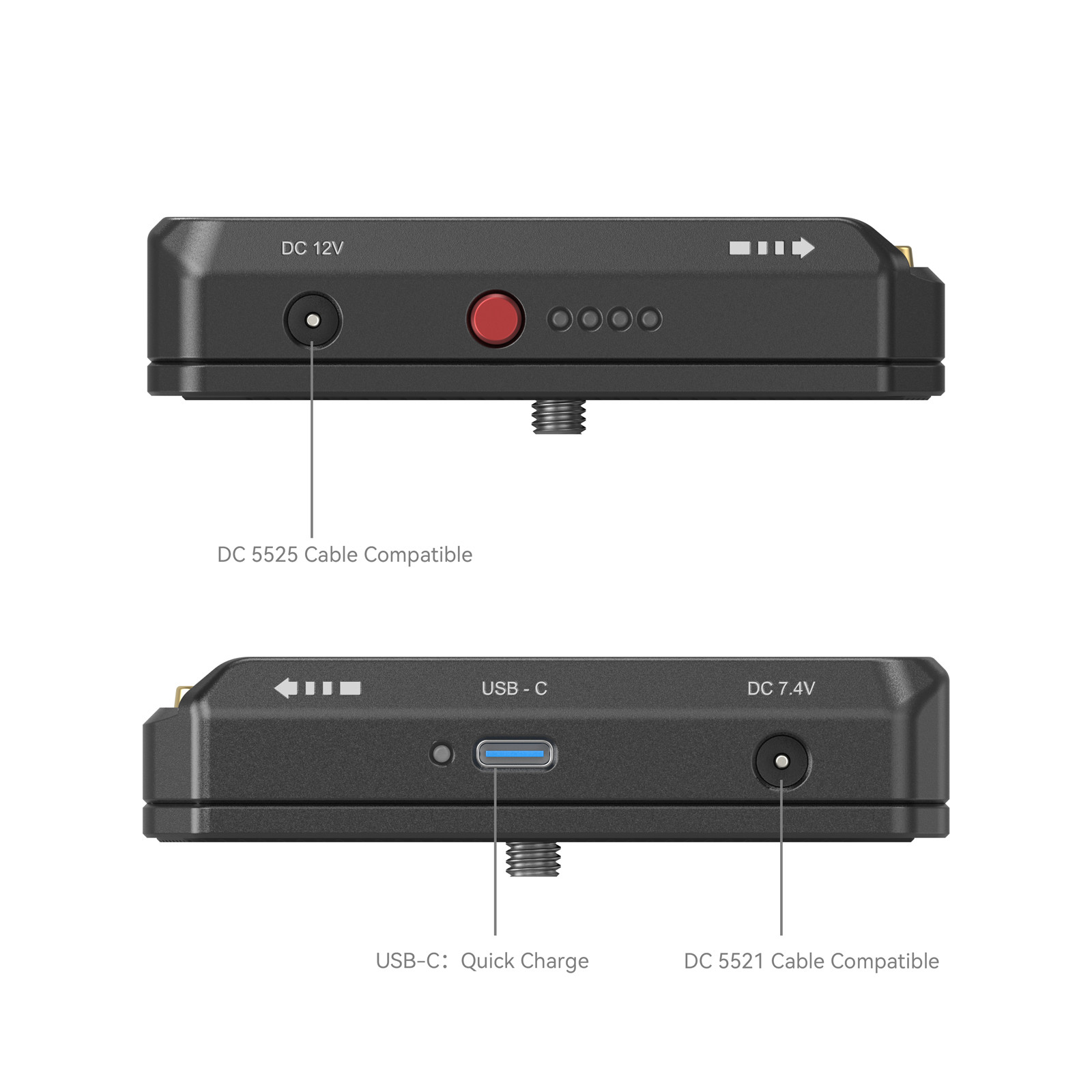

DC5521 7.4V output port: 6.4V-8.4V MAX:3A
DC5525 12V output port: 12V?5%MAX:3A
USB-C input/output port charging input: 5V / 3A,9V / 2.7A,12V / 2.1A(MAX:25W)
USB-C input/output port discharge output: 5V/3A,9V/3A12V/3A(MAX:36W)
Charging operating temperature: 0?~40?
Working humidity range: Relative humidity 20%~90%RH without condensation
Storage temperature: -40??70?
USB-C supports protocols:
Input: PD3.0?QC2.0?QC3.0?SCP?FCP?AFC
Output: PD3.0?QC2.0?QC3.0?SCP?FCP?AFC
FZ100 Dummy Battery Specifications:
Input Voltage: 7.6~8.4V
Input Current: 3A
Output Voltage: 7.6~8.4V
Output Current: 2A(Max)
NP-F Battery Adapter Mount Plate Button/Indicator Function Display:
Power Display Button: Touch to check the battery level
Working Indicator Light:
USB-C port charging and discharging indicator light: Orange – slow charge/slow discharge, ice blue light – fast charge/fast discharge
battery indicator: Four LEDs, one light flashes when below 10%, one light on when 10%-25%, two lights on when 25%-50%, three lights on when 50%-75%, four lights on when 75%-100%
Work With
3168B NP-F Battery Adapter Mount Plate: Sony NP-F battery
NP-FZ100 Dummy Battery Power Cable: Sony ?6600 / ?9 II / ?7 III / ?7R III / ?1 / ?7C / ?7S III / ?7R IV / ?7R V / ?6700 / FX3 / FX30 / ?7CR / ?7C II / ?7 IV / ZV-E1

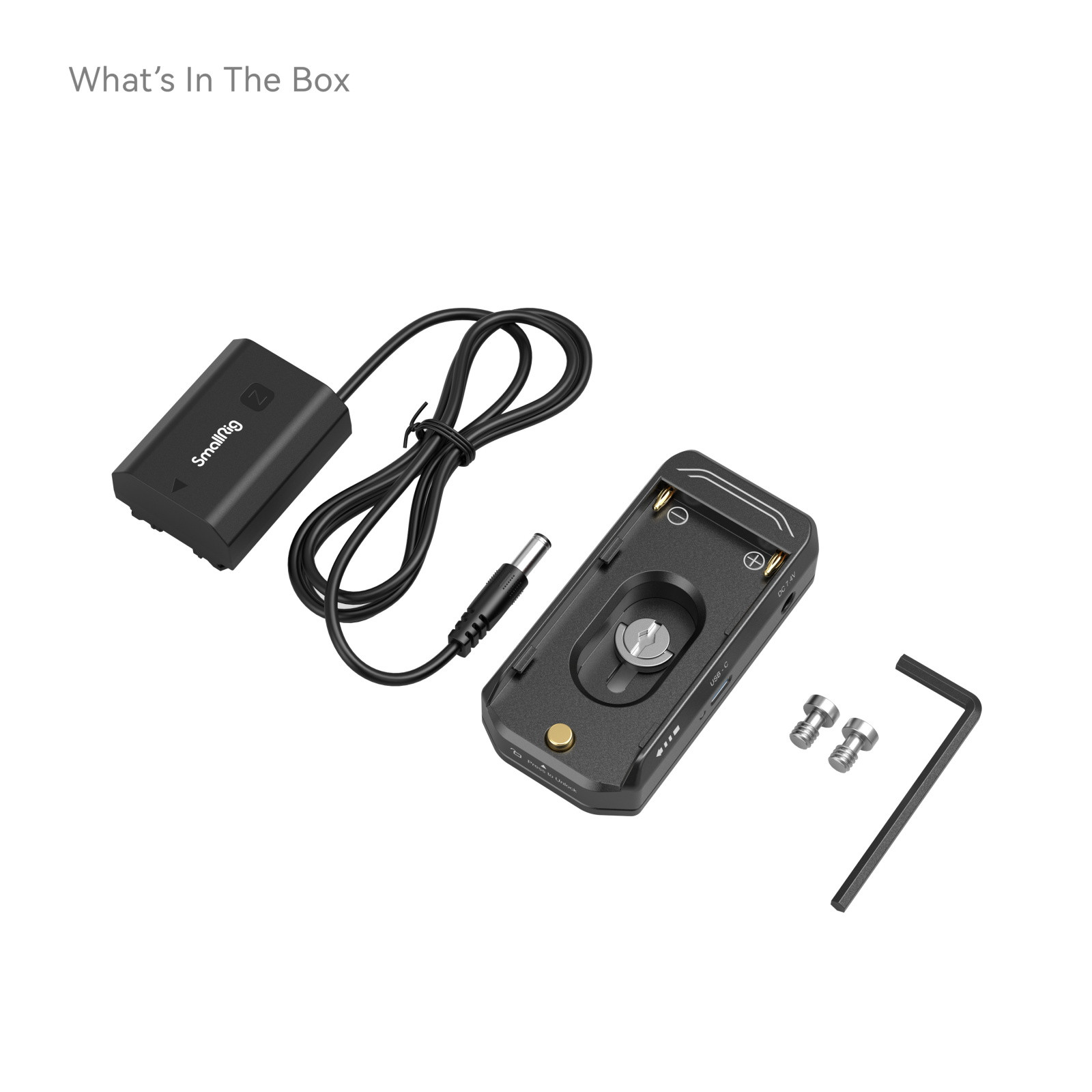

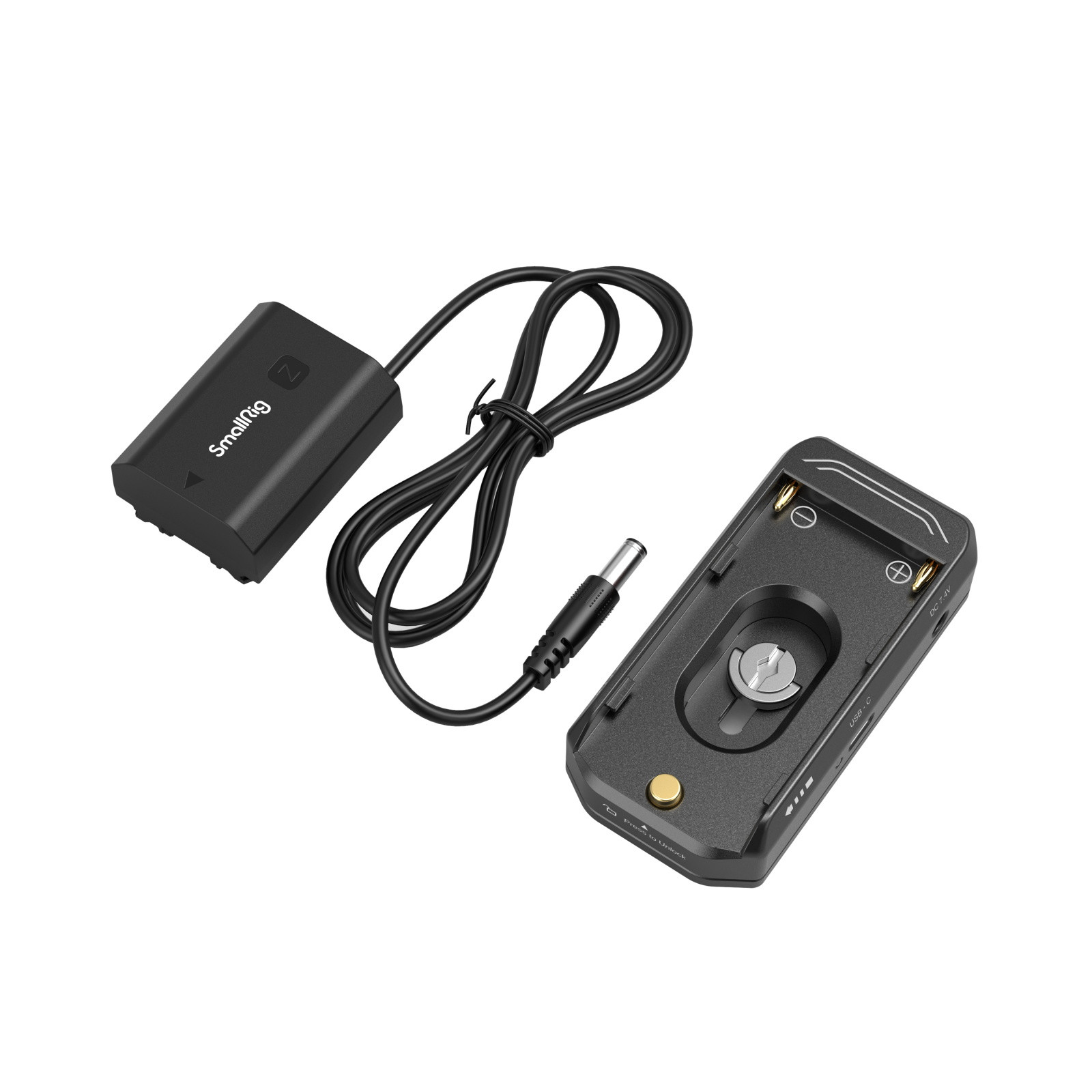

Packing List
3168B NP-F Battery Adapter Mount Plate x 1
DC5521 to NP-FZ100 Dummy Battery Power Cable x 1
1/4”-20 Screw x 1
Allen Wrench x 1
User Manual x 1
Technical Data

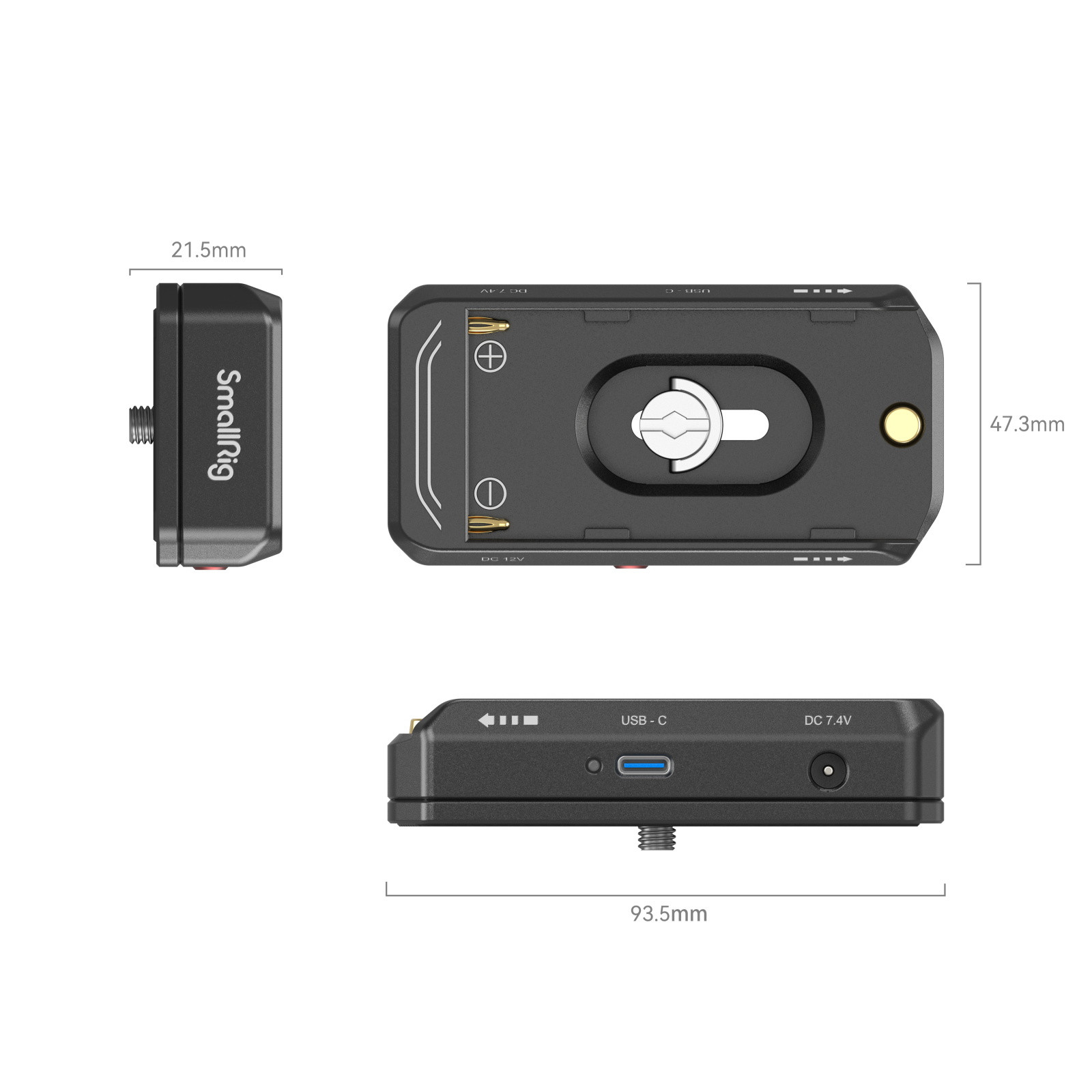

Product Dimensions:
94 x 47 x 23mm (3168B)
1050 x 38.7 x 22.7mm (DC5521 to NP-FZ100 Dummy Battery Power Cable)
Package Dimensions: 101 x 66 x 55mm
Product Weight: 156 ? 5g
Package Weight: 185.4 ? 5g
Material(s): CNC+ABS
