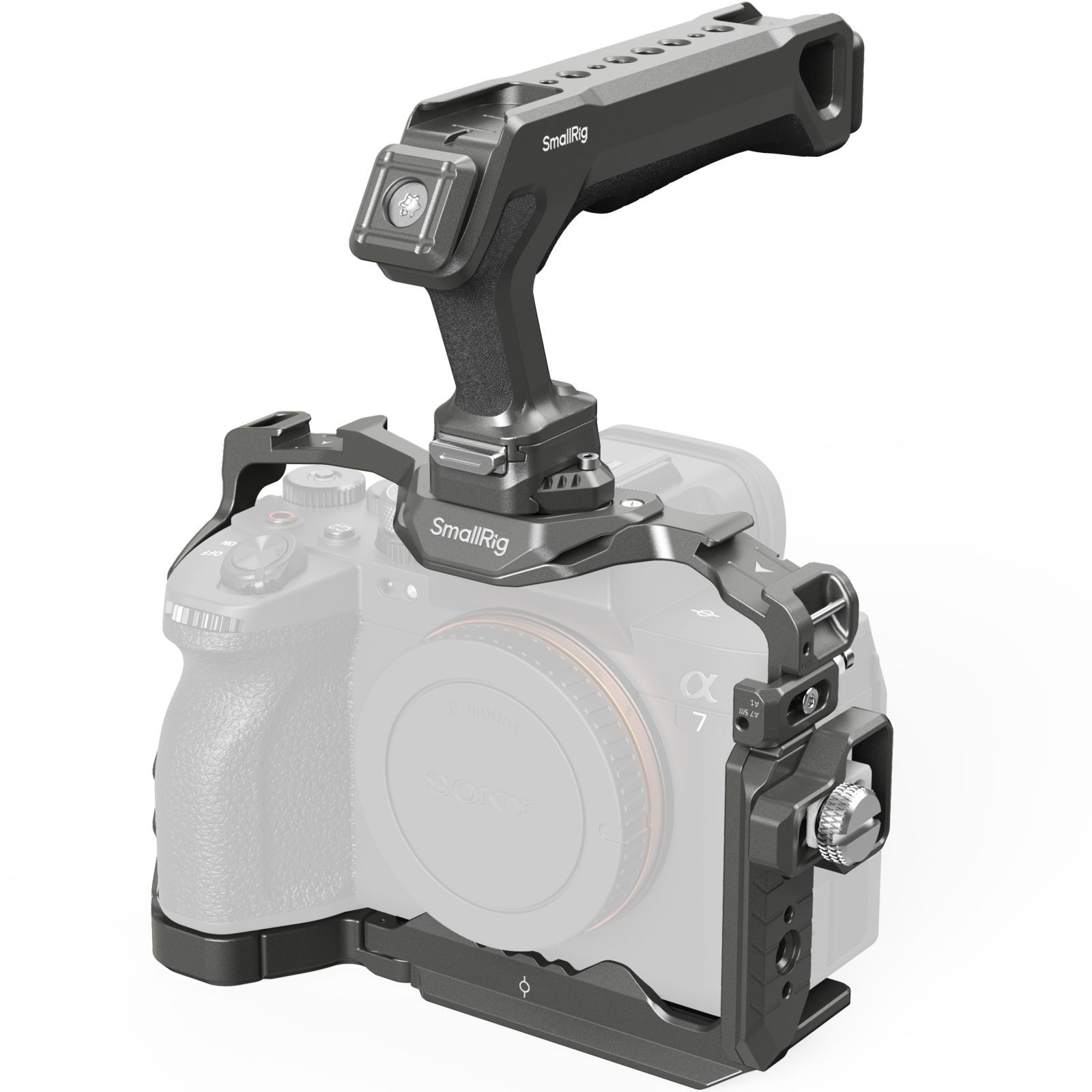

SmallRig HawkLock Quick Release Cage Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 4538

SmallRig HawkLock Quick Release Cage Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 4538

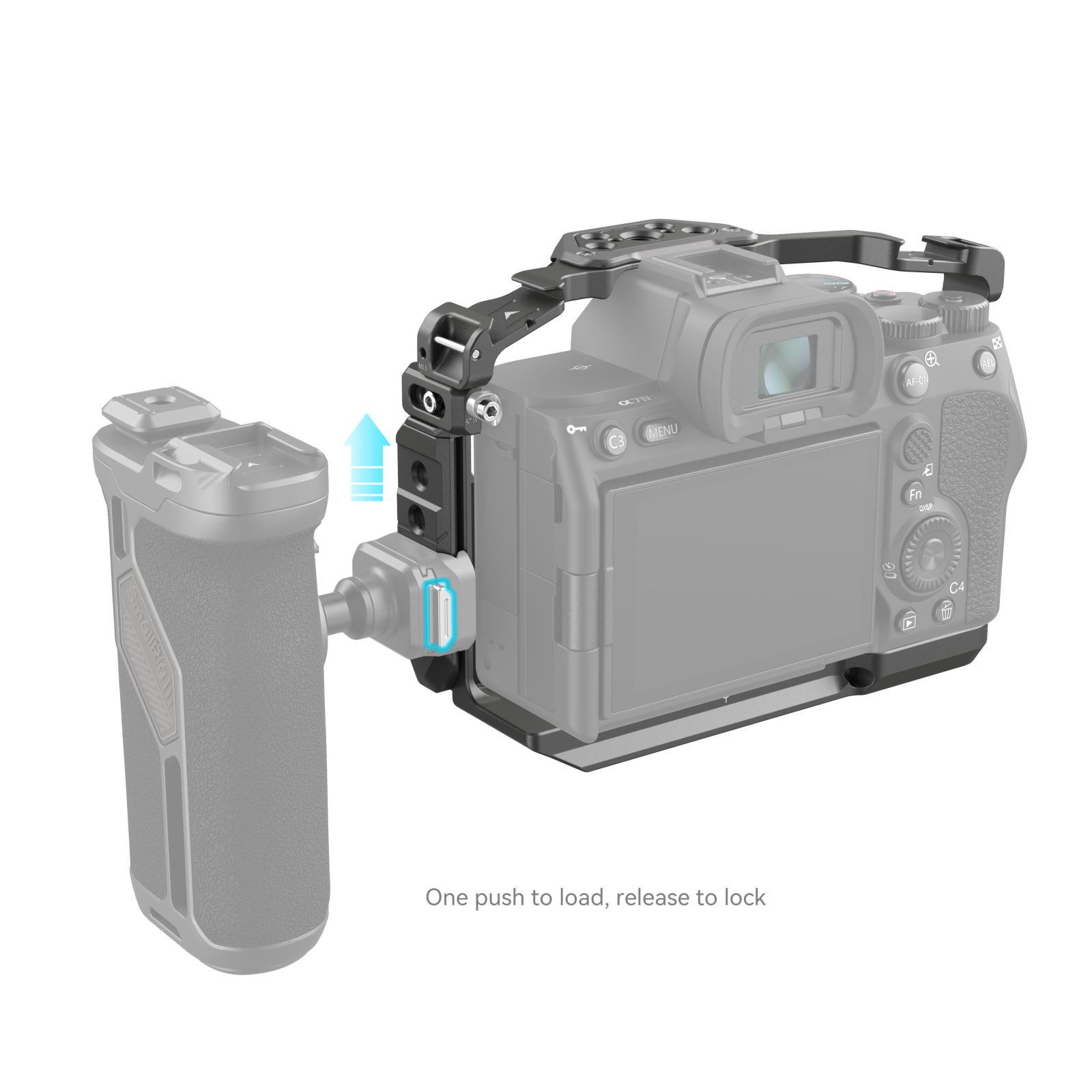

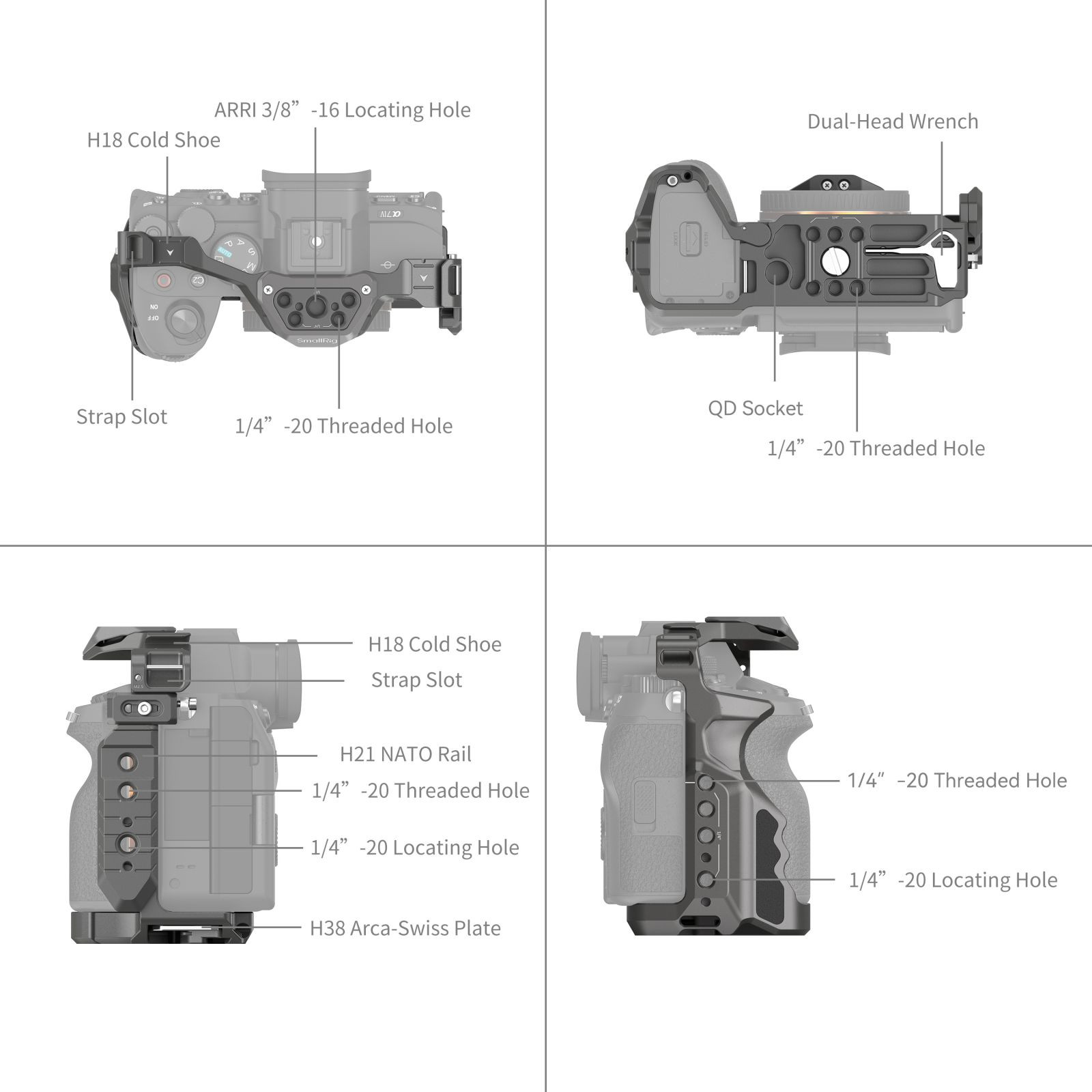

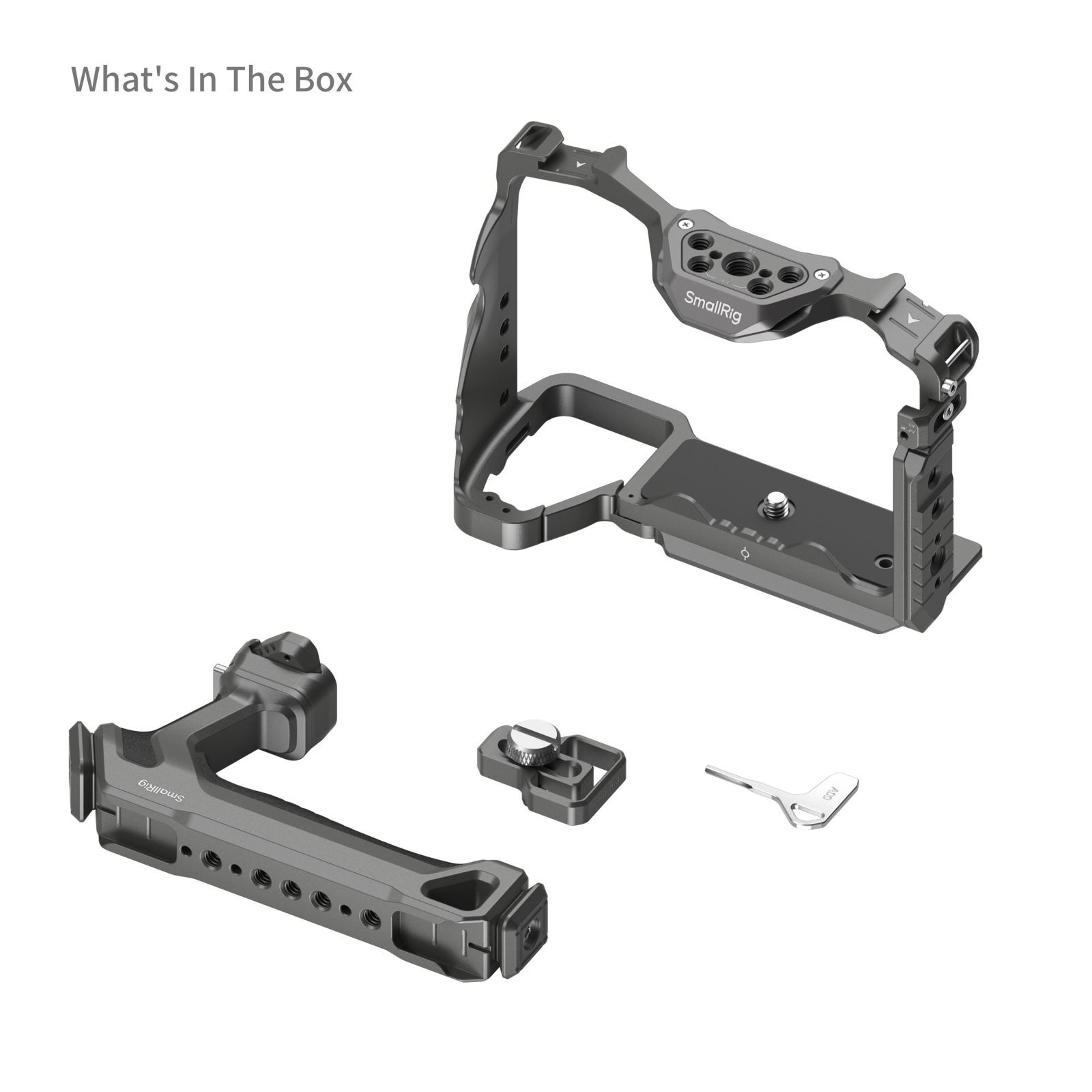

SmallRig HawkLock Quick Release Cage Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 4538 is designed to facilitate low-angle shots and protect the camera while offering a wide range of accessory mounts. It includes a cage, an HDMI cable clamp, a NATO rail, and a top handle. The patented self-developed quick-release structure (named HawkLock) covers cold shoes, NATO rail, and arca swiss, which is used with HawkLock eco-accessories to realize solid and no false position, one push to load, release to lock, and improve the disassembly efficiency. The top handle feels comfortable and enables easy carrying and a low-angle shot. 1/4″-20 threaded holes, ARRI 3/8″ -16 locating holes, cold shoes and NATO rails QD socket support monitor mount 2294, microphones, LED lights, monitor mount 2903B, NATO accessories. The HDMI cable clamp, mounted onto the left side of the cage via one 1/4″-20 screw, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow attaching hand straps. The cage comes with a built-in magnetic flat-head screwdriver & hex spanner for easy disassembly and assembly.

Note:

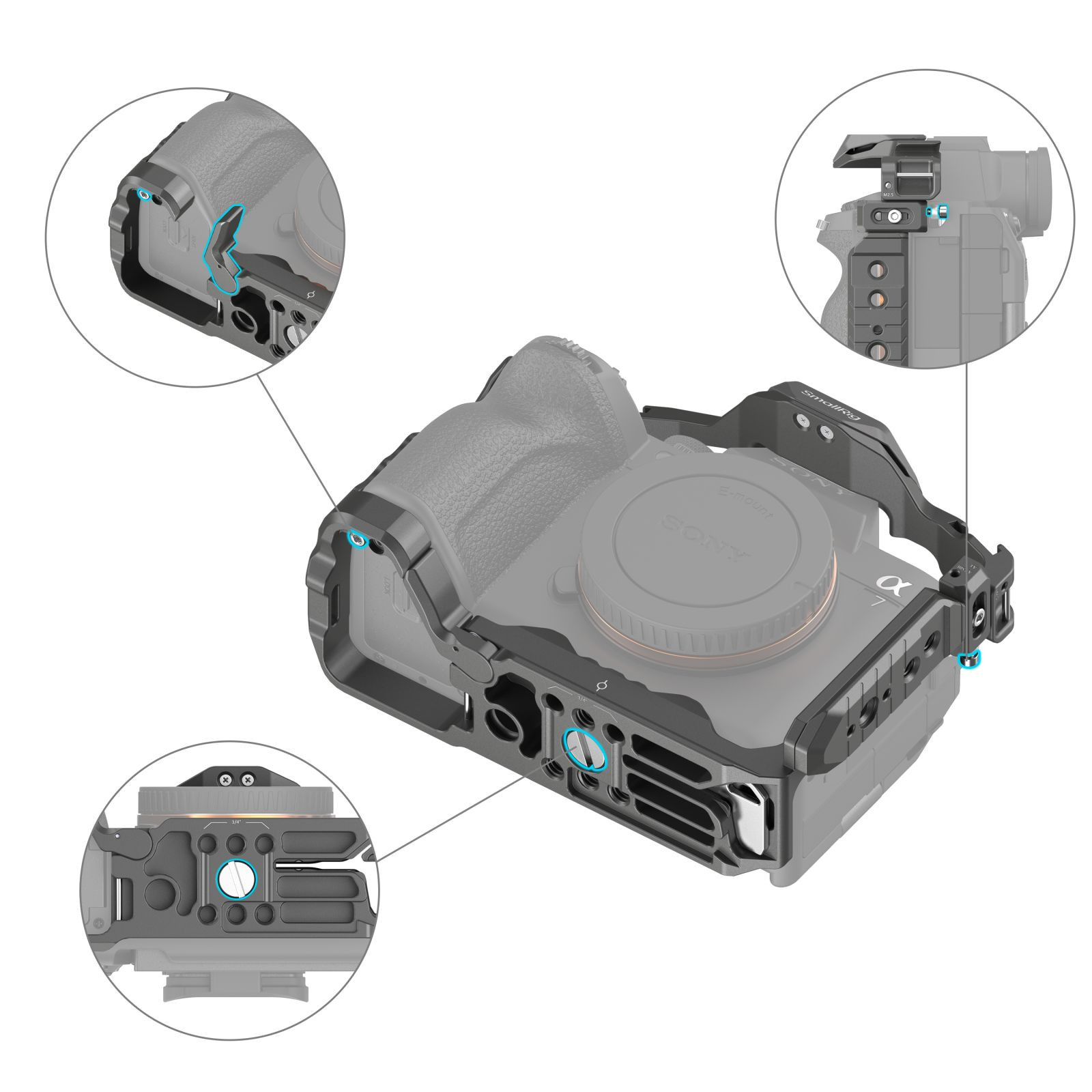

1. After fixing the 1/4″-20 screw at the bottom of the cage, remove the anti-deflection pin from the staging hole in the battery compartment position and fix it to the corresponding position.

2. To use the side lock adapter of the cage, please remove the split ring on the left side of the camera first.

3. HDMI Cable Clamp interferes with the synchroterminal interface when used on the Alpha 7R V camera.
