SmallRig HawkLock H21 Quick Release Monitor Support with NATO Clamp 4487
1. Exclusive QR-Slide patented structure for NATO clamp with suspended pins that lock the rail after sliding into a groove, making it stable and anti-deflection.
2. Load-bearing capacity of 2.5kg / 5.5lb; attenuation is below 20% after tilting 10,000 times; robust and durable.
3. Press the button and slide in the NATO rail in either direction and release the button to lock the rail, enabling effortless and time-saving assembly.
4. The device supports 160? tilt, tightness adjustment of the rotating axis, and 360? swivel for multi-angle camera or monitor positioning.
$66.90
SmallRig HawkLock H21 Quick Release Monitor Support with NATO Clamp 4487

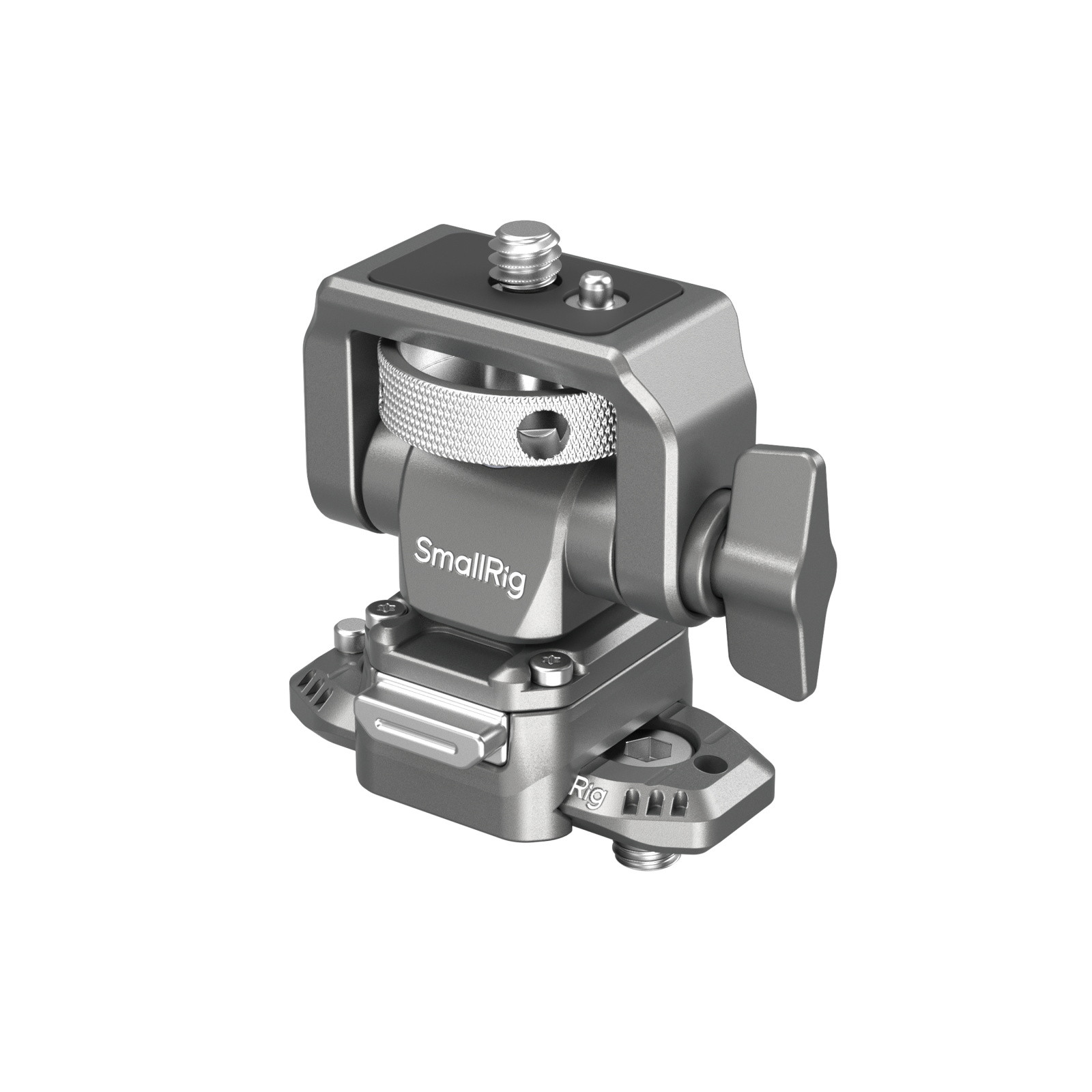

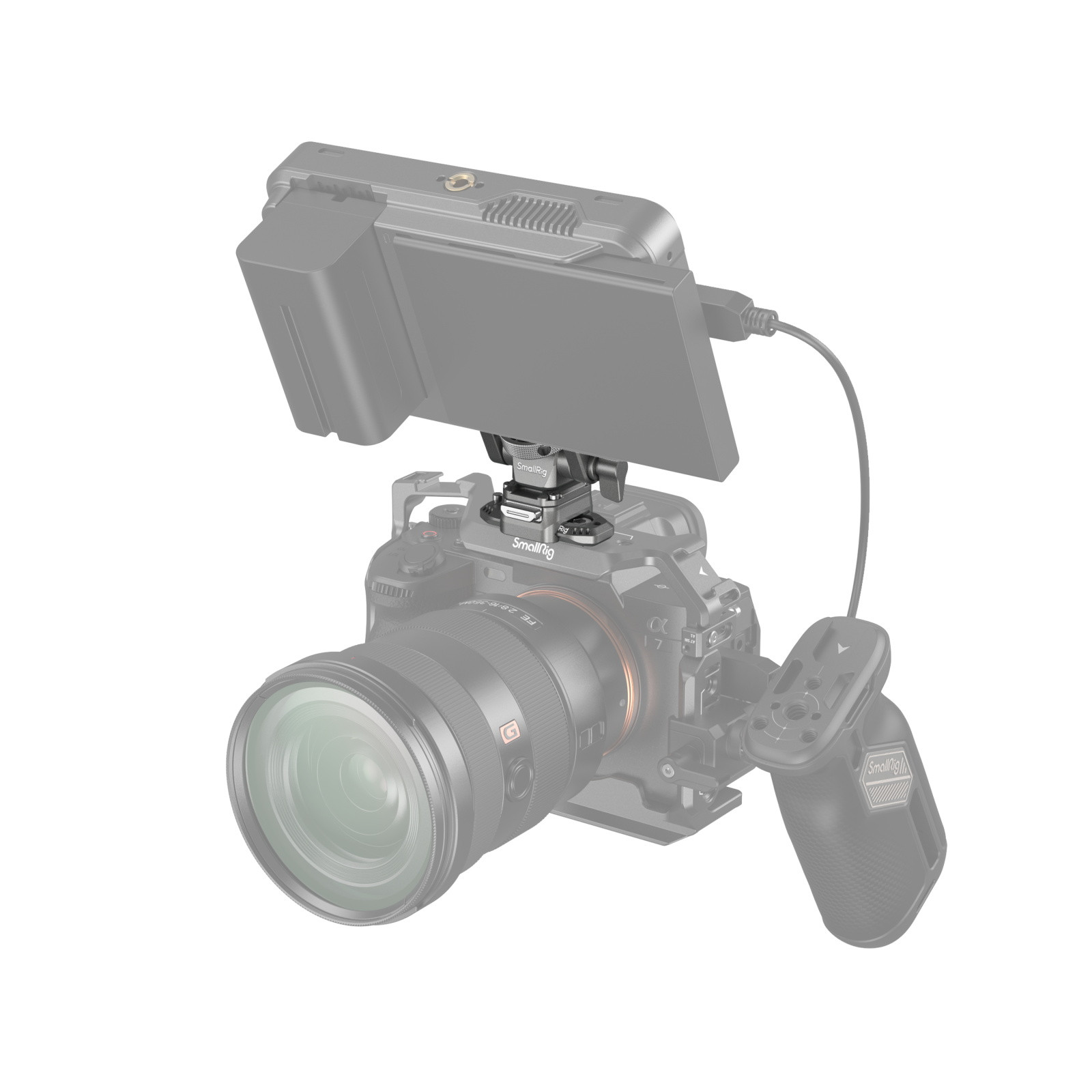

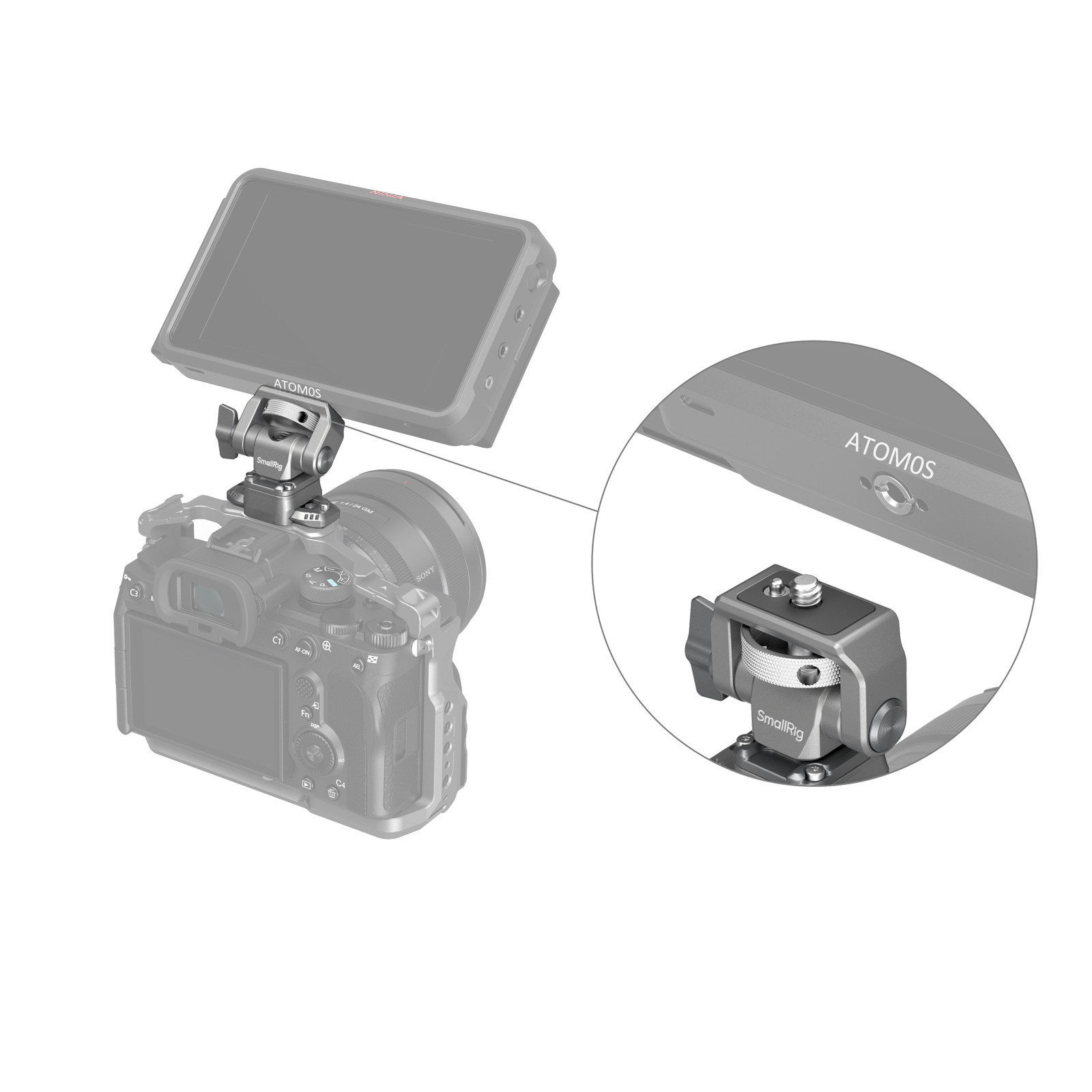

SmallRig HawkLock H21 Quick Release Monitor Support with NATO Clamp 4487 consists of a quick-release monitor mount with NATO clamp and a quick release NATO rail. Press the button to flare the pins and slide the NATO rail into the groove. Release the button to securely lock the NATO rail into the monitor mount, making the construction stable and the process time-saving. The 1/4″-20 screw on the top can be used to mount a monitor, microphone, light, or, due to the built-in spring-loaded locating pin, Ninja V / Ninja V+ monitor to prevent deflection. The item supports 160? tilt adjustment, and the tightness of the tilt axis can be quickly adjusted via the knob to better adapt to equipment of different weights. The device can hold up to 2.5kg / 5.5lb, and the attenuation is below 20% after 10,000 times tilting, making it durable. 360? swivel adjustment with horizontal axis tightness adjustment with the included hex wrench.
