SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B
- Standard V-mount, compatible with most V-mount batteries.
- PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.
- D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.

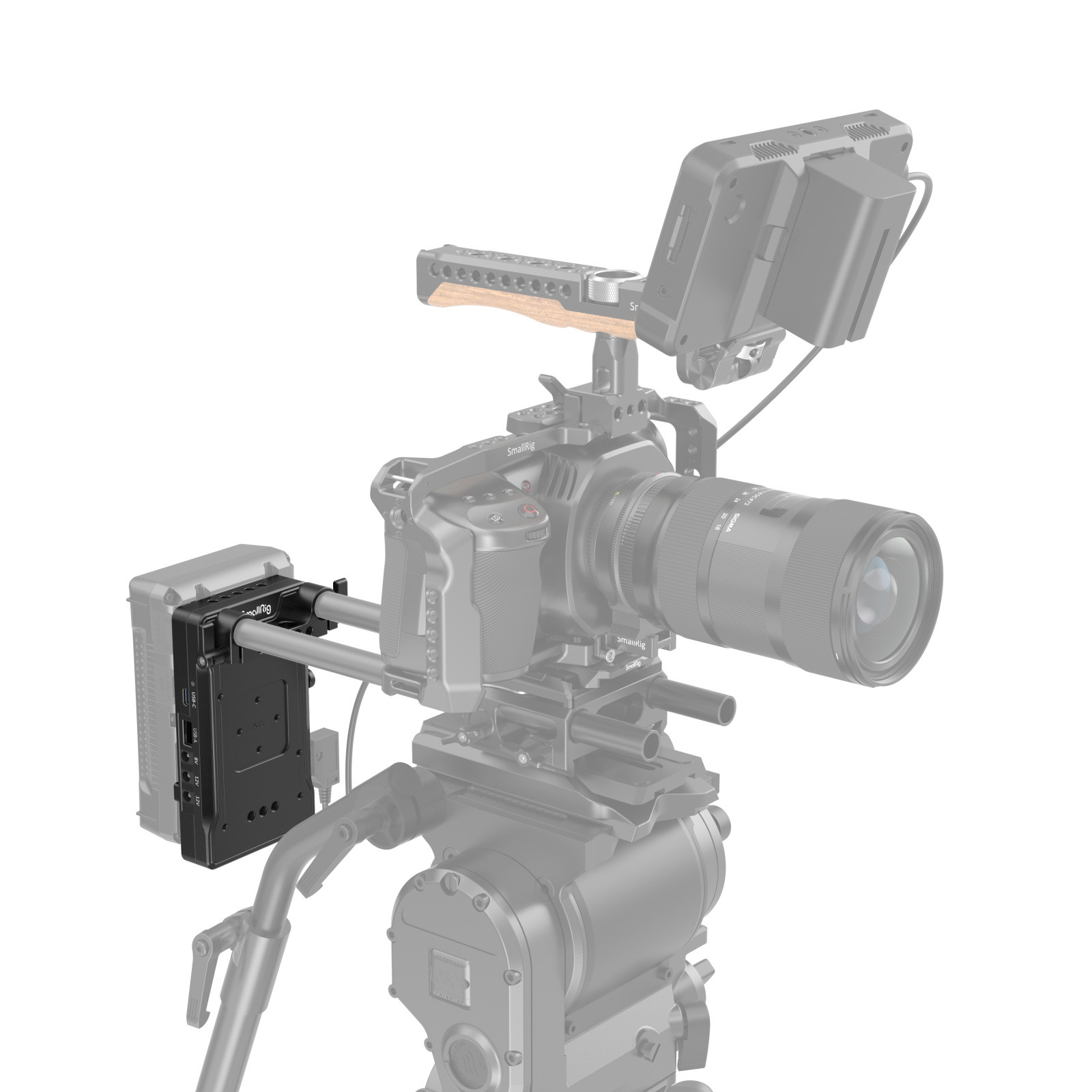

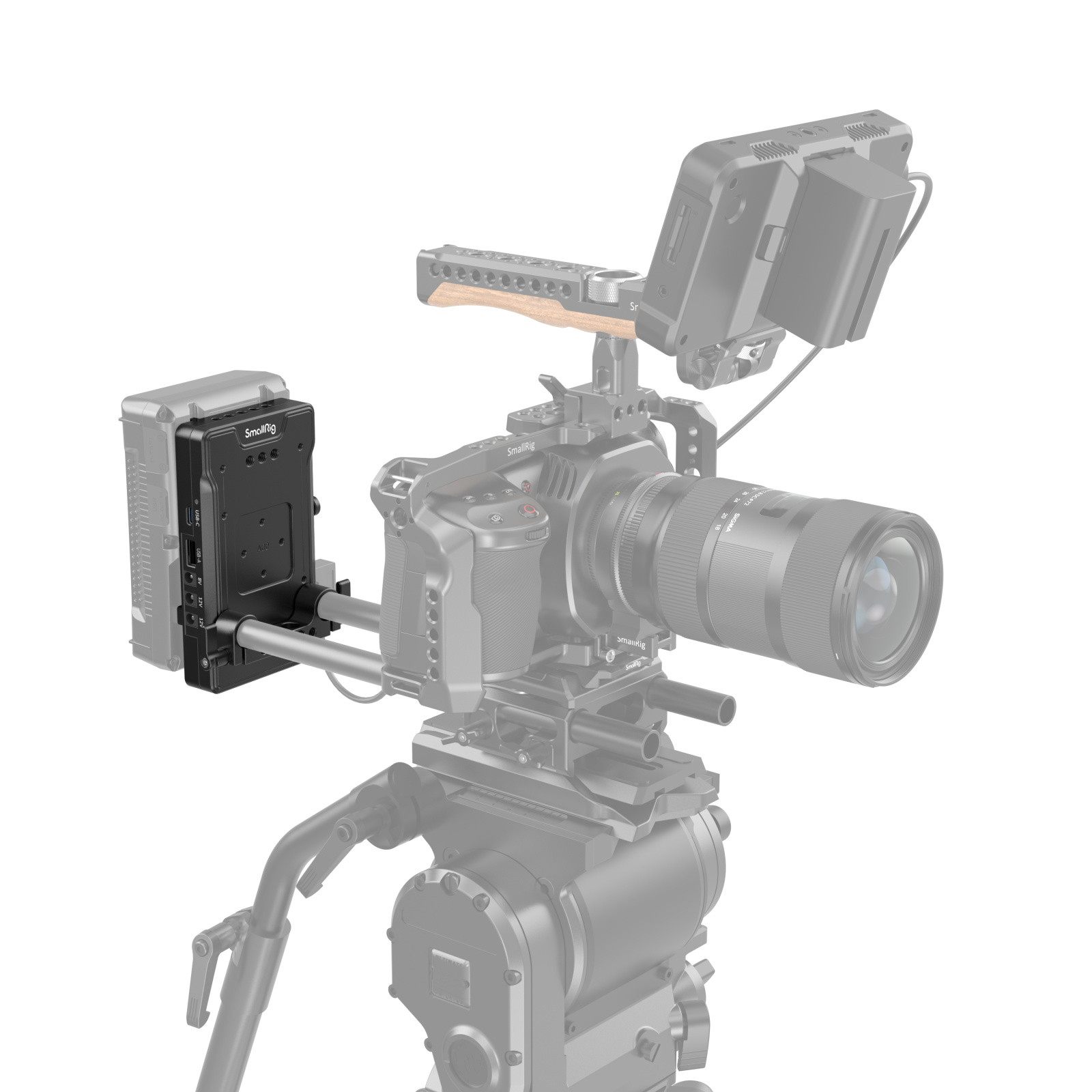

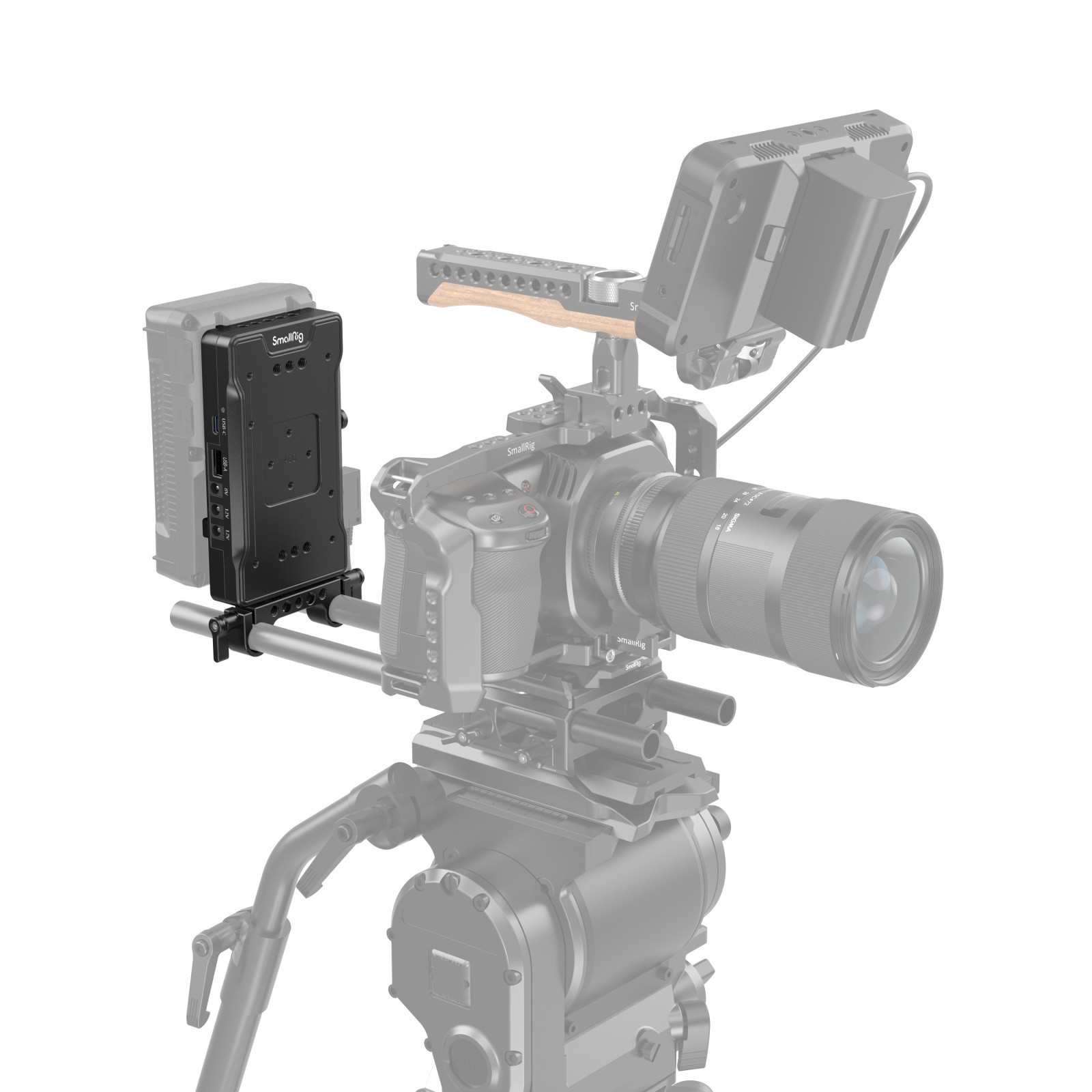

- Quickly mounts onto 15mm LWS rod system.
- 1/4″-20 threaded holes for dual rod clamp and other accessories.
$147.90

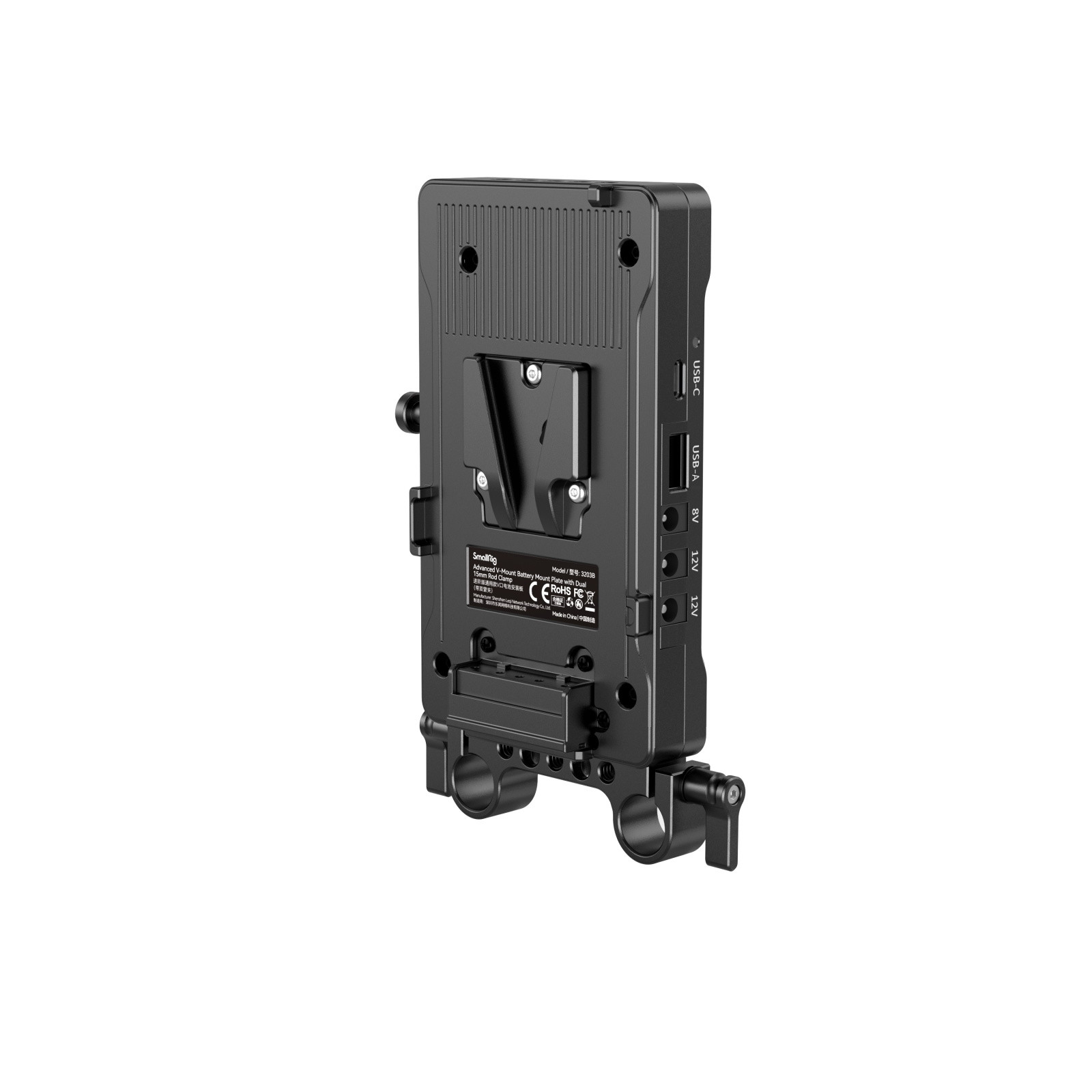

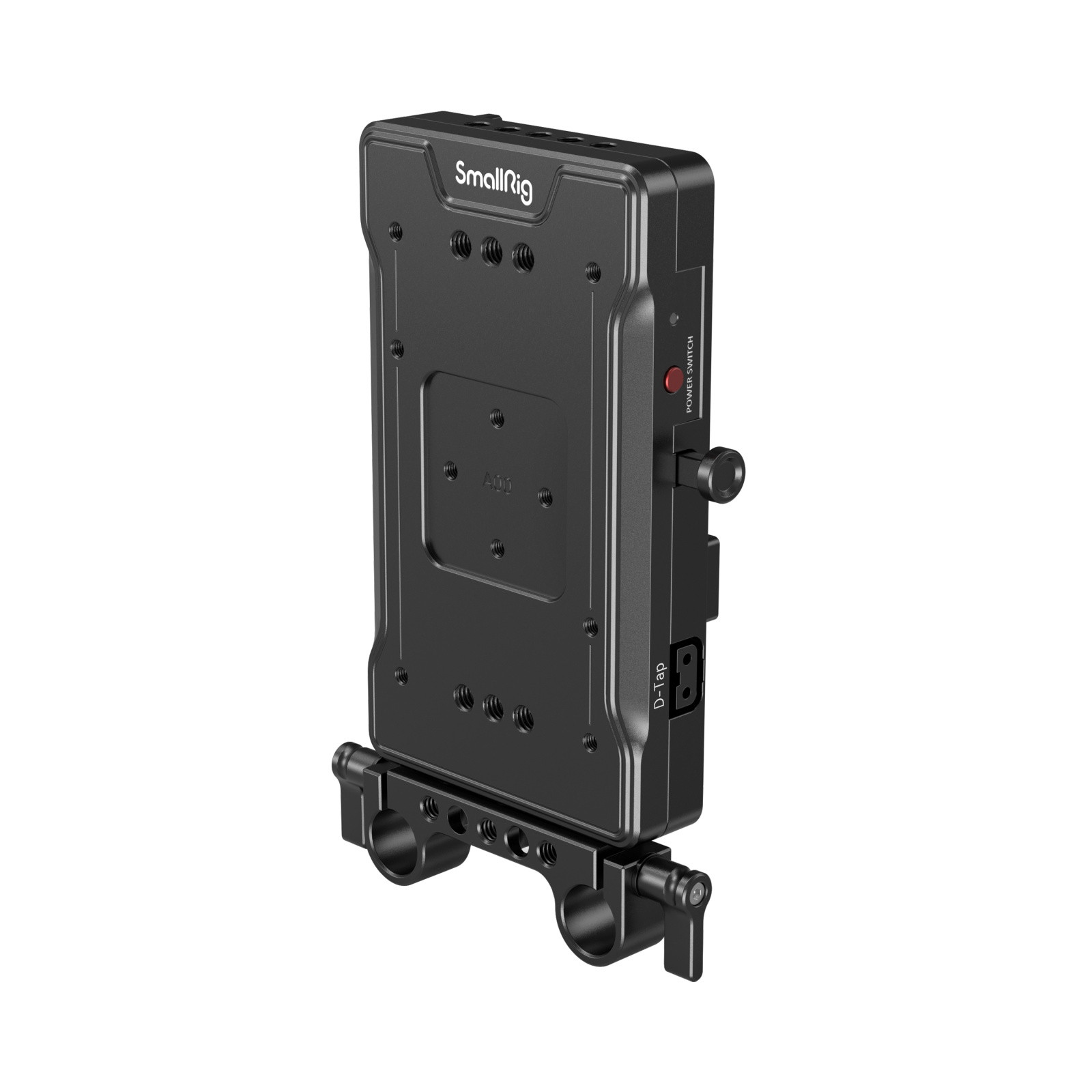

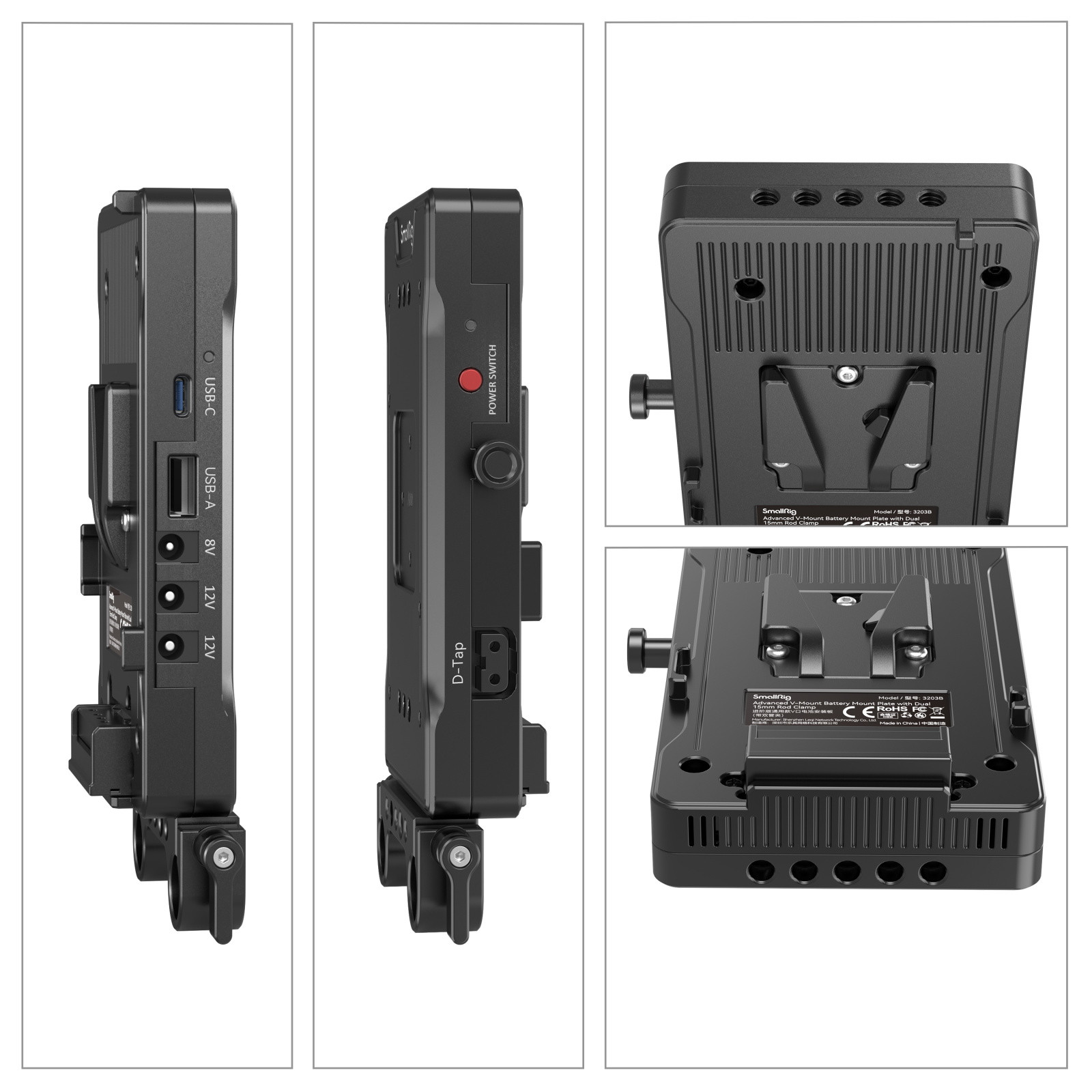

SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B can quickly mount onto a 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4″-20 threaded holes and ten M4 threaded holes on the back, five 1/4″-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on/off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.
Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED
Note: Product weight and dimensions may have measurement errors.
Functions Description:
Charging / Discharging: USB-C charging
Indicator Light: orange light—slow charging/discharging, ice blue light—fast charging/discharging
Power Indicator Light:
Light on—powered on
light off—powered off
light flashing—working temperature exceeds 65℃
Power on / off Button:
Power on—tap the button; power off—long press the button for 2 seconds
D-Tap, USB-A, and DC output are unavailable after powering off
D-Tap input and USB-C input/output available after powering off
