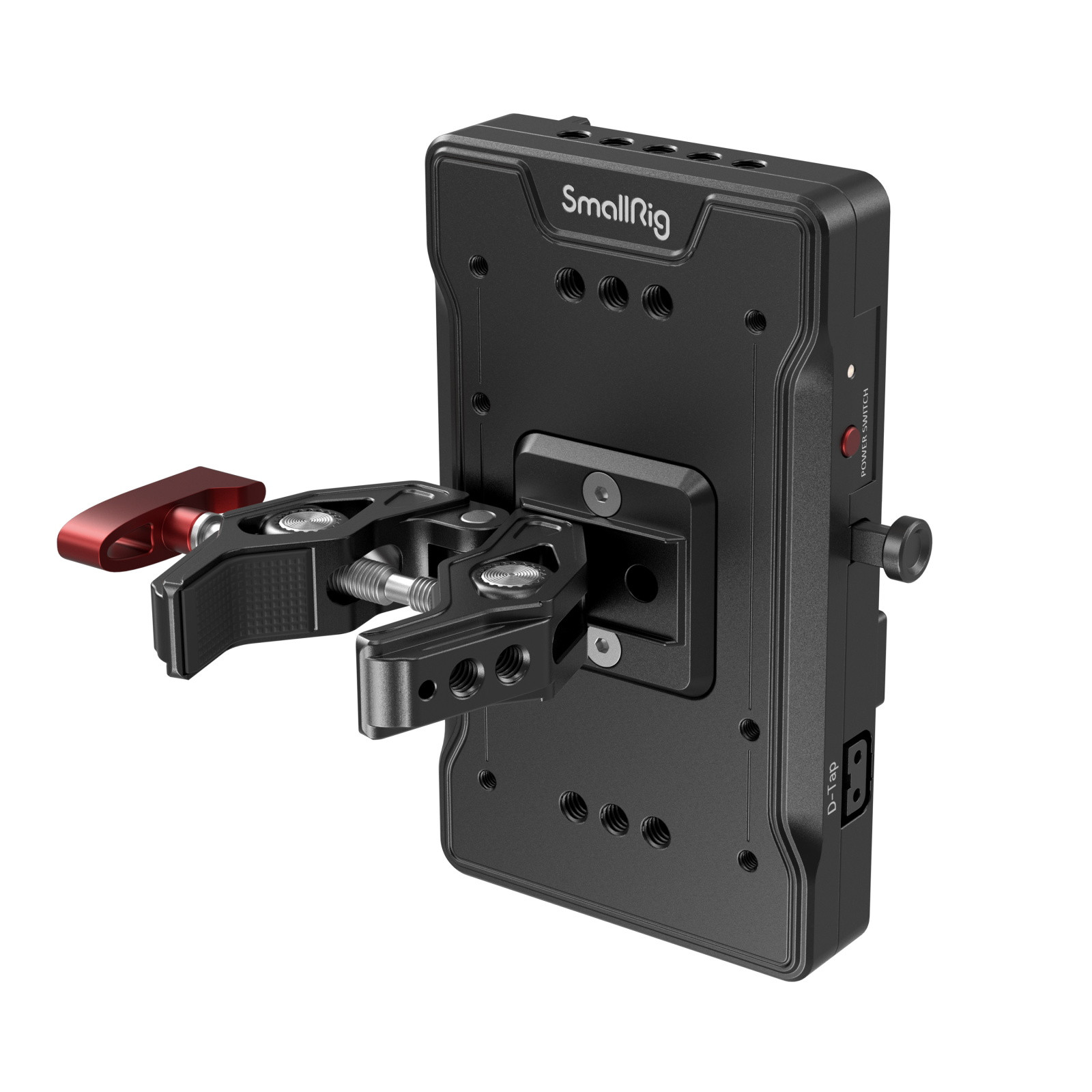

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B

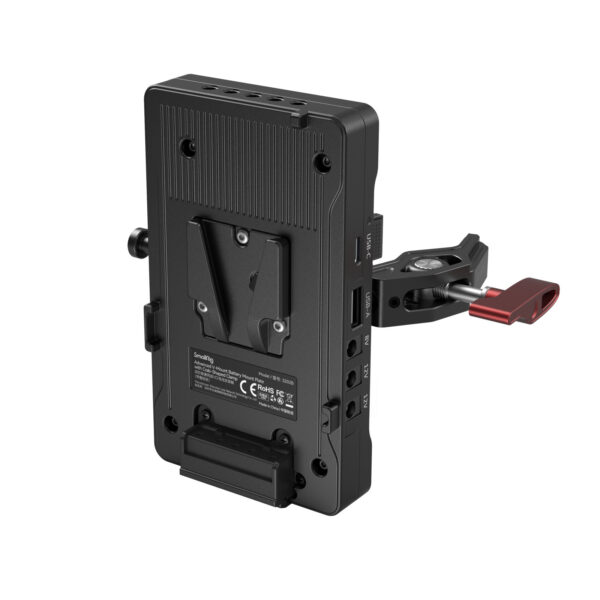

Standard V-mount, compatible with most V-mount batteries.

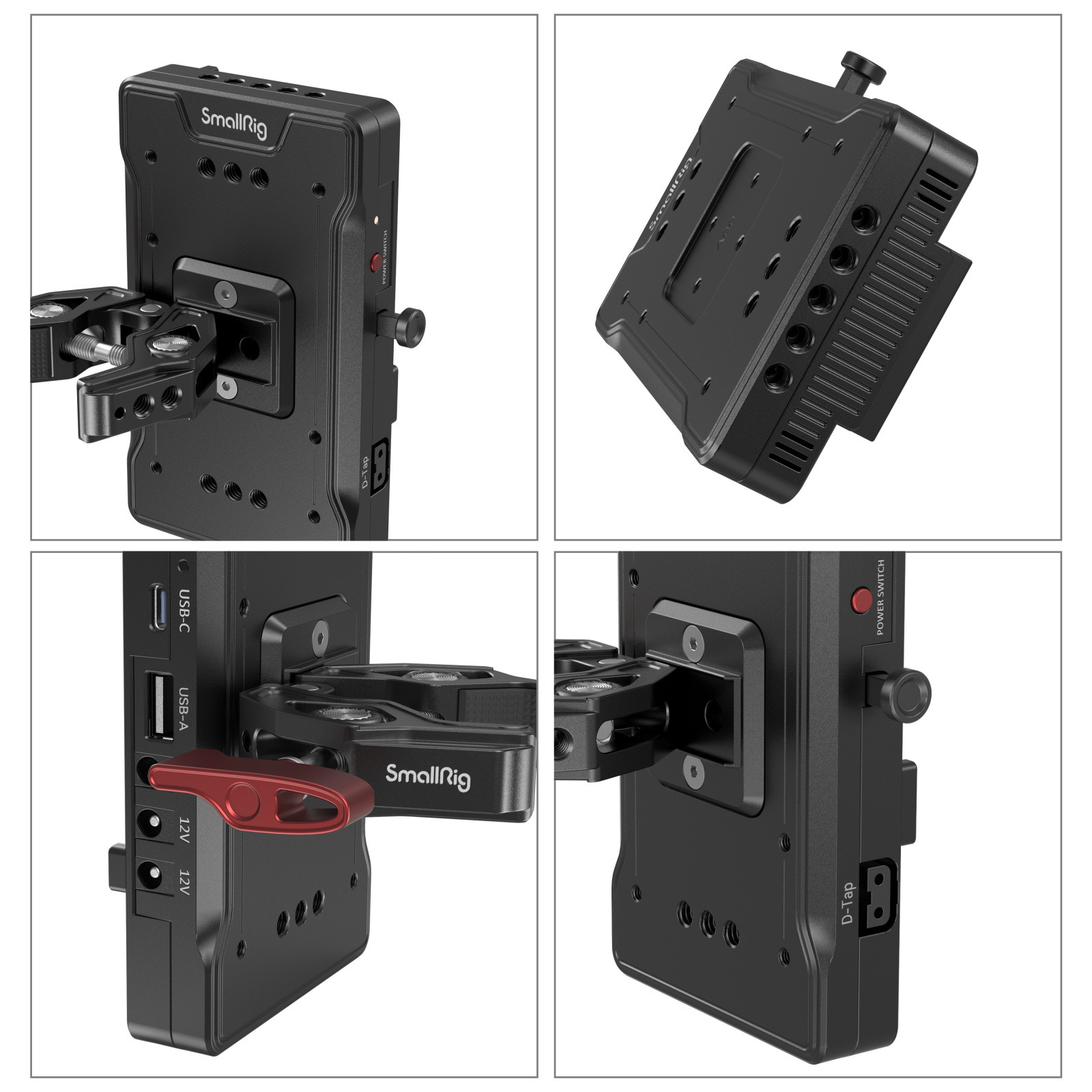

PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.
D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.

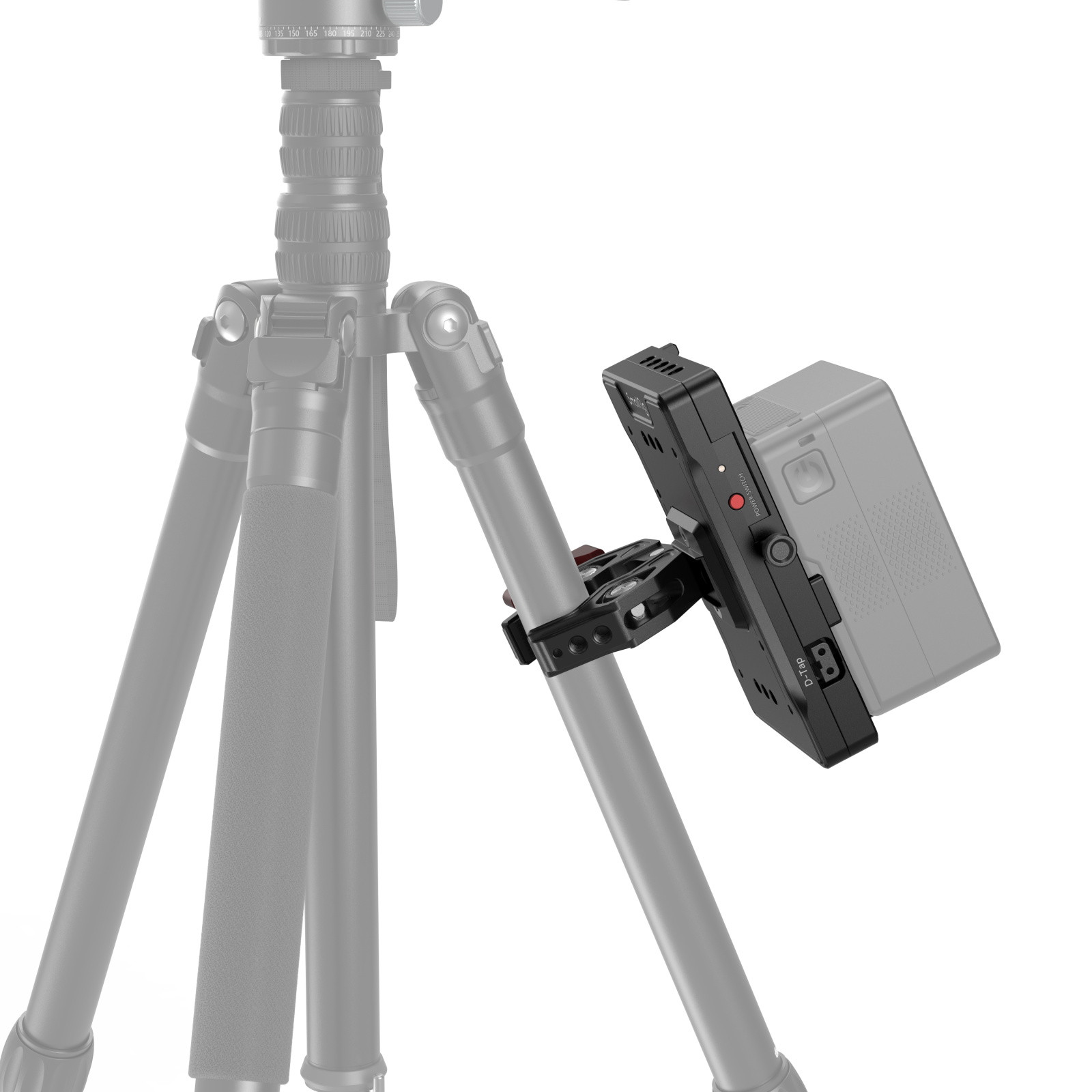

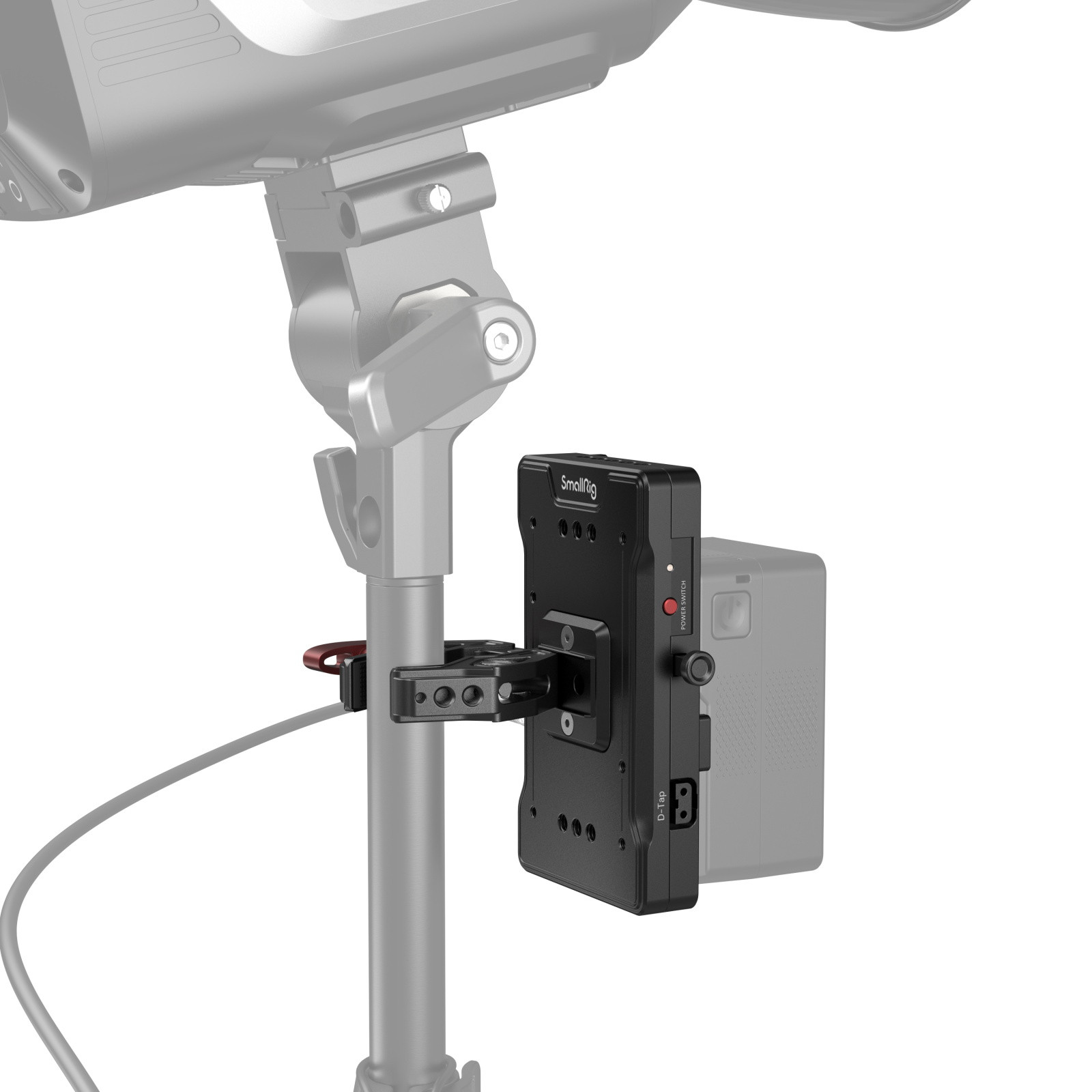

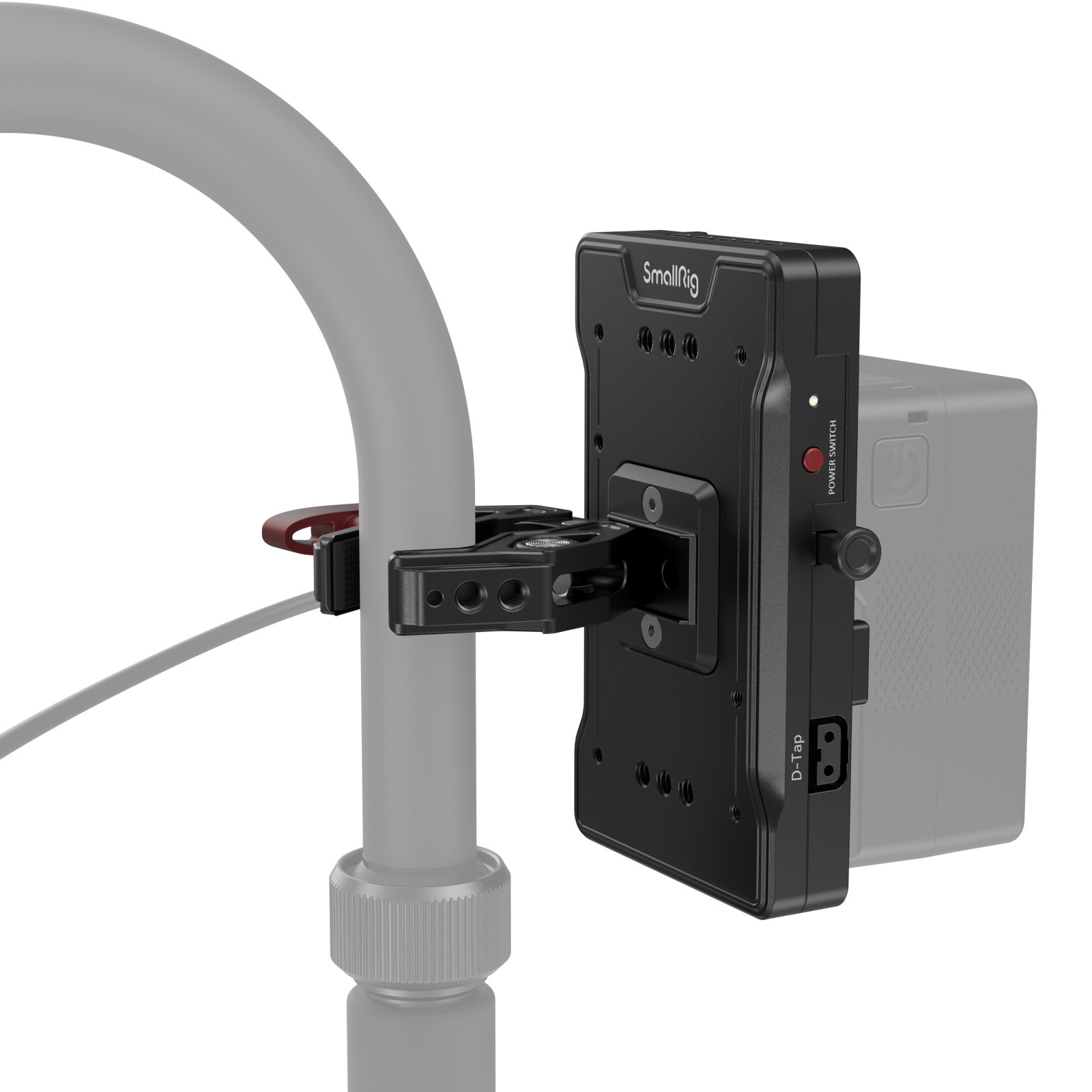

Supports 15-40mm rod for tripod, light stand, hand-held ring, etc.
1/4″-20 threaded holes for dual rod clamp, magic arm, etc.

$147.90

Description

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4″-20 threaded holes, and ten M4 threaded holes on the back, five 1/4″-20 threaded holes on the top and bottom, which support crab-shaped clamp, dual rod clamp, magic arm, etc. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED

Note: Product weight and dimensions may have measurement errors.

Warning:

1. Do not use it in a damp environment to avoid short circuits.

2. When the indicator light keeps blinking, it means the working temperature exceeds 65deg. Please suspend its use.

3. Please do not drop the product, or use it under high temperatures or when a short circuit occurs.

SKU: SRI-3202B Category: V-Lock and B-Mount batteries Brand: SmallRig
