SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B

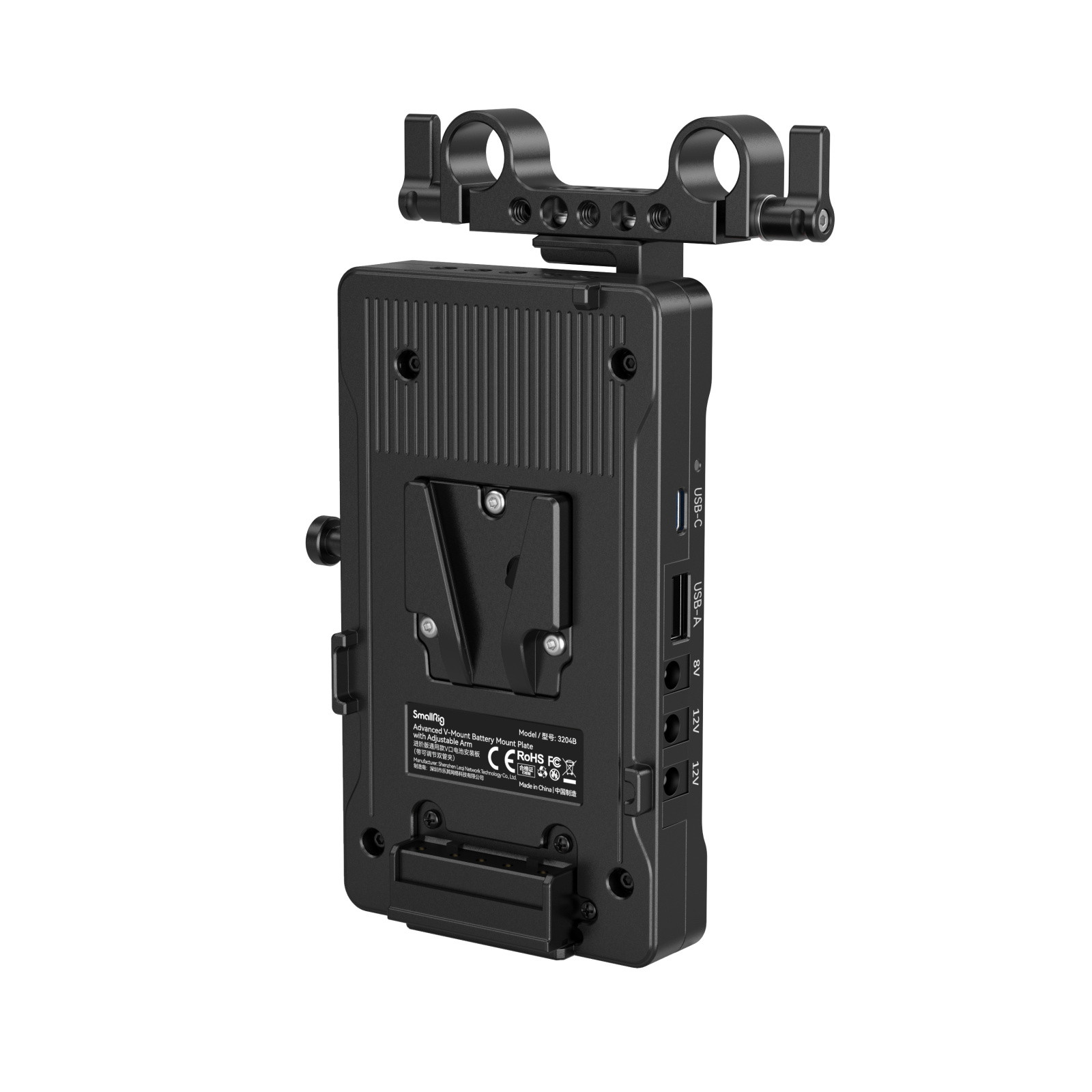

Standard V-mount, compatible with most V-mount batteries.
PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.

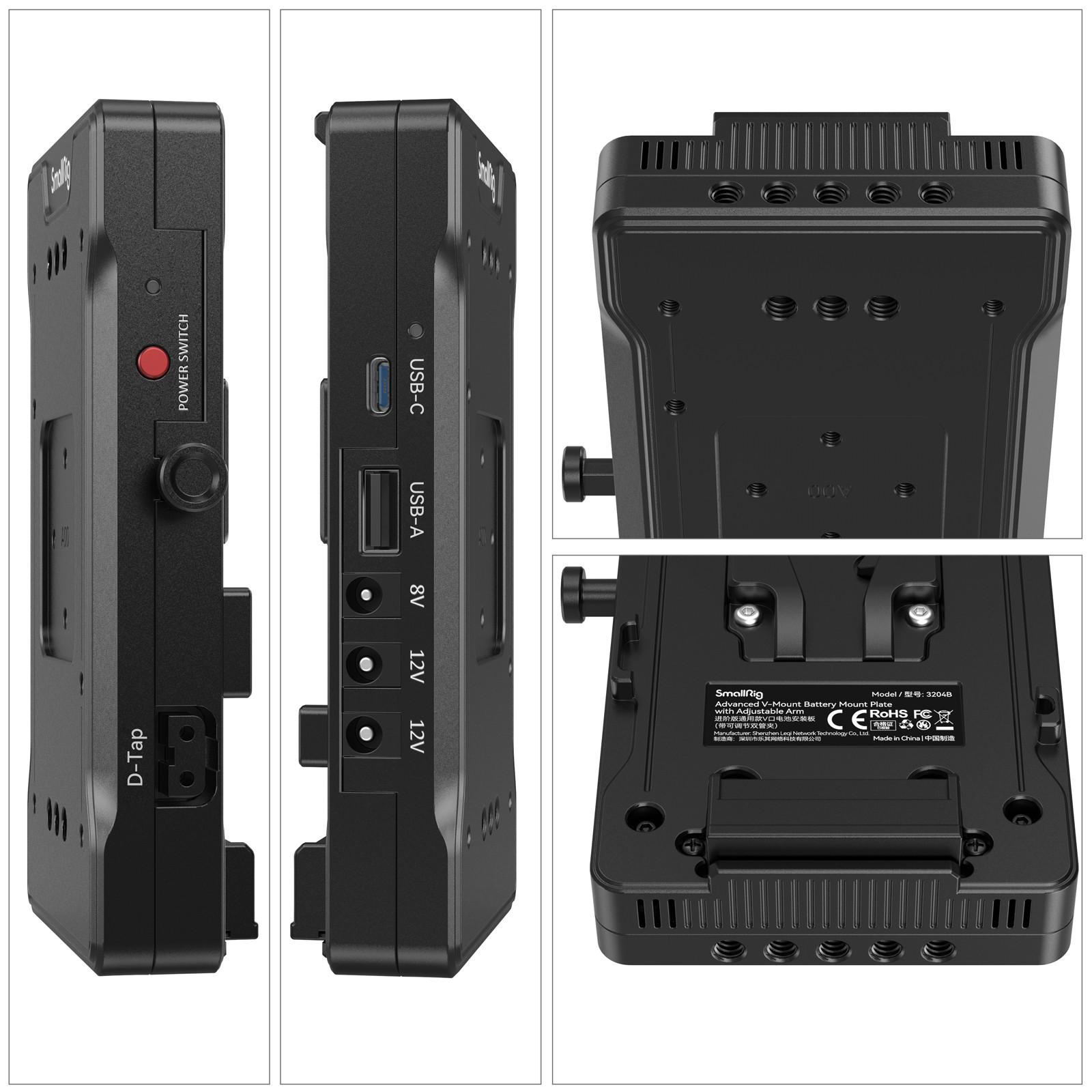

D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.

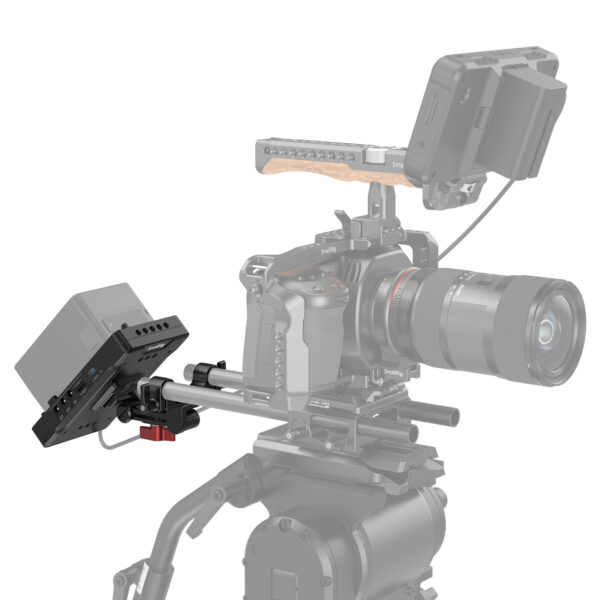

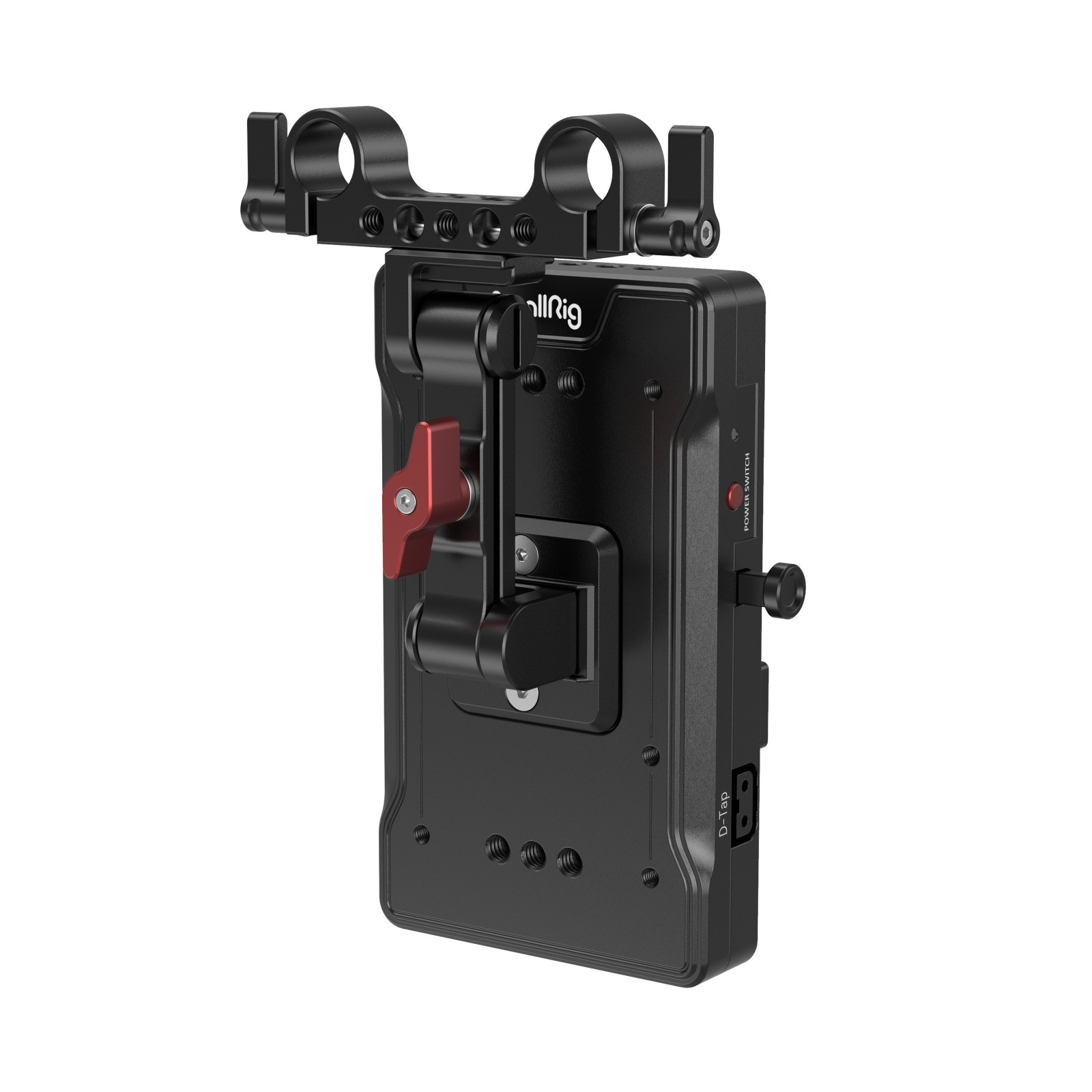

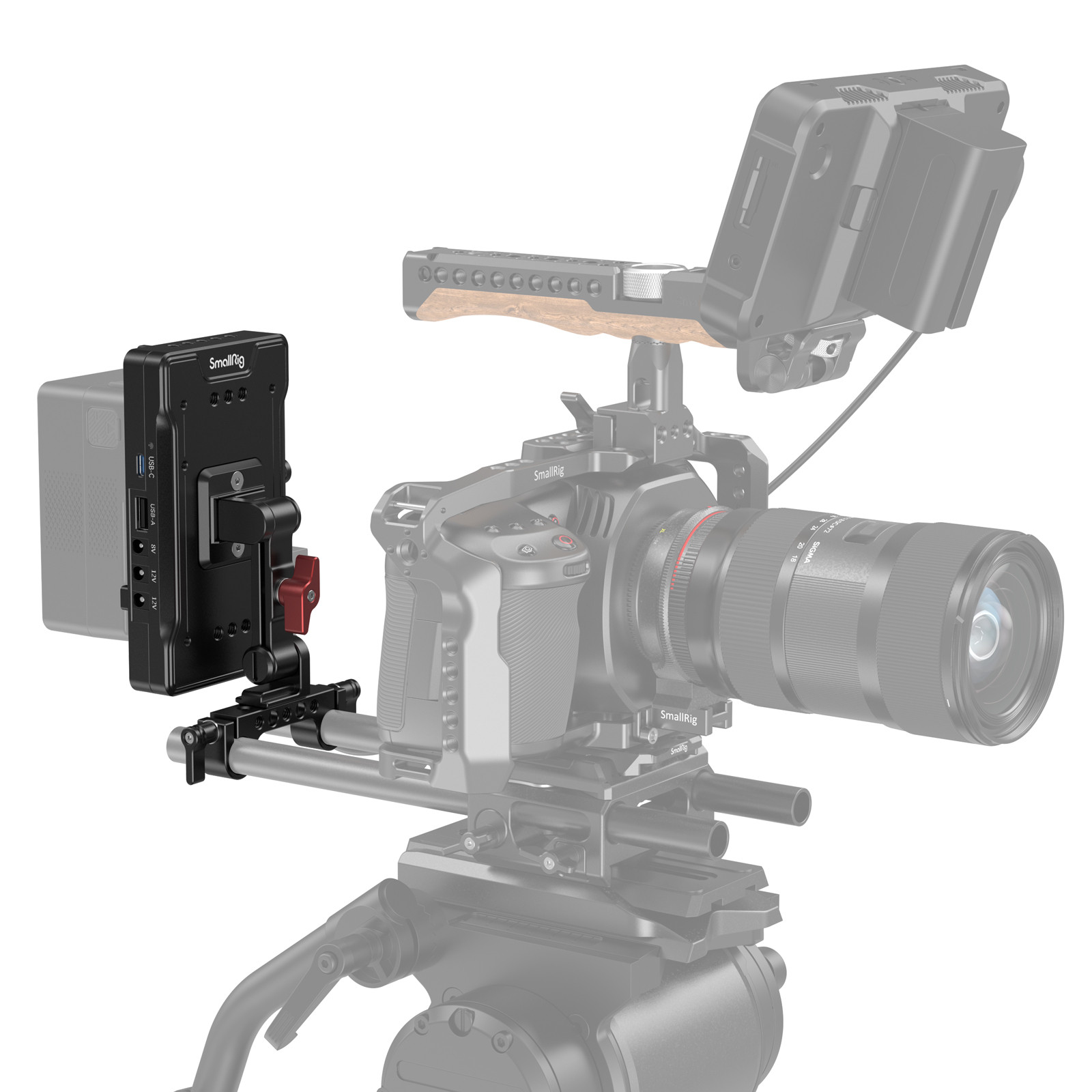

Quickly mounts onto 15mm LWS rod system.
Quickly reposition the V-mount battery.

$185.90

Description

SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B can quickly mount onto a 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4″-20 threaded holes and ten M4 threaded holes on the back, five 1/4″-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) port; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicate working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED

Note: Product weight and dimensions may have measurement errors.

Functions Description:

Charging / Discharging: USB-C charging

Indicator Light: orange light/slow charging/discharging, ice blue light/fast charging/discharging

Power Indicator Light:

Light on/powered on

light off/powered off

light flashing/working temperature exceeds 65

Power on / off Button:

Power on/ap the button; power off/long press the button for 2 seconds

D-Tap, USB-A, and DC output are unavailable after powering off
