SmallHD Ultra 5 LCD Monitor + Bolt 6 RX 750 V-mount

SmallHD

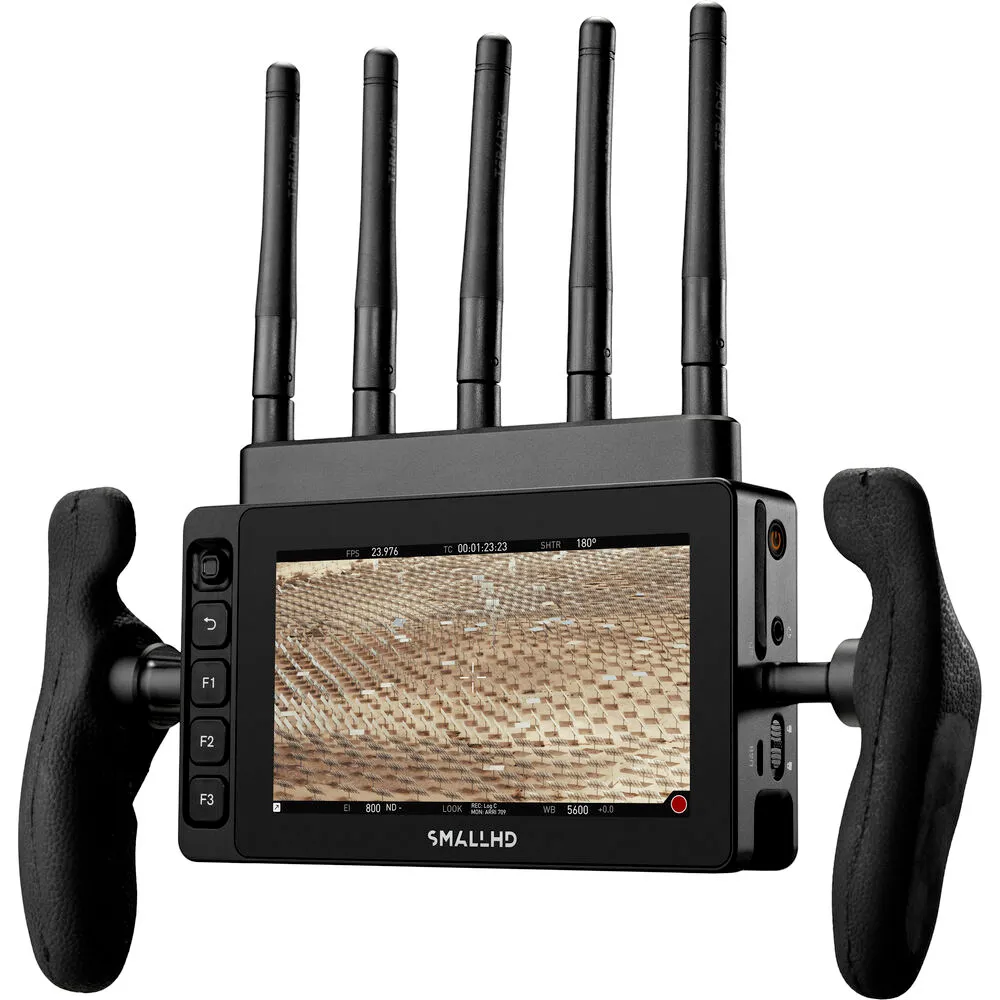

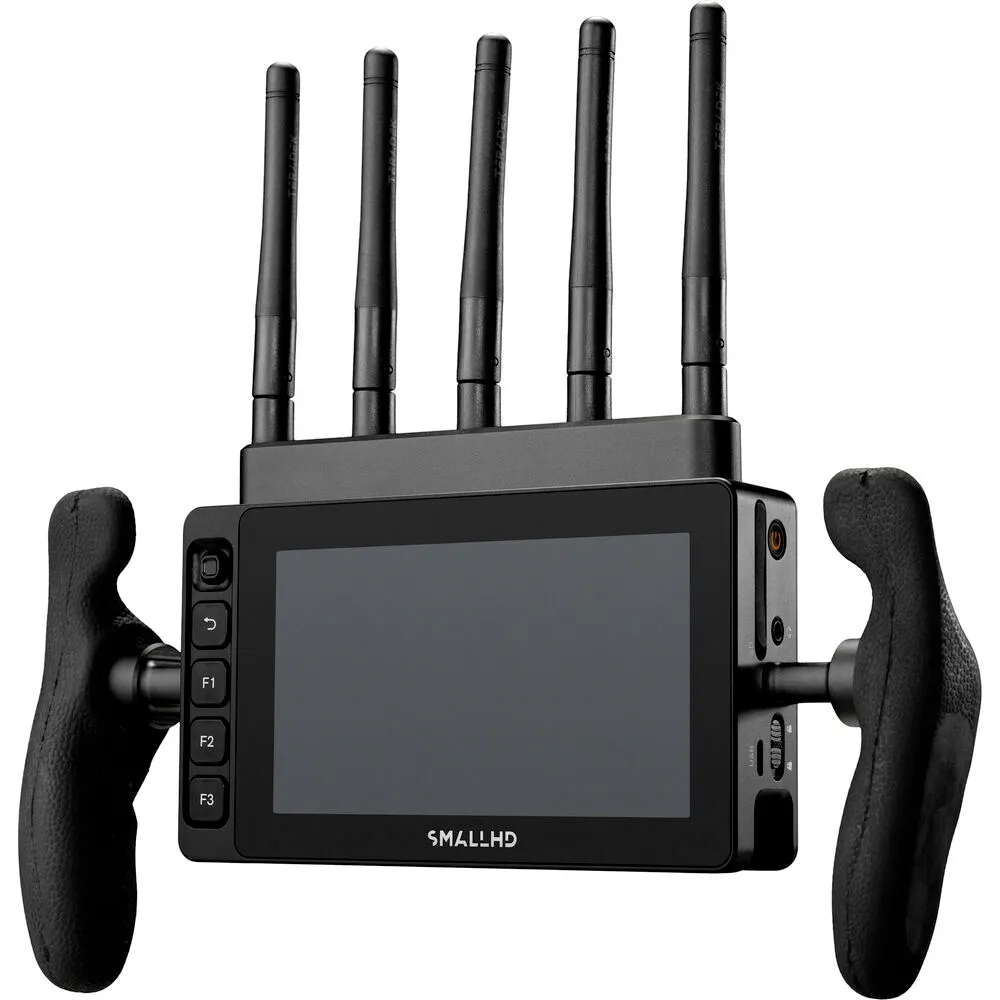

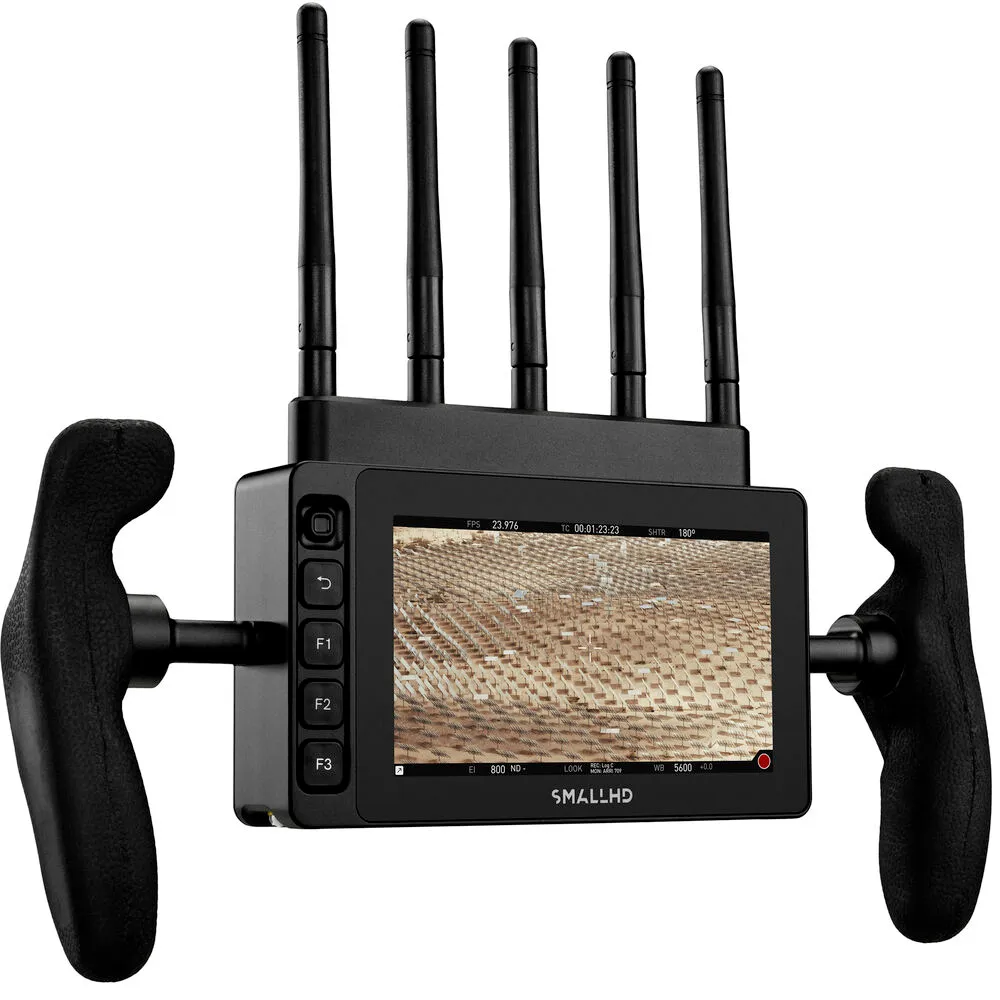

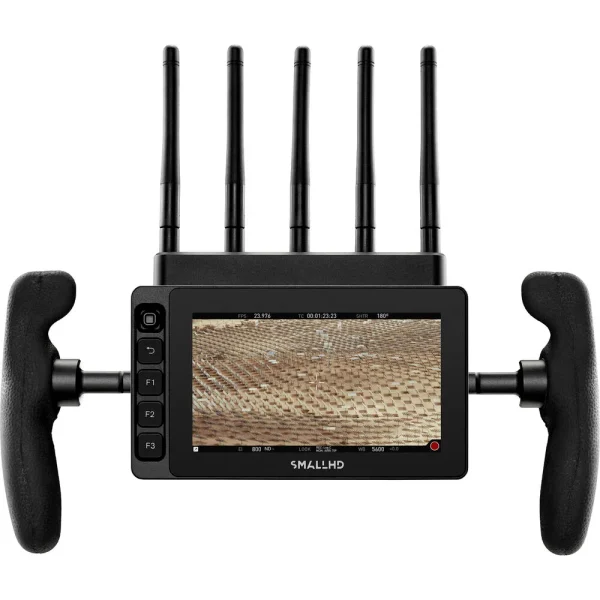

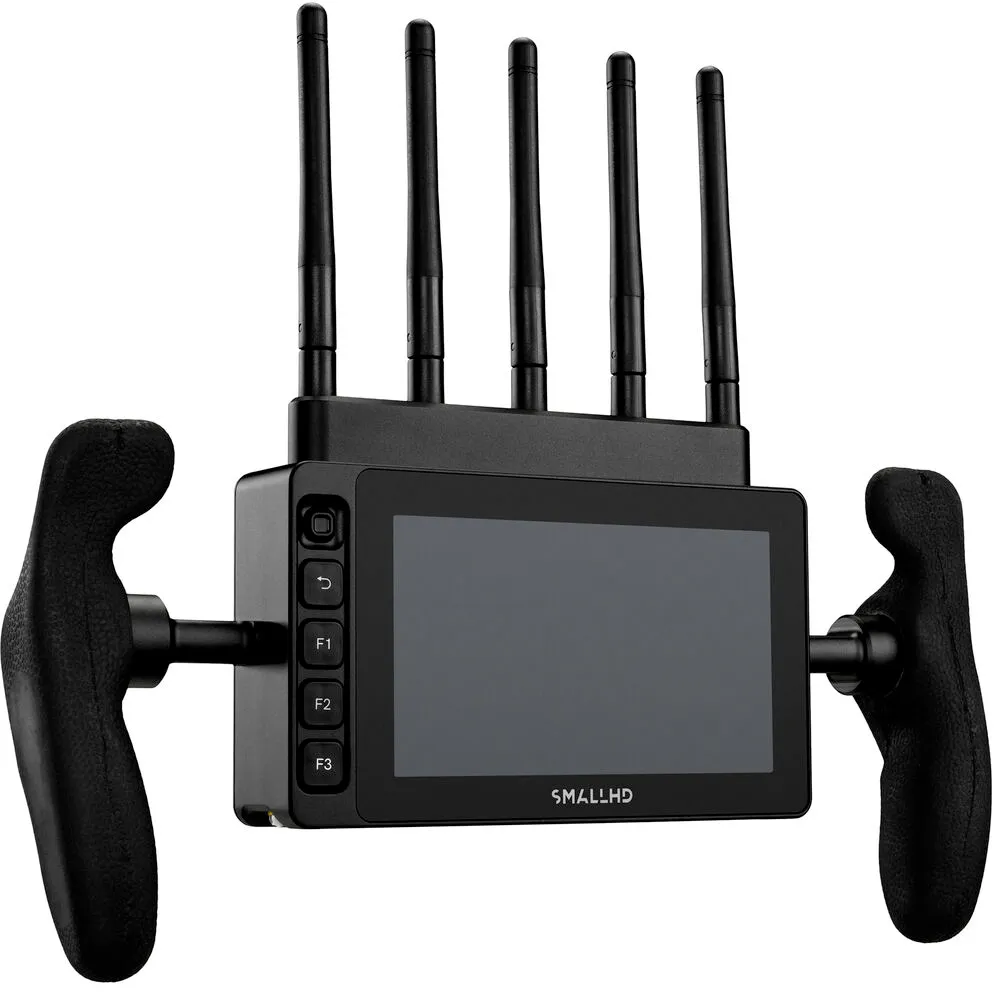

Add an ultra-bright monitor with wireless control to your production rig with the V-mount SmallHD ULTRA 5 Bolt 6 RX 750 Monitor Kit. The unit includes an ULTRA 5 bright 5″ on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

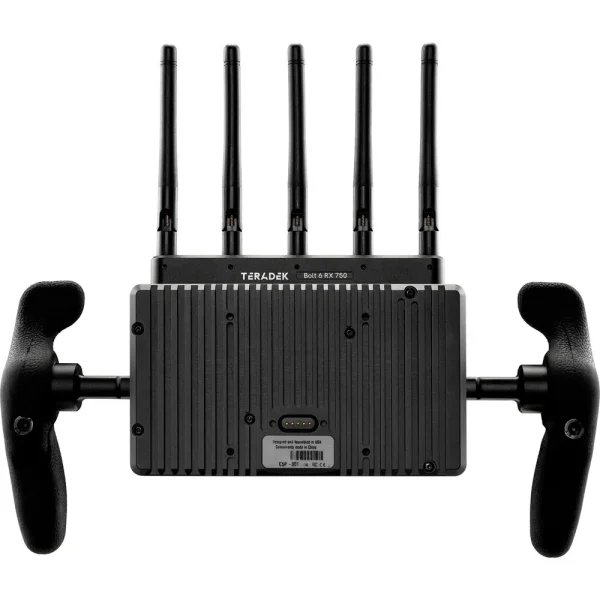

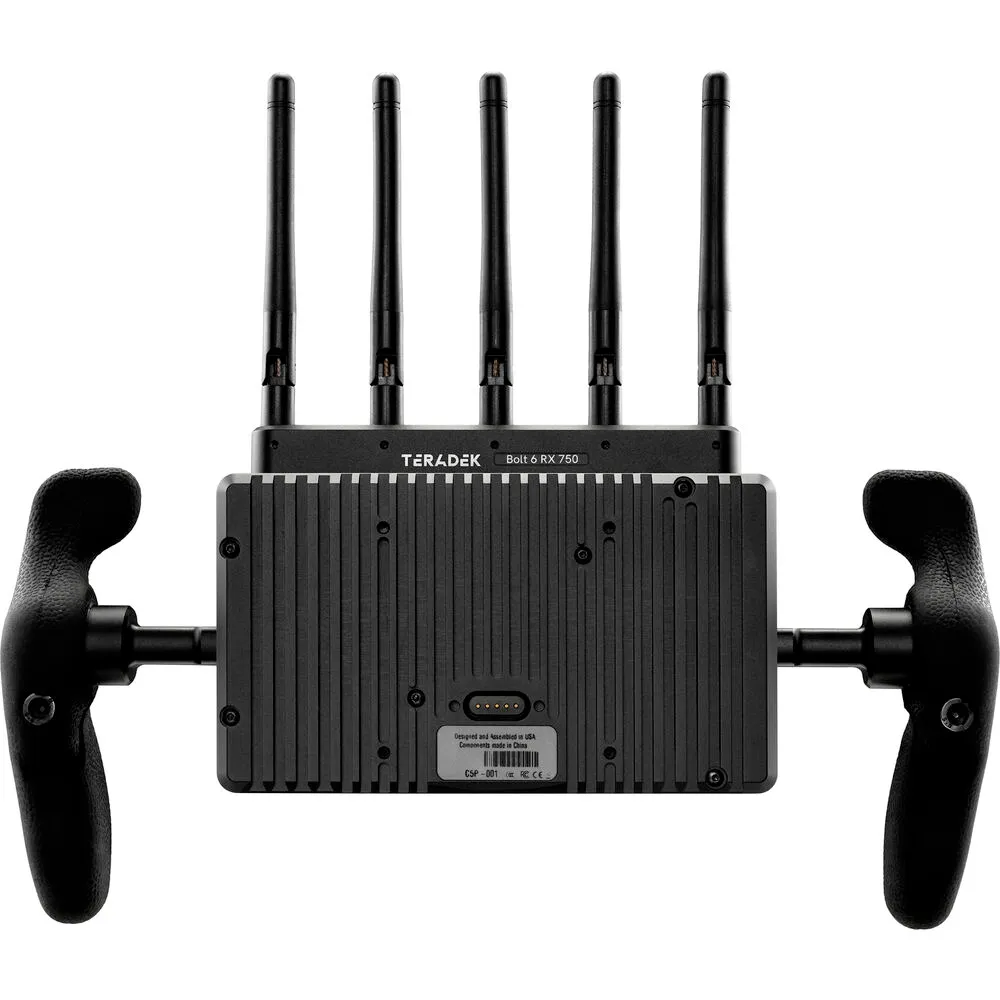

The monitor module installs onto the back of the monitor and provides power to the monitor via a V-mount battery, and it receives wireless video transmissions from up to 750′. The RX module can receive via the 6 GHz band from Teradek Bolt 6 series transmitter, as well as from 5 GHz transmitters such as the Teradek Bolt 4K series.

$5,932.00

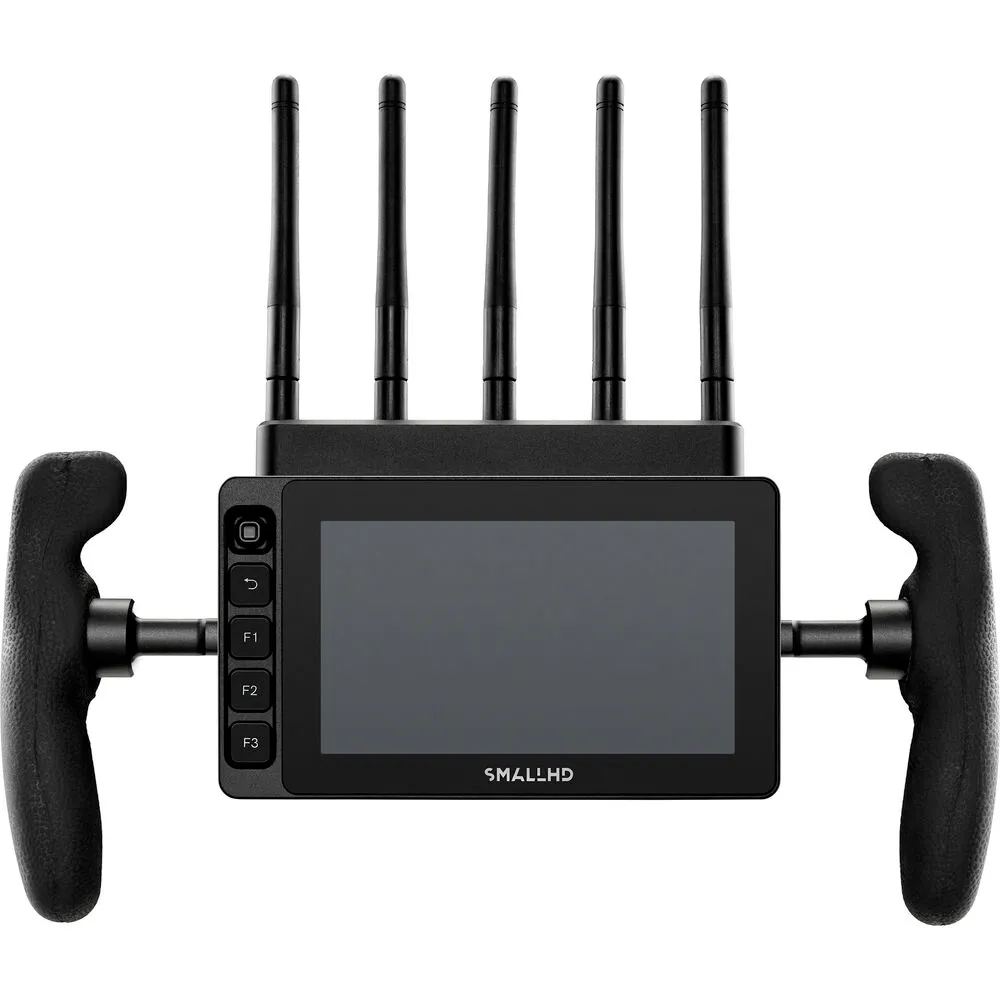

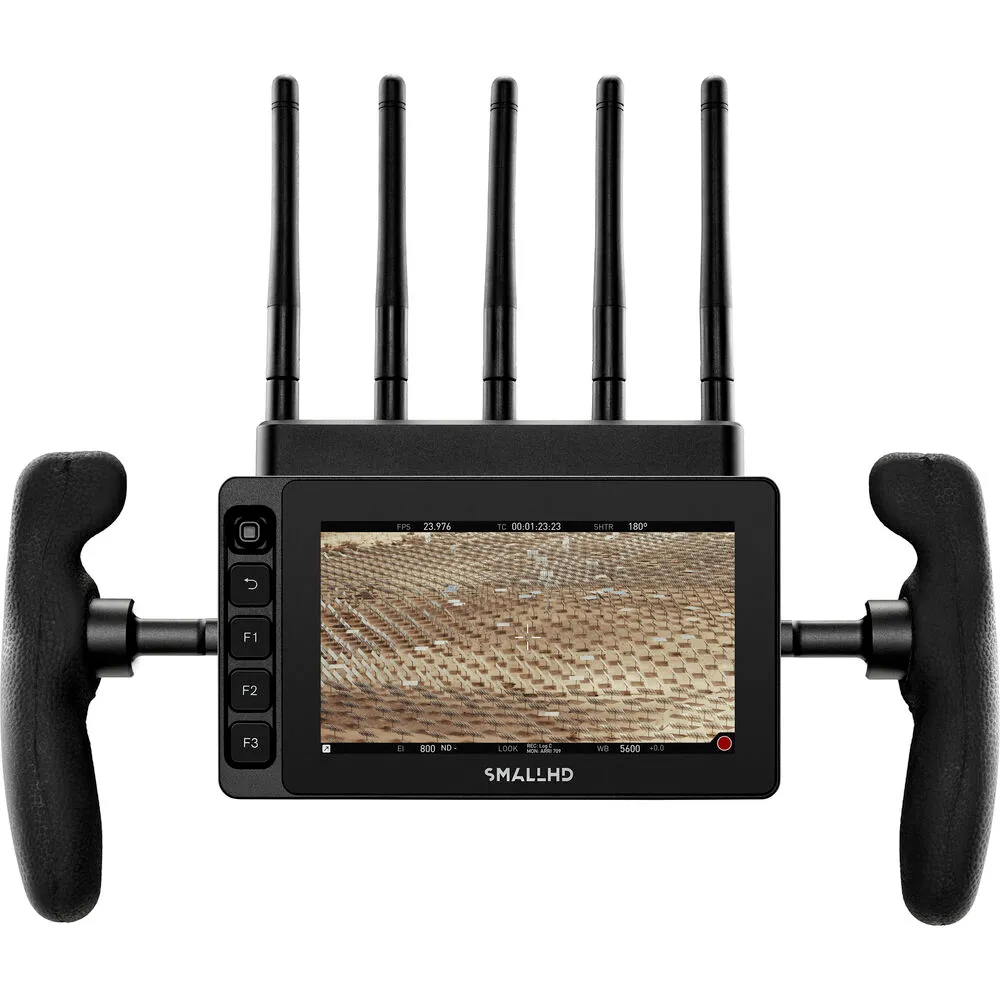

Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5″ 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.

The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.



Features
  • Daylight-viewable, 5″ touchscreen on-camera monitor with 3000 cd/m² brightness
  • Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel

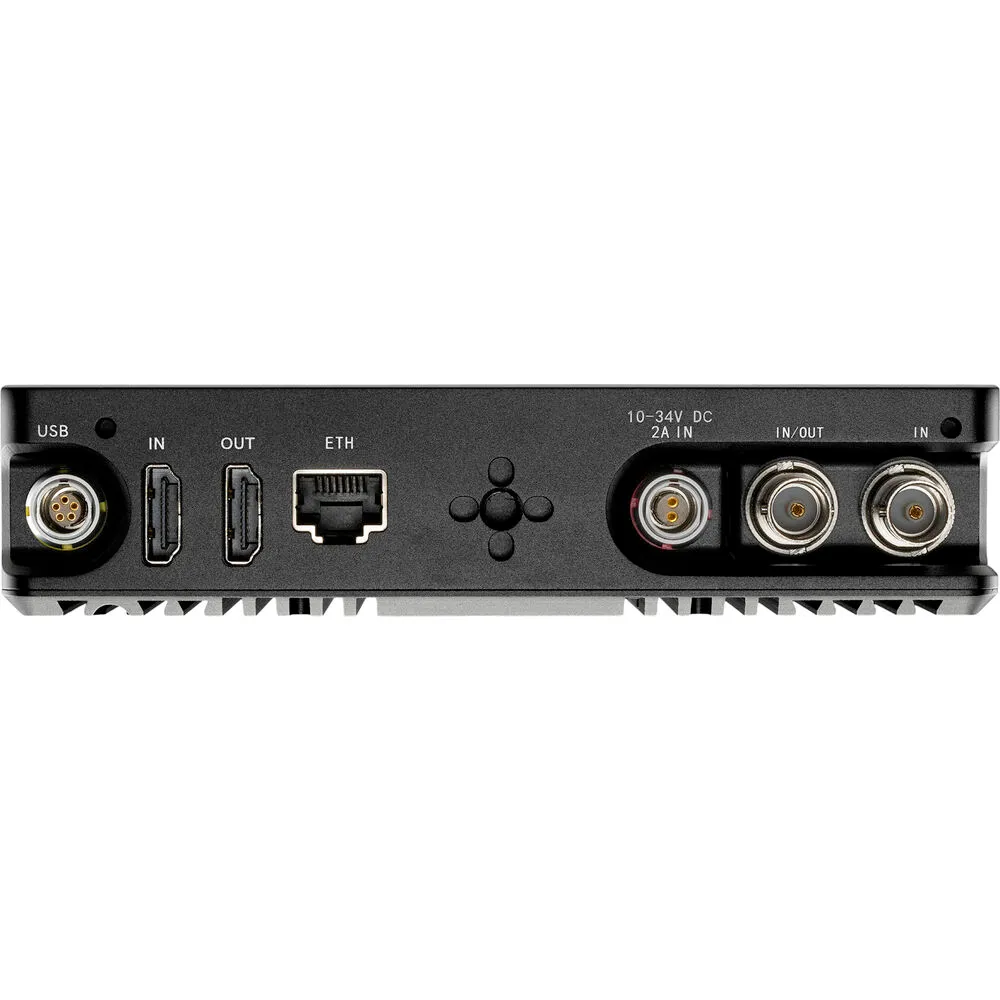

  • HDMI and 3G-SDI inputs and outputs
  • Buttons around the monitor allow you to use the monitor in any conditions
  • The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
  • Four 1/4″-20 mounting threads on the left, right, bottom, and back of the monitor
  • Power using a 2-pin power input
  • Optional RED camera control via the micro-USB port
  • Optional ARRI/Sony VENICE camera control via the Ethernet port
  • Durable aluminum chassis
Display Tools
  • Pixel zoom: 2x and 4x with pinch-zoom
  • Aspect ratios: Preset and customizable
  • DSLR scale: Canon 5D Mk II and Canon 7D
  • Custom scale: Underscan only
  • Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
  • Image flip: Auto and manual
  • Image rotation: Auto and manual
  • Cross conversion: HDMI to SDI, SDI to HDMI
  • Color focus assist: Adjustable style and intensity
  • Peaking: Adjustable intensity
  • False color: Spectrum, ARRI-style, and customizable
  • Zebra: Dual, customizable
  • Waveform: Luma and RGB, customizable with region-of-interest highlighting
  • Vectorscope
  • RGB parade, customizable
  • Histogram: Luma and RGB
  • Image capture, with dedicated button and image gallery
  • Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
  • LUT import: Via SD card or USB storage device
  • Image overlay: Opacity slider and blink setting
  • Image capture
  • Audio meters: Up to eight channels



Teradek Bolt 6 RX 750 Monitor Module for Cine 7 and 702 Touch (V-Mount)

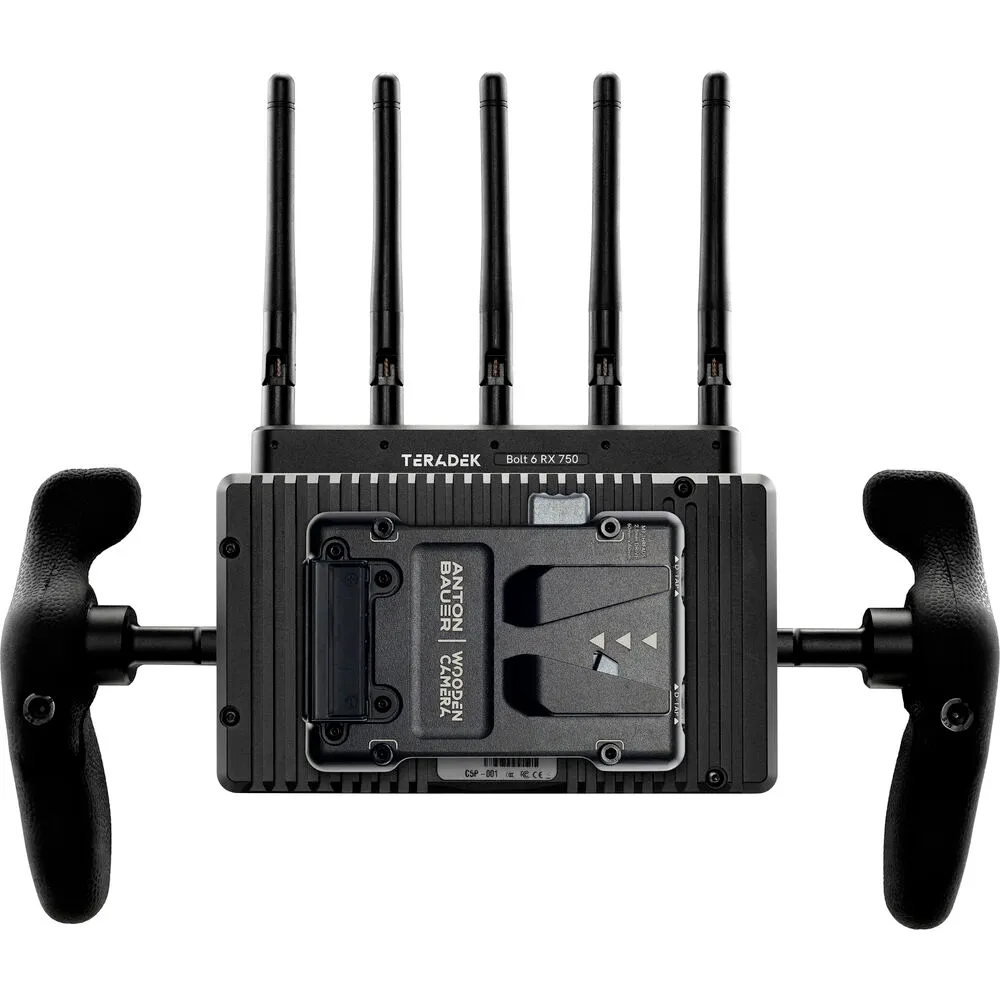

Receive lossless HD video from up to 750′ line-of-sight with the Bolt 6 RX 750 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7 or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI 2.0 port. A V-mount battery plate is included to power the receiver using a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The module can also simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

The system also supports an iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration.



Key Features
  • Supports the new freely available 6 GHz wireless frequency band
  • Cross-compatible with all Bolt 4K and 4K LT series 5 GHz transmitters
  • Mounts on the back of a SmallHD Cine 7 or 702 Touch monitor
  • Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port
  • V-mount battery plate included
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Smaller and lighter chassis design than other Bolt receivers
  • The receiver features five antennas
  • AES-256 encryption and RSA 1024 key pairing support
  • Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration



In the Box

SmallHD ULTRA 5 Bright Touchscreen Monitor

Limited 1-Year Warranty

Teradek Bolt 6 RX 750 Monitor Module for Cine 7 and 702 Touch (V-Mount)

V-Mount Battery Plate

Limited 1-Year Warranty
