Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, pre-configured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Features

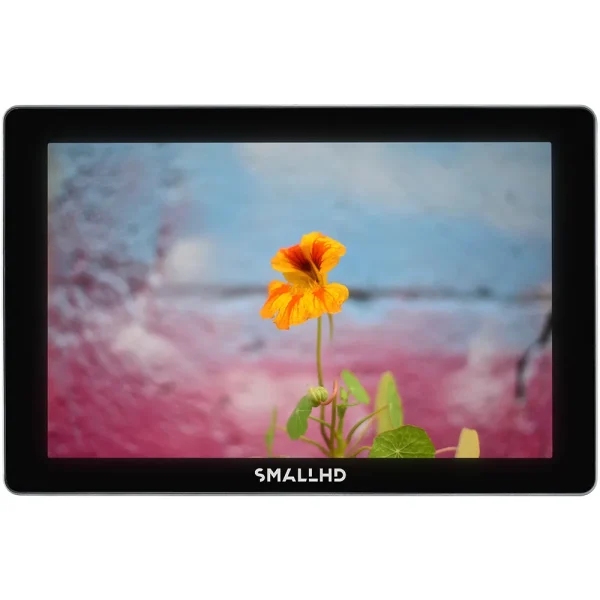

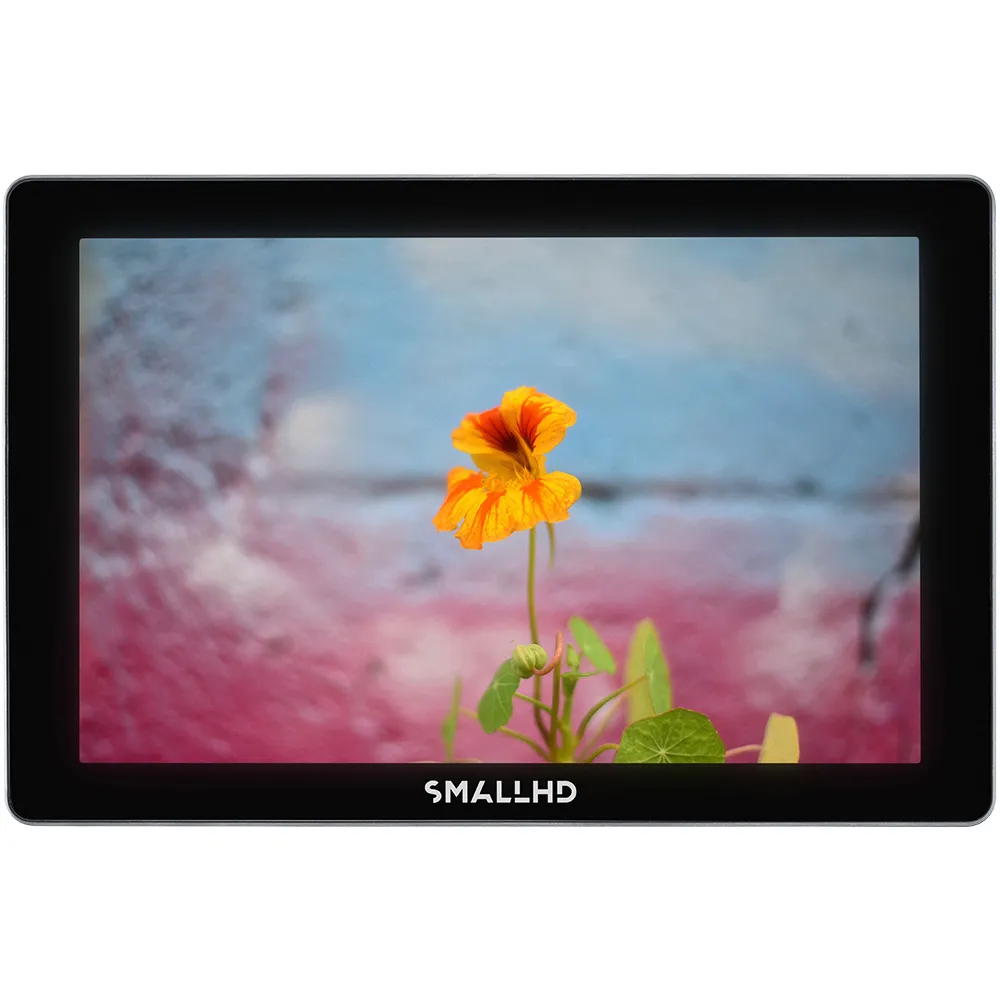

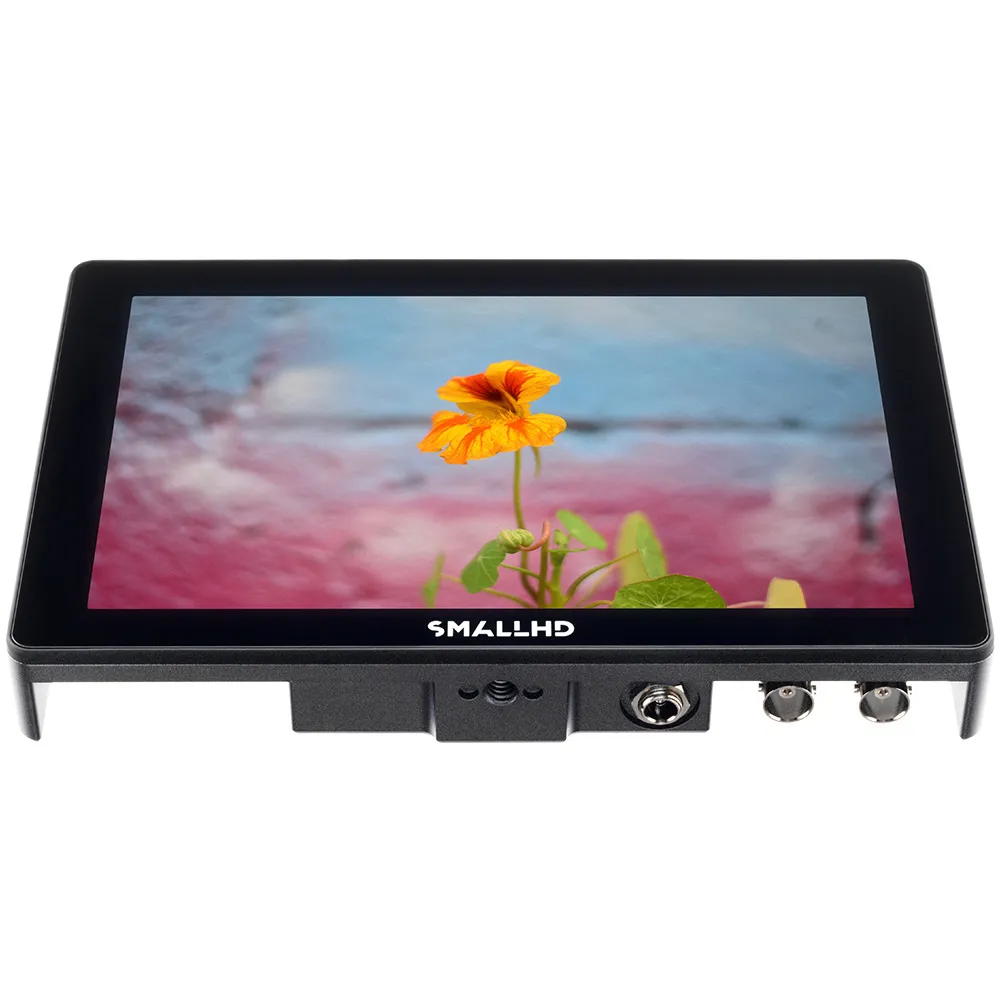

- Daylight-viewable, 7″ touchscreen on-camera monitor with 1000 cd/m² brightness
- Slim, lightweight design with 10-bit, touchscreen IPS LCD panel

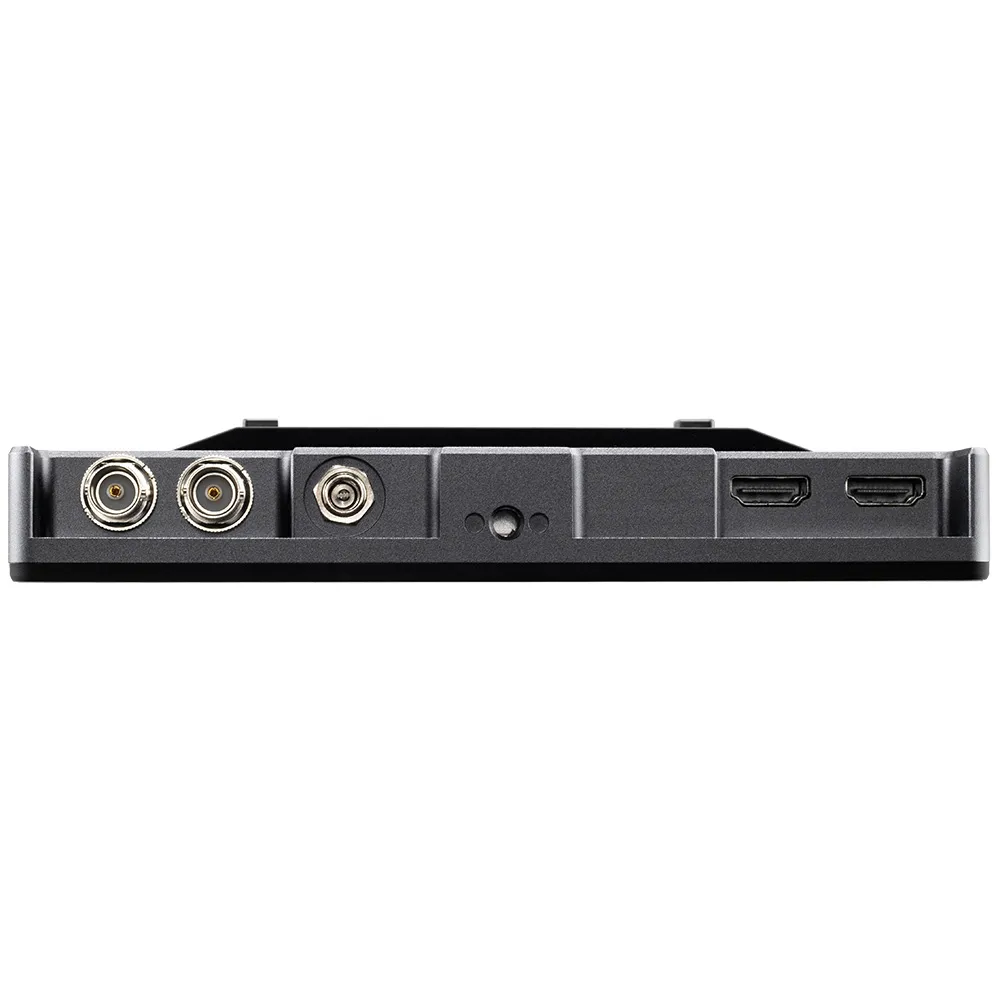

- HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI

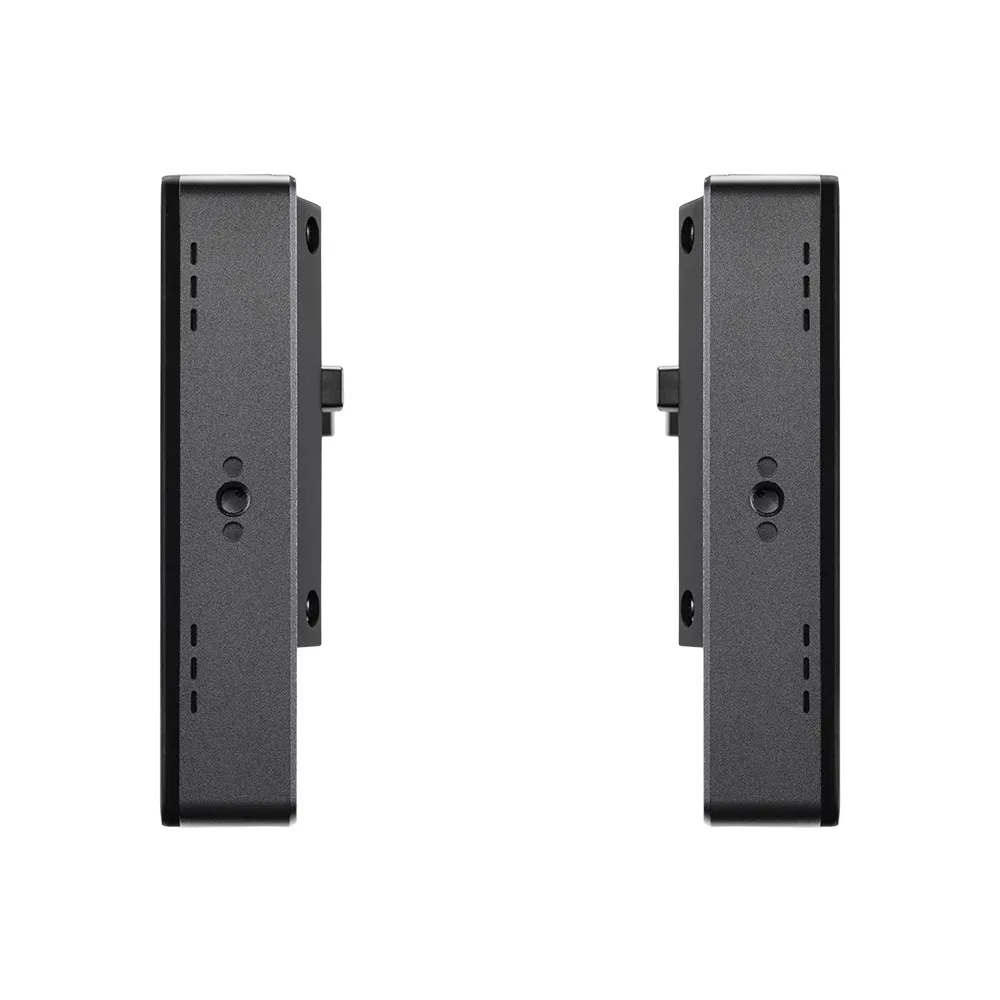

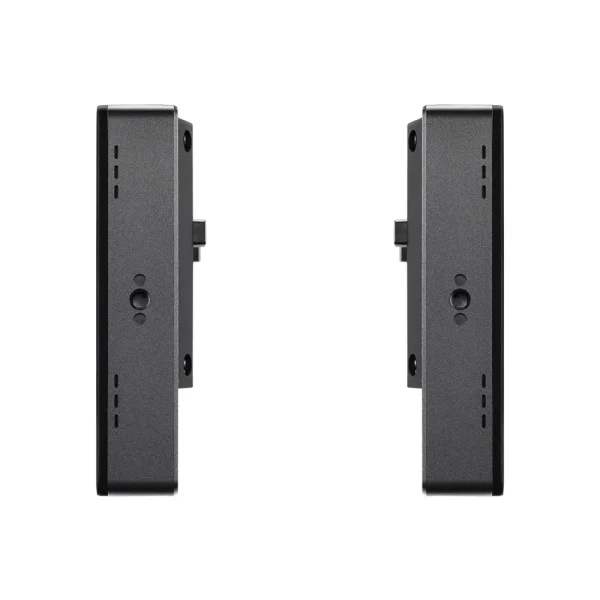

- Four 1/4″-20 mounting threads on left, right, bottom, and back of the monitor
- SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false colour overlays, improved function buttons, pixel zoom, focus assist, peaking, and more

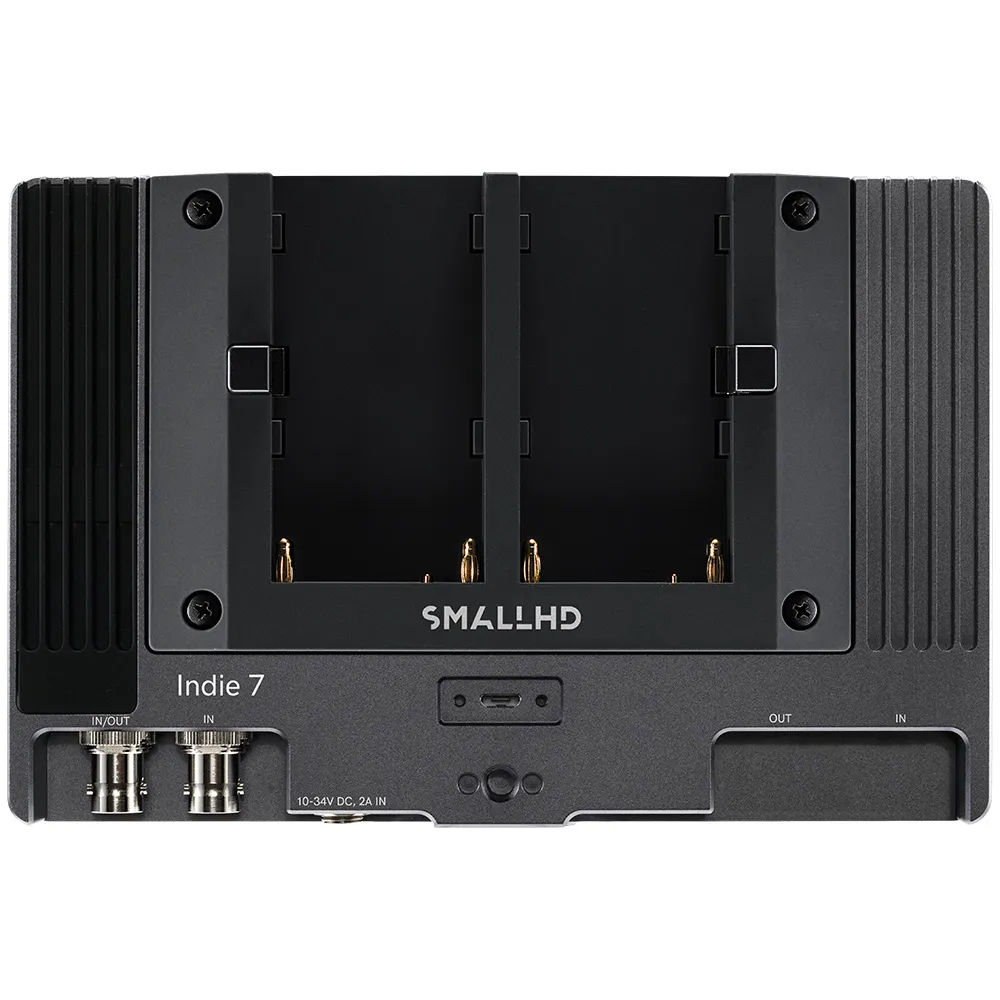

- Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate
- Durable aluminium chassis
Display Tools
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Colour focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False-colour: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audiometers: Up to 8 channels
