SmallHD Cine 7 ARRI Monitor Kit

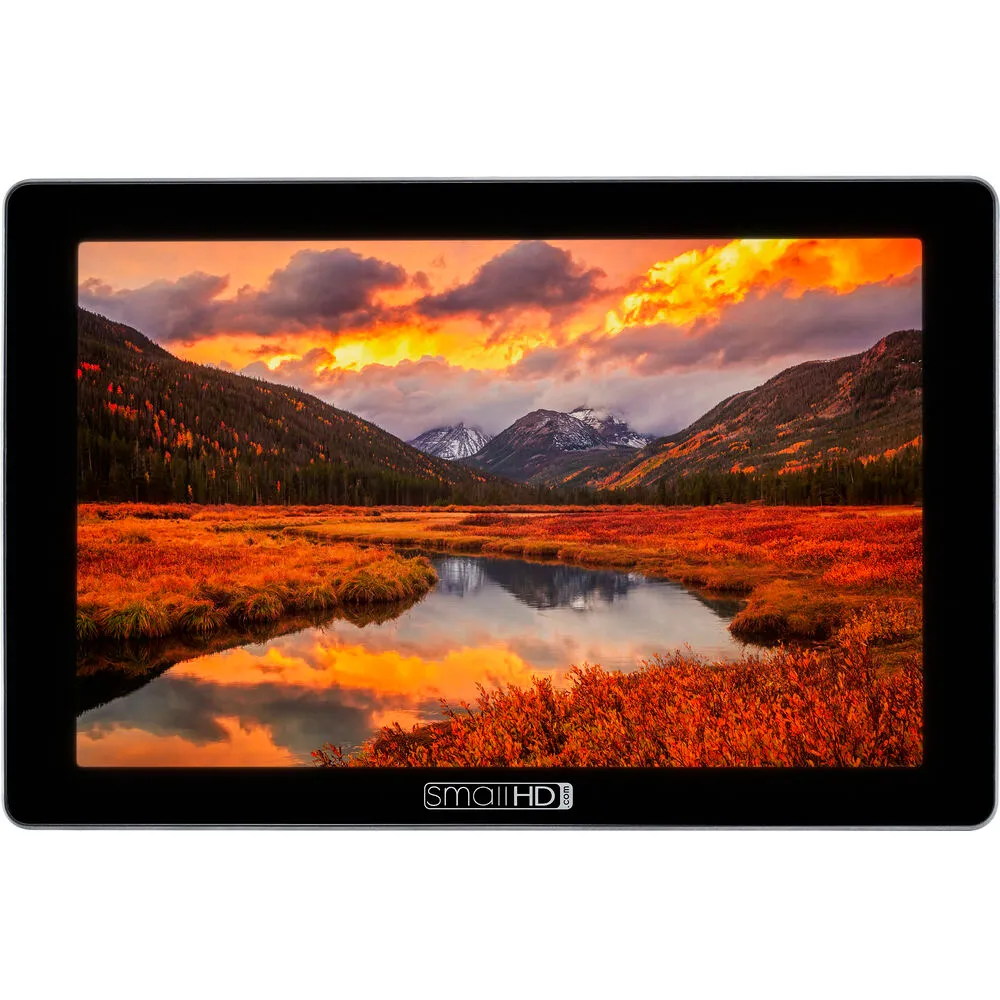

Cine 7 is a top of the line professional 7″ monitor with included ARRI camera control. It’s 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment.

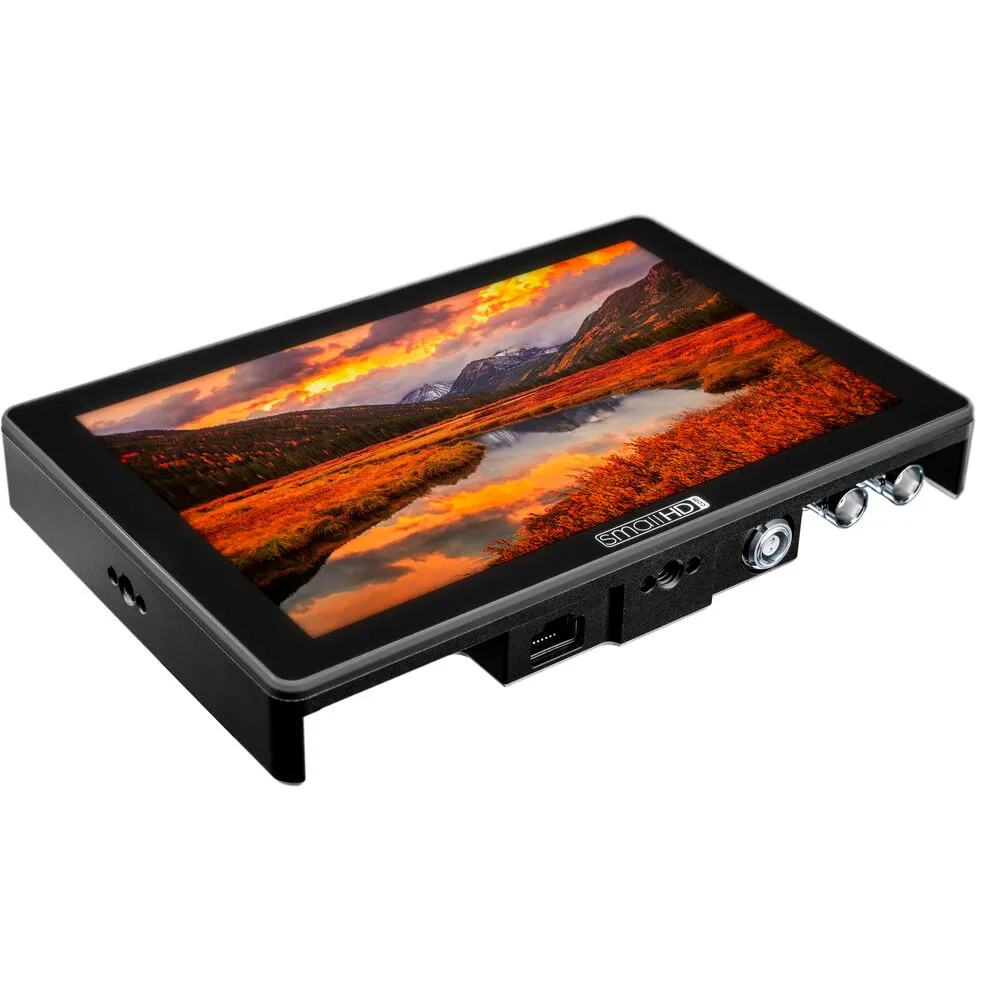

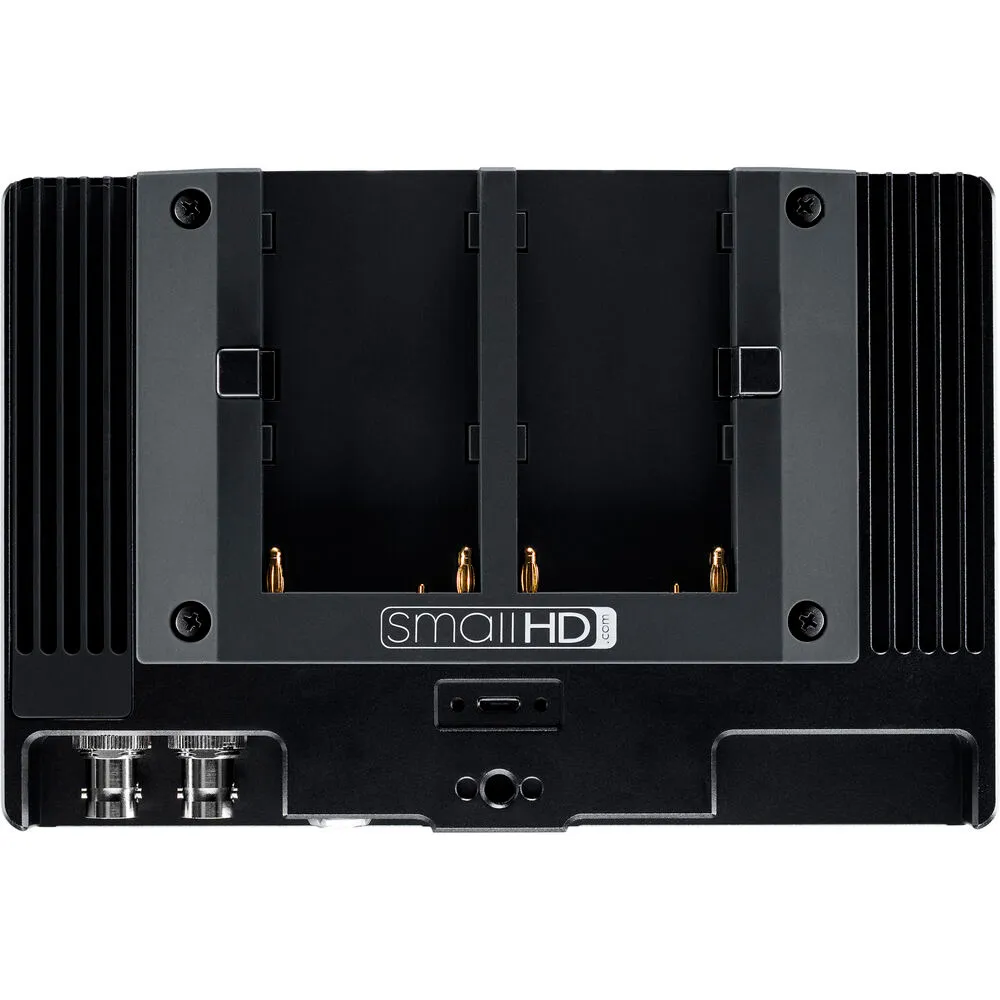

The Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminium frame and several 1/4″-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment. Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.
$4,425.00

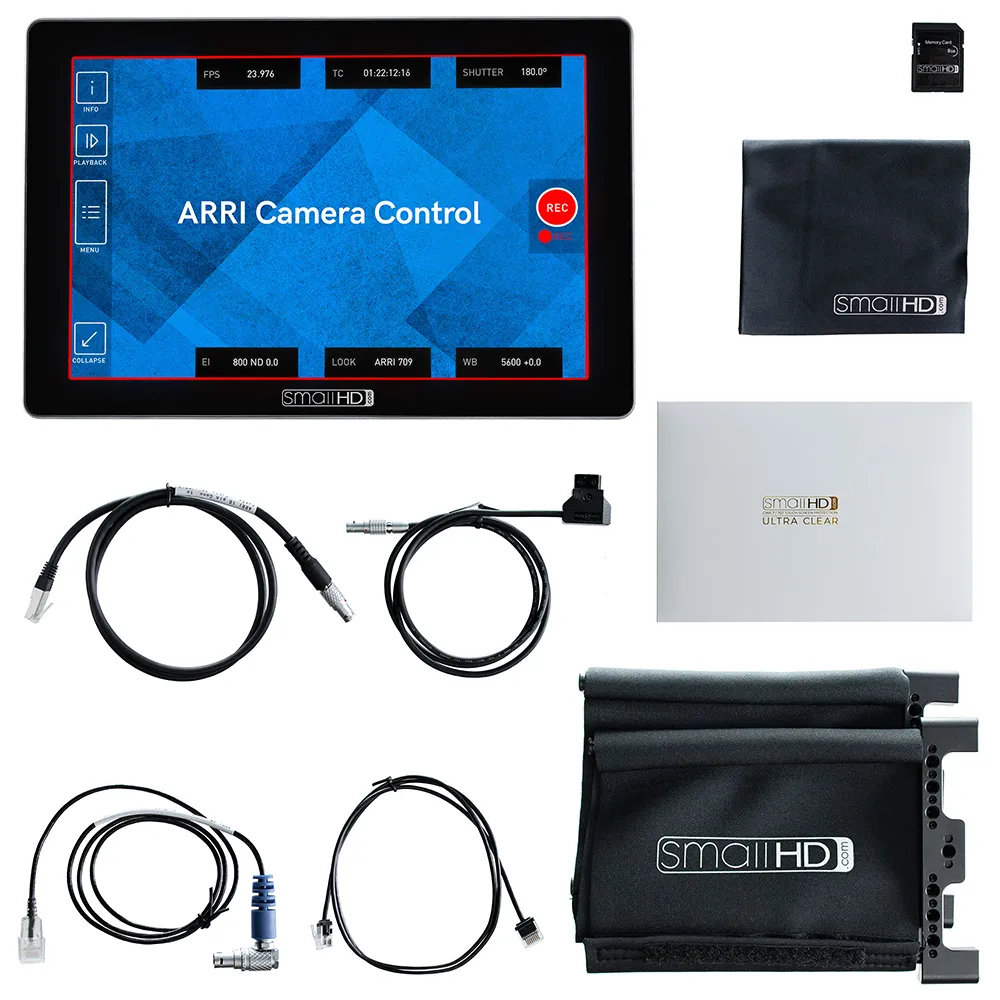

What’s Included:
- SmallHD Cine 7
- Sony L-Series Battery Bracket
- D-Tap to 2-Pin LEMO 36″
- Ultraclear Screen Protector
- Sunhood
- SD Card
- Cleaning Cloth
- ARRI Camera Control + Cables
Display
| Panel Type | IPS LCD |
| Size Diagonal | 7.02 |
| Resolution | 1920×1200 |
| Pixel Density (PPI) | 322 |
| Aspect Ratio | 16:10 |
| Active Area | 5.95 x 3.72 |
| Contrast | 1000:1 |
| Color Gamut | 100% DCI-P3 Coverage |
| Color Depth | 8-b Panel with 10-b Scopes |
| Viewing Angle | 8-b Panel with 10-b Scopes |
| Backlight Type | LED |
| Adjustable Backlight | Yes |
Input Signal Types/Formats
| 3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI | YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI | YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 |
| Audio | HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels |
Output Signal Types/Formats
| 3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI | YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 |
| Audio | HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection |
Connector Type

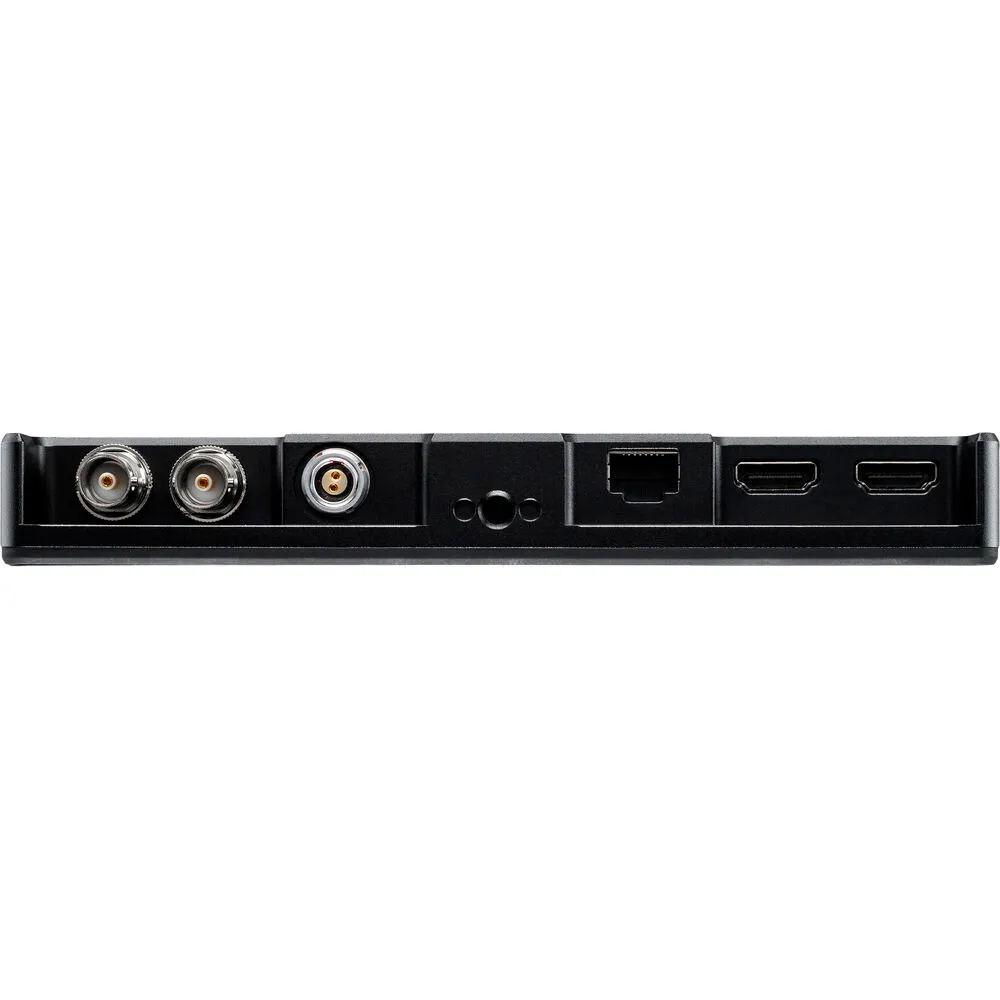

| SDI | 1x BNC 3G input and 1x BNC 3G selectable input/output |
| HDMI | 1 input and 1 output: HDMI Type-D Receptacles (full size) |
| Audio | 1x 3.5mm 3-pin Stereo Headphone Jack |
| Power In | 2-pin Locking |
| USB | 1x USB 2.0 Micro-B receptacle |
Controls
| Primary Control Interface | Touch Screen |
| Record/Capture | Capture Tool |
| RF Wireless Remote / External Control | ? |
Data I/O
| Storage | ? |
| USB | ? |
| Wireless | ? |
Power
| Connector Type | Lemo |
| Voltage | DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max |
| Recommended Power Supply | Recommend DC 12~15V at ~2.5 amp or greater |
| Overload Protection | DC input: Reverse polarity |
| Battery Types | L-Series, V Mount, Gold Mount |
| Battery Chemistry | Li-ion |
| Battery Charging Time (hours) | Monitor does not support the charging of batteries |
Environmental
| Compliance | FCC, IC, CE, RoHS |
| Operating Temperature | 30F to 100F |
| Storage Temperature | 0F to 120F |
| Height | 4.67” (11.86cm) |
| Width | 1.32” (3.35cm) |
| Depth/Length | 7.09” (18.01cm) |
| Weight (Packaged) | 45oz (1275.73g) |
| Mount Points | Four ¼-20 Mount Points (Left, Right, Bottom, and Back) |
Software
| Pixel Zoom (type) | 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides | Preset Aspect Ratios & Customizable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Yes (Underscan Only) |
| Anamorphic De-Squeeze | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate(Manual/Automatic) | Automatic or Manual Control |
| Image Flip (Manual/Automatic) | Automatic or Manual Control |
| Cross Conversion | Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist (Colors) | User Adjustable Color Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Color | Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra | Dual – User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| RGB Parade | Fully User Customizable |
| Histogram | Luma & RGB Style |
| Image Capture | Yes |
| Custom LUTS | Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
| LUT Downstream | Available on SDI or HDMI Out. Applied on Output Preview Page. |
| LUT Import | via SD Card or USB Storage Device |
| Image Overlay | With Opacity Slider and Blink Setting |
| Audio Meters | HDMI & SDI up to 8 channel |
