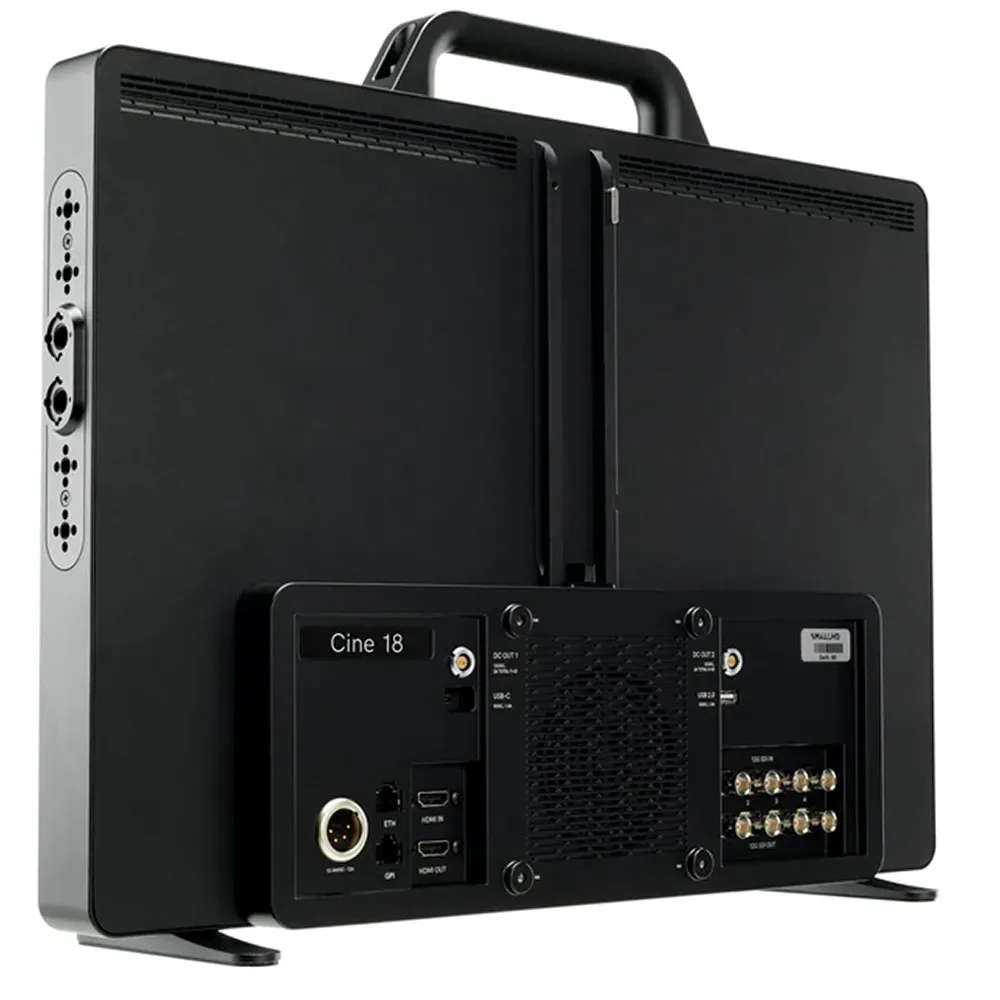

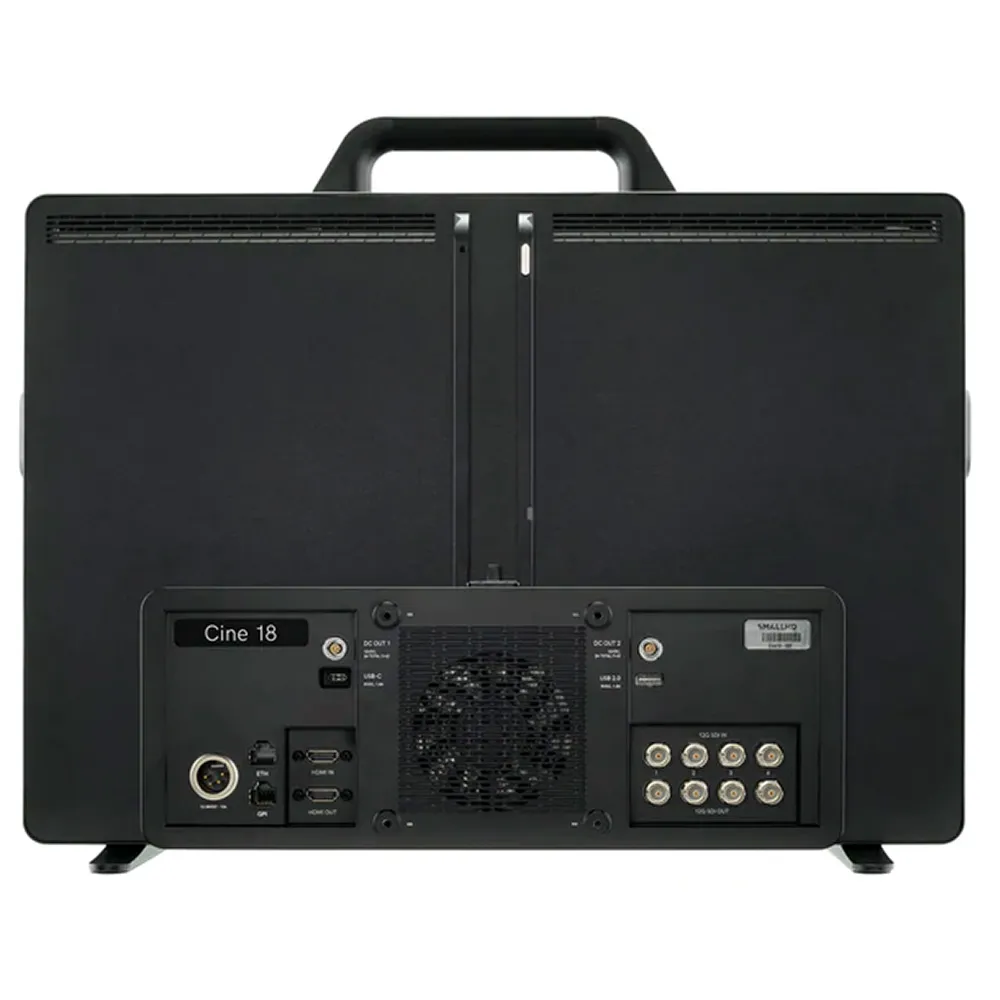

The monitor can be mounted using the VESA pattern on the back or by 1/4″-20 threads around the top and sides of the monitor. You can power the monitor using a 4-pin XLR input or via a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.
Key Features

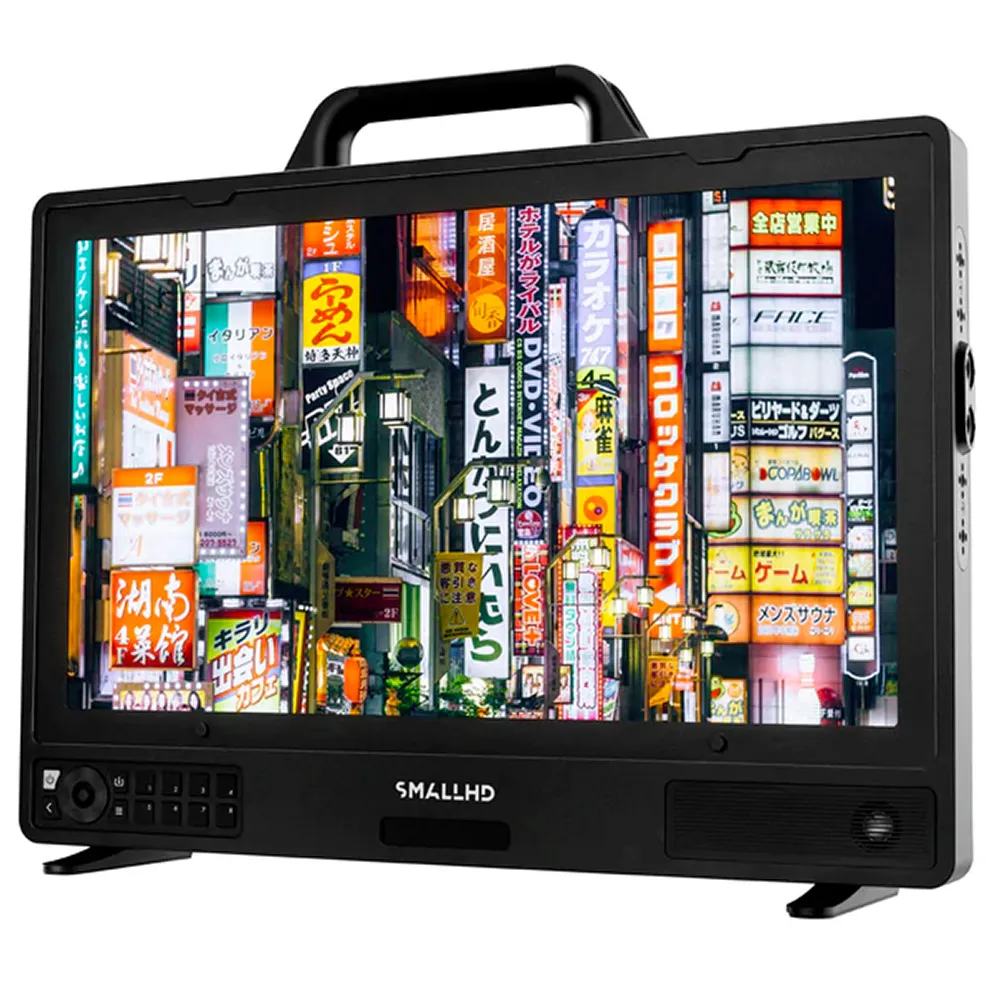

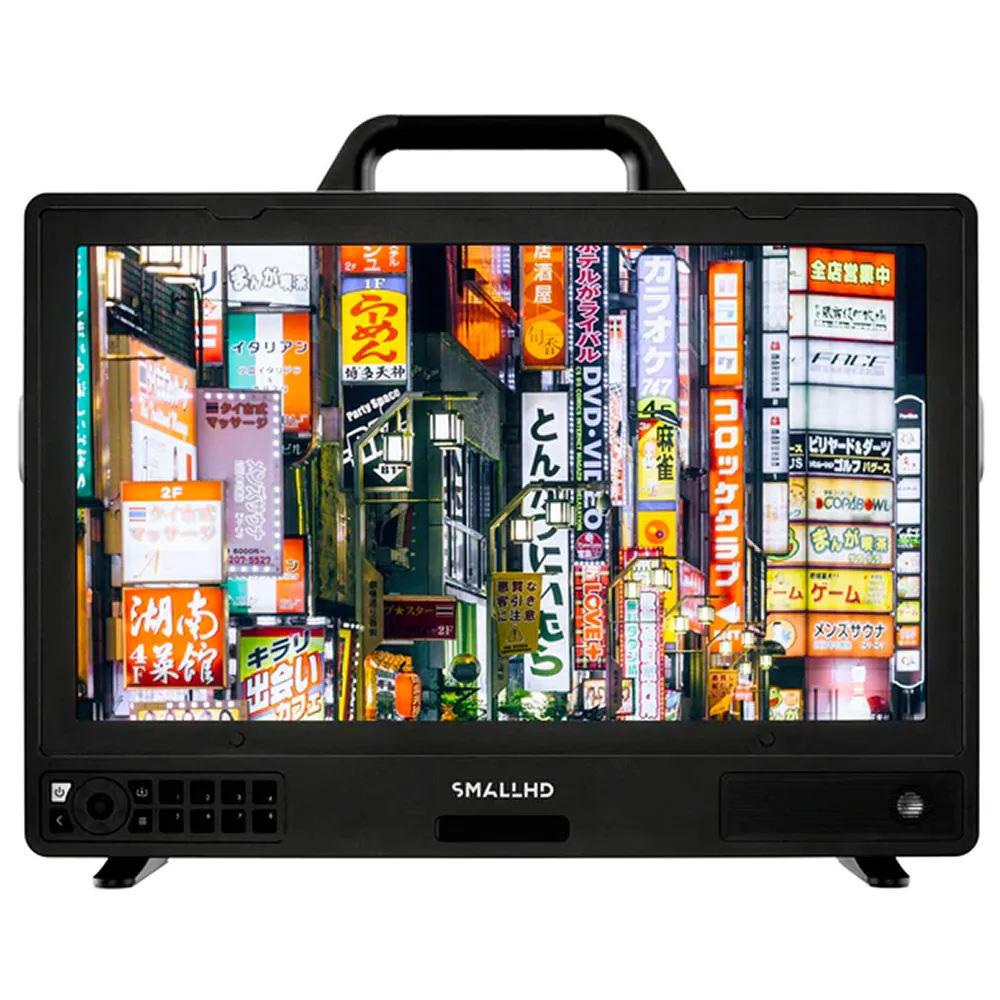

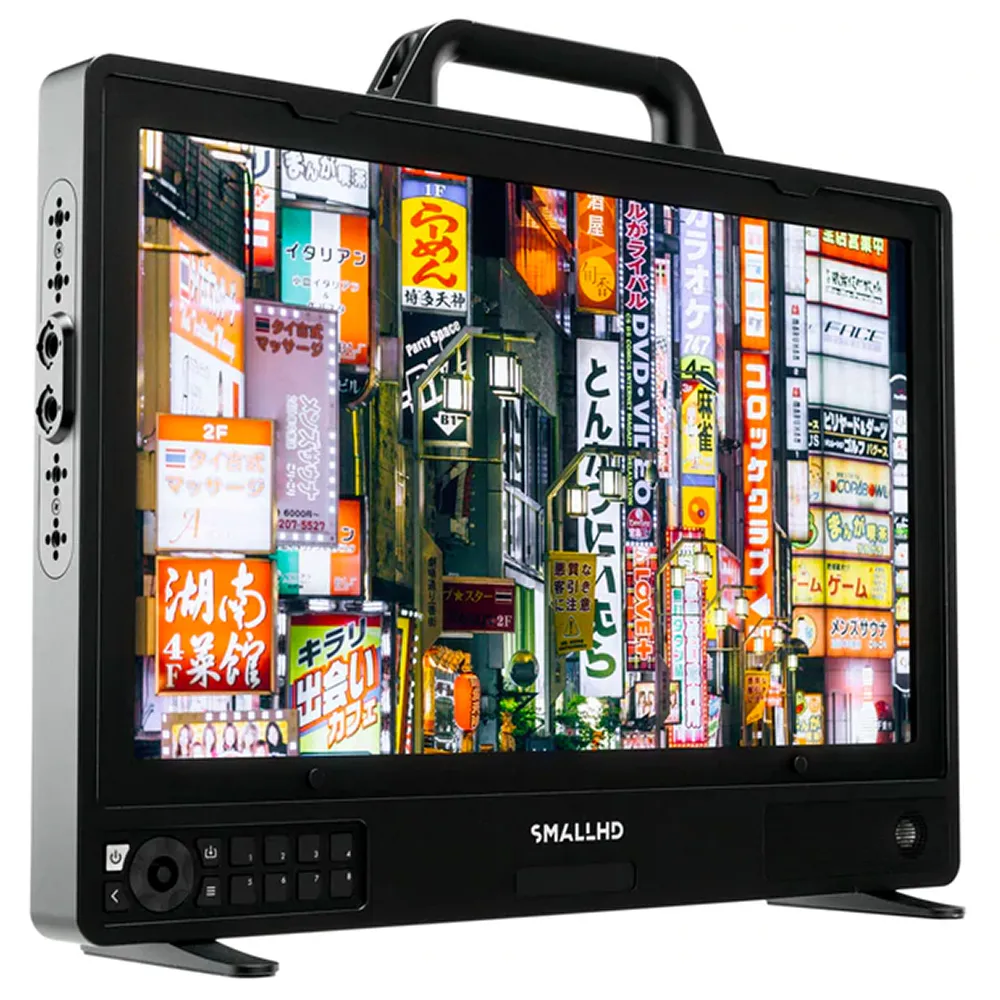

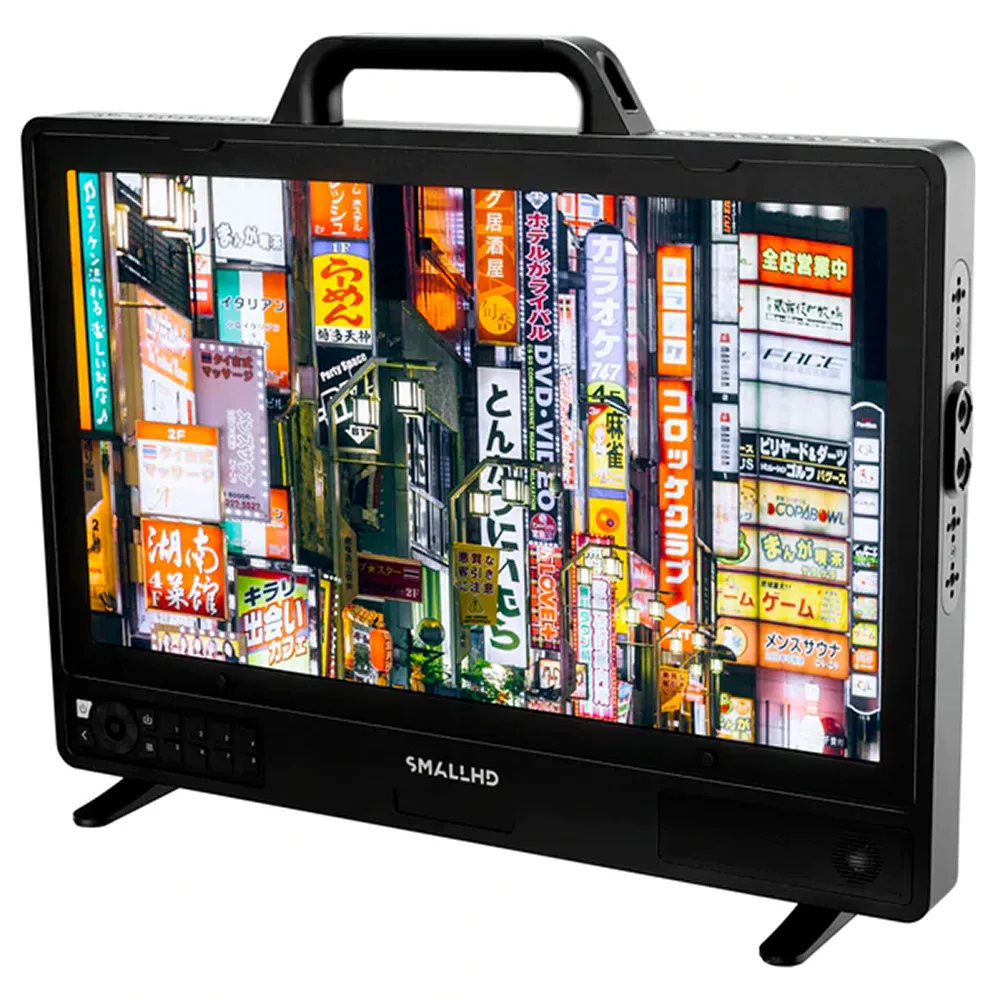

- 18.4″ UHD 4K monitor
- 3840 x 2160 resolution
- 1100 cd/m² brightness
- 1300:1 contrast ratio
- Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
- One HDMI 2.0 input
- SD card slot for 3D LUTs
- One RJ45 Ethernet port
- One RJ45 GPI port

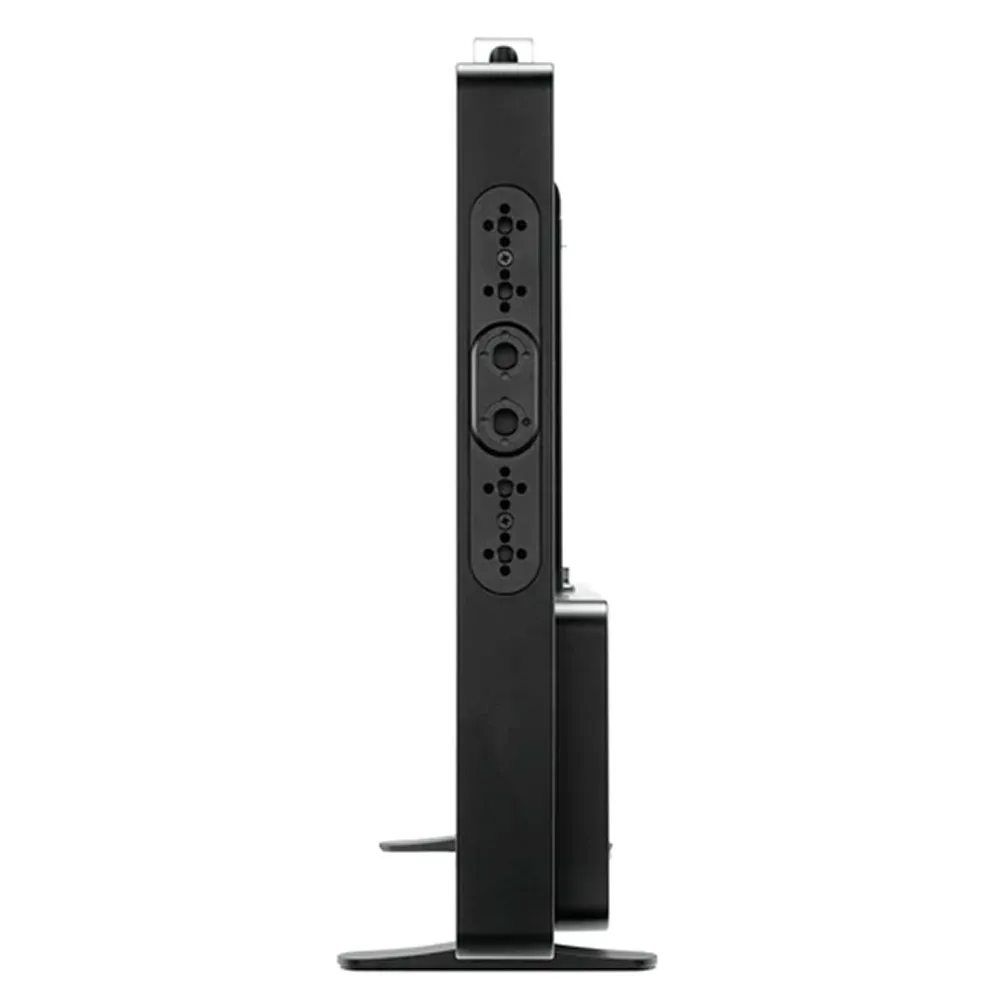

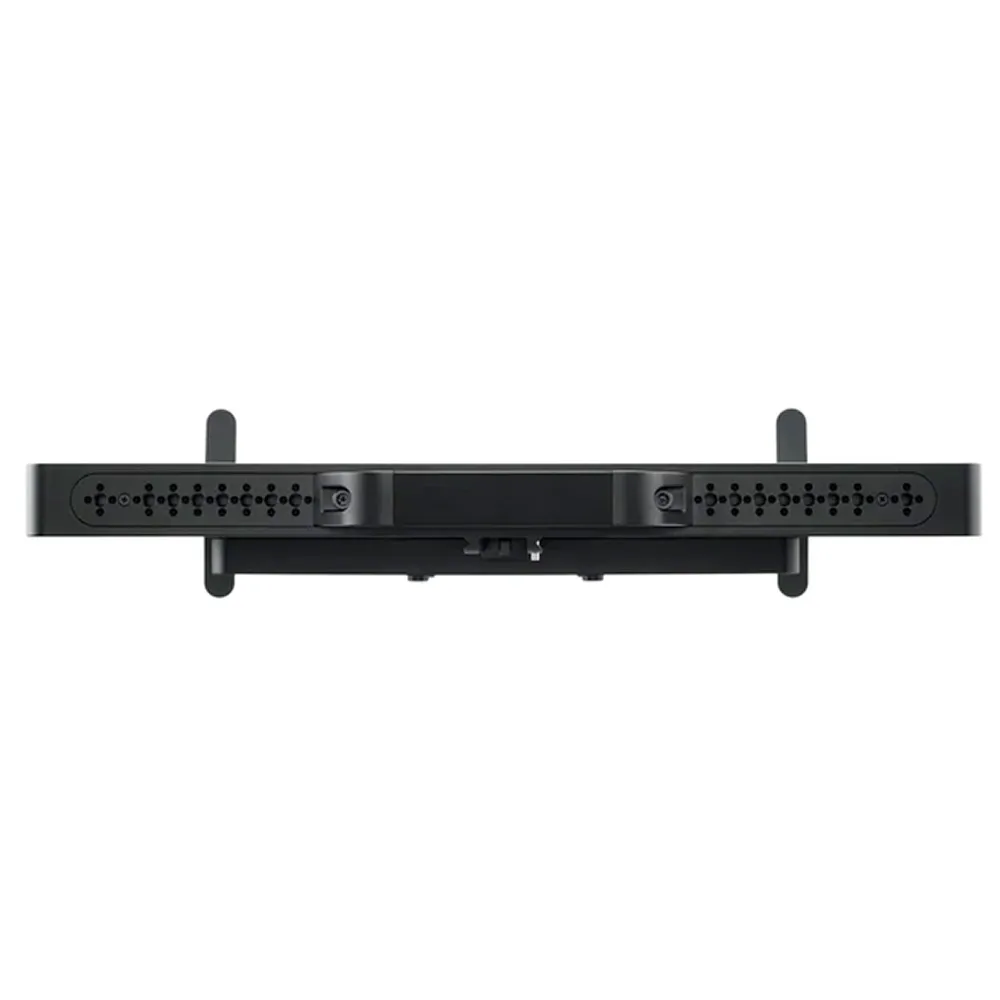

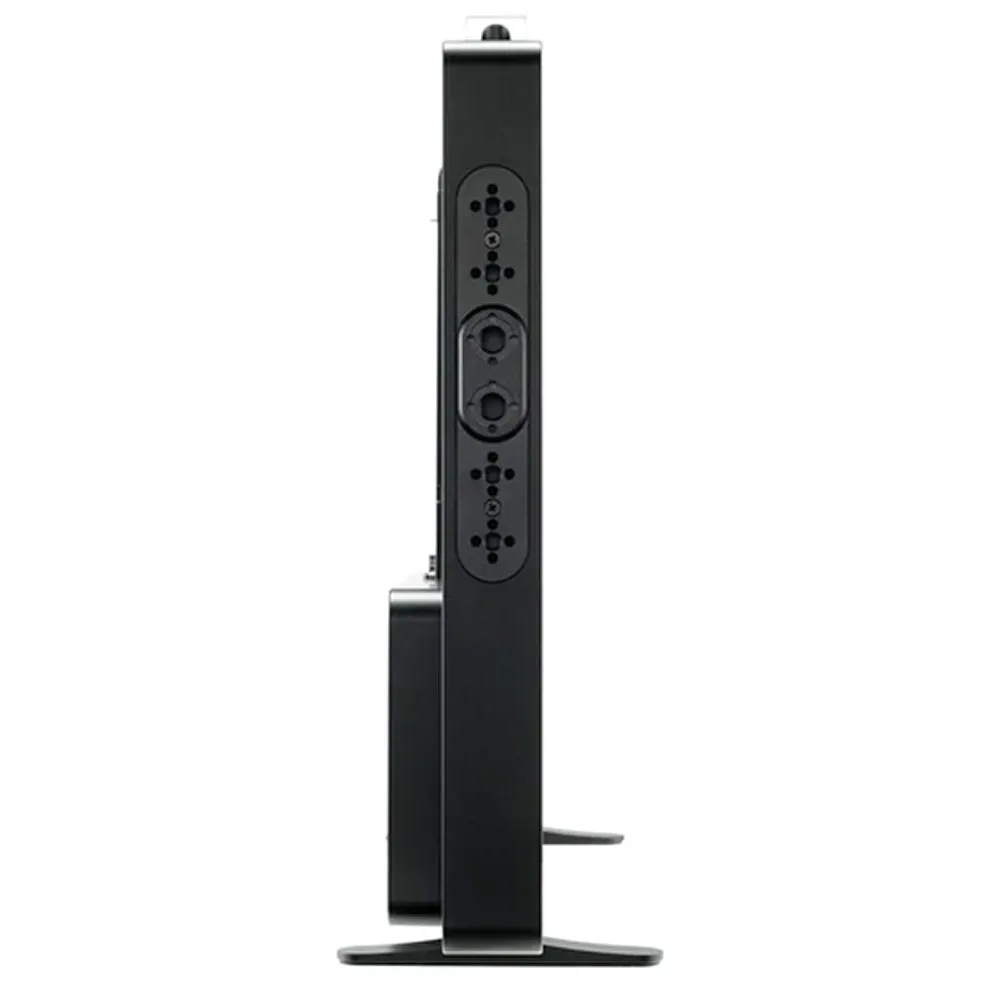

- 1/4″-20 mounting threads on top and sides
SmallHD OS4.1
- Internal calibration wizard
- Colour pipe colour-space formatting
- Settings dashboard for easy access to common settings
- Preconfigured pages
- Page tabs
- Customizable false colour overlays
- Customizable 4K waveform with region-of-interest highlighting
- Improved function buttons
- Pixel zoom, focus assist, peaking
- Total UI overhaul
Power Options
- One 4-pin XLR 12 to 24V, 12A input
- Two 2-pin LEMO 12V, 2A outputs
- One USB Type-A 5V, 2.4A output
- One USB Type-A 5V, 1.5A output
- One USB Type-C 5V, 1.5A output
- Separately available V-mount or Gold mount battery plates
- XLR and battery options are hot-swappable
