SmallHD 1303 HDR Production Monitor

The new SmallHD 1300 Series production monitors are the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1300 Series will boldly go where no other production monitor has ever gone before.

$6,695.00

Description

Clarity that produces certainty.

The display size, resolution, and pixel density of the 1303 production monitor make it an invaluable tool for precision focus pulling. When you don’t have the time or proper measurements, a razor-sharp, low latency display will help you hit your marks.

Calibrated for collaboration.

Preview what you’re sending downstream using the Output Preview Page, while utilising software features like customisable focus assist and peaking on your 1303 monitor. If it’s the only monitor near by, its colour accuracy (100% REC 709) and broad viewing angle make it easy to share with clients and directors.

Can you see me now? Good.

With a panel roughly 3x brighter than most production monitors, the 1303 is not restrained by ambient light. Its optically bonded LCD combats glare and sunlight, allowing you to pull focus in less than ideal shooting environments.

Proper power options.

Power options for the 1303 monitor are simple and convenient. The 2-pin LEMO out allows for a seamless integration with accessories such as the Teradek Bolt wireless receiver.

Travel made easy: carry-on accessories.

All SmallHD® production monitors are equipped with the Rapid Rail Mounting System; the simplest way to connect, store, and travel with critical monitor accessories.

Smooth is fast.

Transitioning from table to C-Stand happens safely and securely with the 1303’s VESA compatible mounting accessory.

Boldly go.

The 1303 monitor is the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1303 will boldly go where no other production monitor has ever gone before.

Specifications:

Display

Panel Type	IPS
Size Diagonal	13 Inch
Resolution	1920×1080
Pixel Density (PPI)	170 PPI
Aspect Ratio	16:9
Active Area	15(W) x 8.42(H) Inches
Brightness	1500 nits
Contrast
Colour Gamut	100% Rec.709
Colour Depth	10 bit
Viewing Angle	178 Deg.
Backlight Type	LED
Adjustable Backlight	Yes
Temperature Adaptive Colour	No

Input Signal Types/Formats

3G-SDI	YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI	YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI	Not Supported
HDMI	Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component	Not Supported
Composite	Not Supported
Audio	HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels

Output Signal Types/Formats

3G-SDI	YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
HD-SDI	YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
SD-SDI	Not Supported
HDMI	Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
Component	Not Supported
Composite	Not Supported
Audio	No Audio output (for initial firmware release) to be supported at a later release

Connector Type

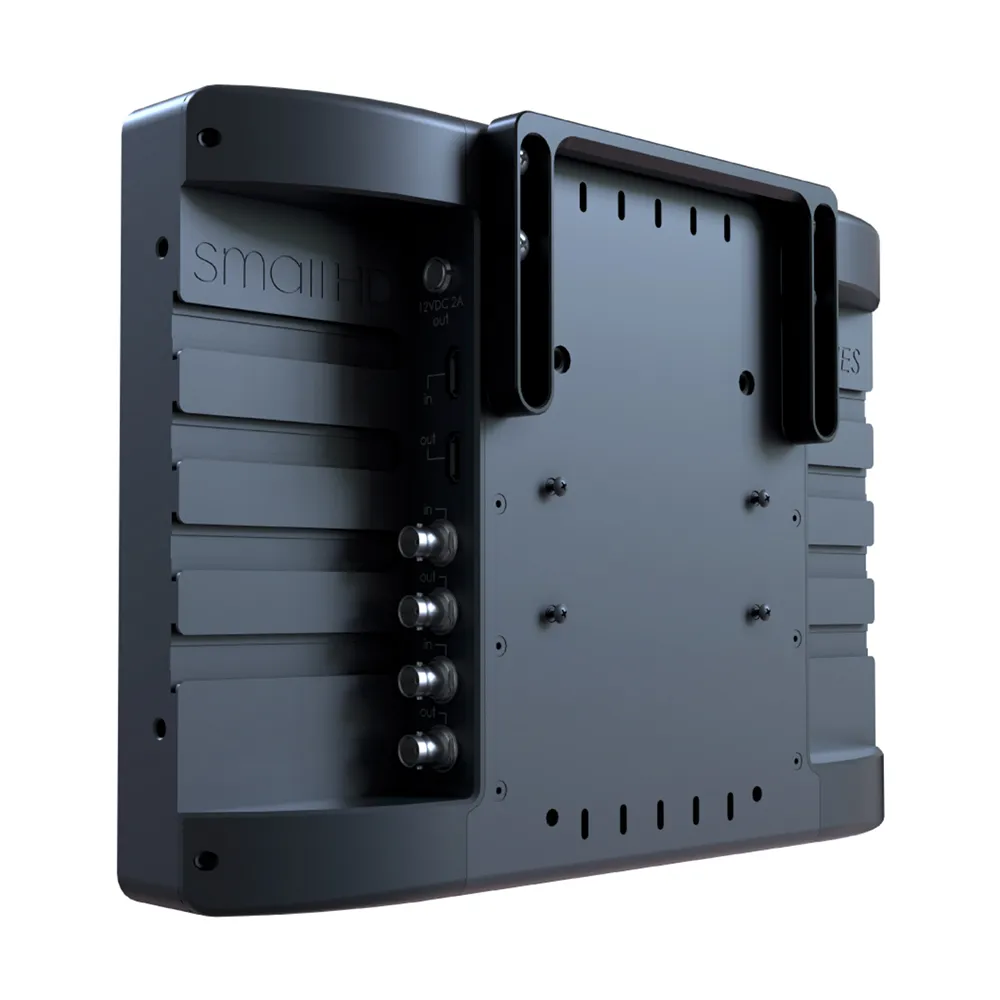

SDI	2x 3G Inputs, 2x 3G Outputs
HDMI	1x Input, 1x Output
Component	Not Supported
Composite	Not Supported
Audio	1x Headphone Jack on Front of Monitor

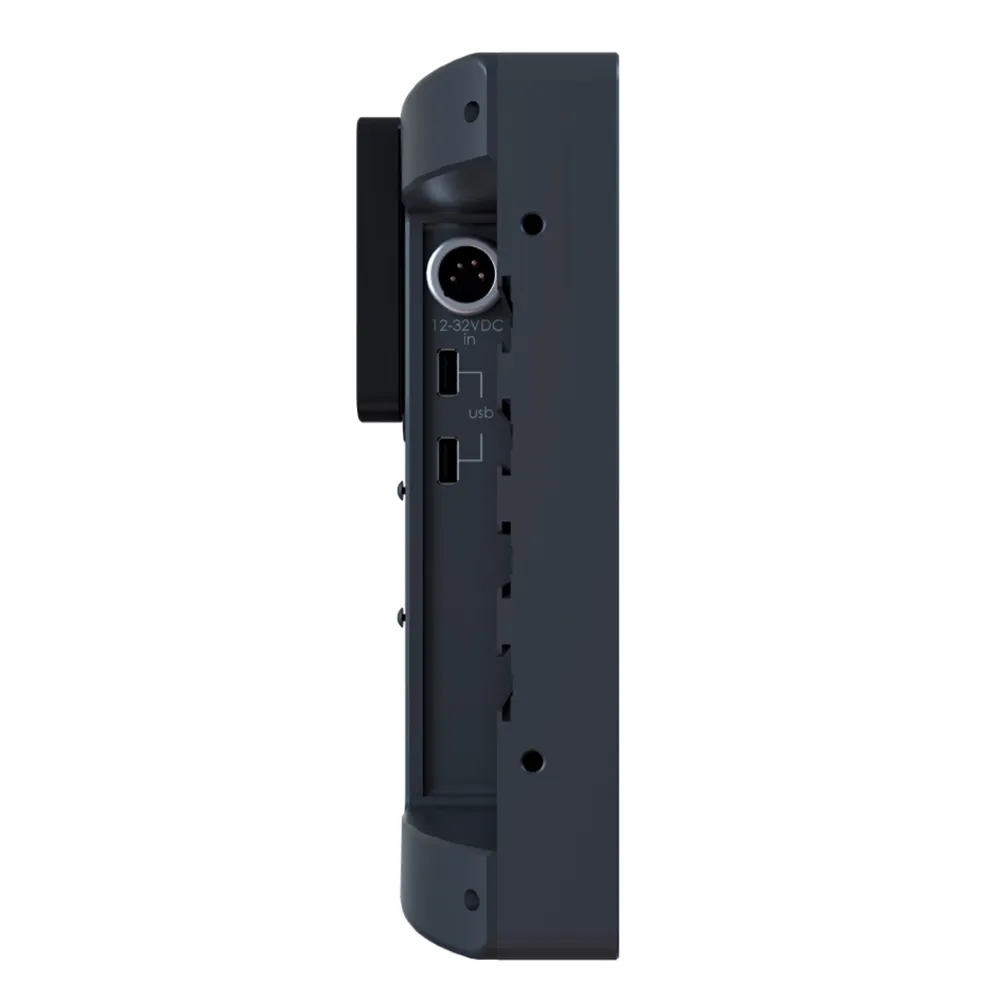

Power In	1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
Power Out	1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
USB	1x Front USB2, 2x Rear USB2

Controls

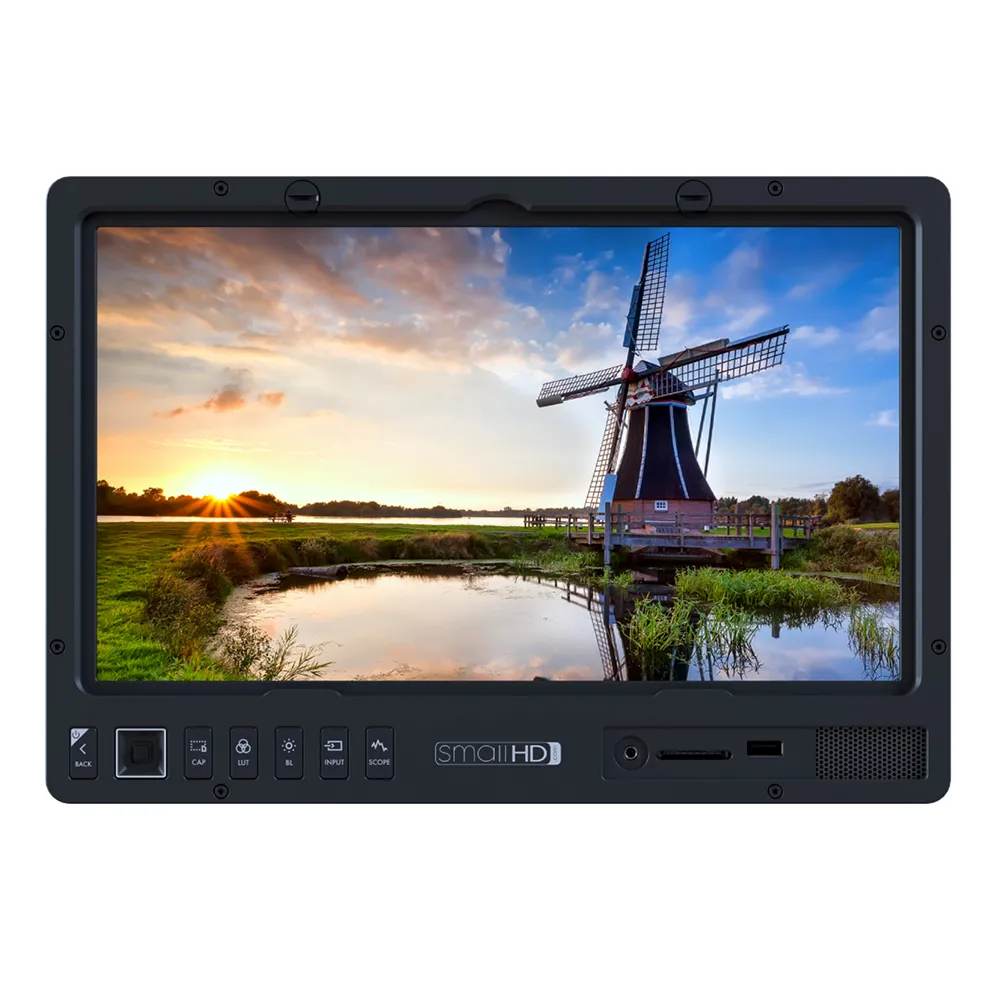

Primary Control Interface	Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 14 Instant Selection; Tools Menu
Record/Capture	Dedicated Capture Button on Front Bezel
User Defined Functions
RF Wireless Remote / External Control
USB Remote / External Control

Data I/O

Storage	SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades
USB
Wireless
Wifi

Power

Connector Type	XLR 1234VDC IN for Batteries, 12V Lemo 2pin OUT 4A Max
Voltage	DC Operating Voltage Range: 12-34 VDC AC Operating Voltage Range: 90 – 240 VAC
Power Consumption
Battery Plate Included
Recommended Power Supply
Overload Protection
Smart Battery Compliant
Battery Types	Gold Mount / VMount via 4pin XLR Connector
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)

Environmental

Compliance	FCC, IC, CE, RoHS
Operating Temperature	32F 100F
Storage Temperature	4F-120F
Screen Protection	Acrylic Screen Protector Available as an Option
Height
Width
Depth/Length
Weight (Item Only without battery)
Weight (Packaged)	7.62kg

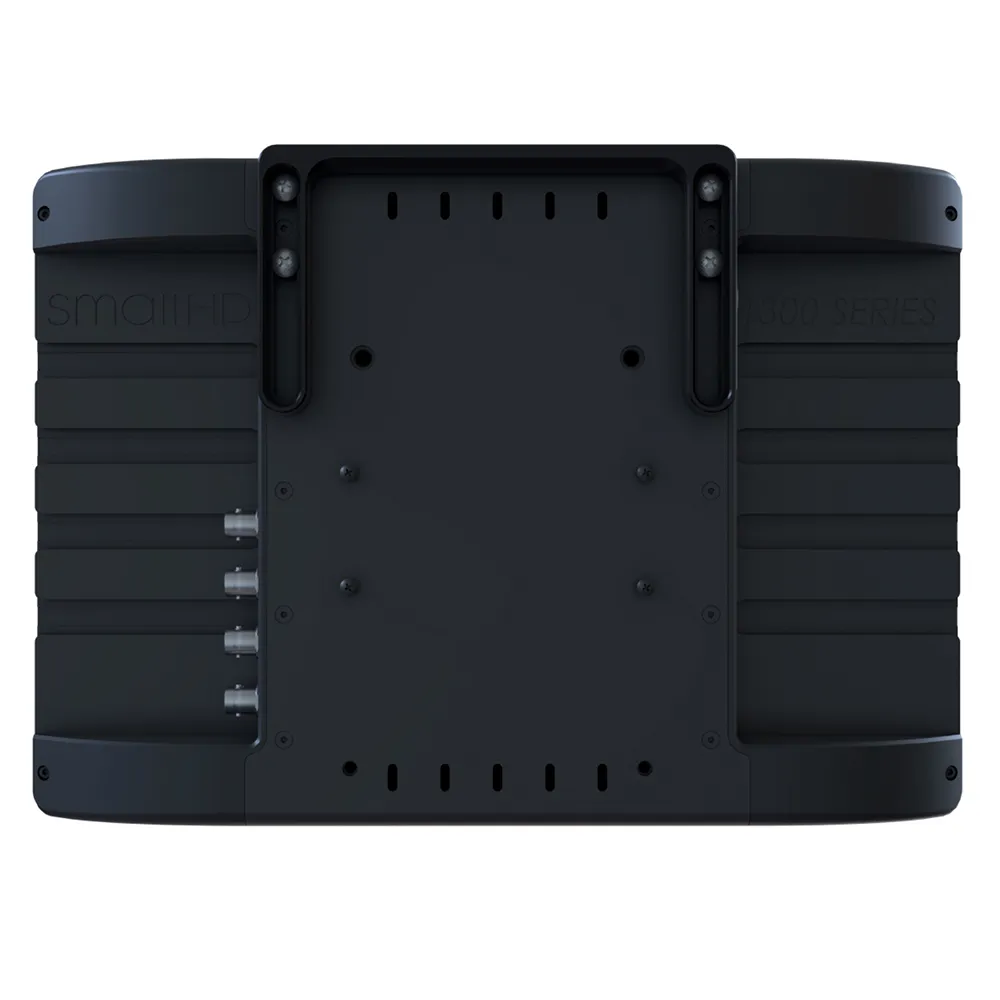

Mount Points	VESA Mount, Multiple 1⁄4”20 & 3⁄8”16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor
Note:

Software

Pixel Zoom (type)	2x & 4x Zoom with smooth pan via joystick
Frame Guides	Yes: Preset Aspect Ratios & Customizable
DSLR Scale	Canon 5DMkii & Canon 7D
Custom Scale	Yes (Underscan Only)
Anamorphic De-Squeeze	Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)	Yes Automatic
Image Flip (Manual/Automatic)	Yes Automatic
Cross Conversion	Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colours)	Yes User Adjustable Colour and Intensity
Peaking	Yes User Adjustable Intensity
False Colour	Yes Rainbow & Arri Style
Zebra	Yes Dual User Configurable
Waveform	Yes Luma & RGB Style, Fully User Customisable w/ Region of Interest Highlighting
Vectorscope	Yes
PIP
RGB Parade	Yes Fully User Customizable
Histogram	Yes Luma & RGB Style
Horizon Indicator
Image Capture	Yes With Dedicated Button
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTS	Yes Loadable by Page or as Systemwide Colour Calibration
LUT Creation
LUT Downstream	Yes Available on SDI 1 or HDMI Out
LUT Import	via SD Card
Onion Skinning
Image Overlay	Yes with Intensity Slider and Blink Setting
Blue Only
Firmware	Compatible with 1700 Series Firmware V3.0 and Later
Audio Meters	Yes HDMI & SDI up to 8 channel
