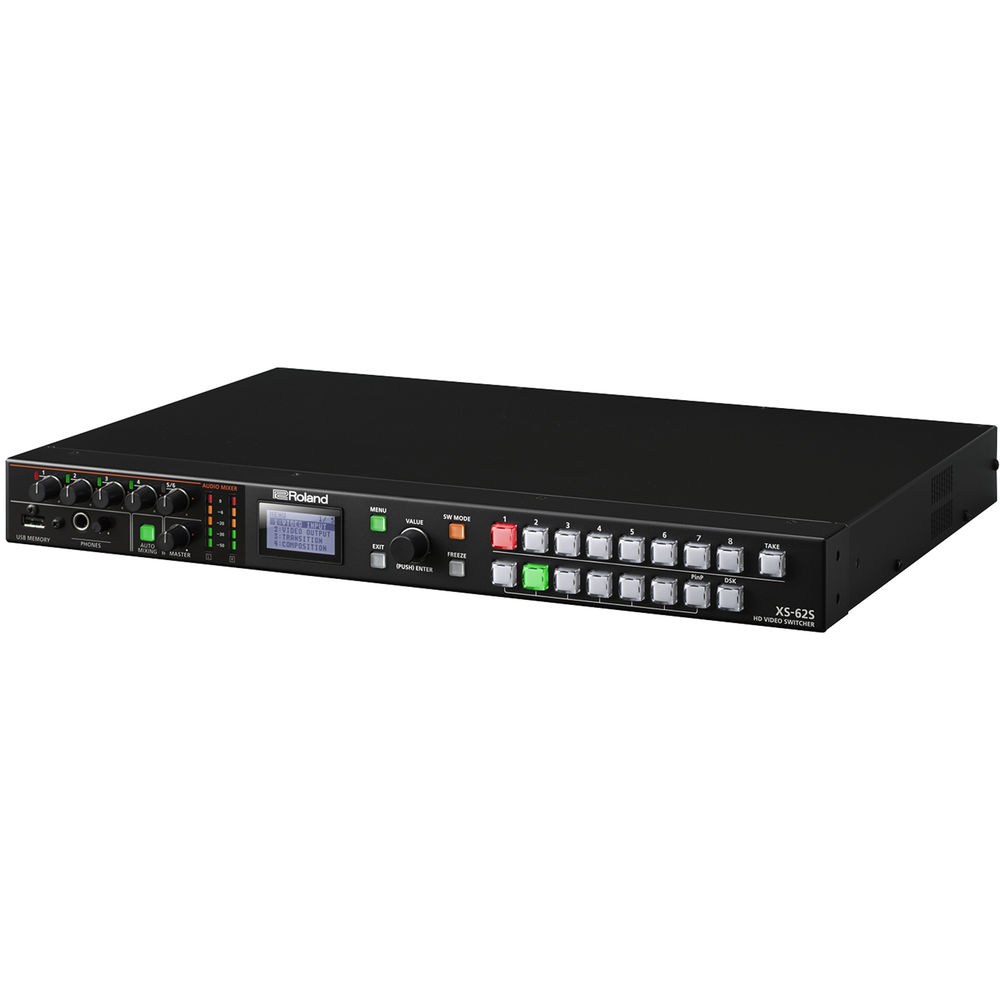

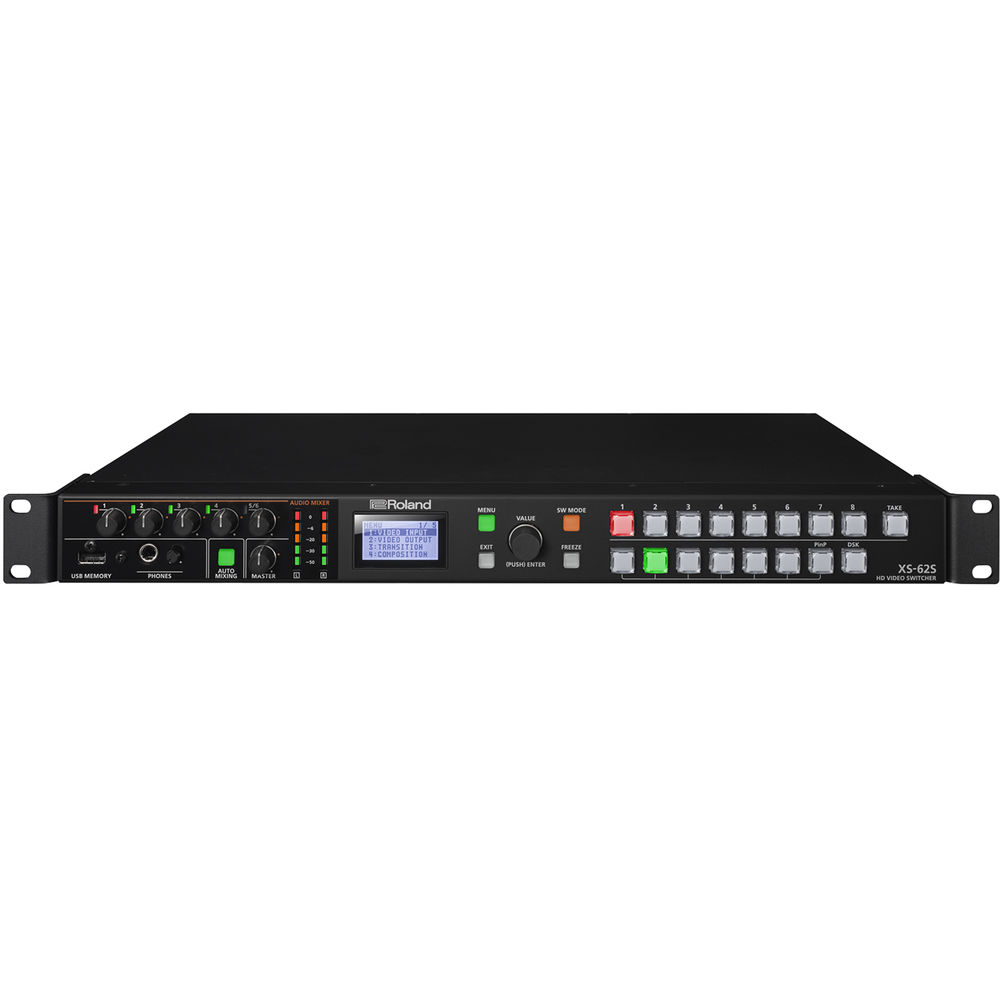

Roland XS-62S HD Video Switcher

Roland

This compact, rack-mountable 6-Channel HD Video Switcher from Roland can switch between 3G-SDI, HDMI, and RGB sources along with two still images stored in the internal memory. PGM/PST, dissolve, and matrix video switching modes can be selected, allowing for a wide range of applications. The XS-62S features an 18-channel audio mixer which includes four TRS jacks, RCA stereo pair, and audio de-embedding from the six video inputs.

This integrated solution supports presentation/performance/special event venues, corporate AV conferences, and classrooms for e-learning. The XS-62S is a 1 RU unit with front panel control buttons and a menu screen. It can also be controlled from a Windows PC or Mac using the real-time remote control software.

$4,749.00

Video
Video Processing 4:2:2 (YPbPr), 8-bit

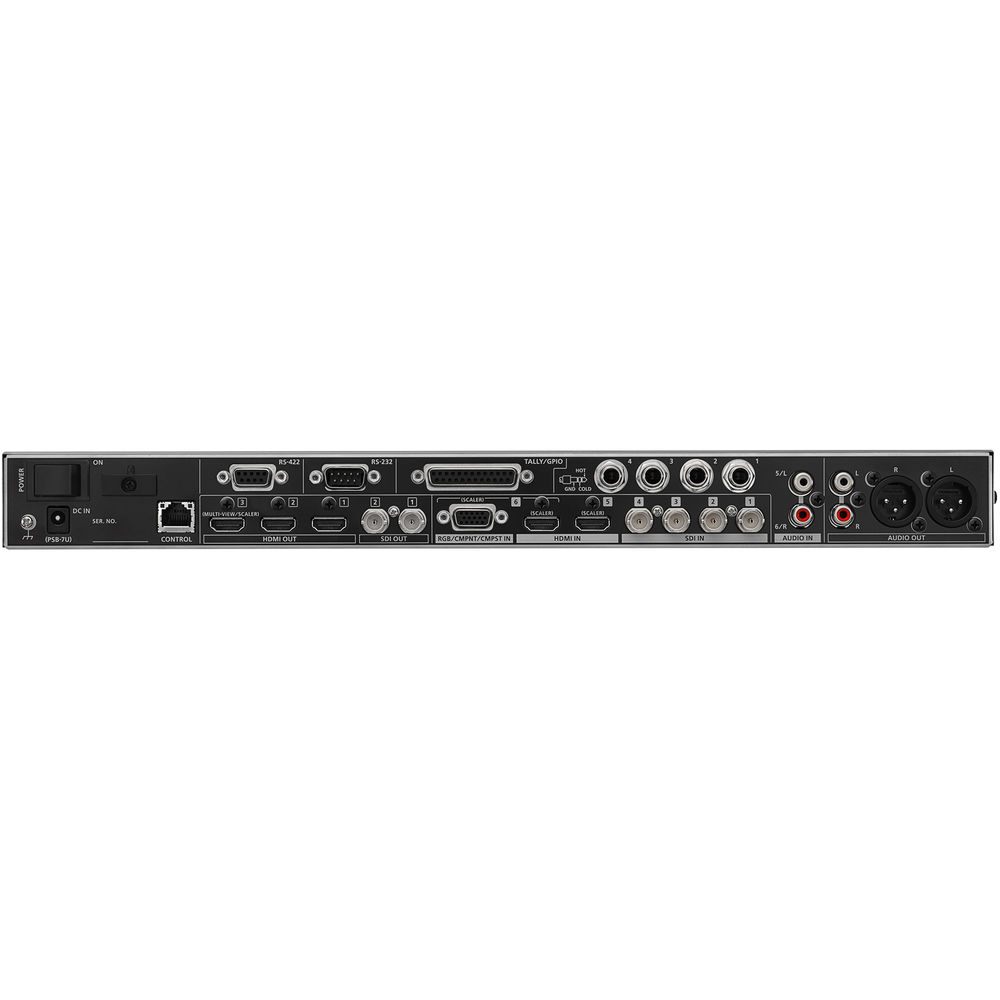

Input Connectors 4 x SDI BNC (conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
2 x HDMI type A (HDCP and multi-format supported)
1 x HD DB-15, select either HDMI, RGB/component, or composite (multi-format supported)
Output Connectors 2 x SDI BNC (conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
3 x HDMI type A (HDCP supported)
Maximum Analog Input Level RGB: 0.7 Vpp, 75 Ohms (H, V:5VTTL)
Component: 1.0 Vpp, 75 Ohms (bi-level sync/tri-level sync)
Composite: 1.0 Vpp (Y), 0.286 Vpp (C: NTSC), 0.3 Vpp (C: PAL), 75 Ohms
Input Formats SDI Input 1-4:
Conforms to SMPTE 296M, 274M
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50HDMI Input 5-6:
RGB/component/composite input 6
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
576p/i: 50
480p/i: 59.94
VGA (640 x 480, 60 Hz)
SVGA (800 x 600, 60 Hz)
XGA (1024 x 768, 60 Hz)
WXGA (1280 x 800, 60 Hz)
SXGA (1280 x 1024, 60 Hz)
FWXGA (1366 x 768, 60 Hz)
SXGA+ (1400 x 1050, 60 Hz)
UXGA (1600 x 1200, 60 Hz)
WUXGA (1920 x 1200, 60 Hz)
Still Image Bitmap (.bmp), 1920 x 1080 pixels (max), 24-bit color, uncompressed
Output Formats SDI Output 1-2:
Conforms to SMPTE 296M, 274MHDMI Output 1-2:
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

HDMI Output 3 (Multiview):
1080p: 59.94/50

HDMI Output 3 (Scaler):
1080p: 59.94/50
720p: 59.94/50
576p: 50
480p: 59.94
SVGA (800 x 600, 60 Hz)
XGA (1024 x 768, 60 Hz)
WXGA (1280 x 800, 60 Hz)
SXGA (1280 x 1024, 60 Hz)
FWXGA (1366 x 768, 60 Hz)
SXGA+ (1400 x 1050, 60 Hz)
UXGA (1600 x 1200, 60 Hz)
WUXGA (1920 x 1200, 60 Hz)
Video Effects Output Mode: PGM-PST, dissolve, matrix
Transition: Cut, mix (dissolve/FAM/NAM), wipe (30 types)
Composition: PiP (square, circle, heart, diamond), split (4 types), DSK (luminance, chroma)
Audio
Processing Sampling Rate: 24-bit, 48 kHz
Formats SDI Input: Linear PCM, 24-bit, 48 kHz, 2-Ch (conforms to SMPTE 299M)
SDI Output: Linear PCM, 24-bit, 48 kHz, 8-Ch (conforms to SMPTE 299M)
HDMI Input/Output: Linear PCM, 24-bit, 48 kHz, 2-Ch
Input Connectors 4 x SDI BNC
2 x HDMI type A
4 x 1/4″ TRS phone jack
2 x RCA phono type
Output Connectors 2 x SDI BNC
3 x HDMI type A
1 x XLR RCA phono
1 x 1/4″ stereo phone jack
Input Level Audio Input 1-4:
-60 to 4 dBu (22 dBu max input level)Audio Input 5-6:
-10 dBu (+8 dBu max input level)
Input Impedance Audio Input 1-4:
10 kOhms (0 to 23 dBu, head amp gain)
5 kOhms (24-to 64 dBu, head amp gain)Audio Input 5-6:
15 kOhms
Output Level Audio Output:
4 dBu (XLR type, 22 dBu max input level)
-10 dBu (RCA phono type, 8 dBu max input level)Phones: 92 mW + 92 mW (32 Ohms)
Output Impedance Audio Output: 600 Ohms (XLR type), 1 kOhm (RCA Phono type)
Phones: 10 Ohms
Audio Effects Auto-mixing, EQ, delay, compressor, HPF, gate, reverb, multiband compressor, limiter
Others
Other Connectors 1 x USB Type-A memory port (USB flash drive)
1 x DB-25 tally/GPIO female port
1 x RS-232 male port, DB-9 type (remote control)
1 x RS-422 female port, DB-9 type (VISCA control)
1 x 100BASE-TX RJ45 port (remote control)
Other Functions Preset memory (8 types)
Panel lock function
EDID emulator
Smart tally
Remote camera control
Display Graphic LCD 128 x 64 dots
Power Supply AC adapter (included)
Current Draw 2.6 A
Power Consumption 31.0 W
Operation Temperature 32 to 104°F / 0 to 40°C
Dimensions 18.9 x 13.1 x 1.7″ / 48.1 x 33.3 x 4.4 cm
1 RU
Weight 7.9 lb / 3.6 kg
SKU: ROL-XS62S Category: Brand:
