Roland XS-1HD Multi-format Matrix Switcher

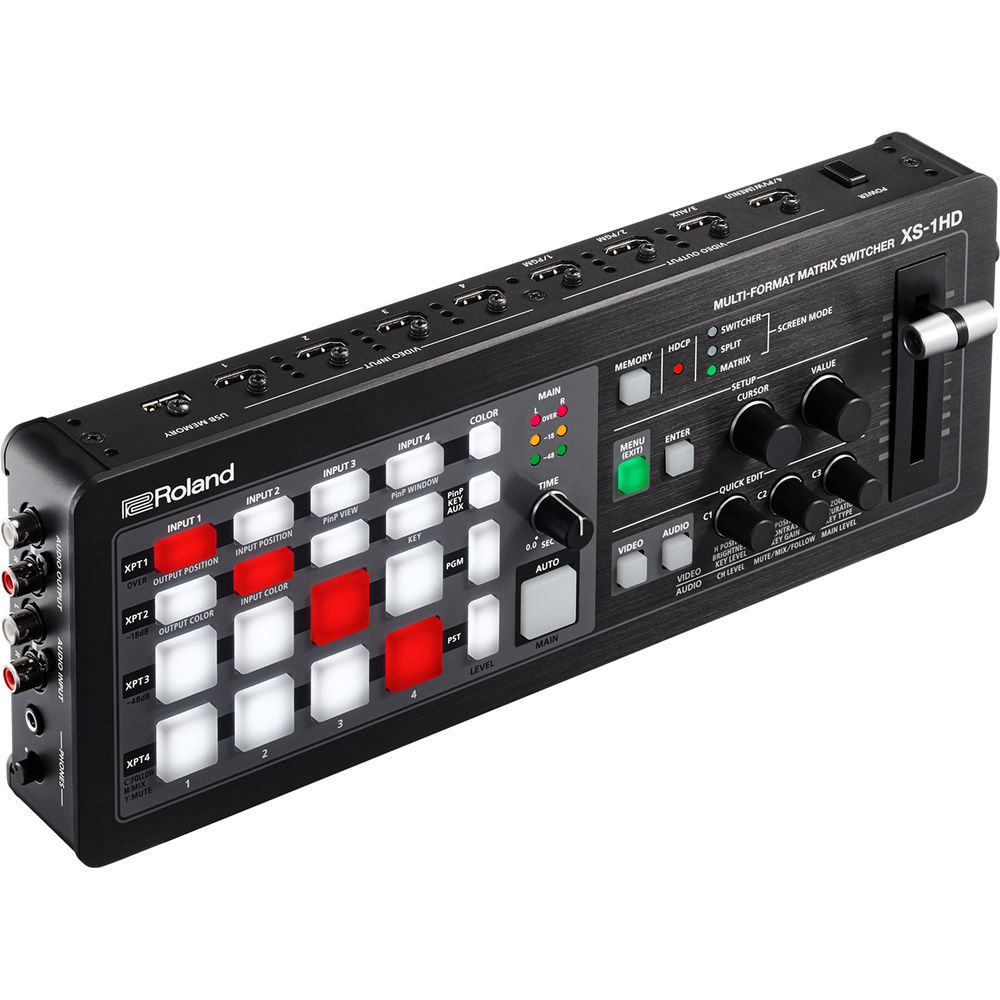

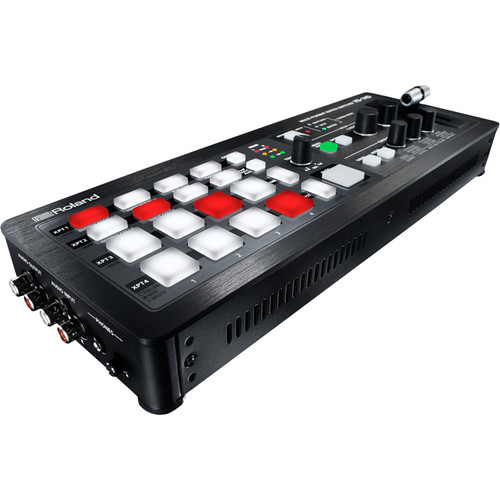

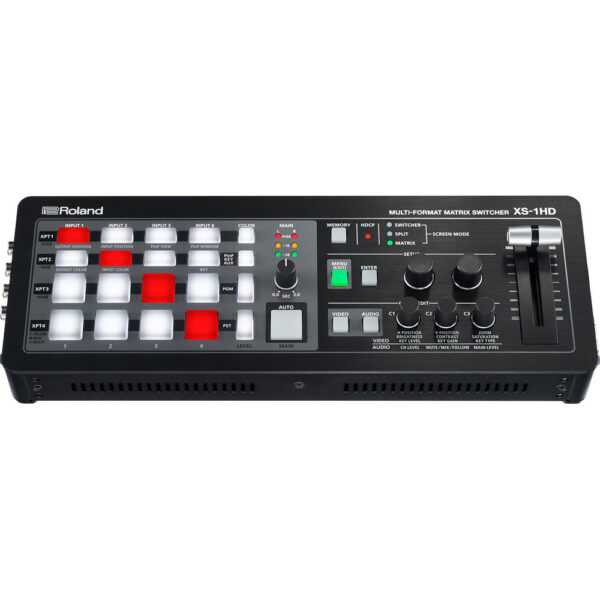

The Roland XS-1HD Multi-Format Matrix Switcher is a versatile, table-top 4-In/4-Out HDMI matrix switcher capable of resolution of up to WUXGA/1080p. The unit offers frame synchronization and scaling on all inputs, while three operational modes provide a variety of applications. Matrix mode allow for switching of four sources to any of four outputs, while Switcher mode allows Picture-in-Picture, key-composting, and dissolve transitions. Split mode allows Picture-in-Picture of up to three inset windows with individual position, size, and layering. The built-in audio mixer allows the HDMI audio and analog stereo input to be mixed. There’s also an “audio follow” function that switches the audio in synchronization with video transitions. The switcher offers sixteen memories allowing for easy recall when needed. The XS-1HD ships with a power adapter and power cord.
$2,772.00
| Processing | 4:4:4 (Y/Pb/Pr, RGB)/10 bits 4:2:2 (Y/Pb/Pr)/10 bits |

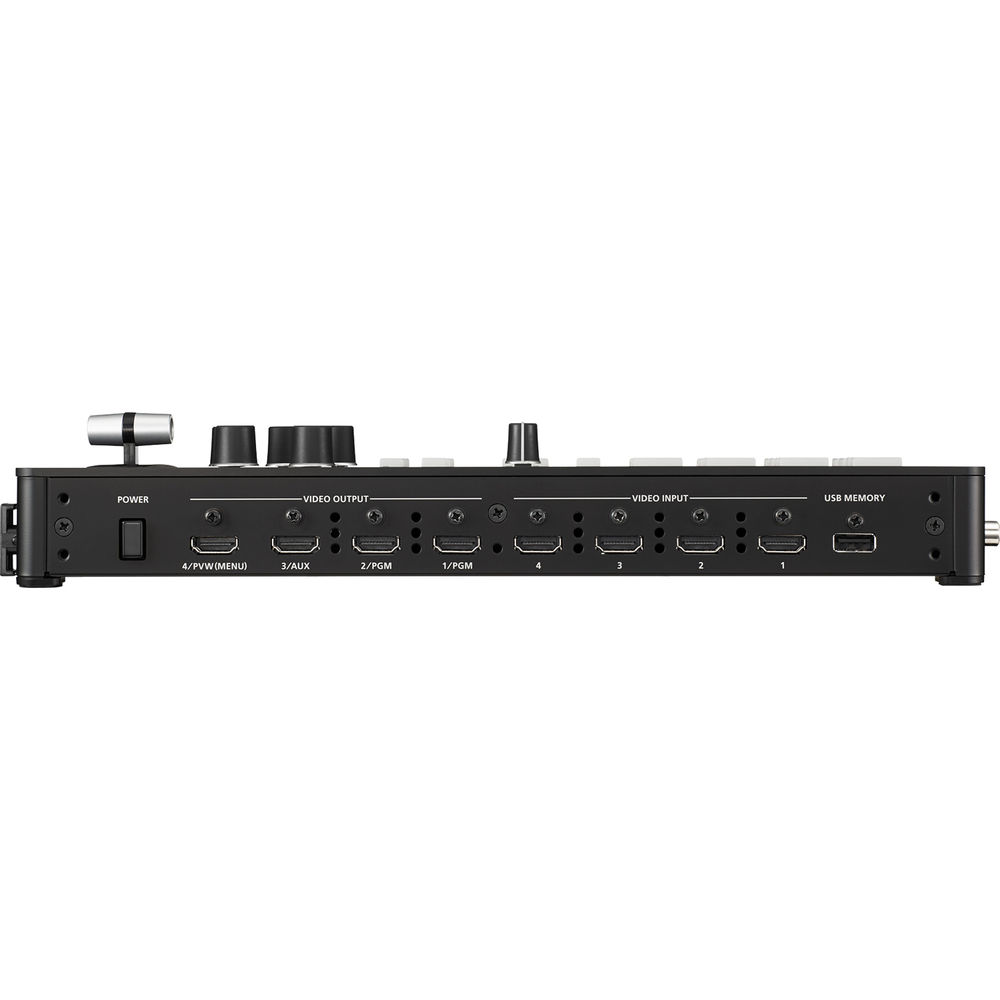

| Input Connectors | 4 x HDMI type-A (HDCP Supported) |
| Output Connectors | 4 x HDMI type-A (HDCP Supported) |
| Supported Formats | 480/59.94i 576/50i 480/59.94p 576/50p 720/59.94p 720/50p 1080/59.94i 1080/50i 1080/59.94p 1080/50p 800 x 600/60 1024 x 768/60 1280 x 720/60 1280 x 800/60 1366 x 768/60 1280 x 1024/60 1400 x 1050/60 1600 x 1200/60 1920 x 1080/60 1920 x 1200/60 RB |
| Effects | Output Mode: Switcher, Split, Matrix Transition: Mix, Cut Composition (Keyer): 2 Others: HDCP Supported, Test Pattern Generator |
| Still Image | Internal Memory: 1 Maximum Size: 1920 x 1200 pixels Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed |
| Sample Rate | 24-bit/48 kHz |

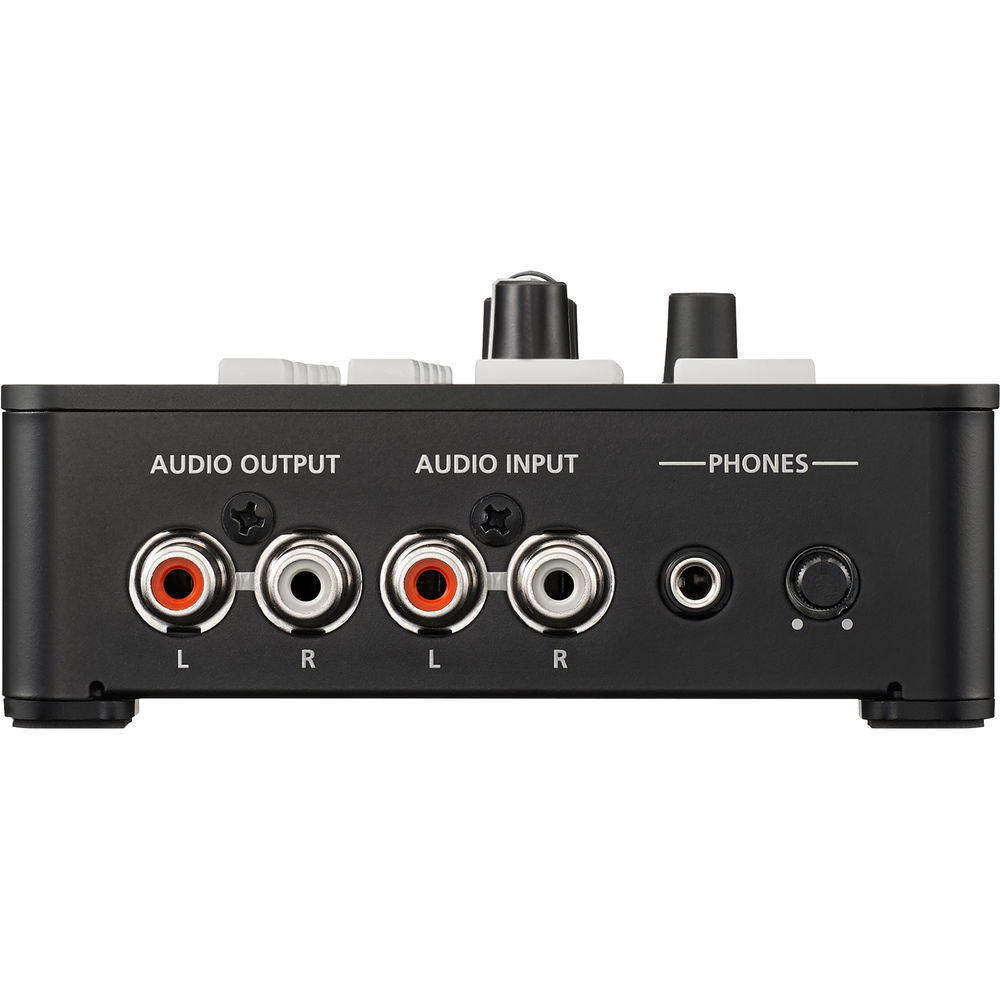

| Input Connectors | 4 x HDMI type-A 1 x RCA (stereo pair) |
| Output Connectors | 4 x HDMI type-A 1 x RCA (stereo pair) 1 x Stereo 1/8″ / 3.5 mm (TRS) |
| Input Level and Impedance | Input Level: -10 dBu (Maximum: +8 dBu) Input Impedance: 15 kOhms |
| Output Level and Impedance | Output Level: -10 dBu (Maximum: +8 dBu) Phones Level: 72 mW + 72 mW (32 Ohms) Output Impedance: 1 kOhm Phones Impedance: 10 Ohms |
| Audio Formats | HDMI: Linear PCM, 24-bit, 48 kHz, 2-channel |
| Processing | Mixer: 4-Channel (Delay: Maximum 500 ms, audio follow) Test Tone Generator |

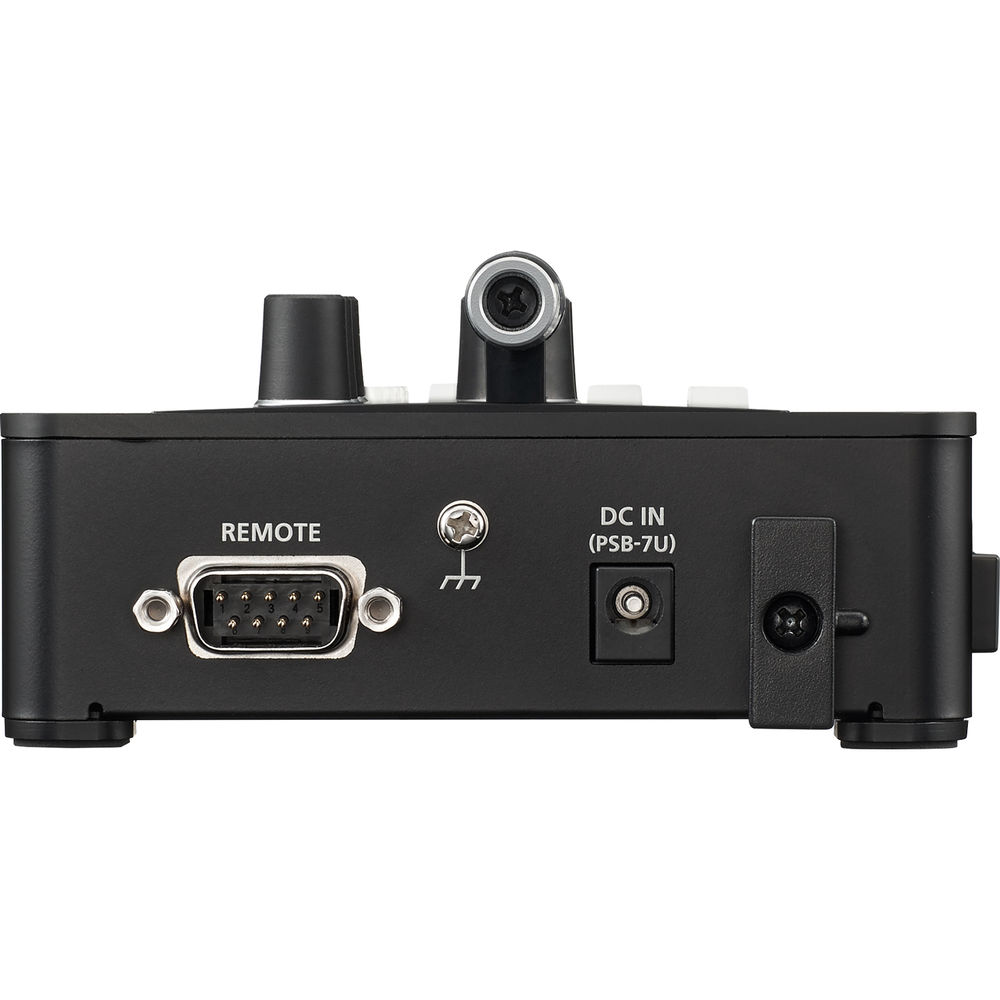

| Connectors | Remote: 1 x RS-232 DB-9 type (Male) (for remote control) USB Memory: 1 x USB type-A |
| Preset Memory | Auto Memory Function: 16 |
| Power | Power Supply: AC Adapter Current Draw: 2.1 A Power Consumption: 25 W |
| Temperature (Operating) | 32 to 104°F / 0 to 40°C |
| Dimensions | 12.9 x 4.6 x 2.2″ / 328.0 x 117.0 x 57.0 mm |
| Weight | 2.6 lb / 1.2 kg |
