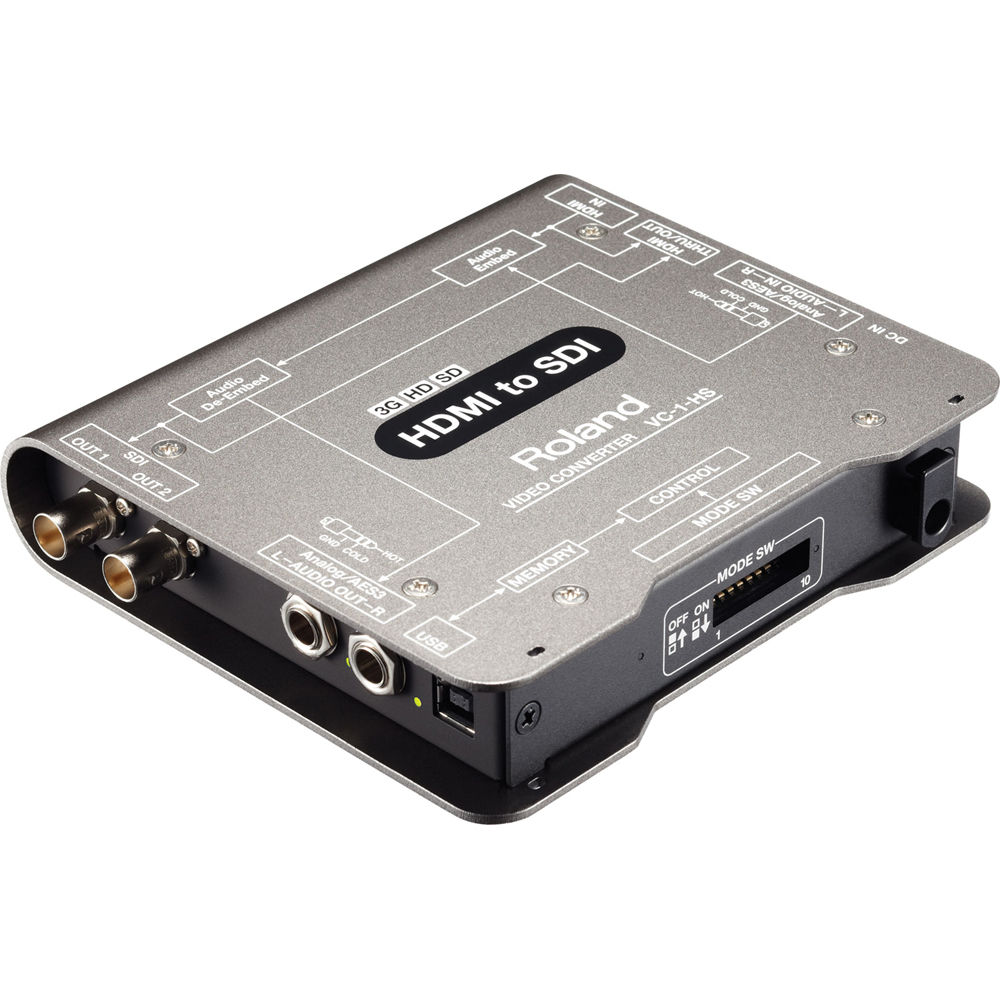

Roland VC-1-HS Video Convertor HDMI to SDI

Roland

The VC-1-HS features an HDMI and an SDI output that supports 3G-SDI, HD-SDI, and SD-SDI. A hybrid balanced stereo analog and AES/EBU digital audio input allows additional audio sources to be embedded in the SDI stream along with any HDMI audio. For local monitoring there is an HDMI loop-out that can be used with standard, consumer-grade HDMI displays and will incorporate any audio that has been embedded within the unit. A hybrid analog/digital audio output separates the HDMI and embedded audio and can be used for local monitoring incase audio output is unavailable from the display.

$735.00

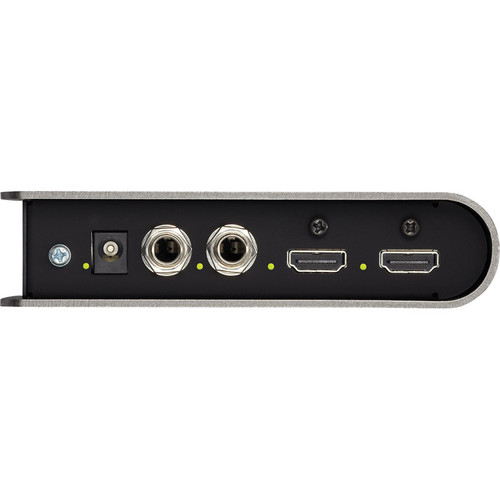

Inputs 1 x HDMI
2 x Analog audio on balanced 1/4″ TRS female – L/R stereo pair
1 x Digital audio on balanced 1/4″ TRS female – shares input with “R” channel analog input

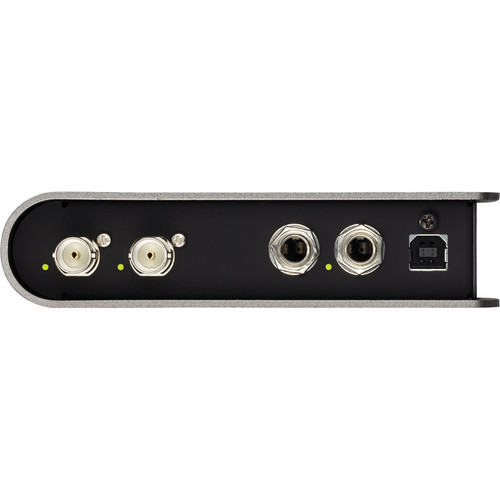

Output 1 x 3G-SDI on BNC female
1 x HDMI loop-out
2 x Analog audio on balanced 1/4″ TRS female – L/R stereo pair
1 x AES/EBU digital audio on balanced 1/4″ TRS female – shares input with “R” channel analog input
SDI Standards SMPTE 424M (Level A and B), 425M-AB, 299M, 296M, 292M, 274M, 272M-C, 259M-C; ITU-R BT.601-5
HDCP Support HDCP-protected sources will pass to HDMI output only; SDI output will be disabled
Audio Formats SDI: Linear PCM; 24-bit, 48 kHz, 16 channels
HDMI: Linear PCM; 24-bit, 48 kHz, 8 channels AES/EBU: 110 ohm; AES3; 16 or 24-bit, 32 or 48 kHz, 2 channels
Analog Input: 110 ohm; +4 to +24 dBu
Analog Output: 600 ohm; +4 dBu
Supported Resolutions 1920 x 1080: 60p, 59.94p, 50p, 30p/29.97p, 25p, 24p, 23.98p, 60i, 59.94i, 50i
1280 x 720: 60p, 59.94p, 50p, 30p, 29.97p, 25p
720 x 576: 50i
720 x 480: 59.94i
USB 1 x USB 2.0 type B
Power Requirements 9 VDC
Power Consumption 8 W
Operation Temperature 32 to 104˚F / 0 to 40˚C
Dimensions 5.9 x 5.1 x 1.2″ / 15 x 13 x 3 cm
Weight 1.1 lb / 0.5 kg
SKU: ROL-VC1HS Category: Brand:
