PortKeys PT5 II
The Portkeys PT5 II is an entry-level and very affordable 5-inch Wide Color Gamut touchscreen on-camera monitor. This HDMI-only monitor has a maximum brightness of 500nits and can be powered for hours by Sony NP-F or Canon LP-E6 batteries. Ready for your next creative adventures, the compact and rugged design houses a complete set of professional monitoring tools
Key features:
- 5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Maximum brightness of 500nits.
- 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
- Maximum input/output resolutions: 4K DCI at 24p or 4K UHD at 30p.
- Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
- 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
- The dual battery plate accepts Sony NP-F or Canon LP-E6 batteries.
- 5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
- Low power draw: only 7W.
- Lightweight and rugged aluminum housing: only 150g/5.29oz.
$249.00
The Portkeys PT5 II is a lightweight 5-inch on-camera monitor, perfect for content creators and filmmakers starting out or looking for a budget-friendly monitoring solution. Thanks to its polycarbonate housing, it only weighs 150g/5.29oz. At the same time, the toughened glass in front of the touchscreen display will protect it from scratches. With its compact dimensions of only 136 x 72 x 18.3mm, shooting with the PT5 II feels like having a smartphone on your camera, but with many additional useful features to make your life on set easier.
The PT5 II has a maximum brightness of 500 nits, and the 10-bit (8+2 FRC) panel makes color reproduction more accurate with a rich level of color details and no color banding. The 5-inch display has a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1000:1 contrast ratio.

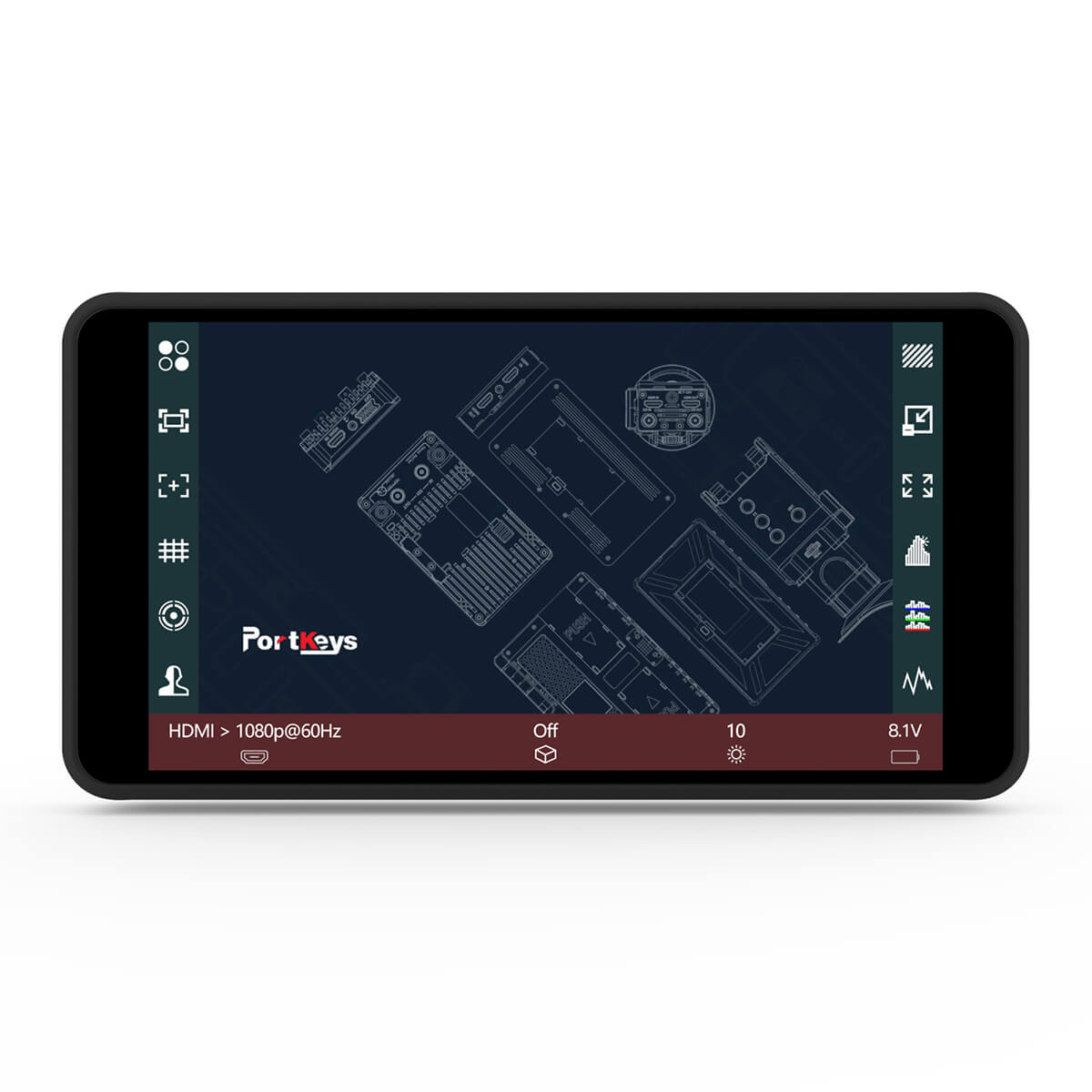

When it comes to monitoring your video signal, the Portkeys PT5 II has all the professional monitoring features you can expect from an on-camera monitor, including:
- Exposure tools: Luma and RGB Waveform, Histogram, False Color, and Zebra to accurately expose the image.
- A new Peaking algorithm to help you nail focus easily.
- 3D LUT monitoring. You can load custom LUTs via the USB port.
- Framing guides, grids, aspects, and Auto image flip.
- Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.
- Audio meters, and you can also monitor your audio signal via the 3.5mm headphone jack on the left side of the PT5 II.
- Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.

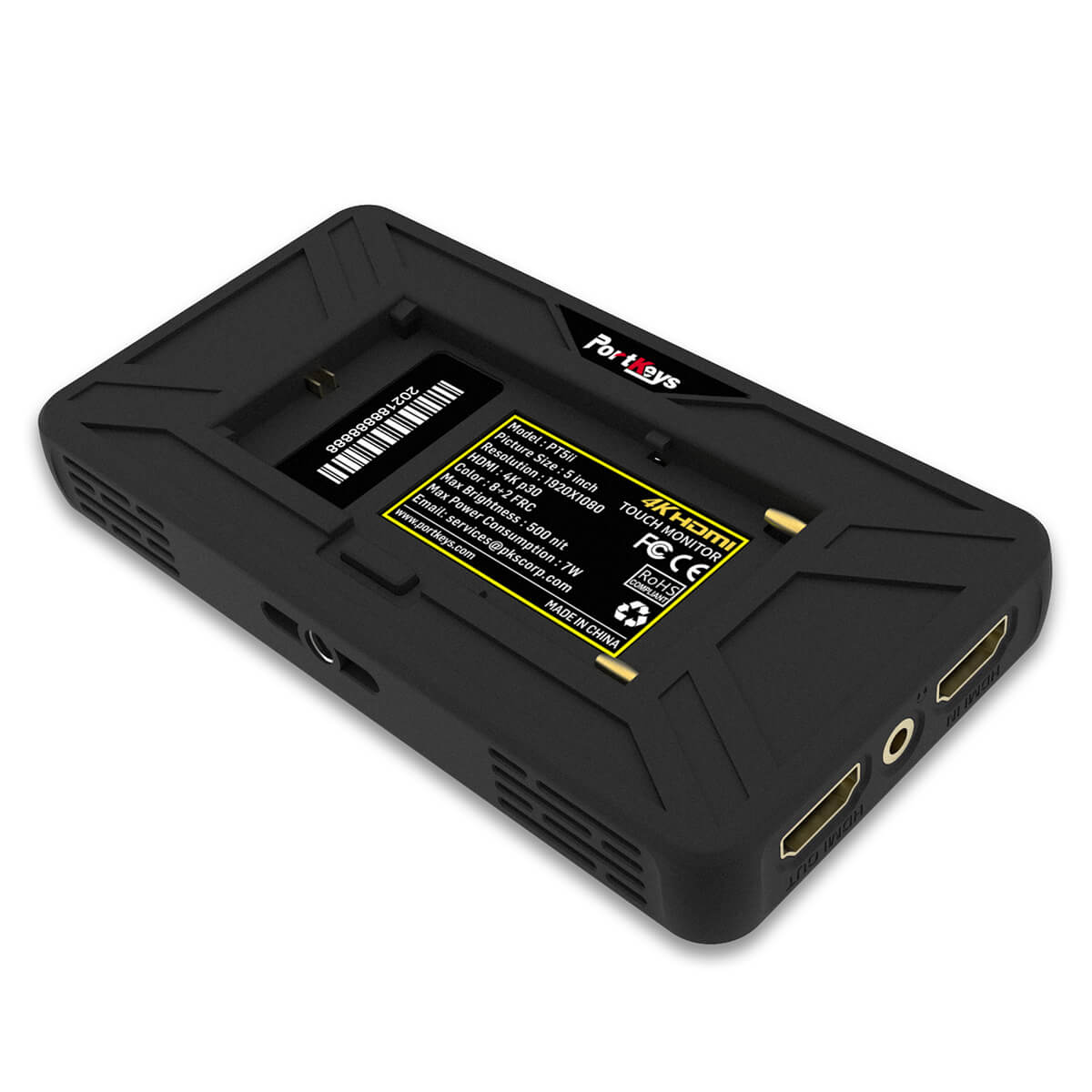

On the left side of the monitor, you’ll find one 4K HDMI input and one 4K HDMI output that can take signals up to 4K DCI at 24p, 4K UHD at 30p, or FullHD 1080p at up to 60p. Also, a 3.5mm headphone jack allows you to monitor your audio signal.

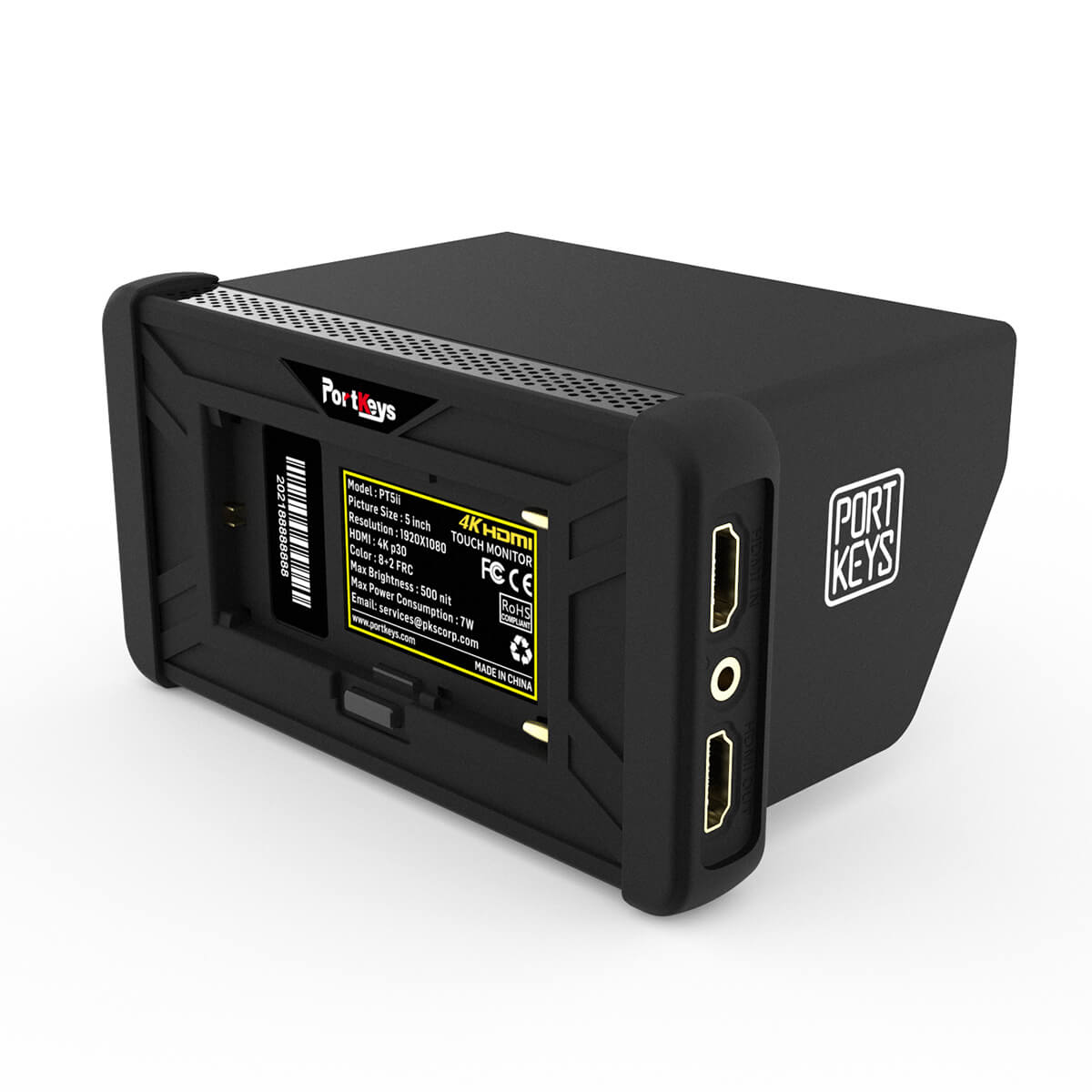

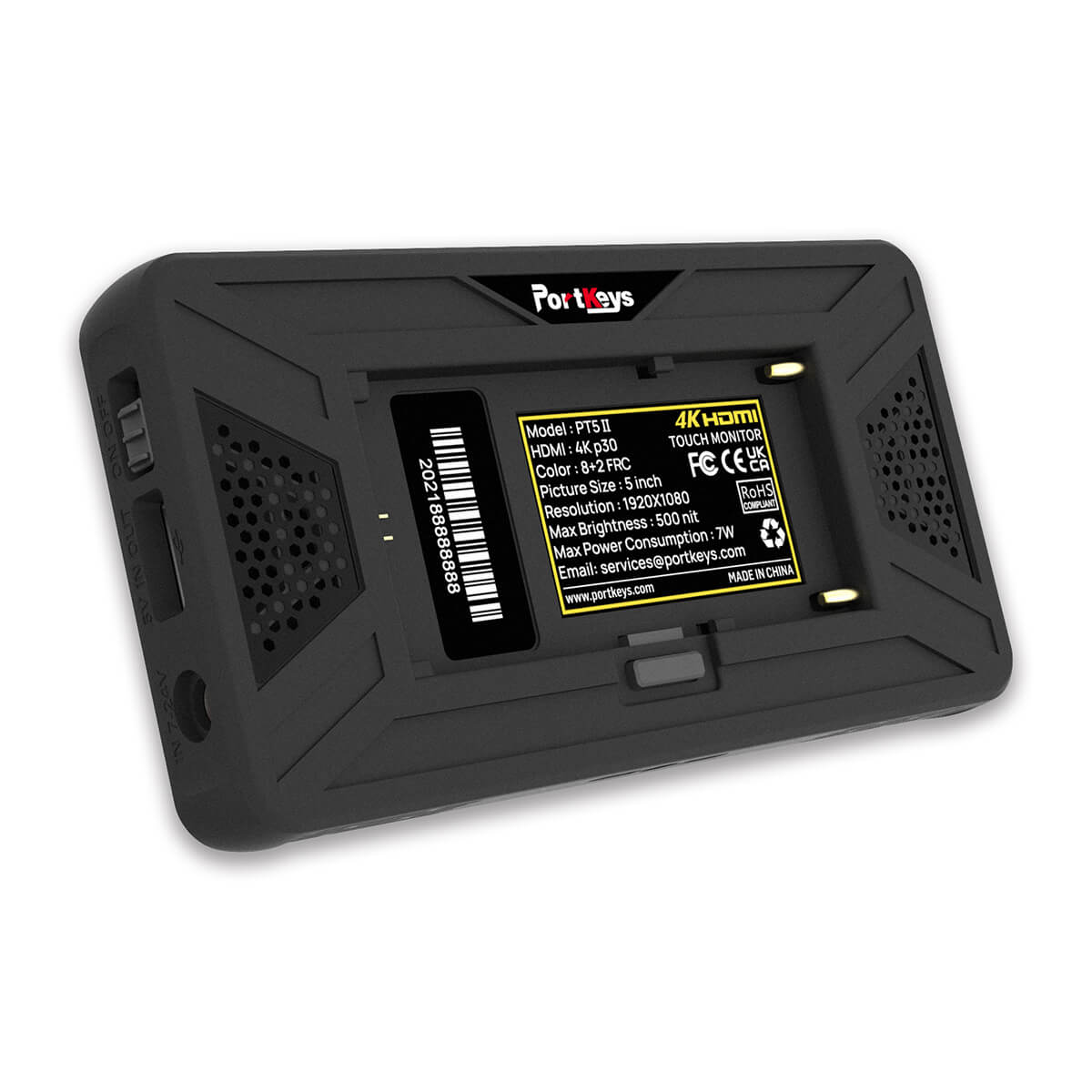

You’ll find a dual built-in battery plate at the back of the Portkeys PT5 II that can take either Sony NP-F or Canon LP-E6 batteries. With a low power draw of only 7W, a single battery can power the monitor for hours.
Also, the 5.5mm barrel connector 7.4-24V power input on the right side of the monitor allows you to run your monitor via an external battery for unlimited time. Lastly
Related products
-
On camera monitors
Blackmagic Design Blackmagic Video Assist 5 3G
Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!
SKU: BLA-HYPERD/AVIDA03/5 -
On camera monitors
SmallHD Cine 7 Sony Venice Bundle
Cine 7 is a top of the line professional 7″ monitor with included Sony Venice camera control. It’s 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment.
Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminium frame and several 1/4″-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment. Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.
SKU: SHD-33.1.MON-CINE7-VENICE -
On camera monitors
Blackmagic Design Blackmagic Video Assist 7″ 12G HDR
Blackmagic Video Assist 7” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10‑bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of ‑128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!
SKU: BLA-HYPERD/AVIDA12/7HDR -
On camera monitors
SmallHD Indie 7 On-Camera Monitor
The lightweight Touchscreen On-Camera Monitor provides professional monitoring in a sharp 7″ IPS LCD with 1920 x 1200 resolution, 10-bit colour processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4″-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
SKU: SHD-33.1.MON-INDIE7 -
On camera monitors

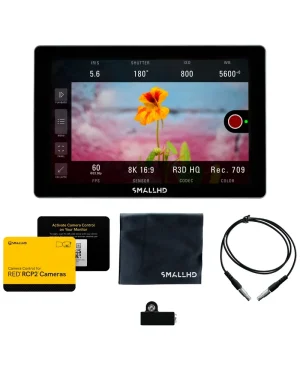

SmallHD Indie 7 Komodo Kit / DSMC3
