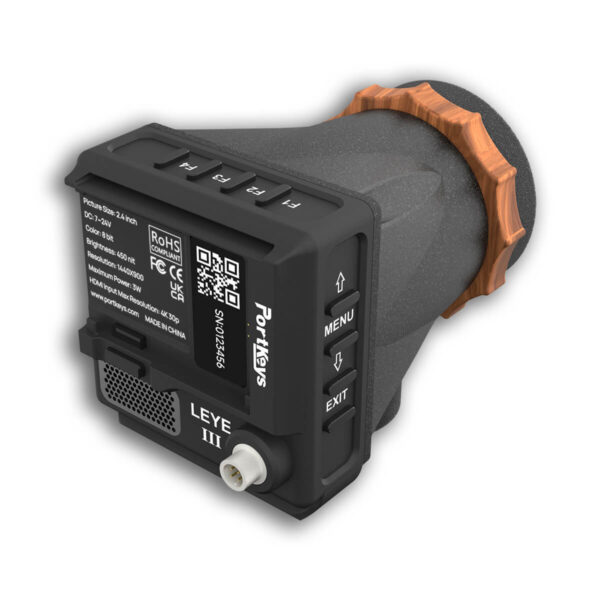

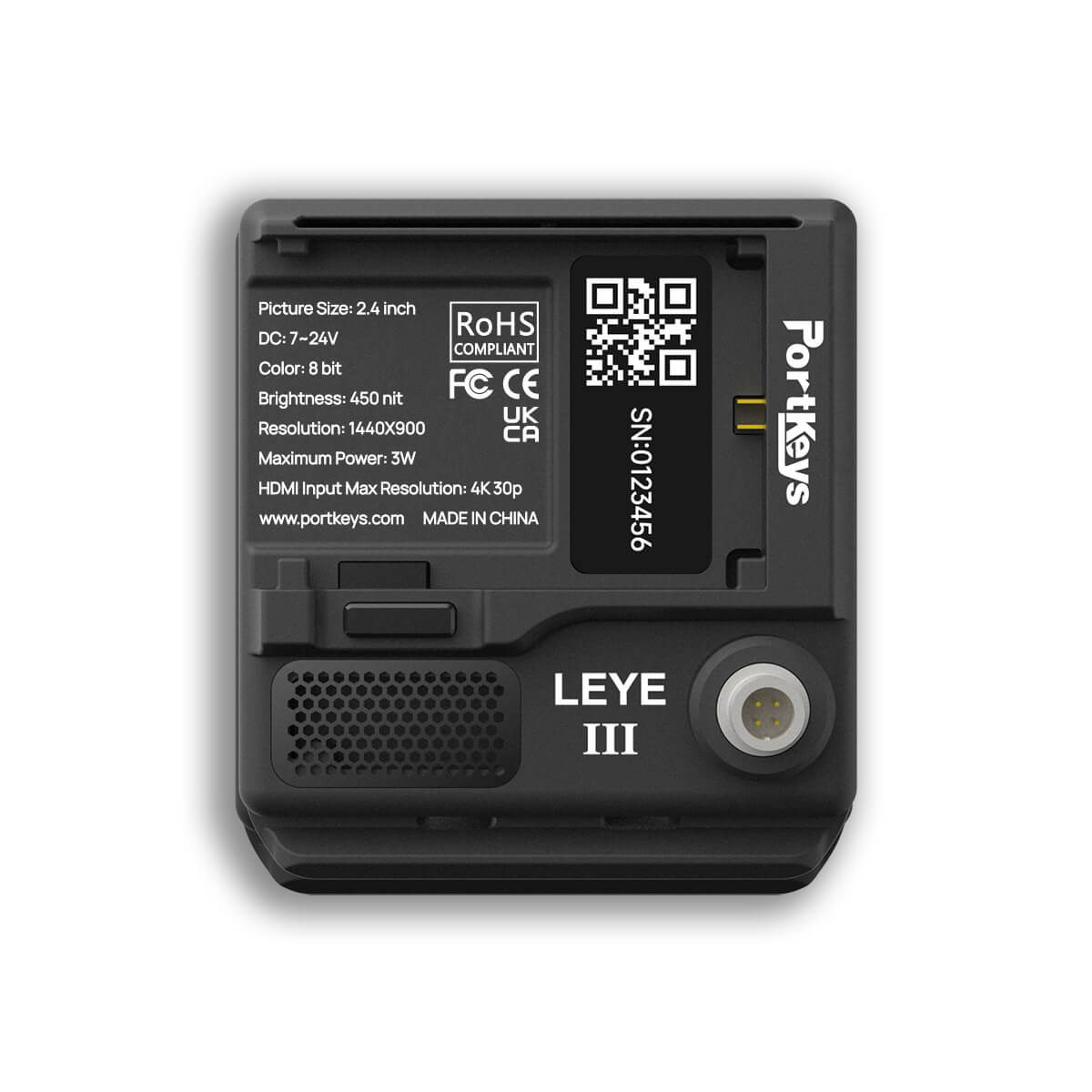

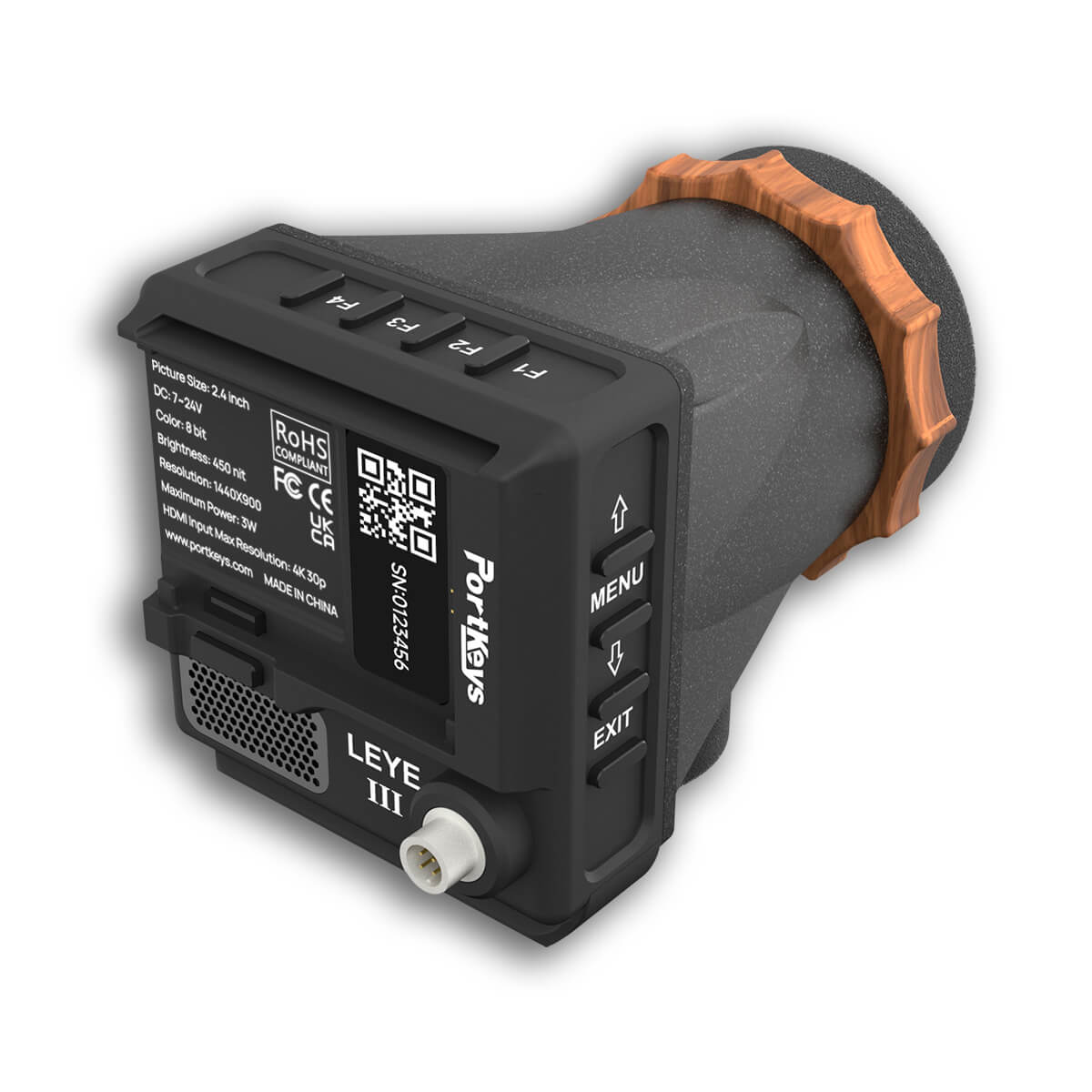

PortKeys LEYE III
- Display: 2.4 inch LCD, 1440×900 Resolution, 8bit Colour Depth, 1100:1 Contrast, 450 nit Brightness
- Input: Supports DCI 4K HDMI, Micro USB
- Power: DC 7-24V/USB 5V/Canon E6 Battery (Not Included)
$729.00
New features:
support 4K HDMI signal input
Image flip
Added passive heatsink vent, the heat dissipation performance is better
Self-locking 4 pin Aviation power connector
Customized peaking range
Image crop
Peaking no longer grab Guides、Girds
Waveform optional detect data before or after loading 3D LUT.
More parameters are as follows
【2.4-inch Panel】2.4″ Screen size LCD EVF with 1440×900 effective resolution, 8bit Color Depth, 1100:1 Contrast, 450nit Brightness.

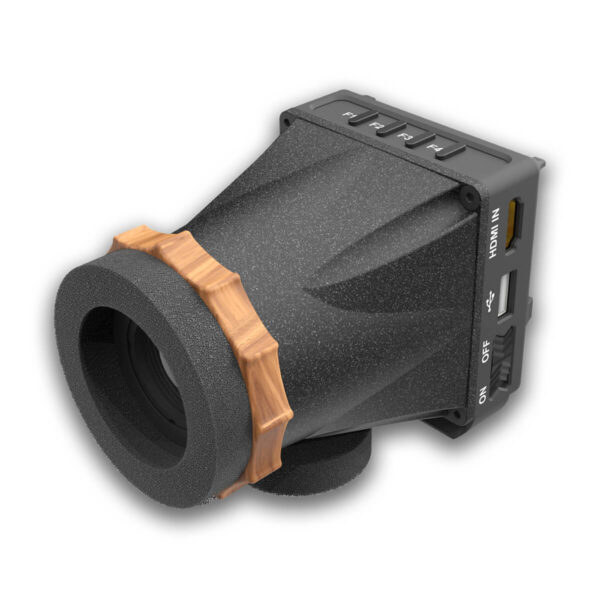

【Round Sponge Eye Mask】Wearing glasses to watch barrier-free. The sponge mask prevents direct sunlight from burning the LCD screen.
【Red Oak Diopter Swivel】+8D~-3D Adjustable diopters. It is suitable for users with different eyesight.
【Advanced Features】3D LUT, Peaking, Luma waveform, Zebra, Histogram, Audio meters, Guides, Cross hair, False color, Grids, Underscan, H/V Delay, Anamorphic, Sharpness, Check field, Contrast, Backlight, Brightness, Chroma, Color temperature, Tint, Osd flip, Display flip, Image crop, Battery voltage checking, Customized peaking range, Waveform optional detect data before or after loading 3D LUT.
