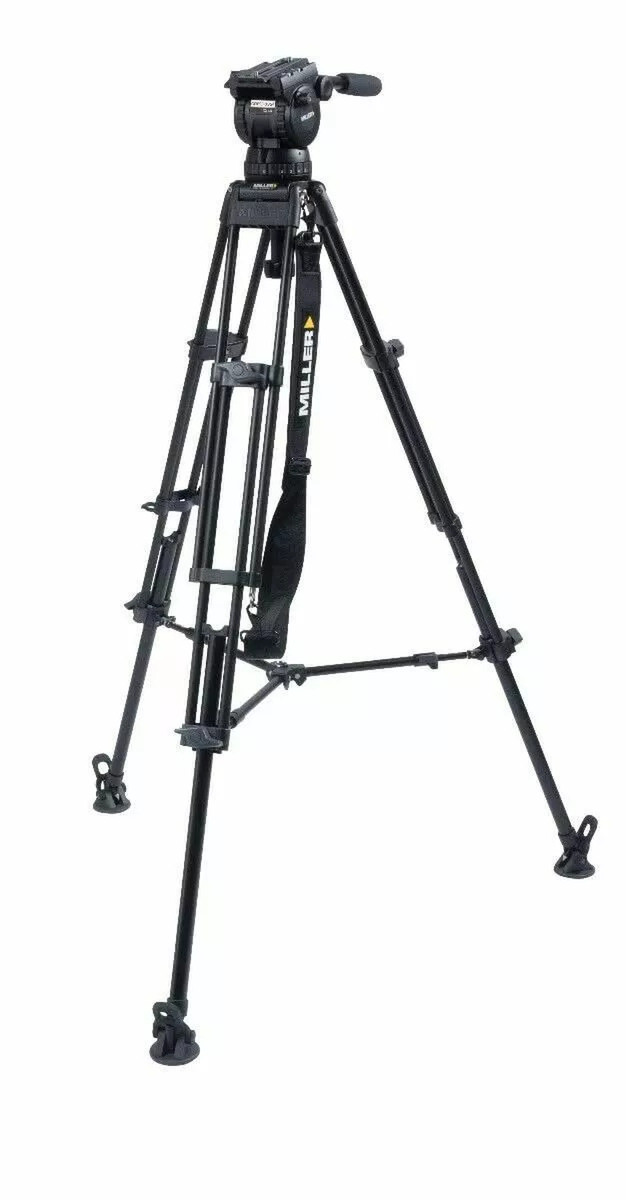

Miller CX14 Toggle 2 Stage Alloy Tripod System With Above Ground Spreader

Miller

The 3770 CX14 Toggle 2-stage (alloy) tripod system combines with award winning CX14 fluid head and cost-effective yet speedy 100mm 402 Toggle tripod with above ground spreader is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller’s precision fluid drag system.

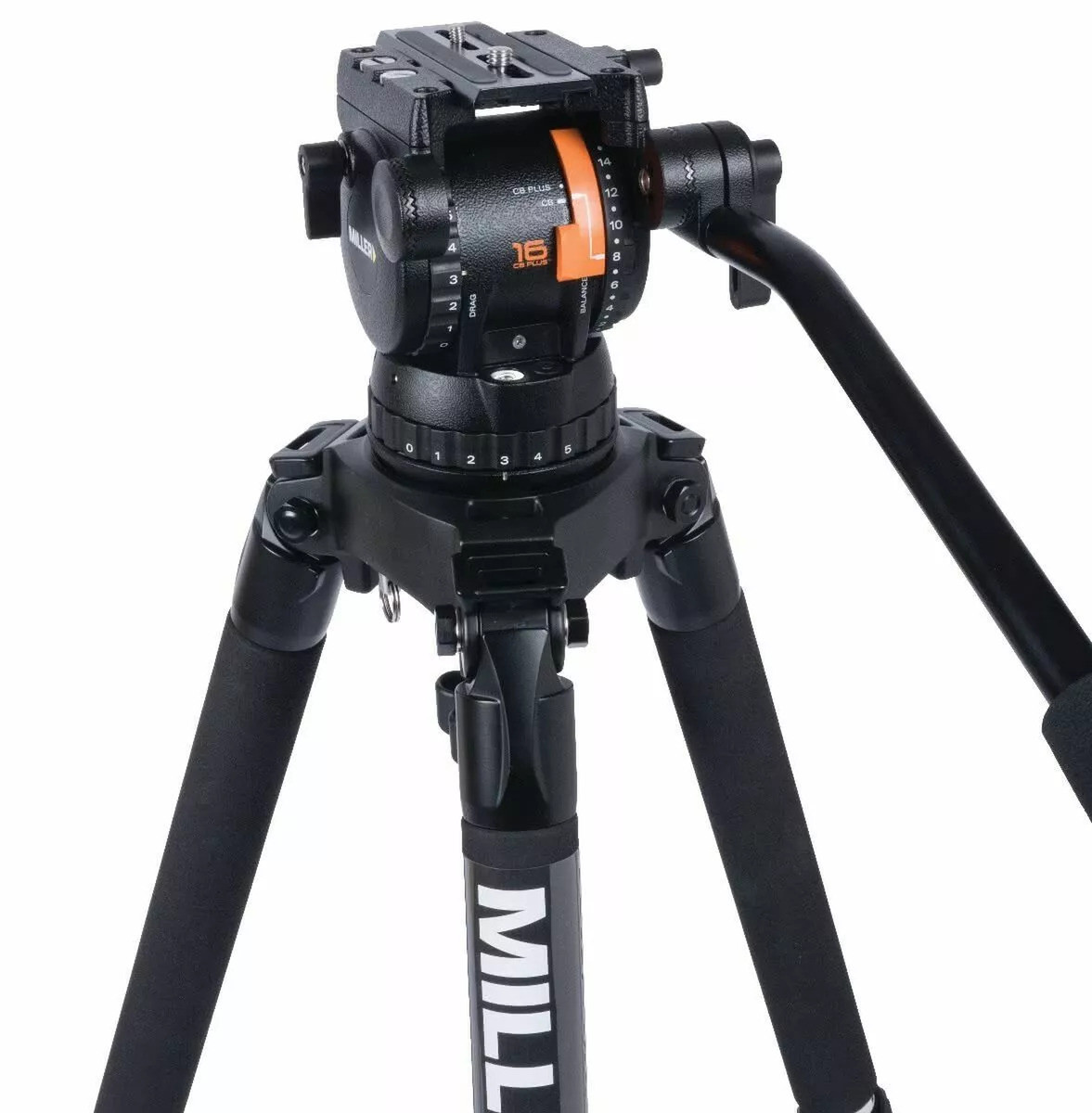

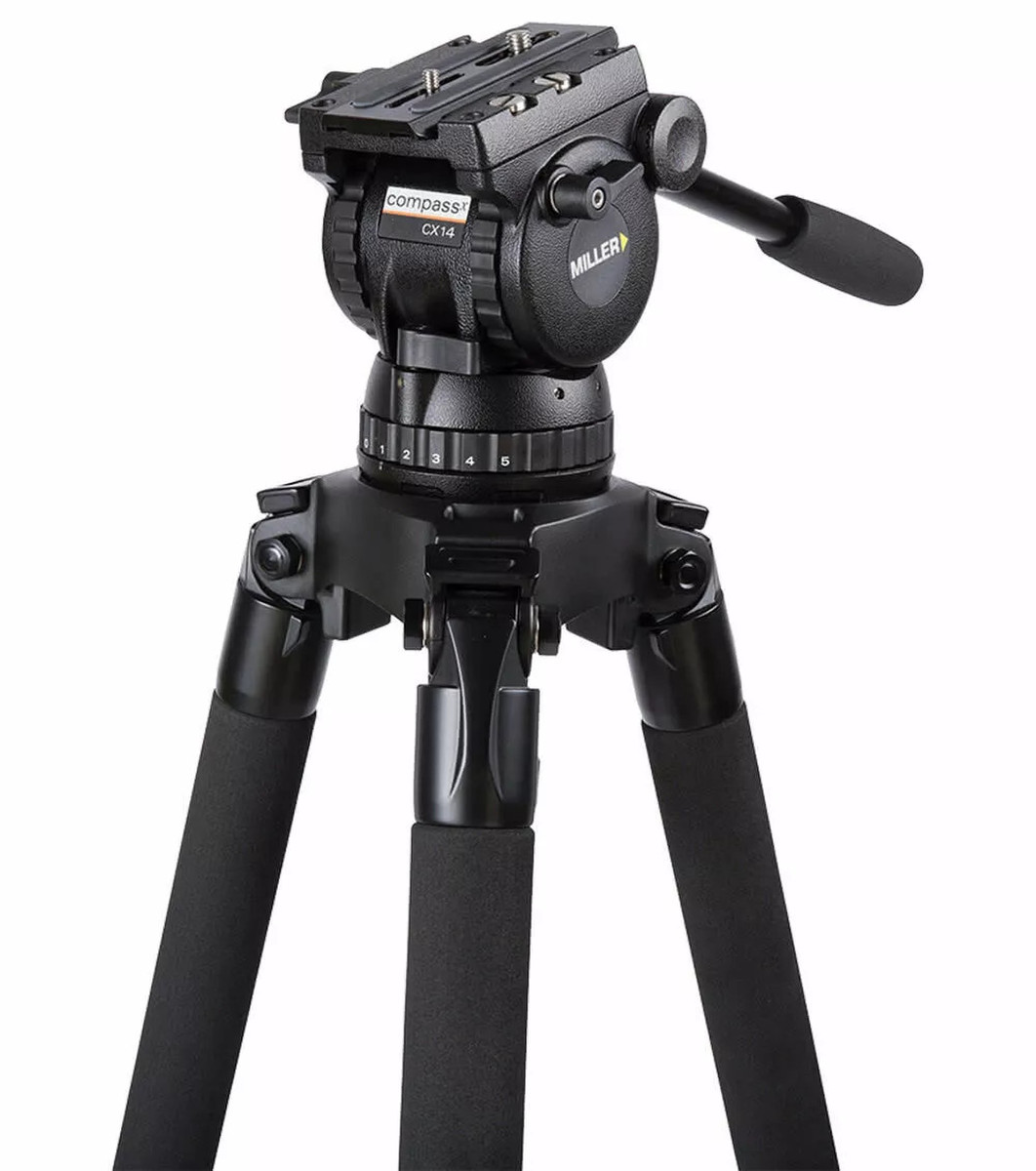

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 – 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to yield a large height range 553-1723mm (22-68″), offers positive leg toggle locks and the versatility of using the system across all terrains.

$5,031.00

Specification – CX14 Toggle 2 Stage Alloy


Payload Range 0-14.0 kg (0 – 30.9 lbs)
Weight 6.9kg (15.2lbs)
Height Range 553-1723mm (22-68″)
Transport Length 843mm (33.2″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4”)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 150mm (6.0″)
Illuminated Controls Bubble level
Pan Handle Fixed 390 mm (15.4”)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
Components
1097 CX14 fluid head
402 Toggle 2-stage tripod (alloy)
508 Above ground spreader
550 Rubber feet (set of 3)
679 Pan handle – fixed with clamp
554 Shoulder strap (padded)

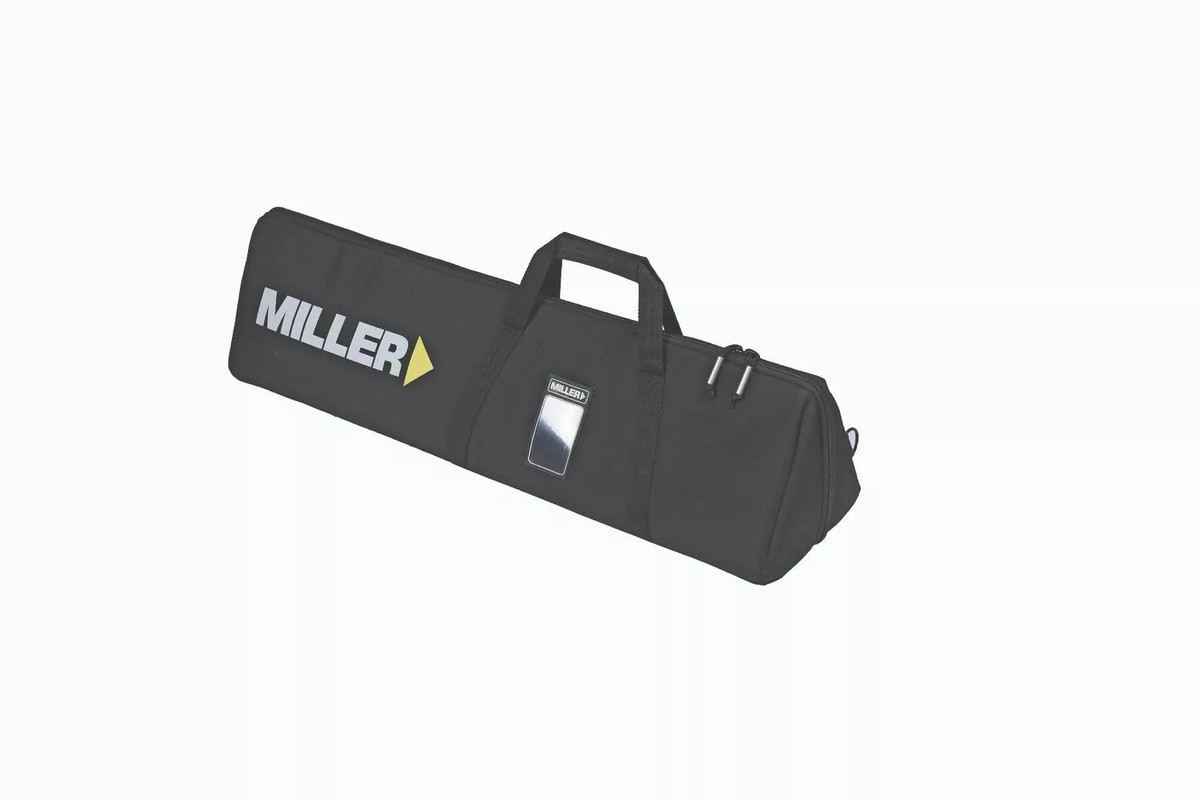

3514 Softcase 2-stage
SKU: MIL-3770 Category: Brand:
