Miller CompassX CX8 Toggle 2-Stage Alloy Tripod System With Ground Spreader
The 3736 CX8 Toggle 2-stage (alloy) tripod system combines CX8 fluid head with cost-effective yet solid 420G Toggle tripod with ground spreader. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

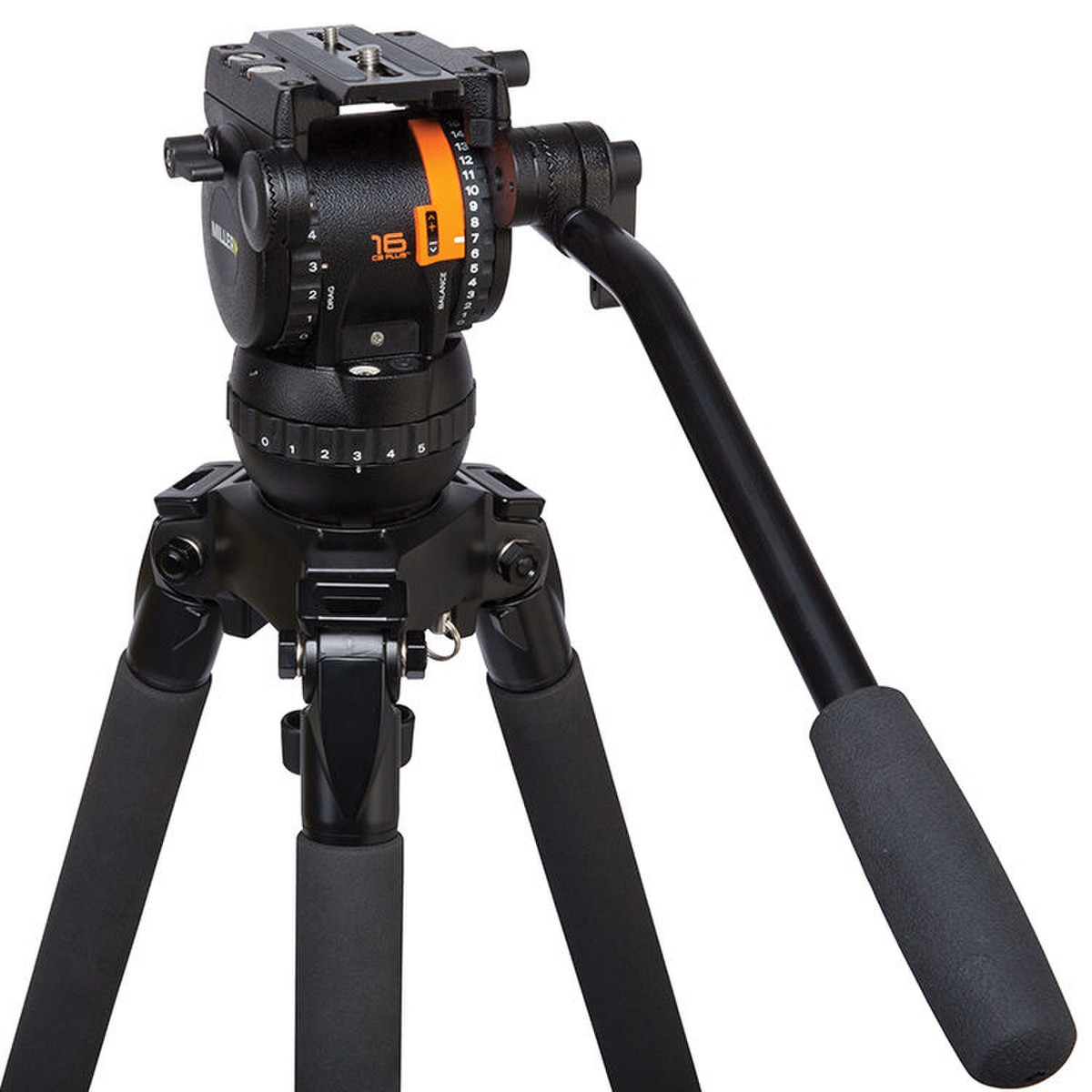

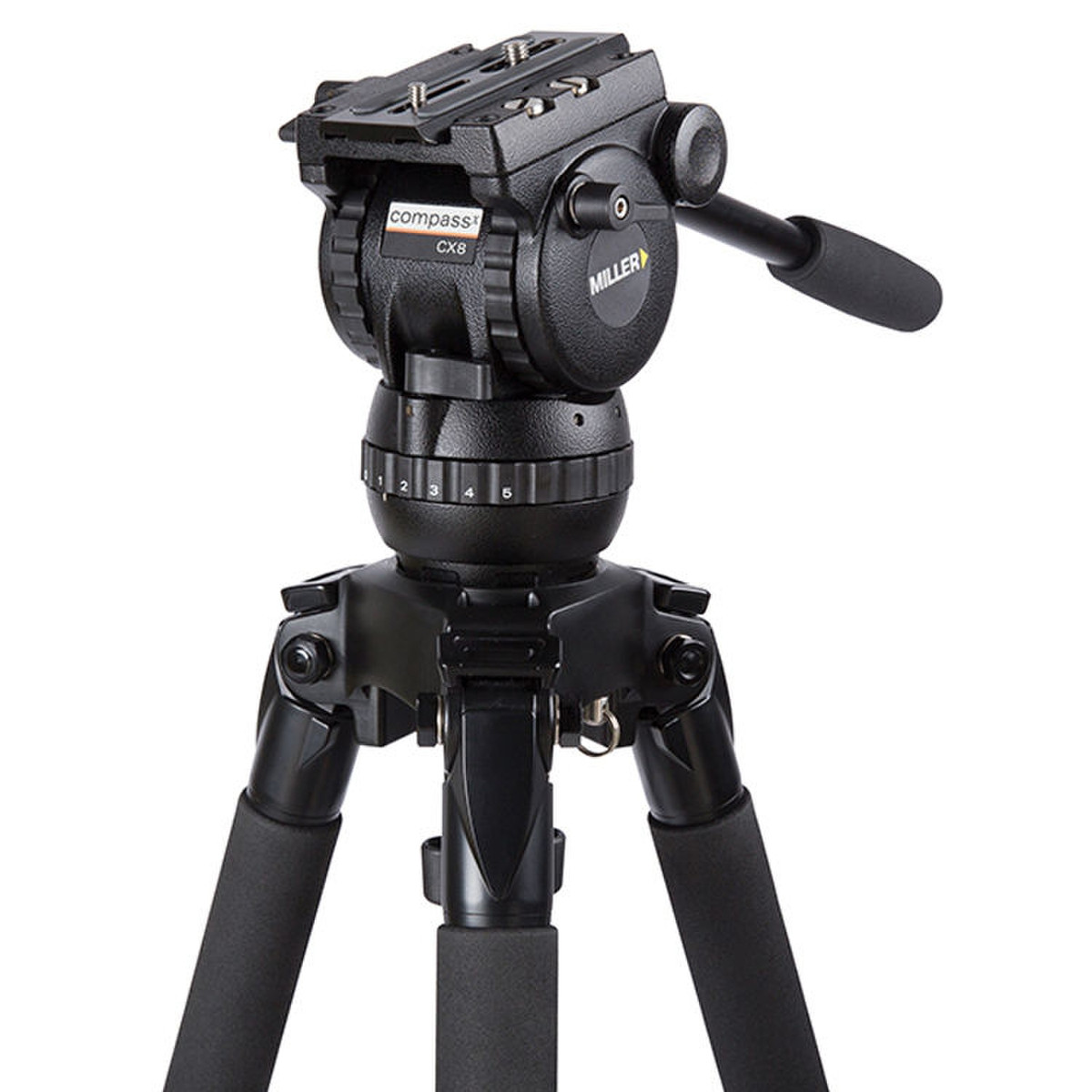

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

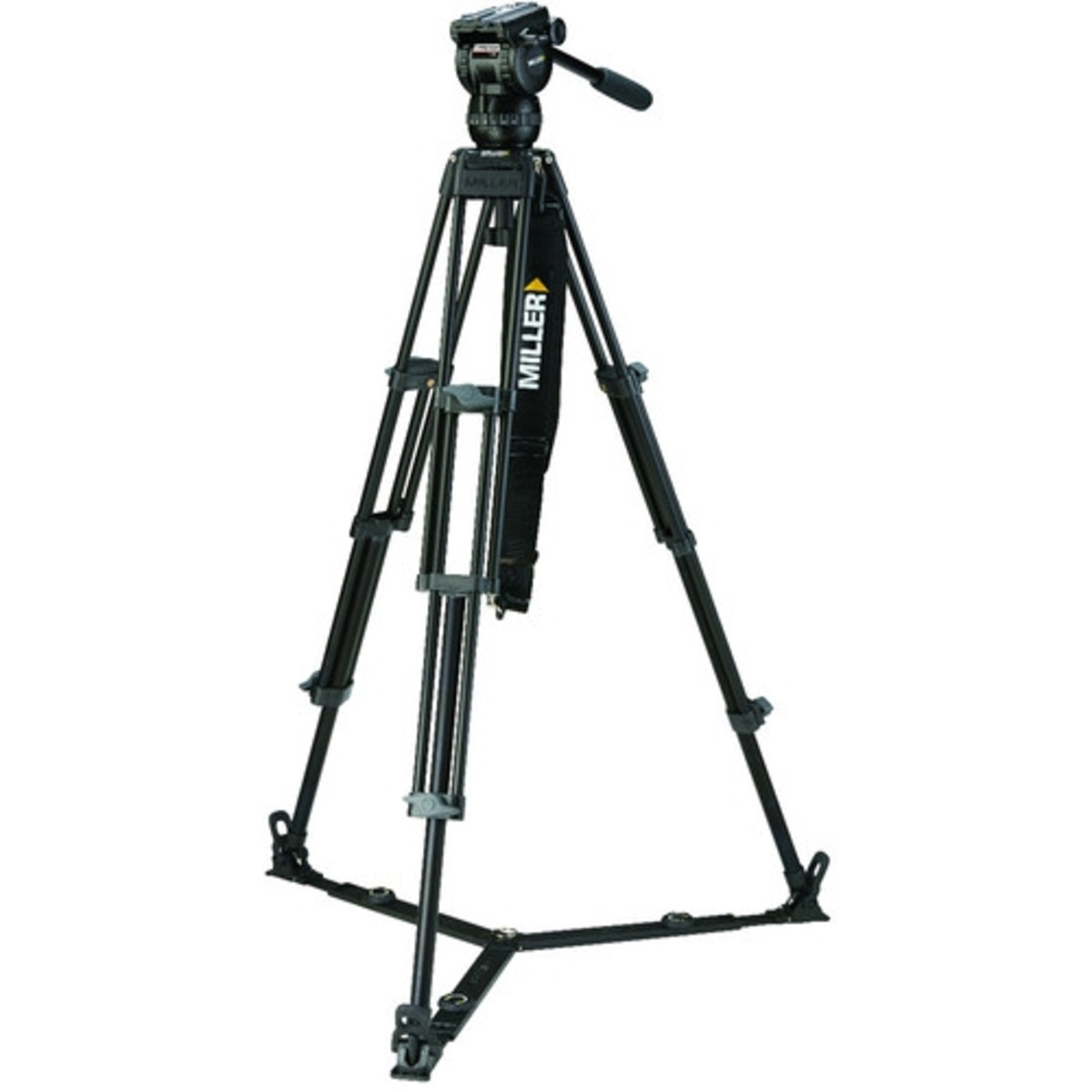

The CX8 is matched with the 2-stage Toggle (alloy) tripod and on ground spreader to yield a large height range 570-1740mm (22.4-68.5″), offer positive toggle leg locks and the stability of a ground spreader.
$3,589.00
Specification – CX8 Toggle 2 Stage Alloy
| Payload Range | 0-12kg (0-26.4lbs) | ||||||||||||
| Weight | 6.9kg (15.2lbs) | ||||||||||||
| Height Range | 570-1740mm (22.4-68.5″) | ||||||||||||
| Transport Length | 860mm (33.9″) | ||||||||||||
| Counterbalance Positions | 16 selectable positions (15+0) | ||||||||||||
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 | ||||||||||||
| Pan Tilt Locks | Positive lock calliper brake system | ||||||||||||
| Tilt Range | + 90°/ -75° | ||||||||||||
| Pan Range | 360° | ||||||||||||
| Camera Platform | Quick release, side load camera plate | ||||||||||||
| Sliding Range | 60mm (2.4″) | ||||||||||||
| Mounting Base | Ø75mm (2.9″) ball levelling | ||||||||||||
| Height Above Bowl | 167mm (6.6″) | ||||||||||||
| Illuminated Controls | Bubble level | ||||||||||||
| Pan Handle | Fixed length 390mm (15.4″) | ||||||||||||
| Temperature Range | -40° to +65°C (-40° to +149°F) | ||||||||||||
| Leg Extension | 2-stage | ||||||||||||
| Lock Type | Toggle | ||||||||||||
| Leg Material | Alloy | ||||||||||||
| Components |
|
