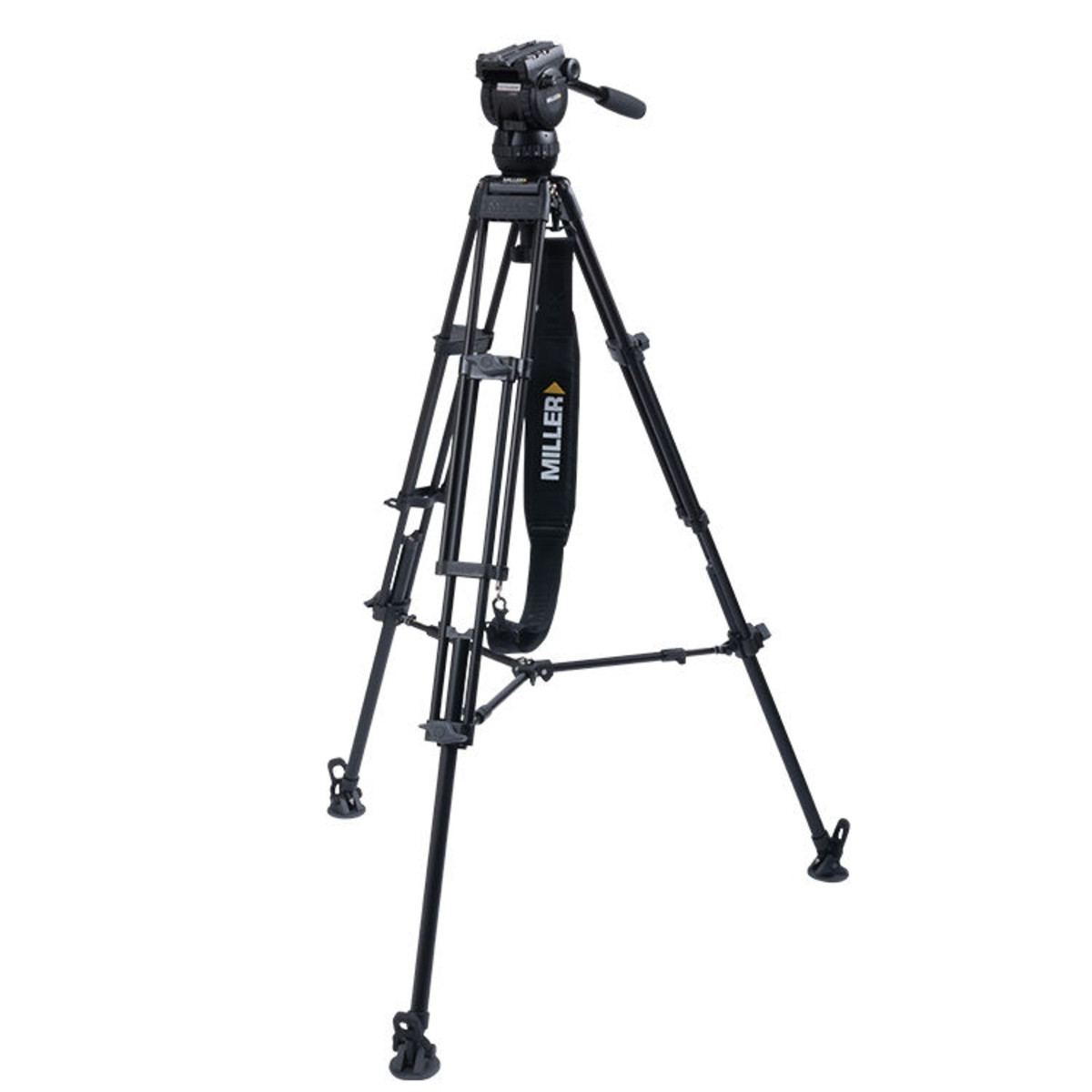

Miller CompassX CX2 Fluid Head With Toggle 2-Stage Alloy Tripod (Mid-Level Spreader)

Miller

The 3705 CX2 Toggle 2-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

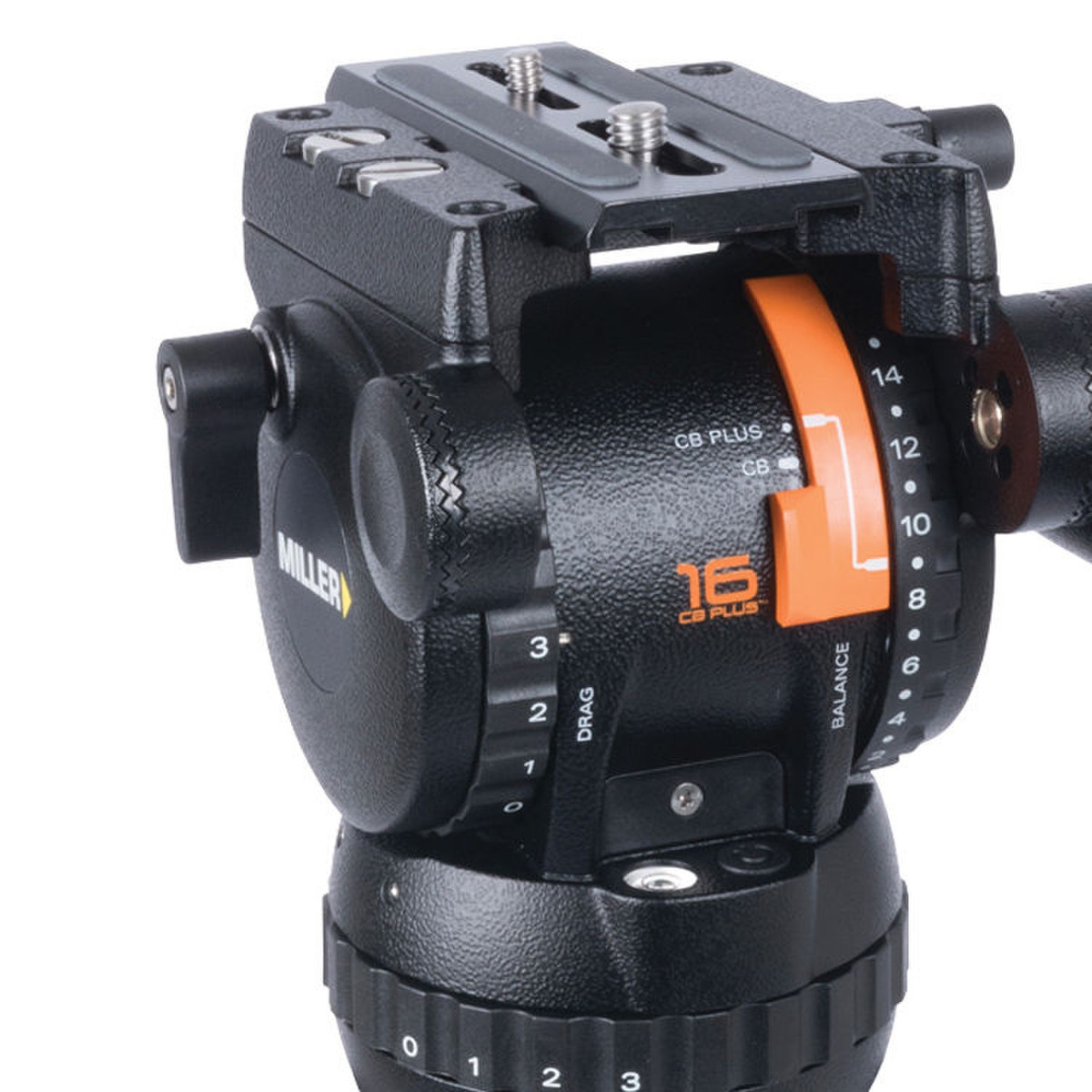

The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.
The CX2 is matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to provide a large height range 560-1730mm (22-68.1″), positive leg toggle locks and quick pack down.

$3,082.00

Specification – CX2 Toggle 2 Stage Alloy


Payload Range 0-8kg (0-17.6lbs)
Weight 6.7kg (14.8lbs)
Height Range 560-1730mm (22-68.1″)
Transport Length 860mm (33.9″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
Components

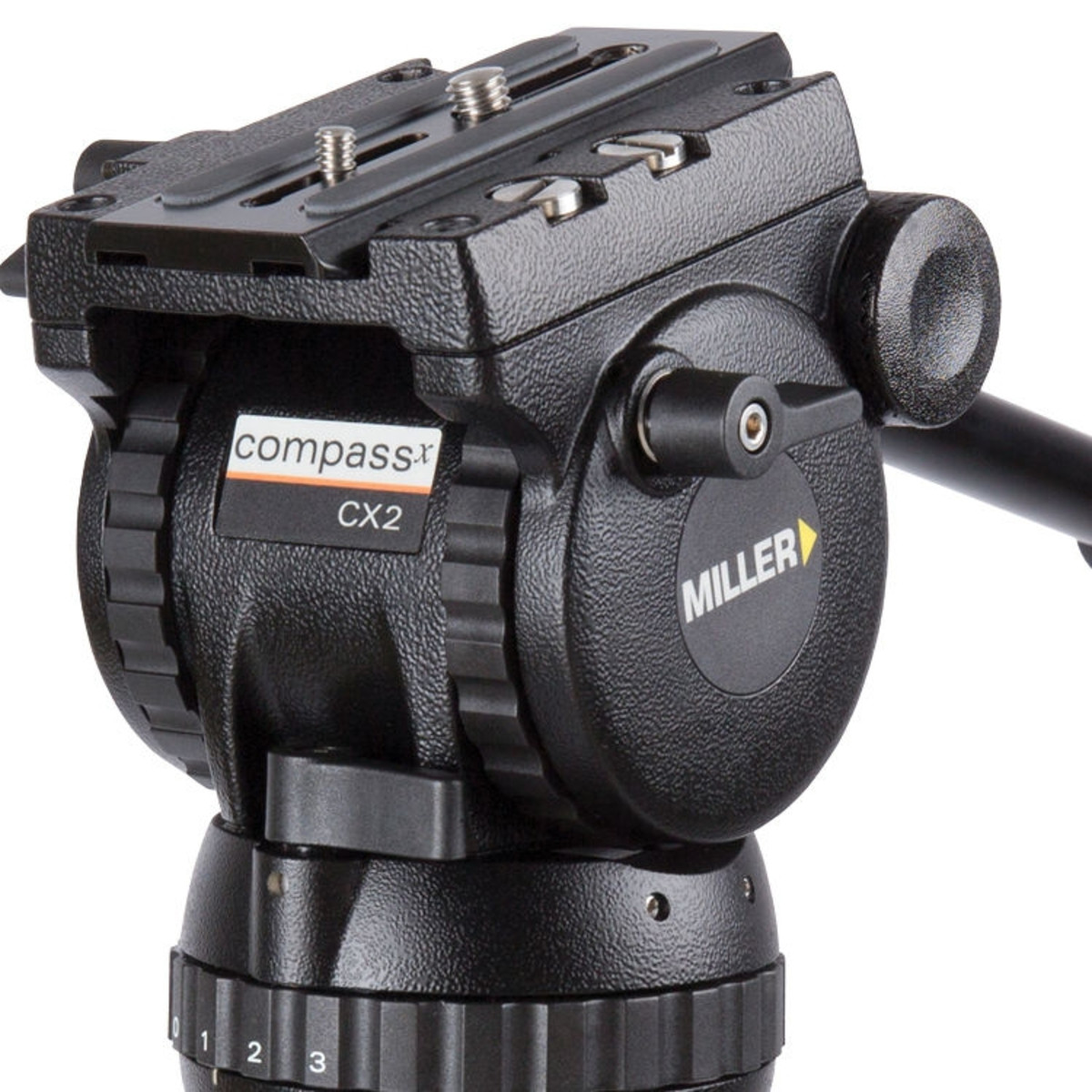

1090 CX2 fluid head
420 Toggle 75 2-stage tripod (alloy)
508 Above ground spreader
679 Pan handle – fixed with clamp
550 Rubber feet (set of 3)
554 Shoulder strap (padded)
1520 Solo shoulder strap (Aircell)

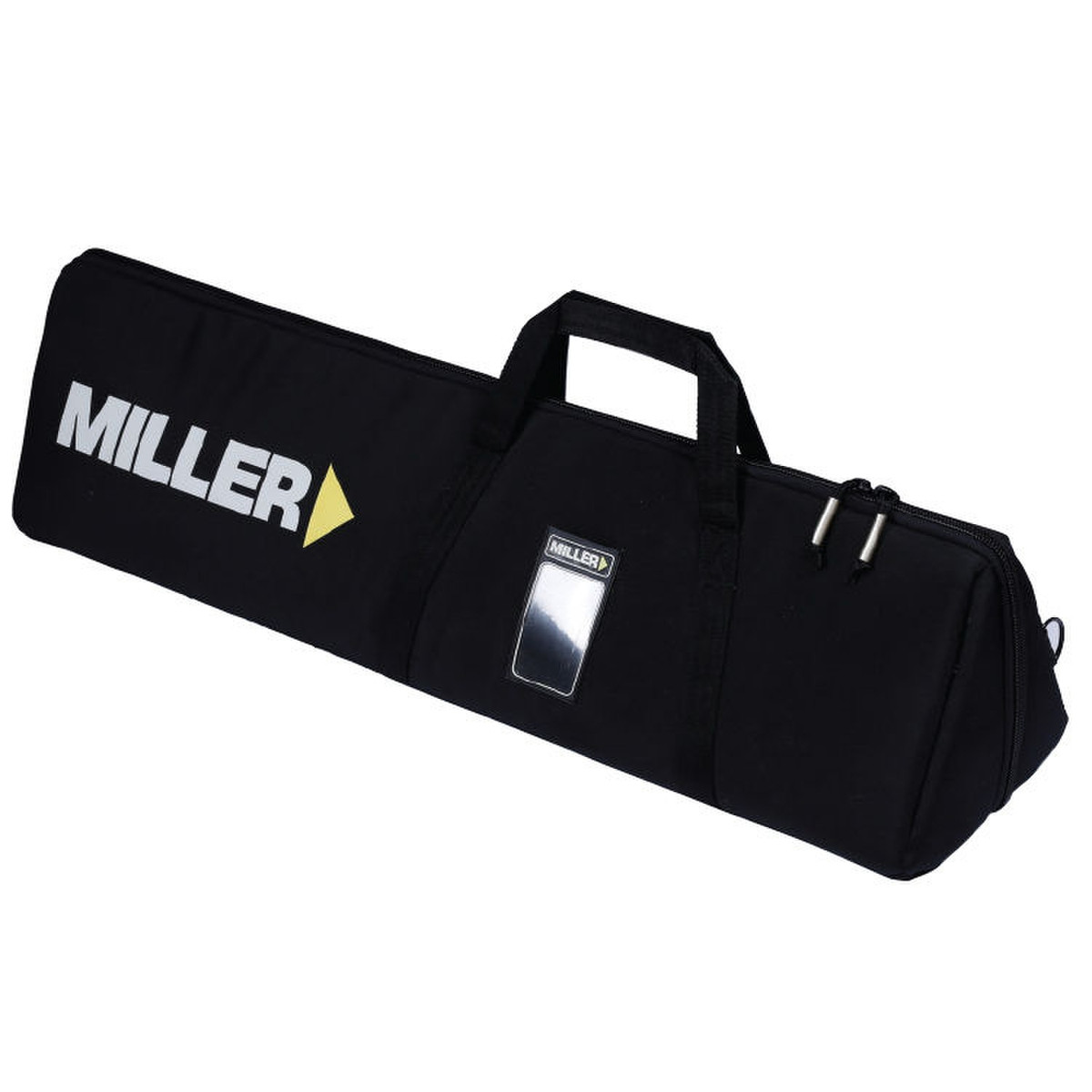

3514 Softcase 2-stage
SKU: MIL-3705 Category: Brand:
