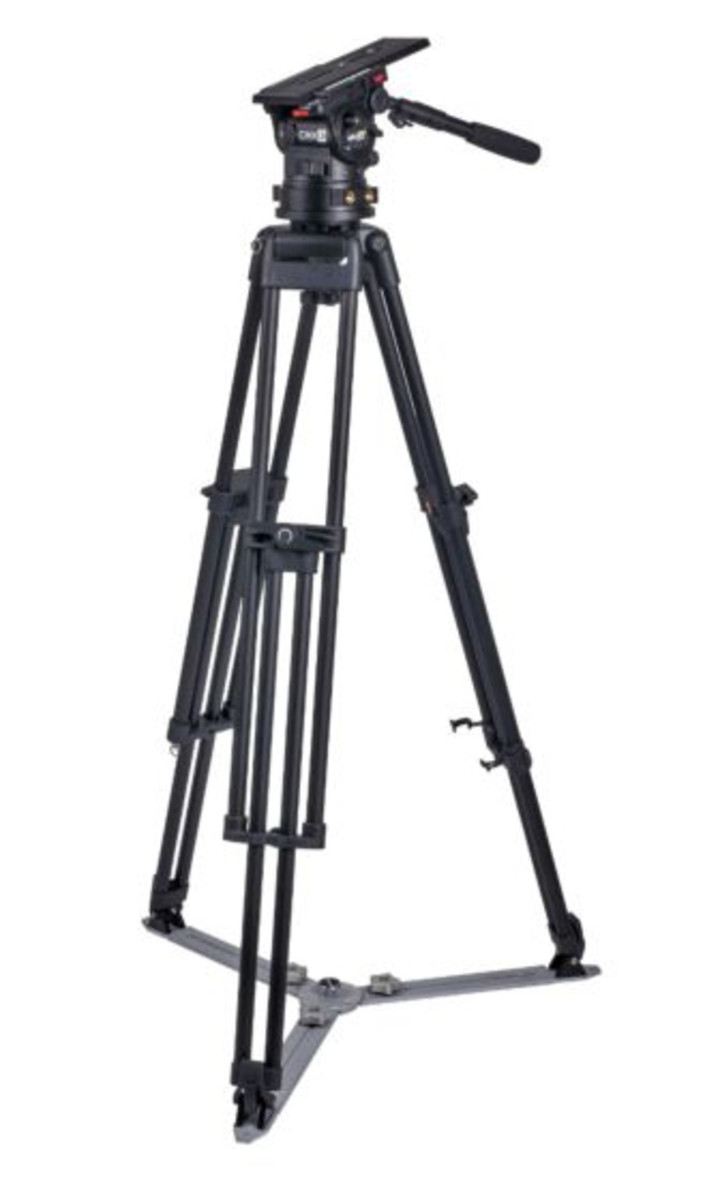

Miller CiNX 3 HDC 100mm 1-Stage Alloy Tripod System With Ground Spreader
The CiNX 3 HDC 100 1 Stage (alloy) is a lightweight and durable system, packed with features, all designed to meet the needs of cinematographers. For today’s versatile shooter.
The sideload platform enables rapid deployment of countless sizes of camera rigs as well as extended camera plate range of movement for balancing front heavy setups.

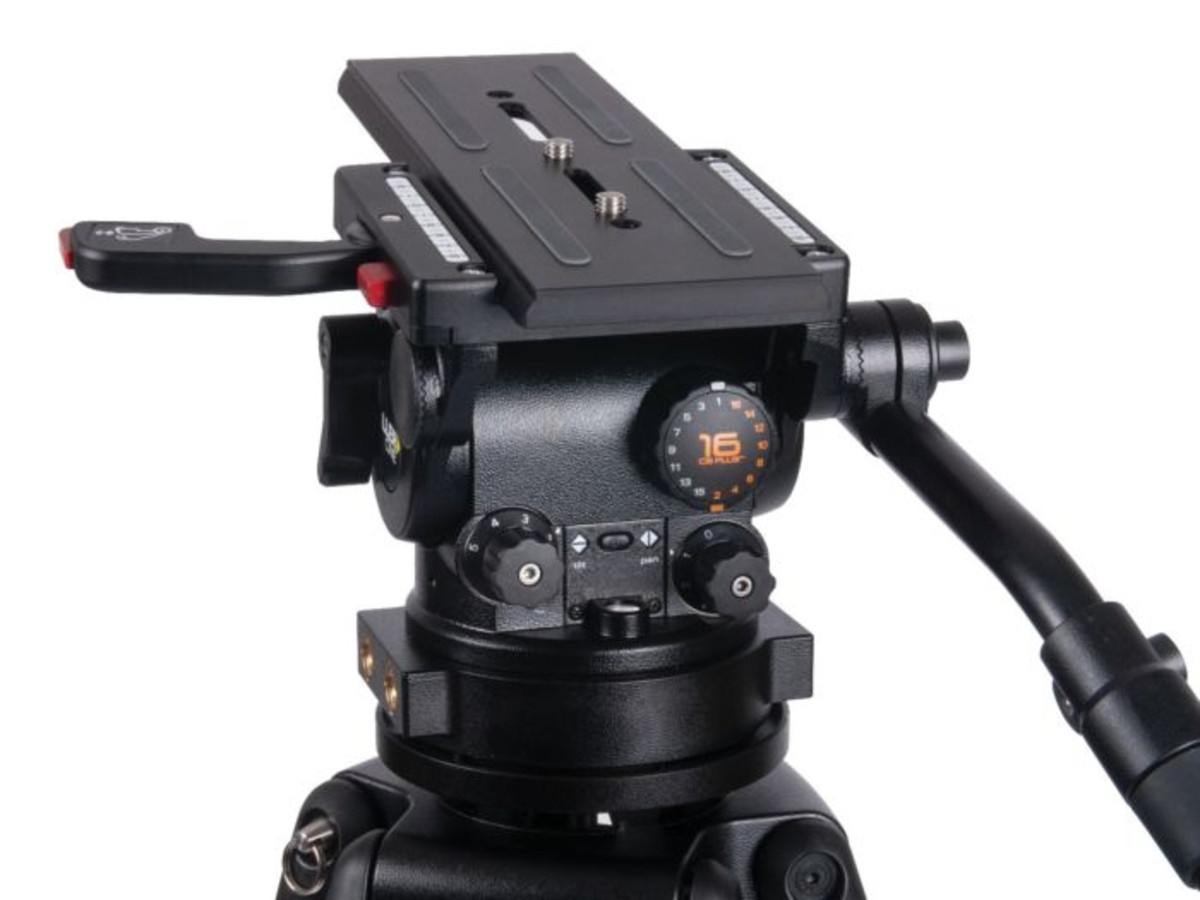

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, CiNX 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
With a payload range 1-19kg (2.2-41.8lbs) and 5 + 0 selectable pan-tilt fluid drag positions makes the CiNX 3 ideal for cinematographers with lighter rigs, requiring lighter pan, and tilt drag.
The HDC 100 1-stage tripod incorporates a 100mm bowl, metal rotary leg locks and and comes with the all metal 2130 HD on ground spreader.
HDC series tripods are designed with stability in mind, uses heavy duty 24mm alloy tubing coupled with the Miller 100mm bowl, to make a very stable platform. No matter where your work takes you, the HDC tripod series performs in extreme climates and terrains every time.
Quick action rotary screw type leg locks allow for maximum lock off performance without need for maintenance.
$8,671.00
Specification – CiNX 3 HDC 100 1 Stage Alloy
| Payload Range | 1-19kg (2.2-41.8lbs) | ||||||||||
| Weight | 11.2kg (24.6lbs) | ||||||||||
| Height Range | 972-1739mm (38.2-68.0″) | ||||||||||
| Transport Length | 1108mm (43.6″) | ||||||||||
| Counterbalance Positions | 16 selectable positions | ||||||||||
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 | ||||||||||
| Pan Tilt Locks | Positive lock calliper brake system | ||||||||||
| Tilt Range | +90° / -75° | ||||||||||
| Pan Range | 360° | ||||||||||
| Camera Platform | Side loading quick release camera plate (Arri type) | ||||||||||
| Sliding Range | 150mm (5.9”) | ||||||||||
| Mounting Base | Ø100mm (3.9″) ball levelling | ||||||||||
| Height Above Bowl | 202mm (8.0”) MB 200mm (7.9”) | ||||||||||
| Illuminated Controls | Bubble level, pan-tilt drag controls | ||||||||||
| Pan Handle | Telescopic 390-590mm (15.4-23.2″) | ||||||||||
| Temperature Range | -40° to +65°C (-40° to +150°F) | ||||||||||
| Leg Extension | 1-stage | ||||||||||
| Lock Type | Quick action rotary lock | ||||||||||
| Leg Material | Alloy | ||||||||||
| Components |
|
