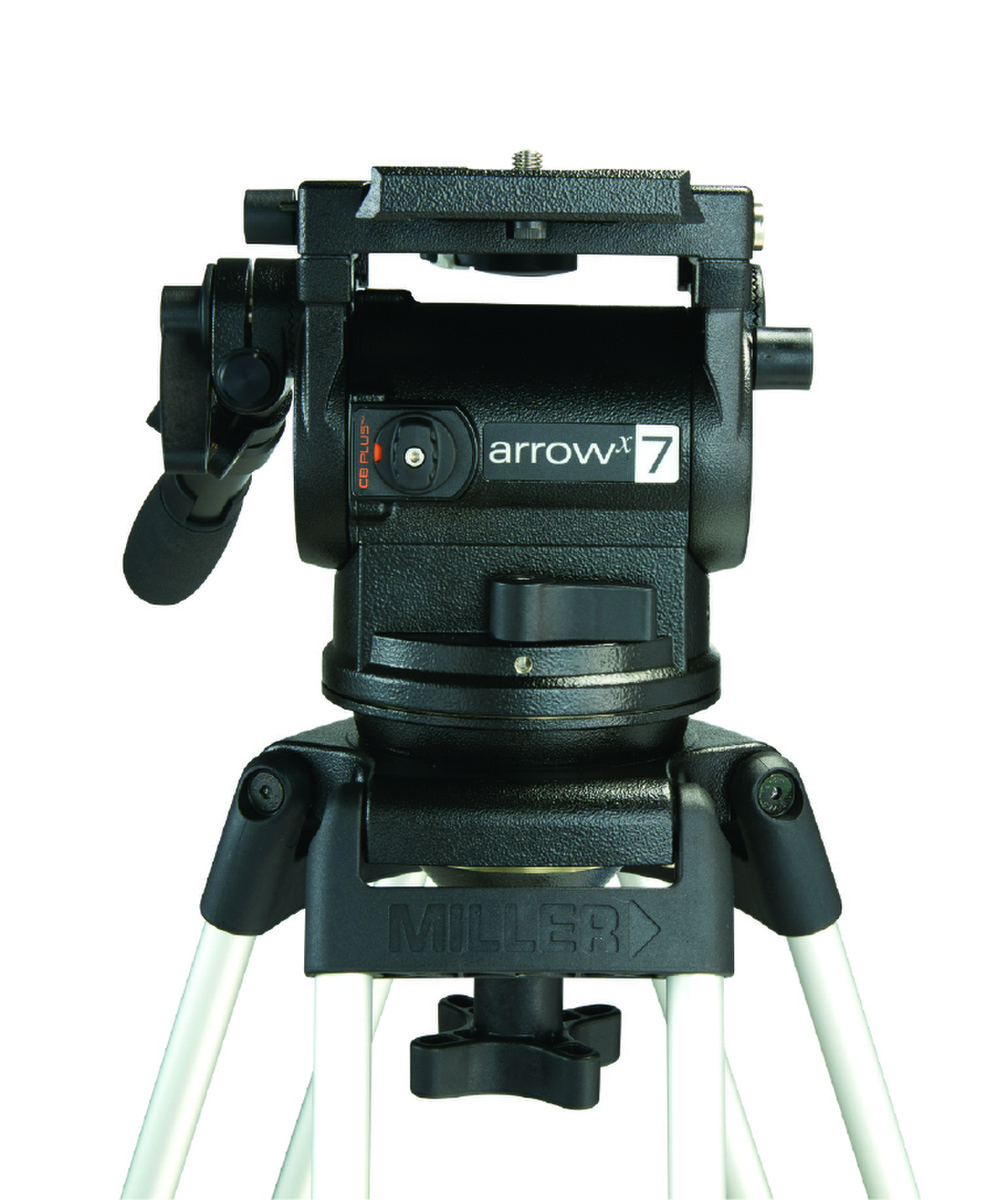

Miller ArrowX 7 Fluid Head
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 7 Fluid head sets new dimensions in professional camera support augmenting the power of expression of creative professionals.Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.
CB Plus™ is an innovative sequential counterbalance design, taking traditional counterbalancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB Plus™ features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus™ “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
The new Arrowx 7 comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.
$7,024.00
Specification – Arrowx 7 Fluid Head
| Payload Range | 6.0-25.0kg (13.2-55.1lbs) |
| Weight | 3.4kg (7.4lbs) |
| Counterbalance Positions | 16 selectable positions |
| Pan Tilt Drag | 7 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release camera plate (Euro) |
| Sliding Range | 120mm (4.7) |
| Mounting Base | Ø100mm (3.9″) ball levelling with 3 x M5 holes for flat base mounting |
| Height Above Bowl | 162mm (6.4″) |
| Illuminated Controls | Bubble level, pan-tilt drag controls |
| Pan Handle | Telescopic 390-590mm (15.4-23.2″) |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
