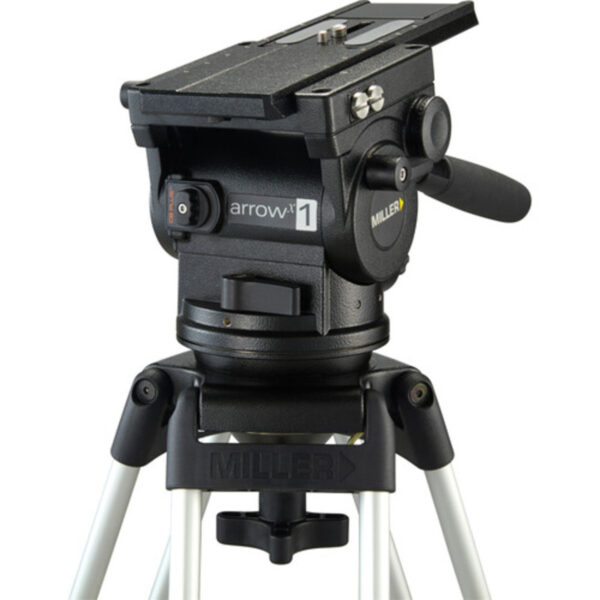

Miller Arrowx 1 Fluid Head

The Arrowx 1, 100mm Fluid head, joins the highly successful Arrowx series comprising of Arrowx 3, 5 and 7.
At a favorable entry level price point, the AX1 is a great choice for aspiring emerging shooters to own a truly professional fluid head.
Enabling them to achieve their career goals which will serve them well for many years to come.
A key feature of the Arrowx series is Miller’s patented 16 CB Plus™ technology – a unique sequential counterbalance design resulting in accurate and rapid setup. With a payload range of 0-16.0kg (0-35.3lbs) and 5 selectable fluid drag positions + 0, delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
CB Plus is an innovative sequential counterbalance design, taking traditional counter balancing a step forward, resulting in repeatable, accurate and rapid setup. CB Plus features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
Arrowx 1 comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

$3,955.00

Description
Specification

Specification – Arrowx 1 Fluid Head

Payload Range	0-16.0kg (0-35.3lbs)
Weight	2.9kg (6.4lbs)
Counterbalance Positions	16 selectable positions
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Tilt Range	+90° / -75°
Pan Range	360°
Camera Platform	Quick release camera plate (Euro)
Sliding Range	120mm (4.7″)
Mounting Base	Ø100mm (3.9″) ball levelling with 3 x M5 holes for flat base mounting
Height Above Bowl	162mm (6.4″)
Illuminated Controls	Bubble level, pan-tilt drag controls
Pan Handle	Telescopic 390-590mm (15.4-23.2″)
Temperature Range	-40° to +65°C (-40° to +150°F)
