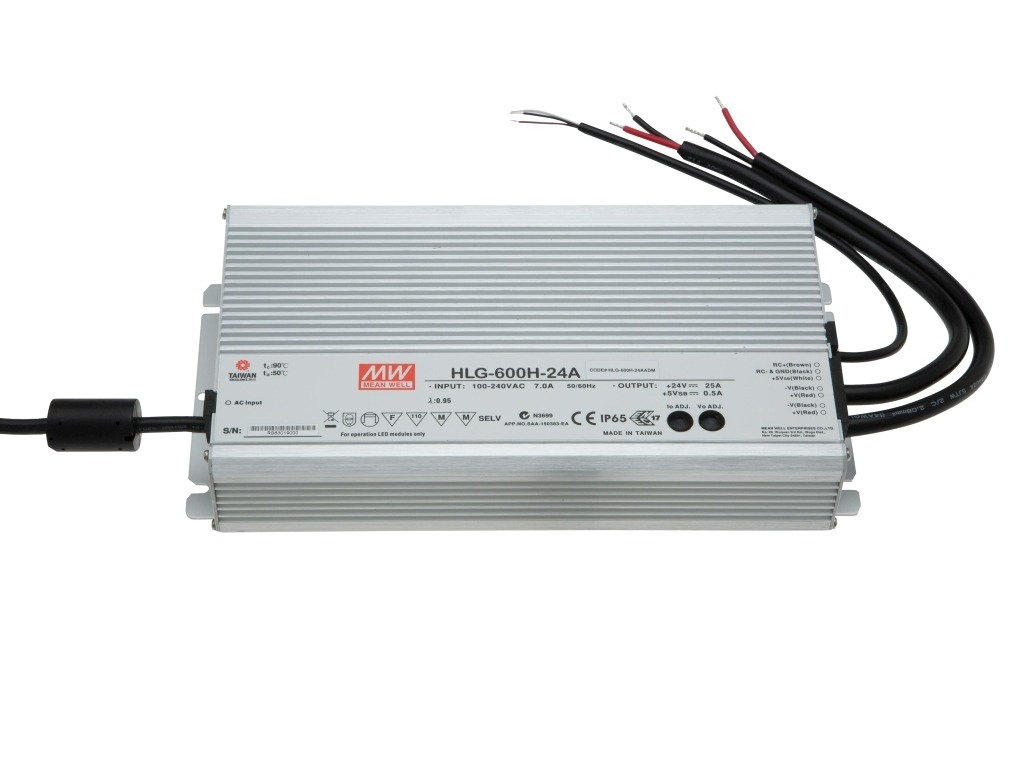

Mean Well HLG-600H-24A LED Driver 480W 24V 25A with built-in potentionmeter

Input voltage range from 90 to 305VAC, 127 to 431VDC, output DC voltage is 24V
Output rated current is 25A, output rated power is 600W, typical efficiency is 95%(230VAC, 277VAC)
IP65 IP level, Io and Vo output adjustable via potentiometer
Standby power consumption 0.5W at remote off
Function options output adjustable via potentiometer, 3 in 1 dimming
Typical lifetime 62000 hours
7 years warranty
Working temperature range from -40 to +90°C
Dimension is (L x W x H) 280 x 144 x 48.5mm

$420.00

Description

HLG-600H-24A is a HLG-600H series 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. The design of metal housing with class I and IP67/IP65 ingress protection level allows to fit both indoor and outdoor applications. This is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. It includes over current, short circuit, overvoltage, over temperature protection. Application includes LED high-bay lighting, parking space lighting, LED fishing lamp, LED greenhouse lighting. Approved by UL60950-1, UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB19510.1, GB19510.14, EAC TP TC 004, AS/NZS 60950.1(by CB), KC61347-1, KC61347-2-13.

SKU: MWL-HLG-600H-24A Category: Power supplies and AC adapters Brand: Mean Well
