Features:
1 W RGB laser system
DMX controllable, master-slave operation possible
Diode-only laser system
Computer controllable via ILDA
Sound-to-light and stand-alone mode

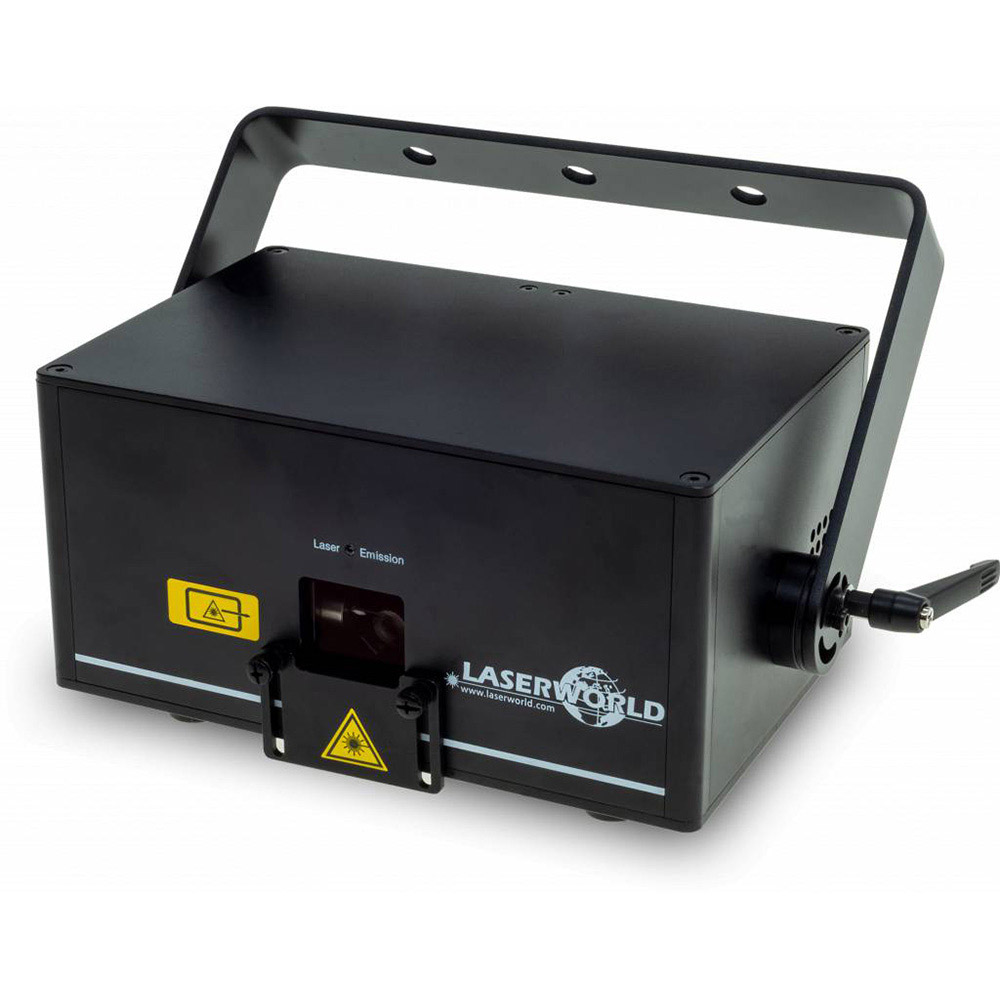

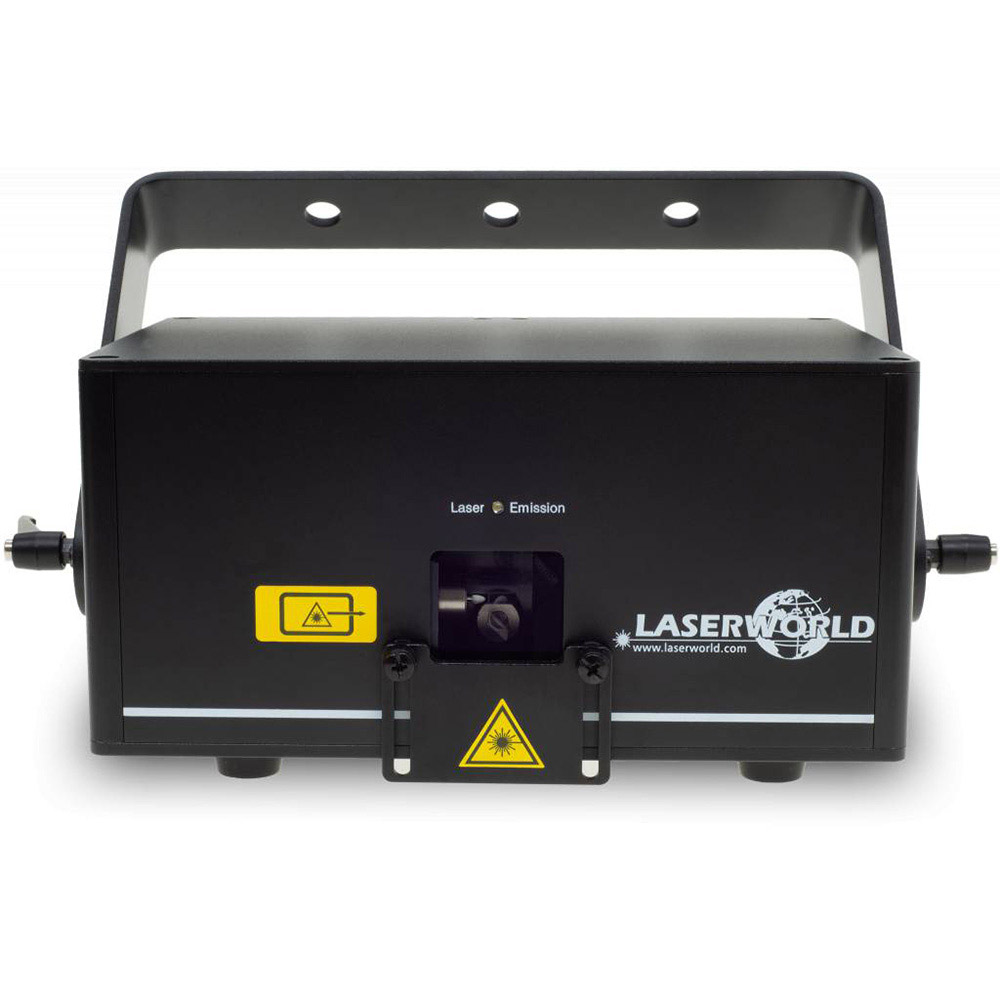

Front panel laser beam masking plate
Capable of basic graphics, texts and logos
Several hundred colours, including white
28 kpps @ 8° ILDA scanners

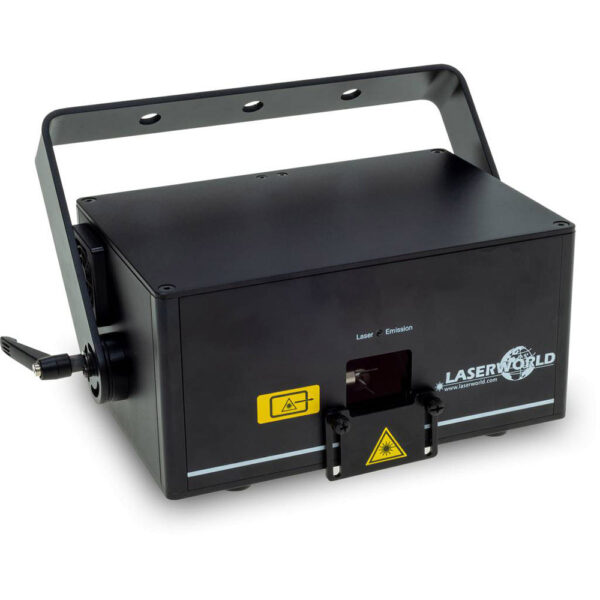

360° mounting bracket
Specifications:
Total Power typical: 1000 mW
Guaranteed power: 800 mW
Power Red: 200 mW / 650 nm
Power Green: 70 mW / 532 nm
Power Blue: 530 mW / 445 nm
Beam Specifications: ca. 3 mm / 1.1 mrad
Laser Sources: Diode
Laser Class: 4

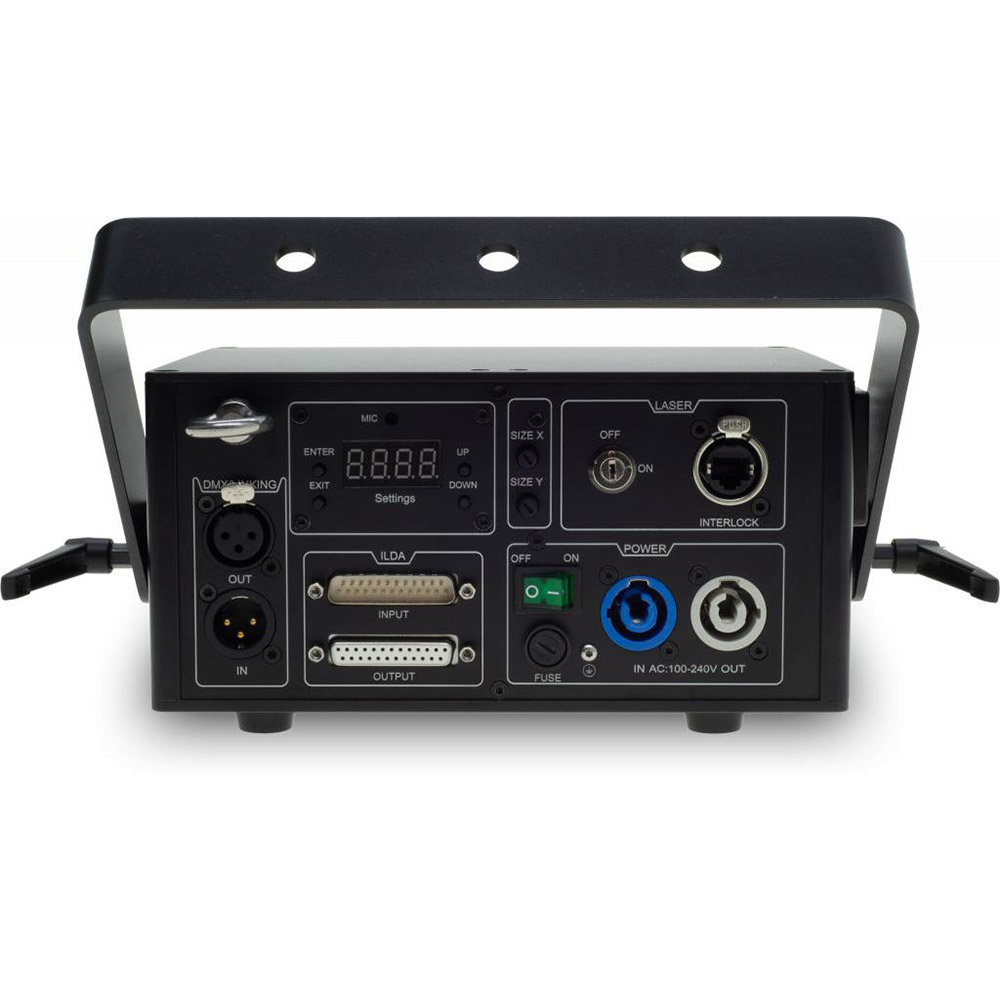

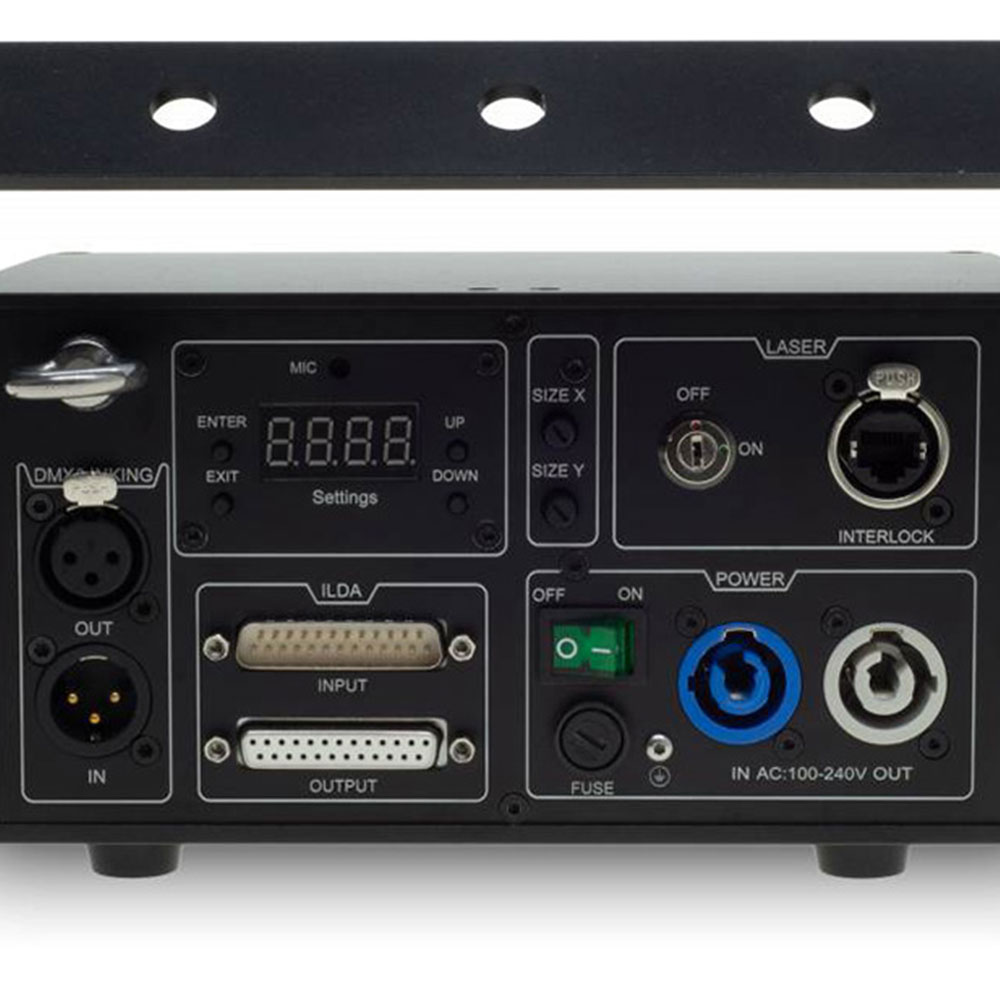

Operation Modes: Auto, Sound, DMX, ILDA, Master/Slave
Scanner: galvo system, 28 kpps @ 8°
Scan Angle max.: 40°
Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
Accessories: Power Cable, Manual, Interlock Connector, Key
Power Supply: 85V – 250 V AC
Power Consumption: 20 W
Dimensions: 220 x 150 x 116 mm
Weight: 2.5kg
