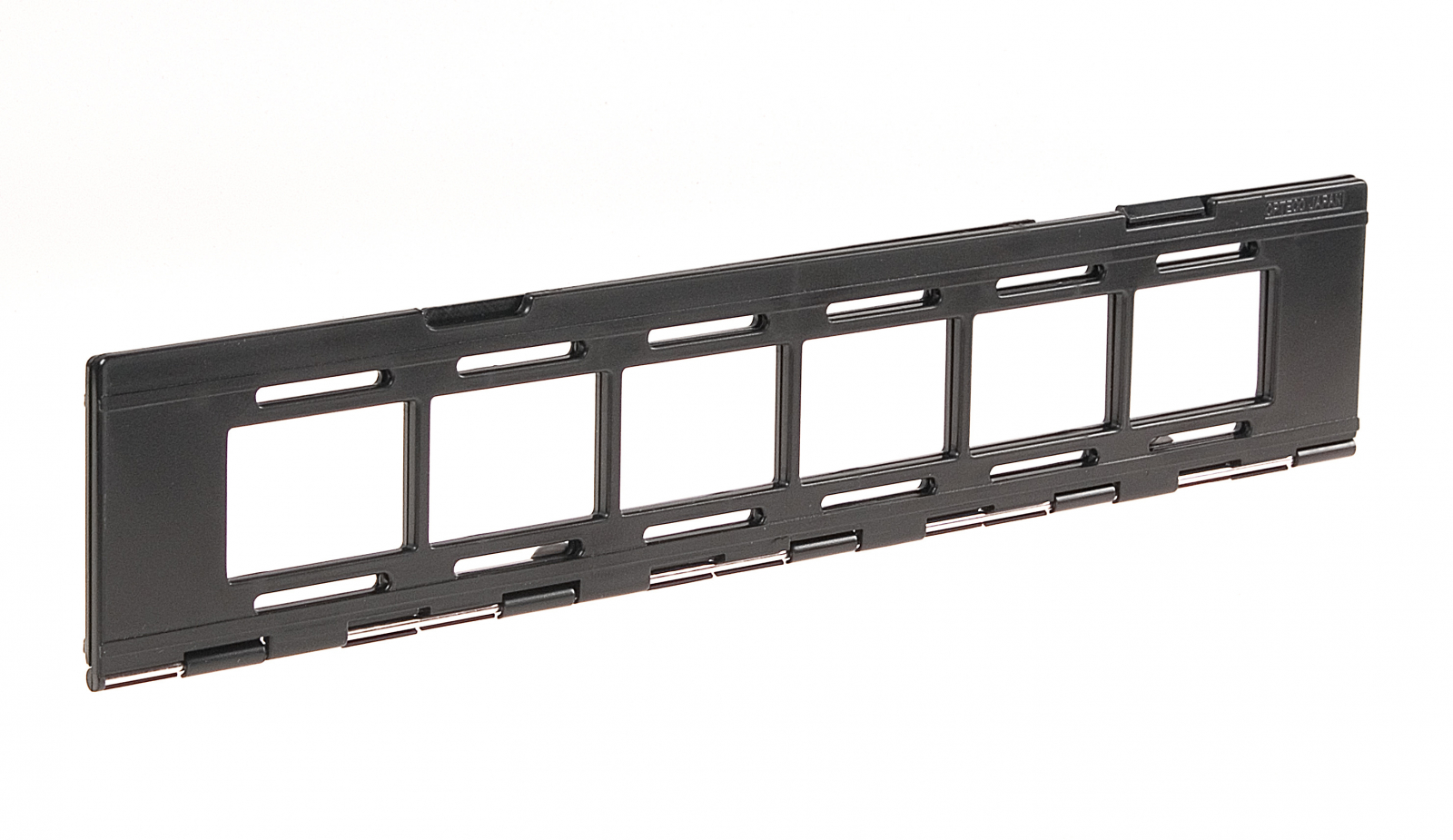

Kaiser Fototechnik 6507 Film Strip Carrier, for six 35 mm negatives or unmounted slides, for Digital Slide Duplicator #6506
For six 35mm negatives or unmounted slides.
For use with Slide Duplicator 6506.
$41.10
Related products
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2458 FilmCopy Vario Kit
Stable holding device for the exact positioning of slides and negatives of various formats.
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod. To use on light boxes.
- Includes insert for 35 mm slides in 5 x 5 cm mounts (4489)?and 24 x 36 mm format masks (4486)?with guide ridges for 35 mm film strips.
- With appropriate format masks or glass inserts (each available as accessories) also suitable for film strips and cut single slides and negatives of the 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm and 6 x 9 cm film formats and the 24 x 66 mm panoramic film format.
- Inserts are easy to change.
- Mounted 35 mm slides can be placed directly from above on the device, for placing film strips the pressure frame has to be opened.
- Bottom part with adjustable stop pins for different film widths plus four steplessly adjustable masking strips.
- Overlay mat sized 254 x 201 mm (10 x 7.9 in.) serves as a protection against stray light.
- Weight of FilmCopy Vario (w/o masks, w/o overlay mat): approx. 600 g (1.3 lbs.).
The FilmCopy Vario Kit (2458) already includes the super flat ?slimlite plano? LED light box (2453) for viewing and sorting slides and negatives and for illumination during digitization (illuminated area 22 x 16 cm (8.7 x 6.3 in.), 5000 Kelvin daylight, CRI = 95, continuously dimmable, battery and mains operation).
?
?
SKU: KFO-KF-2458 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2492 “prolite scan SC” Light Box
Professional light box for transparent originals of all types, e.g. slides, negatives, X-rays and microfiches.
- Color temperature 5000 Kelvin.
- Four Dulux fluorescent lamps with high color reproduction quality CRI = 90-100.
- Luminous density: 13.000 cd/m?.
- All-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.
- Especially suitable as backlight source for use with camera scanners.
- No stroboscopic effects, hum and induction interference.
- Very quiet vibration-free fan cooling permits unlimited continuous operation with minimum heating of the viewing surface.
- Operating hours counter.
- Cm and inch scales on the working surface.
- Non-slip rubber feet.
- Can be wall-mounted.
- On/off switch.
- Cord 2.5 m (8.2 ft.).
Specifications
- Illuminated area:?approx. 48 x 44 cm (18.9 x 17.3 in.)
- Lamps: 4 x 55 W, 5400 K
- Dimensions (WxHxD):?approx. 63 x 9 x 53,5 cm (24.8 x 3.5 x 21.1 in.)
SKU: KFO-KF-2492 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2480 prolite LED 50/37 Light Box
prolite LED 50/37 Light Box
Code no: 2480
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area: 50 x 37 cm (19.7 x 14.6 in.)
Light source: 270 SMD LEDs
Color temperature: approx. 6000 Kelvin
Color rendition index: CRI: 95
Light density: 10000 cd/m?
Operating voltage: 24 V
Rated power: 58 W
Dimensions (WxHxD): 594 x 54 x 439 mm (23.4 x 2.1 x17.3 in.)
Weight: 5.14 kg (11.3 lbs.)
Scope of delivery: prolite LED 50/37 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 37/25 light box (2479) with illuminated area 37 x 25 cm (14.6 x 9.8 in.).
Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.
Accessories
2483 – Swivel Bracket for prolite LED 50/37
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
SKU: KFO-KF-2480 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2011 “diascop mini 2” Slide Viewer
Small compact slide viewer for framed slides 5 x 5 cm (2 x 2 in.). With hinged prop.
Required batteries: 2?x 1,5 V AA-size (supplied without batteries)- Lamp: 2,5 V, 0,3 A, E 10, spherical
- Lens:?63 x 53 mm (2.5 x 2.1 in.)
- Dimensions?(WxHxD):?approx. 75 x 60 x 105 mm (3 x 2.4 x 4.1 in.)
2010: with 3-fold magnifying double lens
2011: with 2-fold magnifying lensSKU: KFO-KF-2011 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 6506 Digital Slide Duplicator, for digital SLR and other digital cameras with filter thread. With 10 dioptre achromatic macro lens. Full size copies require a 80 – 120 mm focal length.
Slide viewers, duplicators and light boxesKaiser Fototechnik 6506 Digital Slide Duplicator, for digital SLR and other digital cameras with filter thread. With 10 dioptre achromatic macro lens. Full size copies require a 80 – 120 mm focal length.
Designed for DSLRs and mirrorless cameras and digital compacts with front lens thread.
Not suited for use with macro lenses.
Attaches to the filter thread of the lens. 52 mm connecting thread. 58 mm adapter ring included.Full size copies with following focal length range:
- Full-frame sensor (35 mm): approx. 80-120 mm
- APS-C-type sensor: approx. 50-80 mm
- Micro-Four-Thirds sensor: approx. 40-60 mmLarger frames require higher focal length.
- Includes holder for two 35 mm slides up to a mount?thickness of?3 mm.
- Length: approx. 125 mm (4.9 in.)
Suitable adapter rings:
6561: 55-52 mm
6565: 58-52 mm (included)
6569: 62-58 mm
6573: 67-58 mm
6576: 72-58 mm
6578: 77-58 mmAccessories
SKU: KFO-KF-6506
