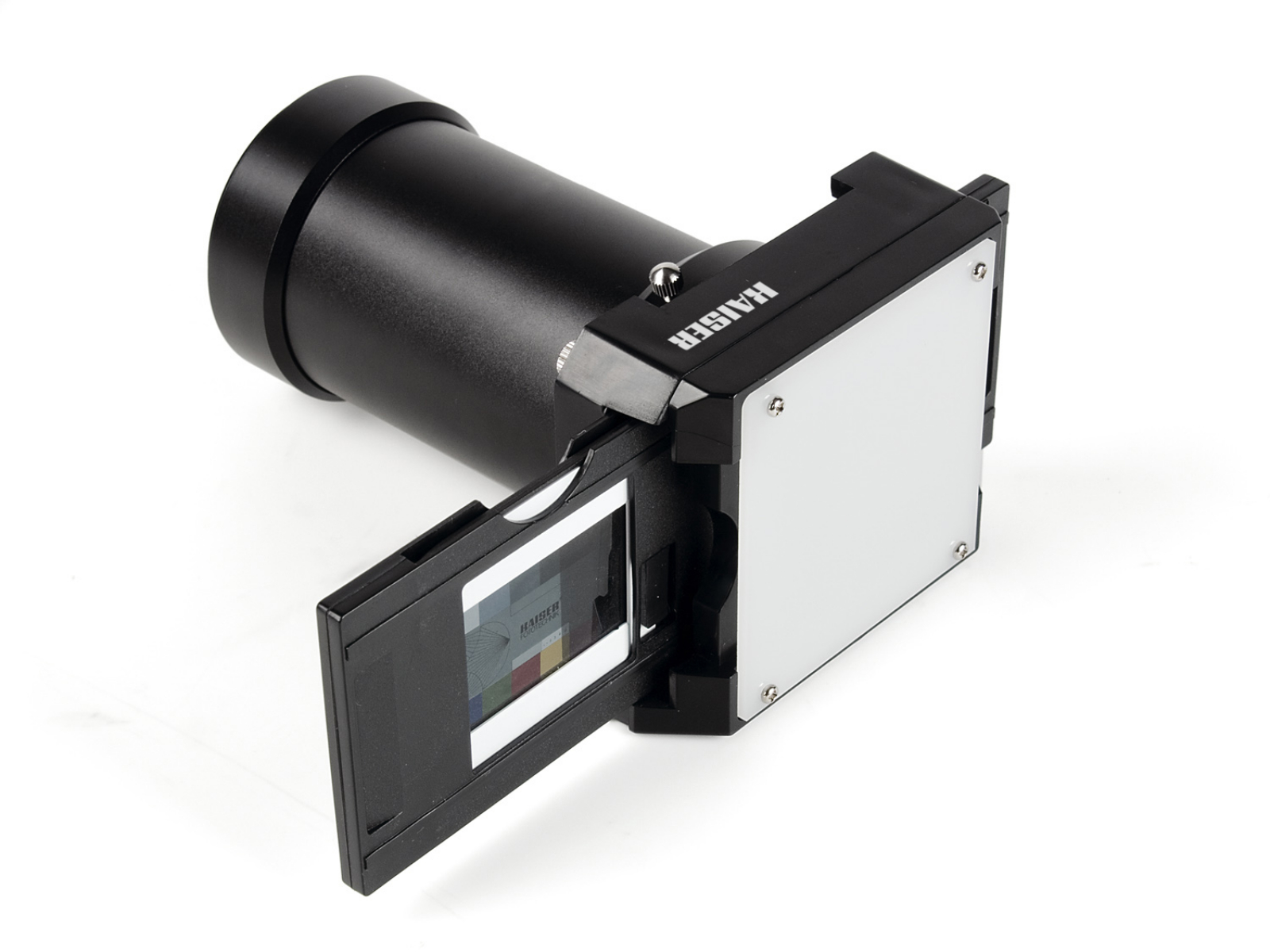

Kaiser Fototechnik 6506 Digital Slide Duplicator, for digital SLR and other digital cameras with filter thread. With 10 dioptre achromatic macro lens. Full size copies require a 80 – 120 mm focal length.
Designed for DSLRs and mirrorless cameras and digital compacts with front lens thread.
Not suited for use with macro lenses.
Attaches to the filter thread of the lens. 52 mm connecting thread. 58 mm adapter ring included.
Full size copies with following focal length range:
- Full-frame sensor (35 mm): approx. 80-120 mm
- APS-C-type sensor: approx. 50-80 mm
- Micro-Four-Thirds sensor: approx. 40-60 mmLarger frames require higher focal length.
- Includes holder for two 35 mm slides up to a mount?thickness of?3 mm.
- Length: approx. 125 mm (4.9 in.)
Suitable adapter rings:
6561: 55-52 mm
6565: 58-52 mm (included)
6569: 62-58 mm
6573: 67-58 mm
6576: 72-58 mm
6578: 77-58 mm
Accessories
$275.70
Related products
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2459 FilmCopy dia MF
Stable holding device for the exact positioning of mounted medium format slides (4.5 x 6 cm and 6 x 6 cm slides in mounts 7 x 7 cm).
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod.
- To use on light boxes.
- With four steplessly adjustable masking strips.
- Includes overlay mat sized 254 x 201 mm (10 x 7.9 in.) that serves as a protection against stray light.
- Weight (w/o overlay mat): approx. 370 g (13 oz.).
Note: The ?FilmCopy Vario? holding device, code no. 2457 or code no. 2458 (with ?slimlite plano? LED light box) is suitable for digitizing mounted 35 mm slides, film strips and unframed single slides and negatives (slide film, black & white film, color negative film) from 35 mm up to 6 x 9 cm. Larger formats than 35 mm require special format masks or glass inserts, which are available as accessories.
Accessories
SKU: KFO-KF-2459 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2458 FilmCopy Vario Kit
Stable holding device for the exact positioning of slides and negatives of various formats.
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod. To use on light boxes.
- Includes insert for 35 mm slides in 5 x 5 cm mounts (4489)?and 24 x 36 mm format masks (4486)?with guide ridges for 35 mm film strips.
- With appropriate format masks or glass inserts (each available as accessories) also suitable for film strips and cut single slides and negatives of the 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm and 6 x 9 cm film formats and the 24 x 66 mm panoramic film format.
- Inserts are easy to change.
- Mounted 35 mm slides can be placed directly from above on the device, for placing film strips the pressure frame has to be opened.
- Bottom part with adjustable stop pins for different film widths plus four steplessly adjustable masking strips.
- Overlay mat sized 254 x 201 mm (10 x 7.9 in.) serves as a protection against stray light.
- Weight of FilmCopy Vario (w/o masks, w/o overlay mat): approx. 600 g (1.3 lbs.).
The FilmCopy Vario Kit (2458) already includes the super flat ?slimlite plano? LED light box (2453) for viewing and sorting slides and negatives and for illumination during digitization (illuminated area 22 x 16 cm (8.7 x 6.3 in.), 5000 Kelvin daylight, CRI = 95, continuously dimmable, battery and mains operation).
?
?
SKU: KFO-KF-2458 -
