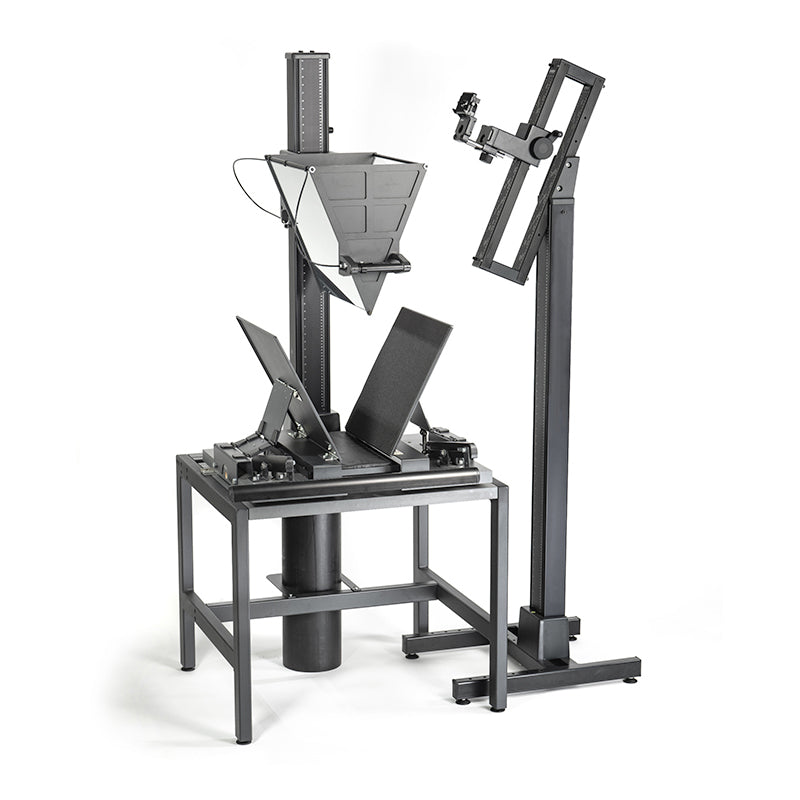

Kaiser Fototechnik 5780 Wolfenbuttel Book Reflector 45N
For digital reproduction of damageable historic books and documents with critical condition. Especially for books that cannot be opened for more than 45 Deg
Specifications
- Basic table (WxHxD): 88 x 75 x 78 cm (24 x 29 x 30 in)
- Max. book/page dimensions: 45 x 45 cm (17.5 x 17.5 in)
- Max. thickness of book:?20 cm (7.9 in)
- Covered area close to fold: approx. 4 mm
- Total height of book reflector: 2.07 m (7 ft)
- Total height of camera stand: 2.0 m (6.5 ft)
- Required floor space for book reflector and camera stand: max 150 x 120 cm (5 x 4 ft)
$49,500.00
