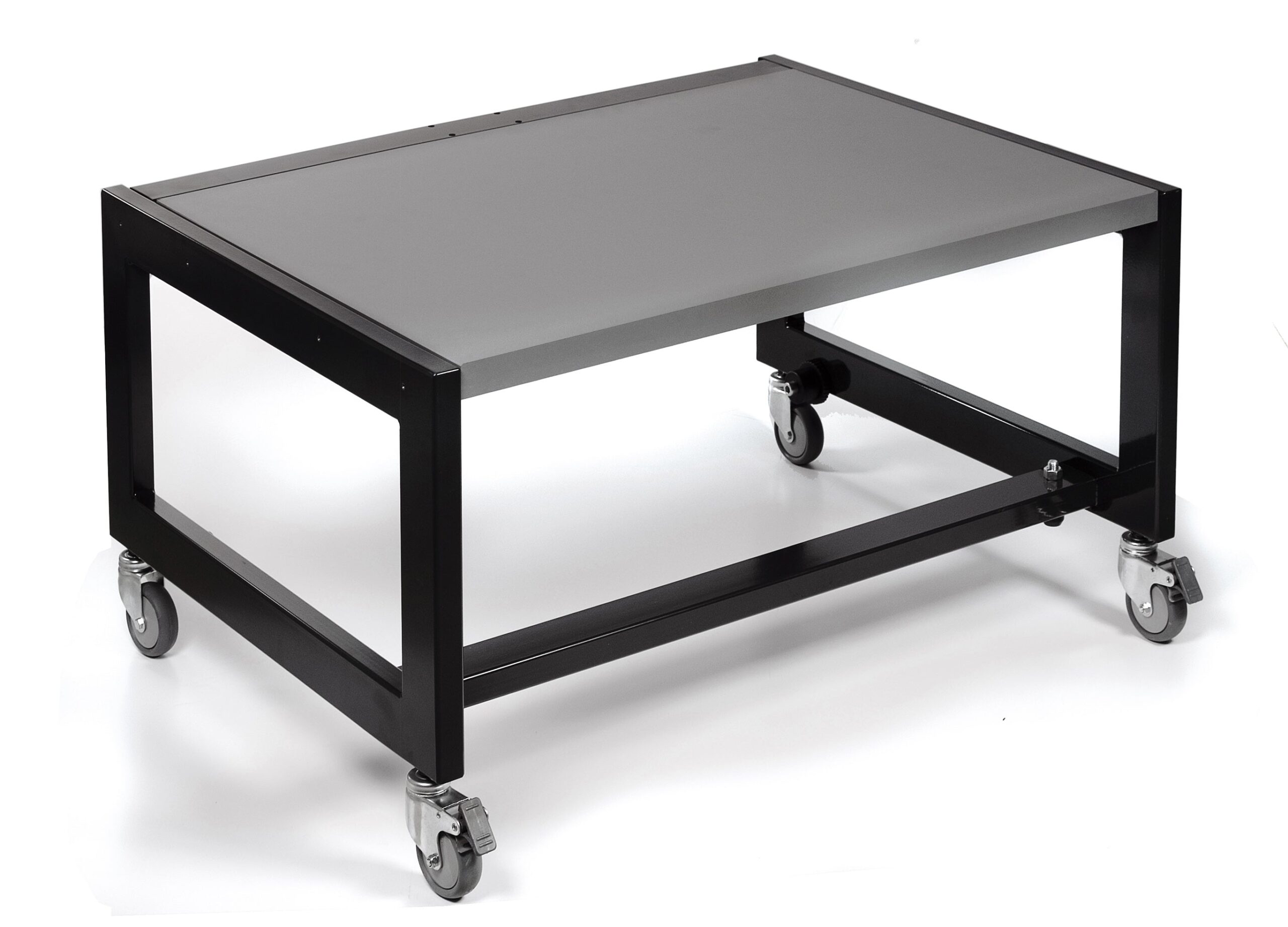

Kaiser Fototechnik 5712 Table for Copying
Wheeled table for RSP Xtra (5711) copy stand.
- Sturdy steel tube construction, lower rods with additional track rollers for sliding on the RSP Xtra copy stand base.
- Matt-grey, plastic-laminated base board 86 x 3.2 x 60 cm (33.9 x 1.3 x 23.6 in.).
Four casters (two lockable). - Dimensions (WxHxD): 92 x 49 x 68 cm (36.2 x 19.3 x 26.8 in.)
- R1 and RD system columns can be mounted via base (optional, 4427 resp. 5625)
Accessories
$3,135.00
