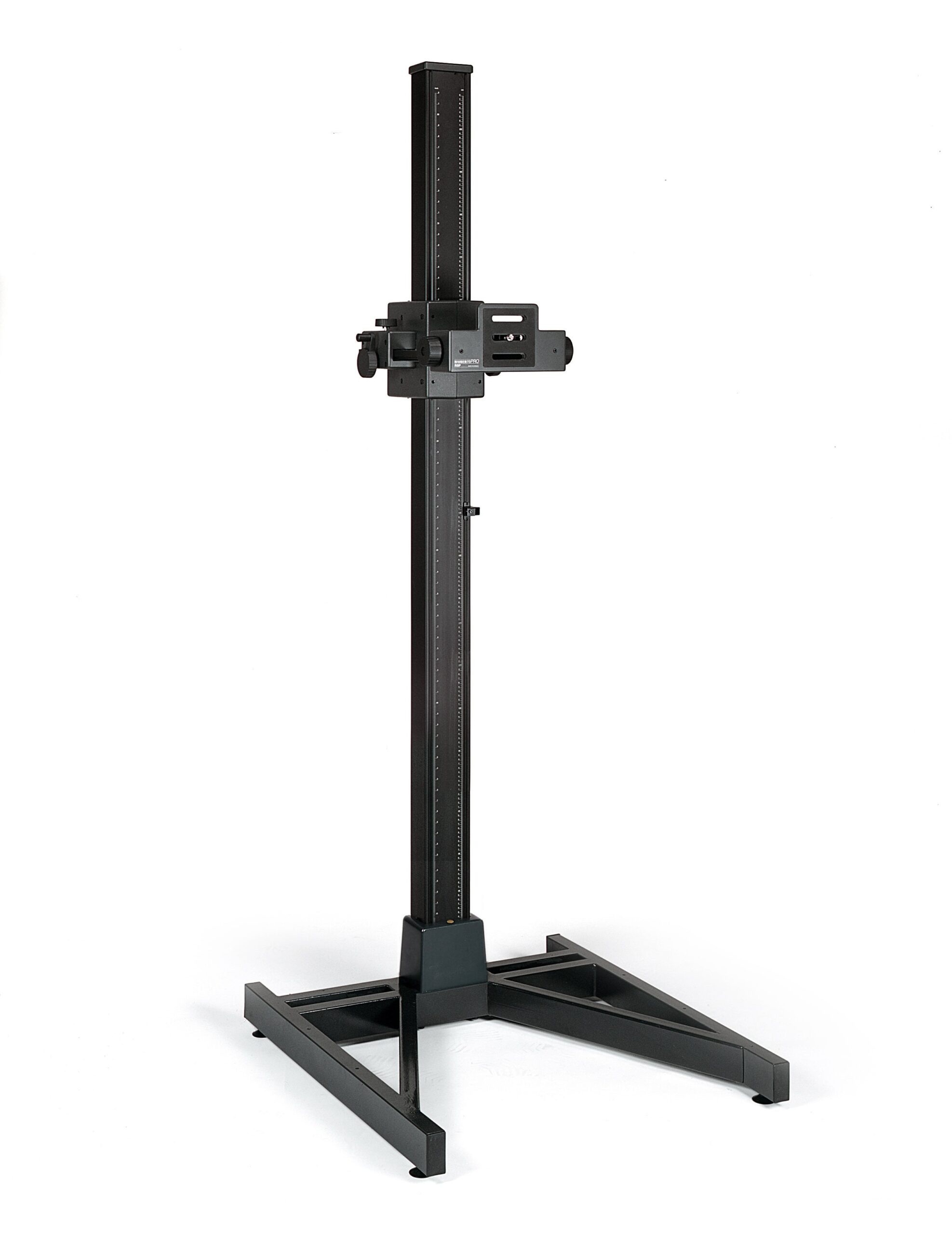

Kaiser Fototechnik 5711 RSP Xtra Copy Stand
Heavy-duty copy stand for analogue and digital image capturing work with motor-driven height adjustment.
- Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales.
- Column foot made of double strutted steel tube.
- Steel socket for bolting the column.
- Four levelling feet.
- Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation.
- Two blocking screws. Camera mounting plate tiltable by +/- 90?.
- Built-in spirit level.
- Camera carrier with motorized height adjustment.
- Two travel speeds, independent of load.
- Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor.
- Cable remote control.
Stand is supplied without baseboard, intended to be used with Table for Copying Works?5712, with Table 5630?or custom-made devices.
Specifications:
- Total height: 227 cm (89.4 in.)
- Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
- Maximum load: 15 kg (33 lbs.)
- Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
- Connecting thread (interchangeable): 1/4? / 3/8?
- Required floor space (WxD): 83 x 114 cm (32.7 x 44.9 in.)
Accessories
Subject to errors and technical changes.
