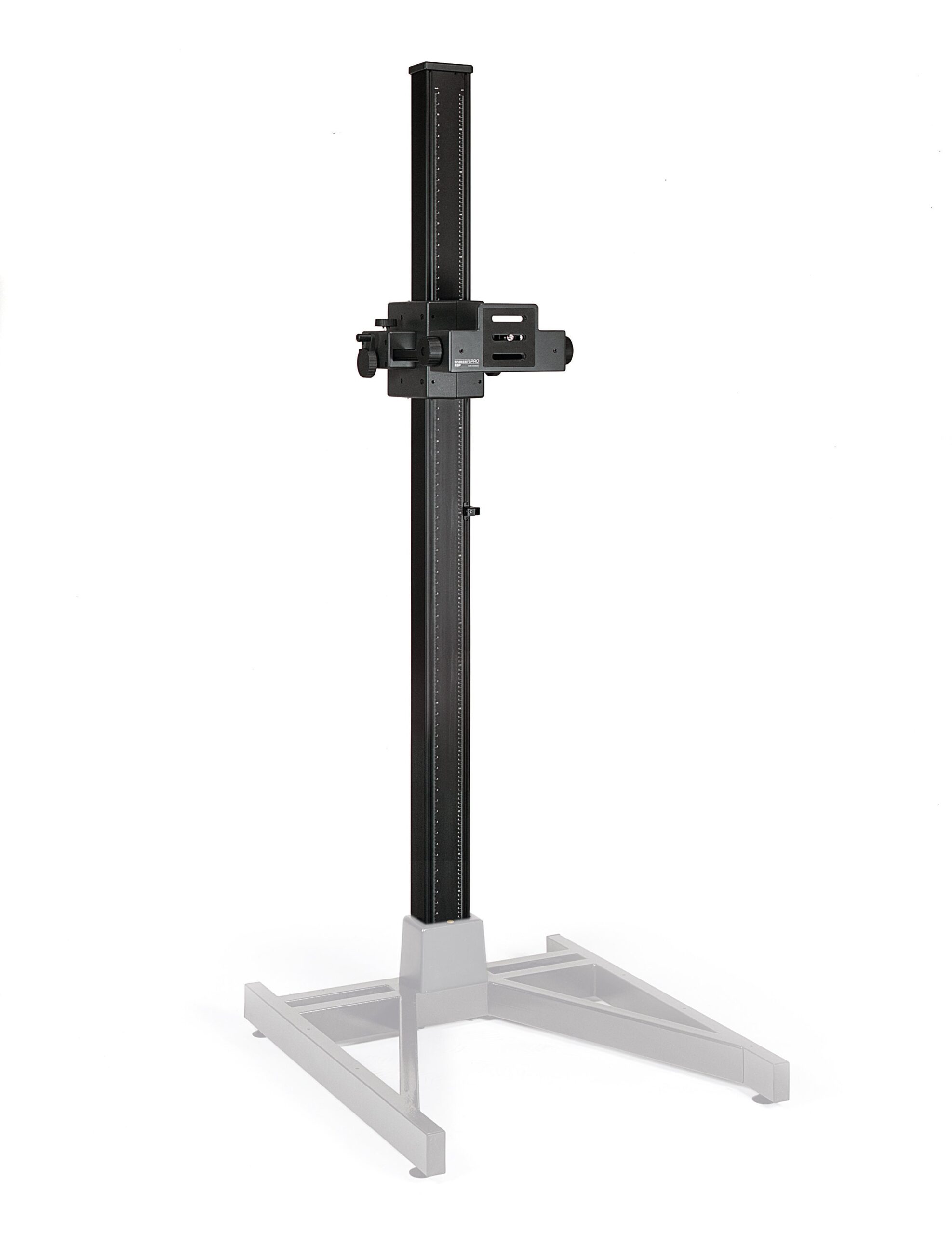

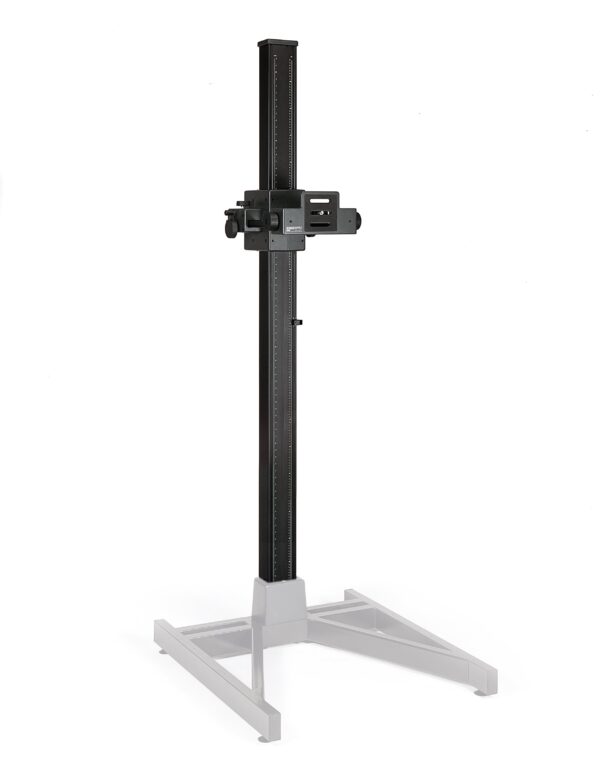

Kaiser Fototechnik 5709 RSP Xtra Column
Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales.
- Camera carrier with motorized height adjustment.
- Two travel speeds, independent of load.
- Self-limiting worm gear: any height position is exactly held.
- Automatic end switch by magnet sensor.
- Cable remote control.
- Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation.
- Two blocking screws.
- Camera mounting plate tiltable by +/- 90?.
- Built-in spirit level.
Specifications:
Total height: 216 cm (85 in.)
Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
Maximum load: 15 kg (33 lbs.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 1/4? / 3/8?
Accessories
Subject to errors and technical changes.
$14,245.00
