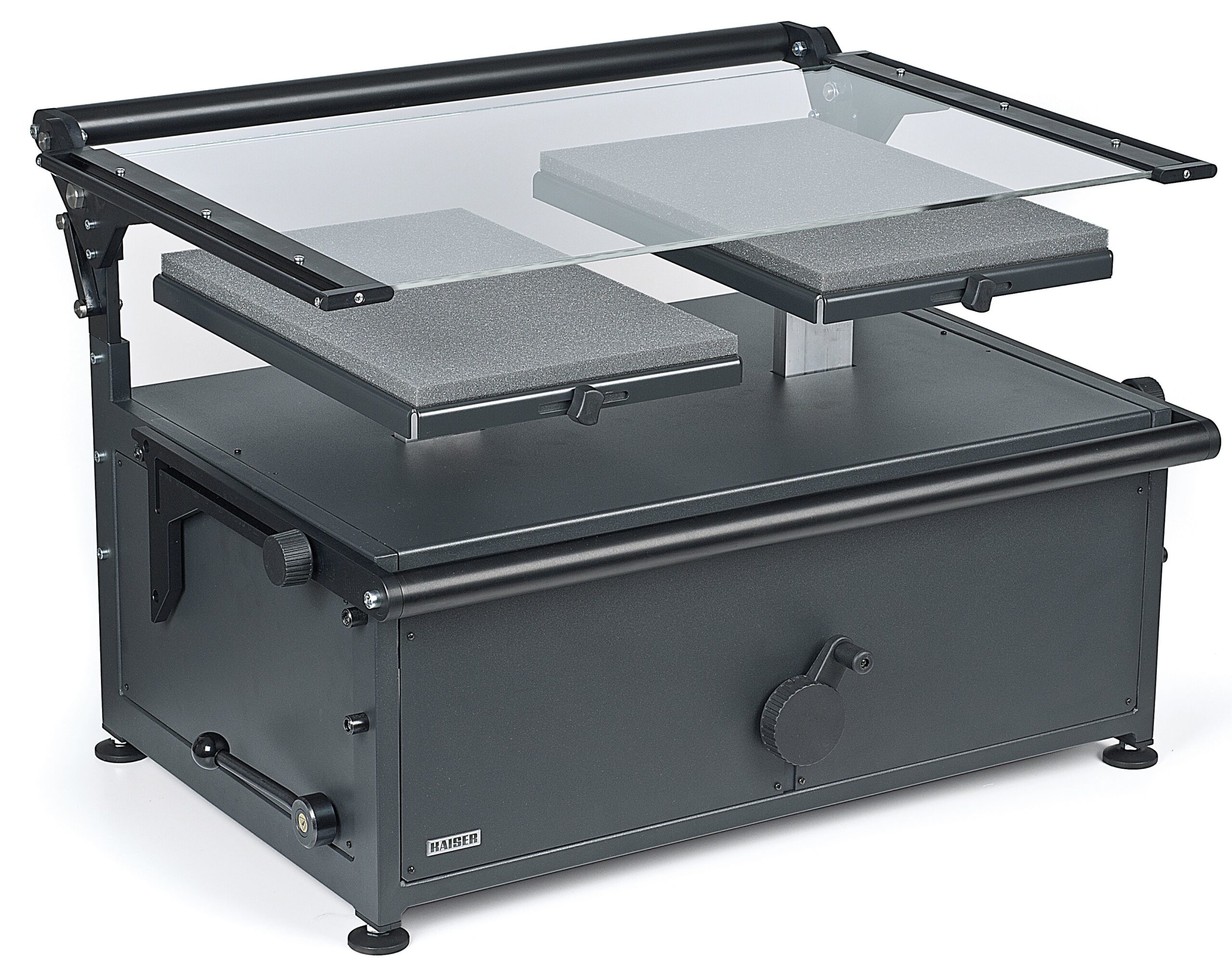

Kaiser Fototechnik 5631 Book Cradle 45/30
Special support for protective copy work from books with open sizes up to?73 x 45 cm (28.7 x 17.7 in.) and a thickness of 15 cm (5.9 in.).
- Lockable pressure plate made of 6 mm thick float glass, with anti-reflection coating on both sides.
- Easy to unlock by means of release rails on both sides.
- Glass plate locates in opening position.
- Two foam-padded platforms – each 30 x 45 cm (11.8 x 17.7 in.) – with adjustable space for spines of different sizes.
One-time height adjustment for optimal pressure by means of spindle drive with hand crank. - Subsequently automatic pressure control after each turning of a page.
- Mechanism for quick pressure release and subsequent resetting with previous pressure.
- Fold-out support bracket to hold large-sized books (up to 90 x 60 cm (35.4 x 23.6 in.) open size) while individual pages are positioned underneath the pressure plate.
- Dimensions (WxHxD): 860 x 555 x 650 mm (33.9 x 21.9 x 25.6 in.)
- Weight: approx. 57 kg (126 lbs.)
Code no: 5631
Subject to errors and technical changes.
$30,250.00
Related products
-
Enlargers and copy stands
Kaiser Fototechnik 4455 Extension Arm
To extend the camera arm mount.
Required for capturing large originals. This increases the distance between the optical axis of the camera lens and the column base by 80 mm (3.2 in.), if the extension arm is attached between the mount and the camera arm.
SKU: KFO-KF-4455 -
Enlargers and copy stands
Kaiser Fototechnik 4476 Column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
SKU: KFO-KF-4476 -
Enlargers and copy stands
Kaiser Fototechnik 5780 Wolfenbuttel Book Reflector 45N
For digital reproduction of damageable historic books and documents with critical condition. Especially for books that cannot be opened for more than 45 Deg
Specifications
- Basic table (WxHxD): 88 x 75 x 78 cm (24 x 29 x 30 in)
- Max. book/page dimensions: 45 x 45 cm (17.5 x 17.5 in)
- Max. thickness of book:?20 cm (7.9 in)
- Covered area close to fold: approx. 4 mm
- Total height of book reflector: 2.07 m (7 ft)
- Total height of camera stand: 2.0 m (6.5 ft)
- Required floor space for book reflector and camera stand: max 150 x 120 cm (5 x 4 ft)
SKU: KFO-KF-5780 -
Enlargers and copy stands
Kaiser Fototechnik 5771 Book Holder 44/41
Holding device with glass pressure plate for the exact positioning when doing copy work from books, magazines and newspapers.
In the photo lab the book holder is also suitable for making contact prints from negatives on photographic paper and for alternative photographic processes using contact printing.
Solid base plate with non-slip coating on top and non-slip feet underneath. 6 mm (0.2 in.) thick glass pressure plate, foldable and variable in height. To work more ergonomically, more efficiently and original-friendly at a particular height, you can lock the glass pressure plate into a position between 0 and 145 mm (5.7 in.).
Several 28 x 18 cm (11 x 7.1 in.) preformed foam elements of various thickness are used to compensate for the height of an open book.
Black cardboard sheets can be placed under the page you want to copy so that the print on the back side or subjacent side cannot shine through the paper. ?
5771: Book Holder 44/41
With high-quality, color-neutral crystal glass pressure plate.- For formats up to: 44 x 41 cm (17.3 x 16.1 in.)
- Maximum height of original (book etc.): 145 mm (5.7 in.)
- Dimensions (WxHxD): 52.9 x 22.6 x 44.4 cm (20.8 x 8.9 x 17.5 in.)Comes with 8 preformed foam elements (2 x 20 mm / 0.8 in., 2 x 10 mm / 0.4 in., 4 x 5 mm /0.2 in. thick) and 2 black A4 cardboard sheets (29.7 x 21 cm / 11.7 x 8.3 in.).
5774: Book Holder 69/50 AR (with anti-reflective coating)
With extra white glass pressure plate with anti-reflective coating on both sides. The optical interference coating ensures high color neutrality and minimum residual reflection (< 0.5 %).- For formats up to:? 69 x 50 cm (27.2 x 19.7 in.), e.g. also for Berlin or Swiss format newspapers (opened size 630 x 470 mm / 24.8 x 18.5 in. resp. 640 x 475 mm / 25.2 x 18.7 in.)
- Maximum height of original (book etc.): 145 mm (5.7 in.)
- Dimensions (WxHxD): 76.9 x 22.6 x 55.4 cm (30.3 x 8.9 x 21.8 in.)
- Comes with 16 preformed foam elements (4 x 20 mm / 0.8 in., 4 x 10 mm / 0.4 in., 8 x 5 mm /0.2 in. thick) and 4 black cardboard sheets: 2 x A4 (29.7 x 21 cm / 11.7 x 8.3 in.) and 2 x A3 (42 x 29.7 cm / 16.5 x 11.7 in.).
Subject to errors and technical changes.
SKU: KFO-KF-5771 -
Enlargers and copy stands
Kaiser Fototechnik 4421 rePRO-Adapter
Kaiser Fototechnik 4421 rePRO-Adapter, for mounting the camera arms 5520-5527, 5539, 5540 and the enlarger head lower part (4568) on column RSP (5612) and copys stand 5710 and 5711. For use of R1 system camera arms with RSP or RSD/RD copy stands / columns.
SKU: KFO-KF-4421
