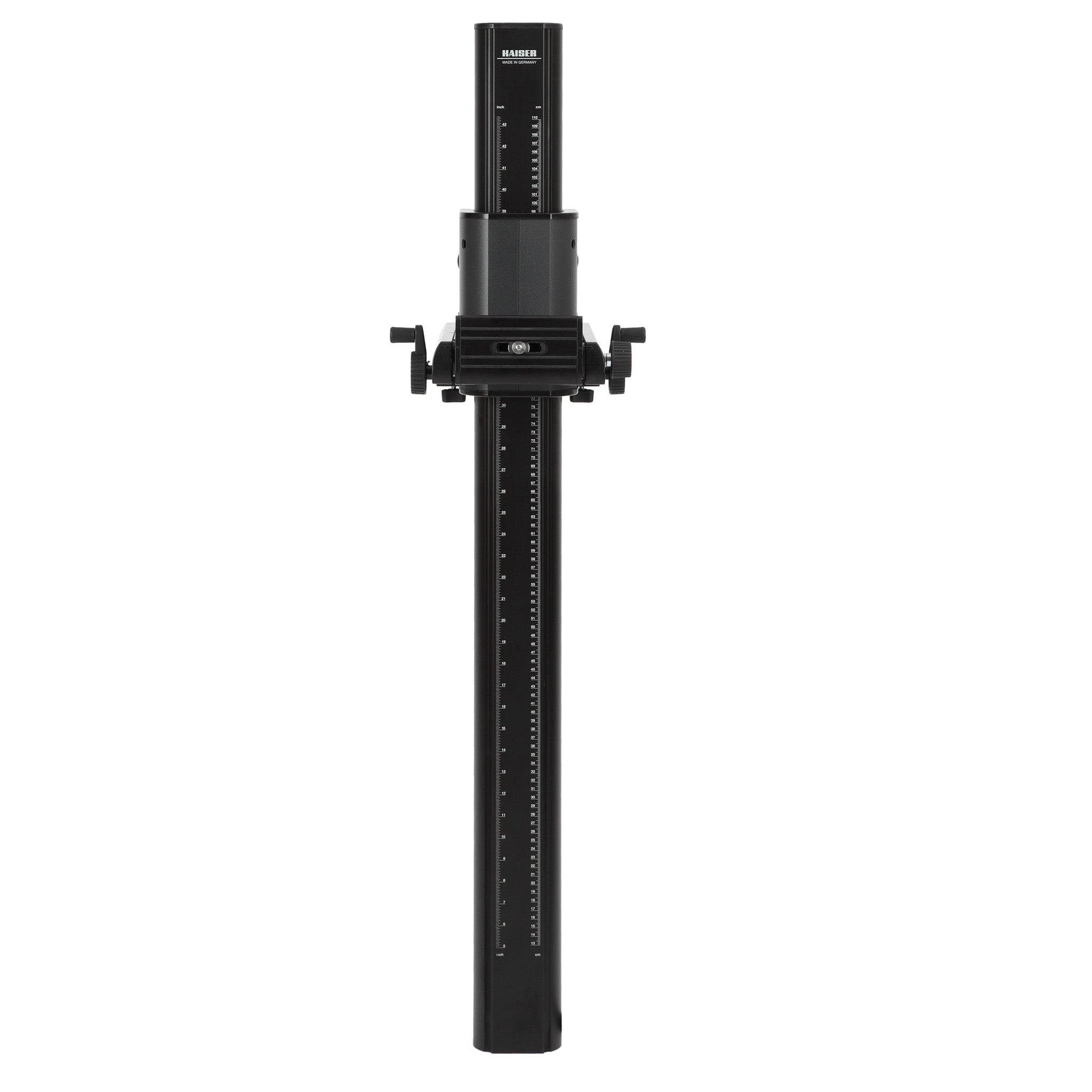

Kaiser Fototechnik 5623 RD column motorized 1.2m
Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
- Camera carrier made of aluminum section, can be horizontally adjusted over approx. 16 cm (6.3 in.) with rack-and-pinion parallel guides.
- Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
- Camera mounting plate tiltable by ? 90?.
- Connecting screw horizontally adjustable.
- Height adjustment motorized, with two speeds.
- Cable remote control. Constant adjustment speed, independent of load.
- Automatic end switch by magnet sensor.
Specifications:
Column height: 1.20 m (3.9 ft.)
Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
Loading capacity: 8 kg (17.6 lbs.)
Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
Reversing mounting thread: 1/4? / 3/8? changeable
Accessories
Code no: 5623
Subject to errors and technical changes.
$6,900.00
