Enlargers and copy stands

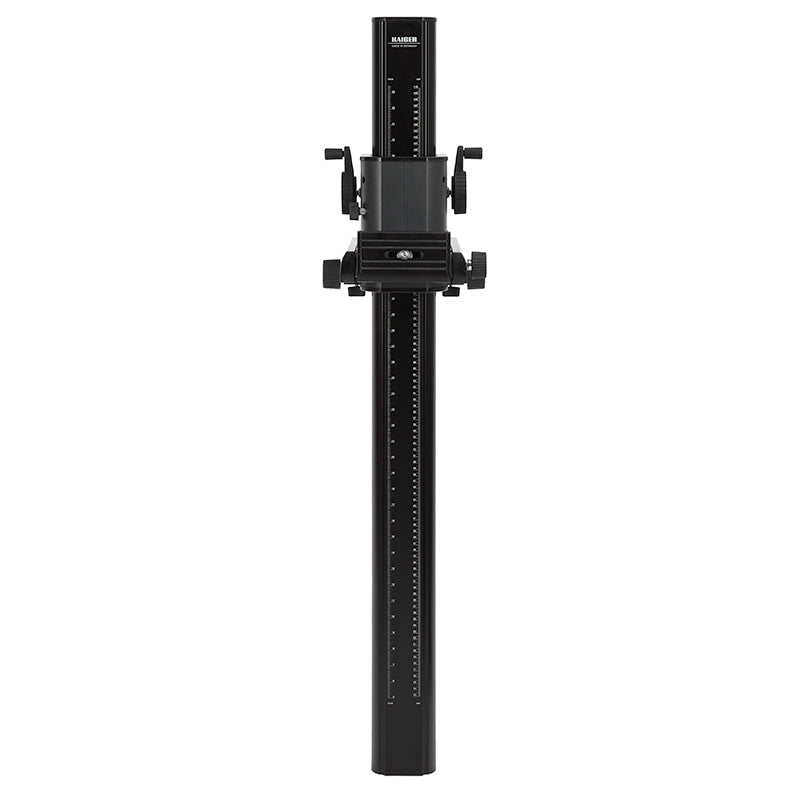

Kaiser Fototechnik 5622 RD column 1.2m
- Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
- Camera carrier made of aluminum section, can be horizontally adjusted over approx. 16 cm (6.3 in.) with rack-and-pinion parallel guides.
- Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
- Camera mounting plate tiltable by ? 90?. Connecting screw horizontally adjustable.
- Hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in coil spring.
- Blocking screw to stop accidental changing of height.
Specifications:
- Column height: 1.20 m (3.9 ft.)
- Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
- Loading capacity: 8 kg (17.6 lbs.)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
- Reversing mounting thread: 1/4? / 3/8? changeable
Accessories
Code no: 5622
Subject to errors and technical changes.
$5,540.00
