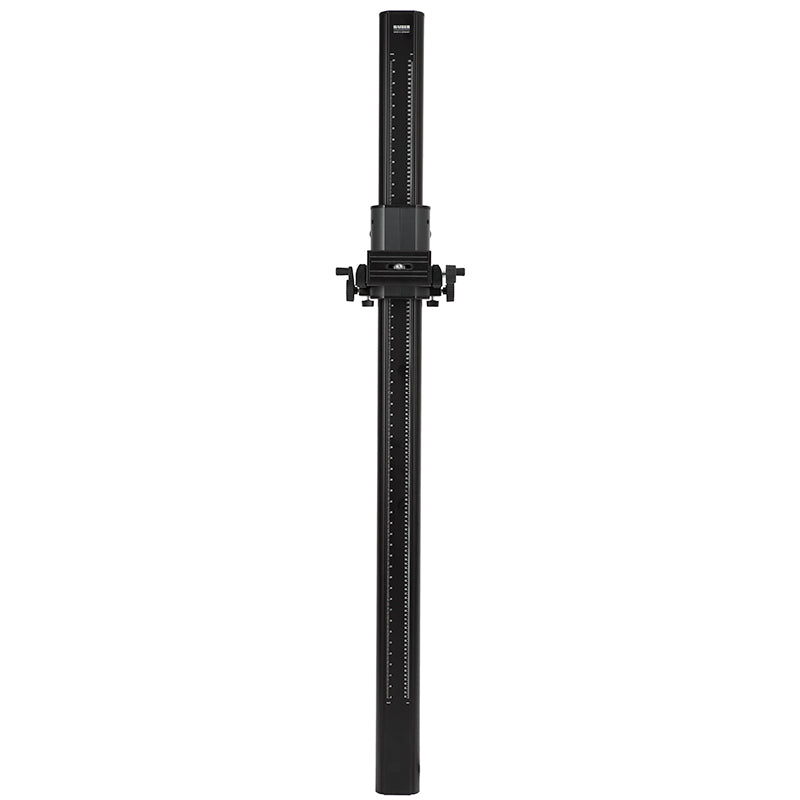

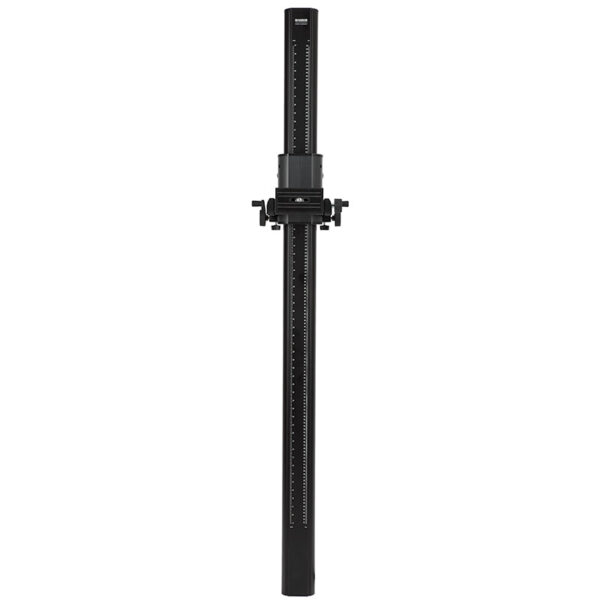

Kaiser Fototechnik 5620 RD column motorized 1.8m
- Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
- Camera carrier made of aluminum section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides.
- Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
- Camera mounting plate tiltable by ? 90?.
- Connecting screw horizontally adjustable.
- Height adjustment motorized, with two speeds.
- Cable remote control.
- Constant adjustment speed, independent of load.
- Automatic end switch by magnet sensor.
Specifications:
- Column height: 1.80 m (5.9 ft.)
- Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
- Loading capacity: 8 kg (17.6 lbs.)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
- Reversing mounting thread: 1/4? / 3/8? changeable
Accessories
Code no: 5620
Subject to errors and technical changes.
$7,975.00
