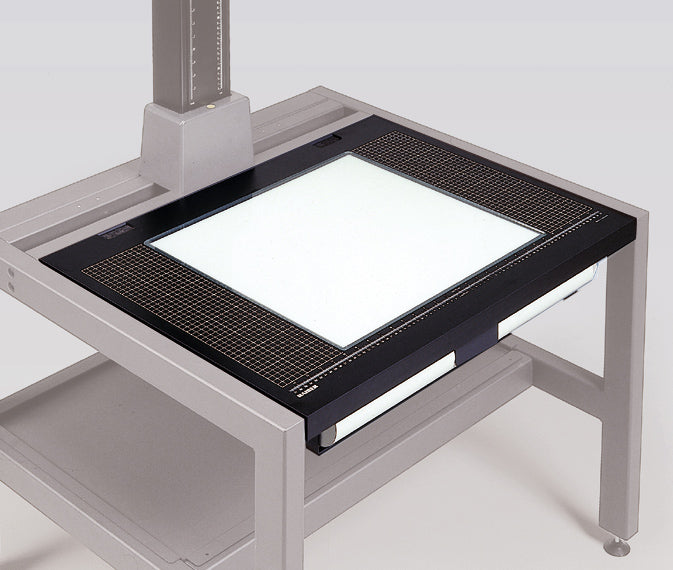

Kaiser Fototechnik 5617 rePRO Illuminated Baseplate
To be inserted in the 5615 table frame.
- Illuminated area 48 x 43 cm (18.9 x 16.9 in.), glass cover plate.
- Total working area 80 x 60 cm 31.5 x 23.6 in.)
- Lamps: 4 x 55 W.
- Built-in fan cooling, no thermal load on originals.
- Luminance 6700 cd/m2, all-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.
- Color temperature of lamps 5400 K, CRI = 90-100, dimmable
- Average service life approx. 8000 hours.
$6,390.00
