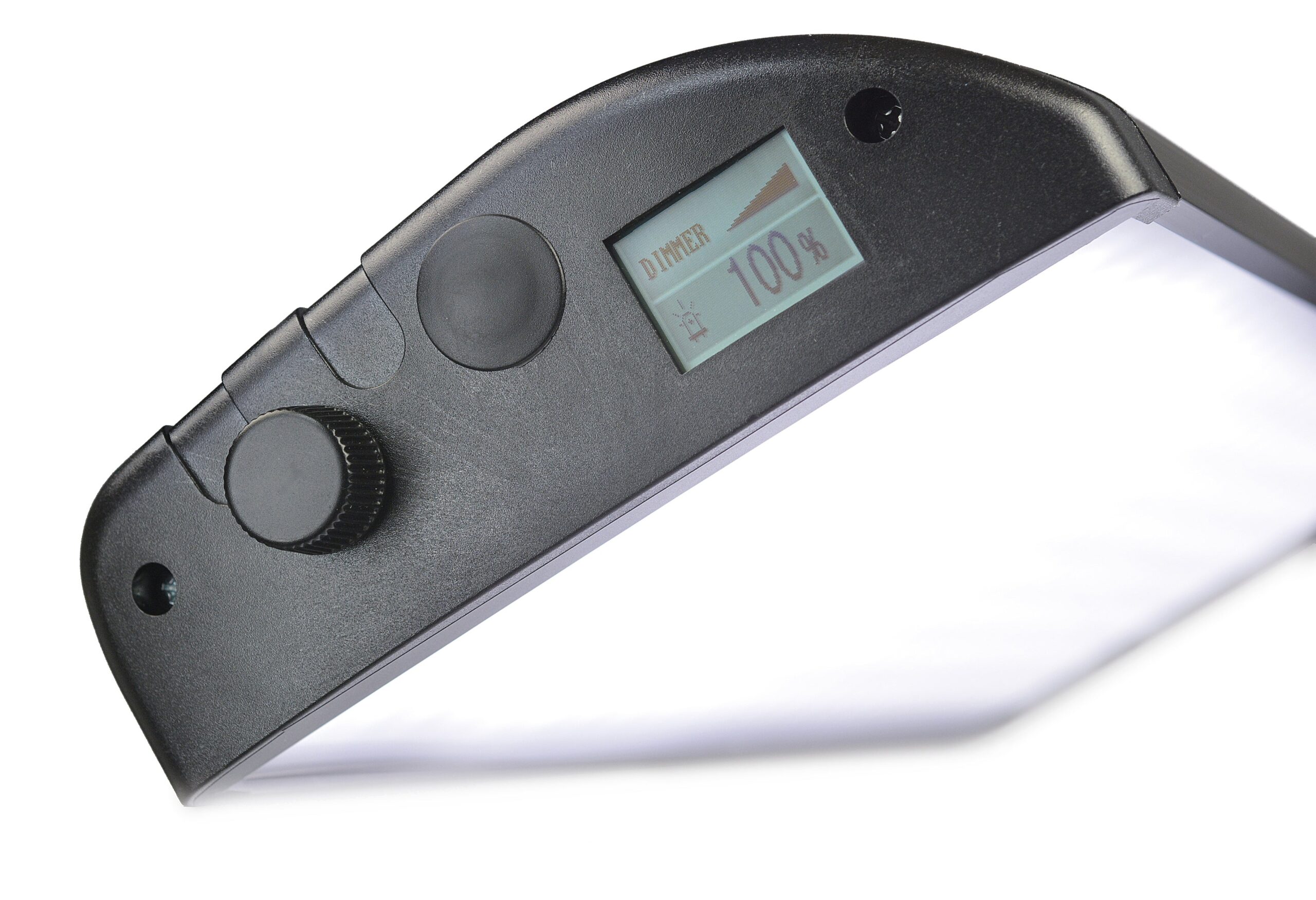

Kaiser Fototechnik 5551 LED RB 550 AS Lighting Unit
LED daylight lighting unit with two light banks for even and soft illumination.
- Each light equipped with 192 selected white SMD LEDs.
- Emitted light has absolutely no IR and UV content, is flicker free without residual ripple.
- Lights can be dimmed separately or synchronously in 1 %-steps from 10 % up to 100 %.
- Illuminated display.
- Lamp body made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height.
- Detachable soft screens.
- Vertical lamp arms with height markings, tiltable with detents.
- Mounted with strong die-cast clamp bases, clamp width up to 48 mm (1.9 in.).
- Comes with mains adapter.
Specifications:
- LED array: 2 x 192 SMD LEDs
- Color temperature: 5600 K
- Color rendering index: CRI=95
- LED angle of radiation: 100?
- Max. illumination* with soft screen: 5000 lux
- w/o soft screen: 5600 lux
- Max. power of LEDs: 2 x 38.4 W
- Operating voltage: 24 V
- Light emitting area of one light: 41.5 x 16.5 cm (16.3 x 6.5 in).
*measured with highest possible evenness of illumination of a 16.5 x 11.5? flat subject
The RB 550 AS lighting unit is suitable for copy stands of the R1 System and RD system (5602, 5603).
$3,822.50
