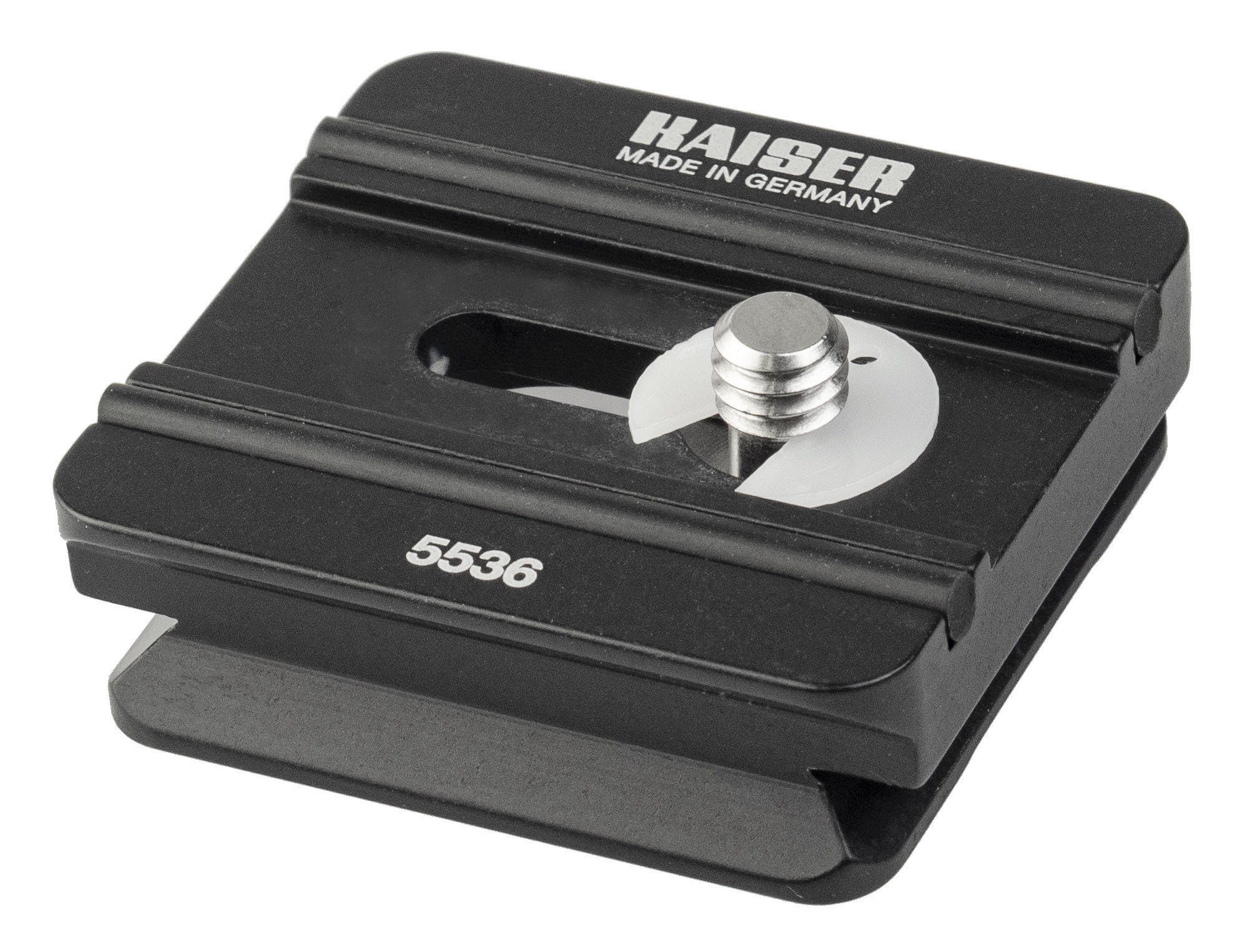

Kaiser Fototechnik 5536 Arca Swiss Plate for 5535
Suitable for 5535 macro focusing stage.
- Arca-Swiss compatible, for quick release system with dovetail clamping and blocking screw.
- Can also be secured in the dovetail clamp when turned by 90?.
1/4″ connection thread. - Coin slot and 4 mm hexagon socket for fixing.
Specifications
- Material: aluminum
- Dimensions: approx. 42 x 13 x 39 mm (1.7 x 0.5 x 1.5 in.)
- Weight: approx. 39 g (1.4 oz.)
$70.00
