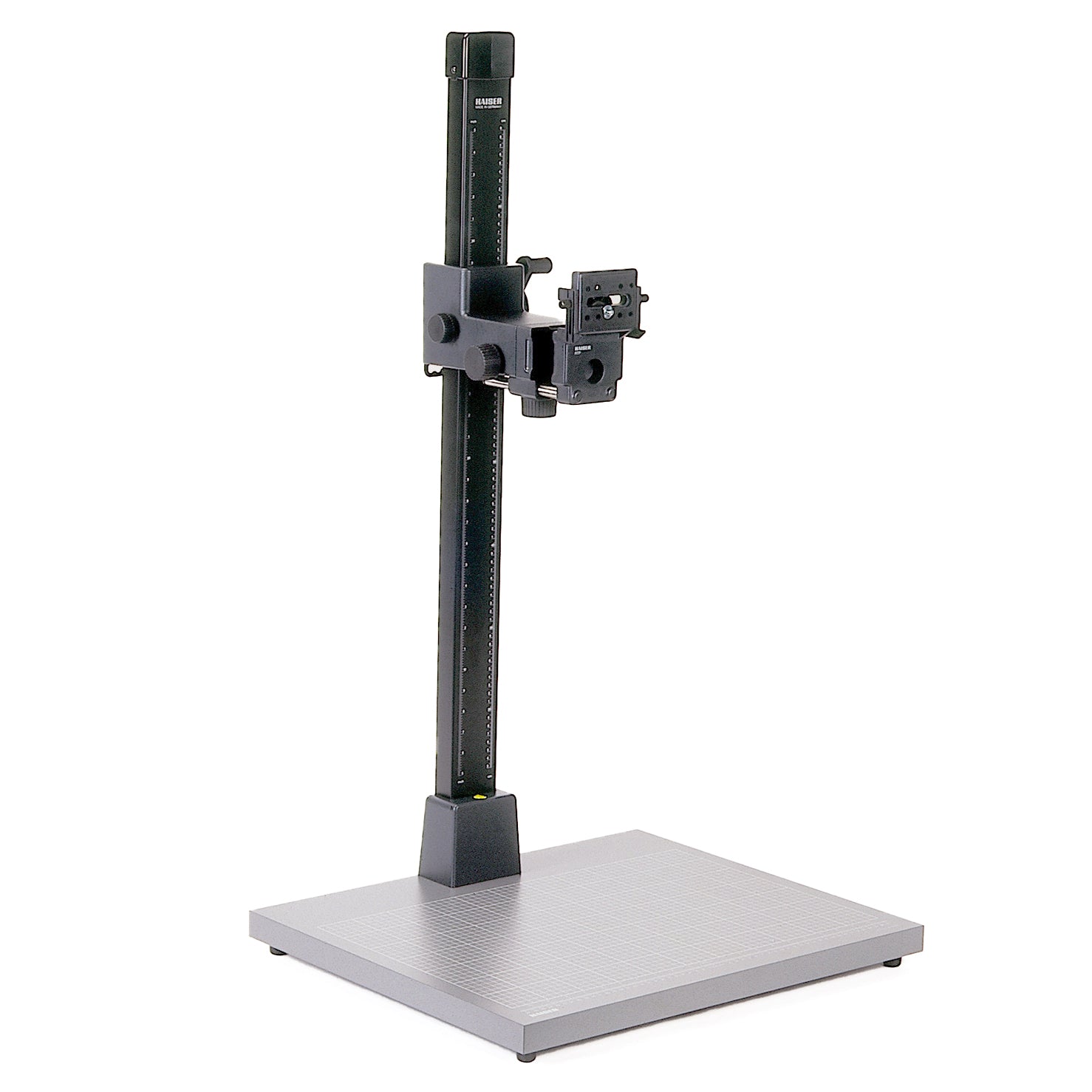

Kaiser Fototechnik 5513 Copy Stand RS 10
Large non-reflecting, matt grey baseboard with a printed fine grid and cm/inch scale.
- Height-adjustable feet. Spirit level integrated into the base.
- Especially wide, virtually vibration-free column made of matt black anodised aluminium section tube with cm/inch scale.
- Hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in scroll spring.
- Locking screw prevents inadvertent changing of the adjusted height.
- Column can be mounted rotated 180?.
- RTP camera arm (5524) with precision, parallel-guided horizontal adjustment over approx. 8 cm (3.1 in.). Reversible mounting thread 1/4″/ 3/8″.
- Including dust cover.
- Baseboard (WxHxD): approx. 600 x 32 x 500 mm (23.6 x 1.3 x 19.7 in.)
- Column height: approx. 1 m (39 in.)
- Maximum load: 4 kg (8.8 lbs.)
$2,025.00
Related products
-
Enlargers and copy stands
Kaiser Fototechnik 4409 Column, 1.5m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
- Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, locking screw for fixing height adjustment.
- Height: 1.5 m (60 in.)
SKU: KFO-KF-4409 -
Enlargers and copy stands
Kaiser Fototechnik 5774 Book Holder 69/50 AR
Holding device with glass pressure plate for the exact positioning when doing copy work from books, magazines and newspapers.
In the photo lab the book holder is also suitable for making contact prints from negatives on photographic paper and for alternative photographic processes using contact printing.
Solid base plate with non-slip coating on top and non-slip feet underneath. 6 mm (0.2 in.) thick glass pressure plate, foldable and variable in height. To work more ergonomically, more efficiently and original-friendly at a particular height, you can lock the glass pressure plate into a position between 0 and 145 mm (5.7 in.).
Several 28 x 18 cm (11 x 7.1 in.) preformed foam elements of various thickness are used to compensate for the height of an open book.
Black cardboard sheets can be placed under the page you want to copy so that the print on the back side or subjacent side cannot shine through the paper. ?
5771: Book Holder 44/41
With high-quality, color-neutral crystal glass pressure plate.- For formats up to: 44 x 41 cm (17.3 x 16.1 in.)
- Maximum height of original (book etc.): 145 mm (5.7 in.)
- Dimensions (WxHxD): 52.9 x 22.6 x 44.4 cm (20.8 x 8.9 x 17.5 in.)
- Comes with 8 preformed foam elements (2 x 20 mm / 0.8 in., 2 x 10 mm / 0.4 in., 4 x 5 mm /0.2 in. thick) and 2 black A4 cardboard sheets (29.7 x 21 cm / 11.7 x 8.3 in.).
5774: Book Holder 69/50 AR (with anti-reflective coating)
With extra white glass pressure plate with anti-reflective coating on both sides. The optical interference coating ensures high color neutrality and minimum residual reflection (< 0.5 %).- For formats up to:? 69 x 50 cm (27.2 x 19.7 in.), e.g. also for Berlin or Swiss format newspapers (opened size 630 x 470 mm / 24.8 x 18.5 in. resp. 640 x 475 mm / 25.2 x 18.7 in.)
- Maximum height of original (book etc.): 145 mm (5.7 in.)
- Dimensions (WxHxD): 76.9 x 22.6 x 55.4 cm (30.3 x 8.9 x 21.8 in.)
- Comes with 16 preformed foam elements (4 x 20 mm / 0.8 in., 4 x 10 mm / 0.4 in., 8 x 5 mm /0.2 in. thick) and 4 black cardboard sheets: 2 x A4 (29.7 x 21 cm / 11.7 x 8.3 in.) and 2 x A3 (42 x 29.7 cm / 16.5 x 11.7 in.).
Subject to errors and technical changes.
SKU: KFO-KF-5774 -
Enlargers and copy stands
Kaiser Fototechnik 4486 Negative Masks, 24 x 36 mm
For insertion into 4583 compound negative carrier of SYSTEM-V enlargers and for former 4483 and 4493 compound negative carrier.
- Also for the holding devices FilmCopy Vario and FilmCopy Vario Kit.
- Pairs of masks with antistatic finish.
- Dimensions: approx. 100 x 72.5 mm (3.9 x 2.9 in.)
- Format masks 24 x 36 mm (35 mm) (a + b).
- With guide ridges for film strips and neg number read-out window.
SKU: KFO-KF-4486 -
Enlargers and copy stands
Kaiser Fototechnik 4583 Compound Negative Carrier
For use with all negative masks and glass inserts size 100 x 72,5 mm (3.9 x 2.9 in.). Suitable for all SYSTEM-V enlargers made from 10/94 on (05 series).
- Adjustable guide pins for film widths 61.5 mm (rollfilm 120), 41 mm (rollfilm 127) and 35 mm film.
- Four steplessly adjustable masking strips for selecting the desired detail.
- Two grid pins at standard hole intervals.
- Dimensions: approx. 142 x 37 x 123 mm (5.6 x 1.4 x 4.8 in.)
SKU: KFO-KF-4583 -
Enlargers and copy stands
Kaiser Fototechnik 4427 socket for 70 mm column
For mounting a column with 70 x 35 mm (2.8 x 1.4 in.) cross section to table boards or work plates or on a 5712 copy table or a 5630 table frame.
- Built-in spirit level.
- Includes fastening screw for the column and installation material (metal counter plate and four M6x40 screws for boards from 28 to 32 mm (1.1 x 1.3 in.) thickness).
SKU: KFO-KF-4427
