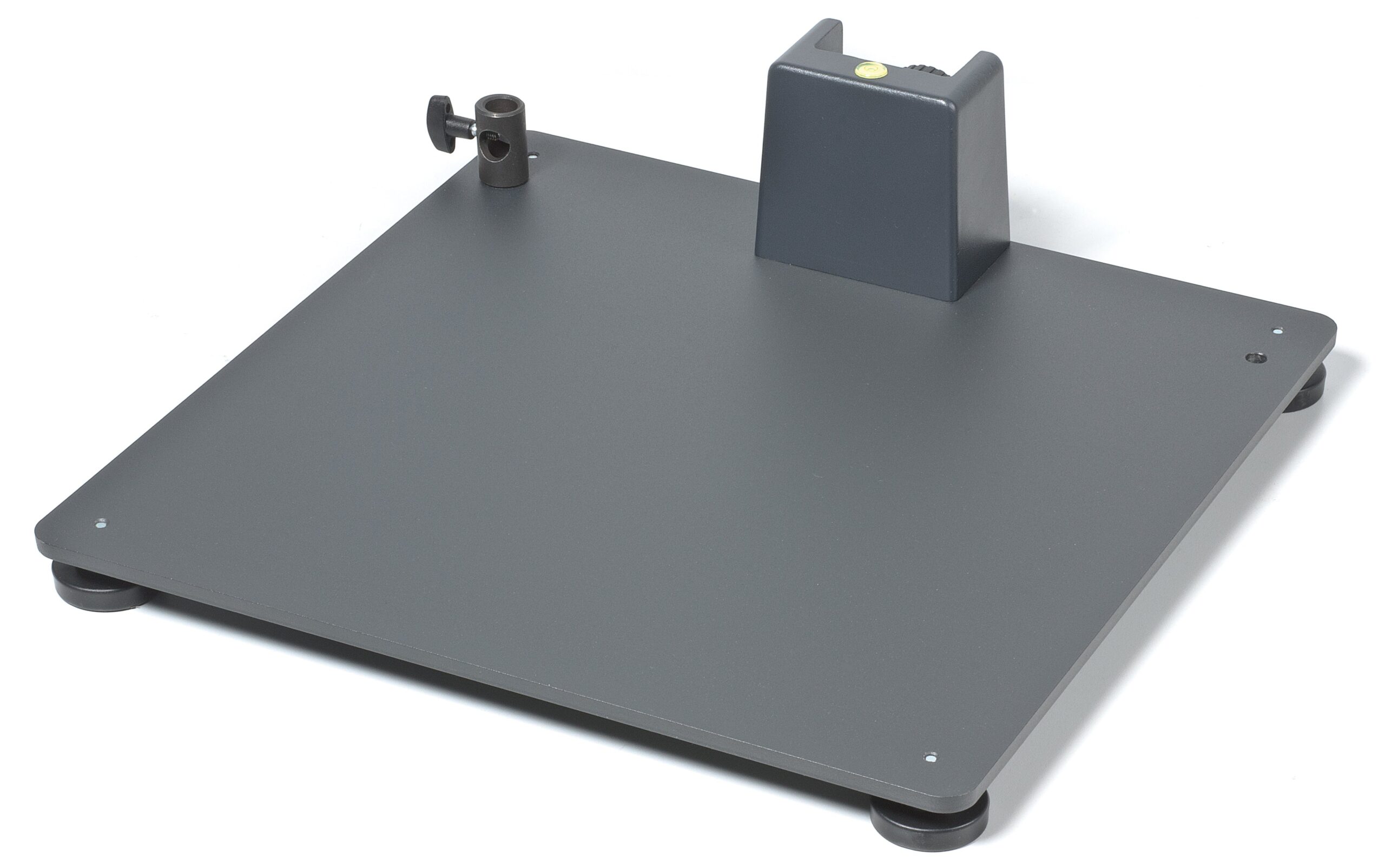

Kaiser Fototechnik 5504 Metal Base Plate

For digital reproduction of damageable historic books and documents with critical condition. Especially for books that cannot be opened for more than 45 Deg

Specifications

• Basic table (WxHxD): 88 x 75 x 78 cm (24 x 29 x 30 in)
• Max. book/page dimensions: 45 x 45 cm (17.5 x 17.5 in)
• Max. thickness of book:?20 cm (7.9 in)
• Covered area close to fold: approx. 4 mm
• Total height of book reflector: 2.07 m (7 ft)
• Total height of camera stand: 2.0 m (6.5 ft)
• Required floor space for book reflector and camera stand: max 150 x 120 cm (5 x 4 ft)

To extend the camera arm mount.

Required for capturing large originals. This increases the distance between the optical axis of the camera lens and the column base by 80 mm (3.2 in.), if the extension arm is attached between the mount and the camera arm.

For mounting a column with 70 x 35 mm (2.8 x 1.4 in.) cross section to table boards or work plates or on a 5712 copy table or a 5630 table frame.

• Built-in spirit level.
• Includes fastening screw for the column and installation material (metal counter plate and four M6x40 screws for boards from 28 to 32 mm (1.1 x 1.3 in.) thickness).
