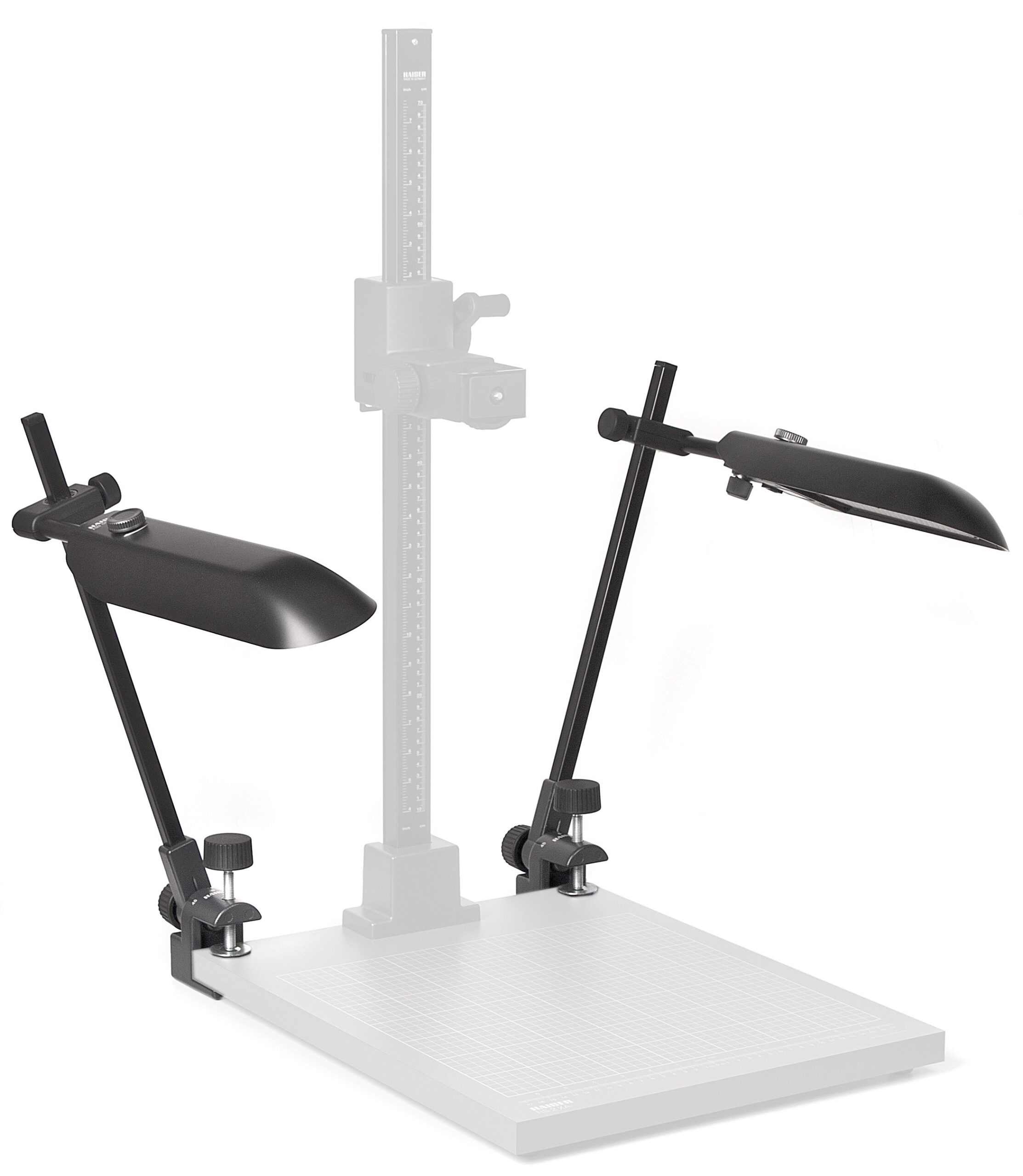

Kaiser Fototechnik 5467 RB 5020 DS2 LED Lighting Unit
LED daylight lighting unit with two light banks for even and soft illumination.
- Emitted light has absolutely no IR and UV content.
- DC operation provides for flicker free light without residual ripple.
- Each light equipped with?105 selected white SMD LEDs.
- Lights can be dimmed separately or in conjunction.
- Removable diffusing cover.
- Lights can be tilted, swiveled and adjusted in height.
- Vertical lamp arms tiltable with detents.
- Mounted with strong die-cast clamp bases, clamp width up to 48 mm (1.9 in.).
Specifications:
- LED array: 2 x 105 SMD LEDs
- Color temperature: 5600 K
- Color rendering index: CRI=95
- LED angle of radiation: 110?
- Power consumption: 2 x17 W
- Illuminance on subject surface*: 4300 lux
The RB 5020 DS2 lighting system is suitable for all R2 System copy stands.
?*?measured with highest possible evenness of?illumination of a?9 x 12? flat subject
$1,720.00
