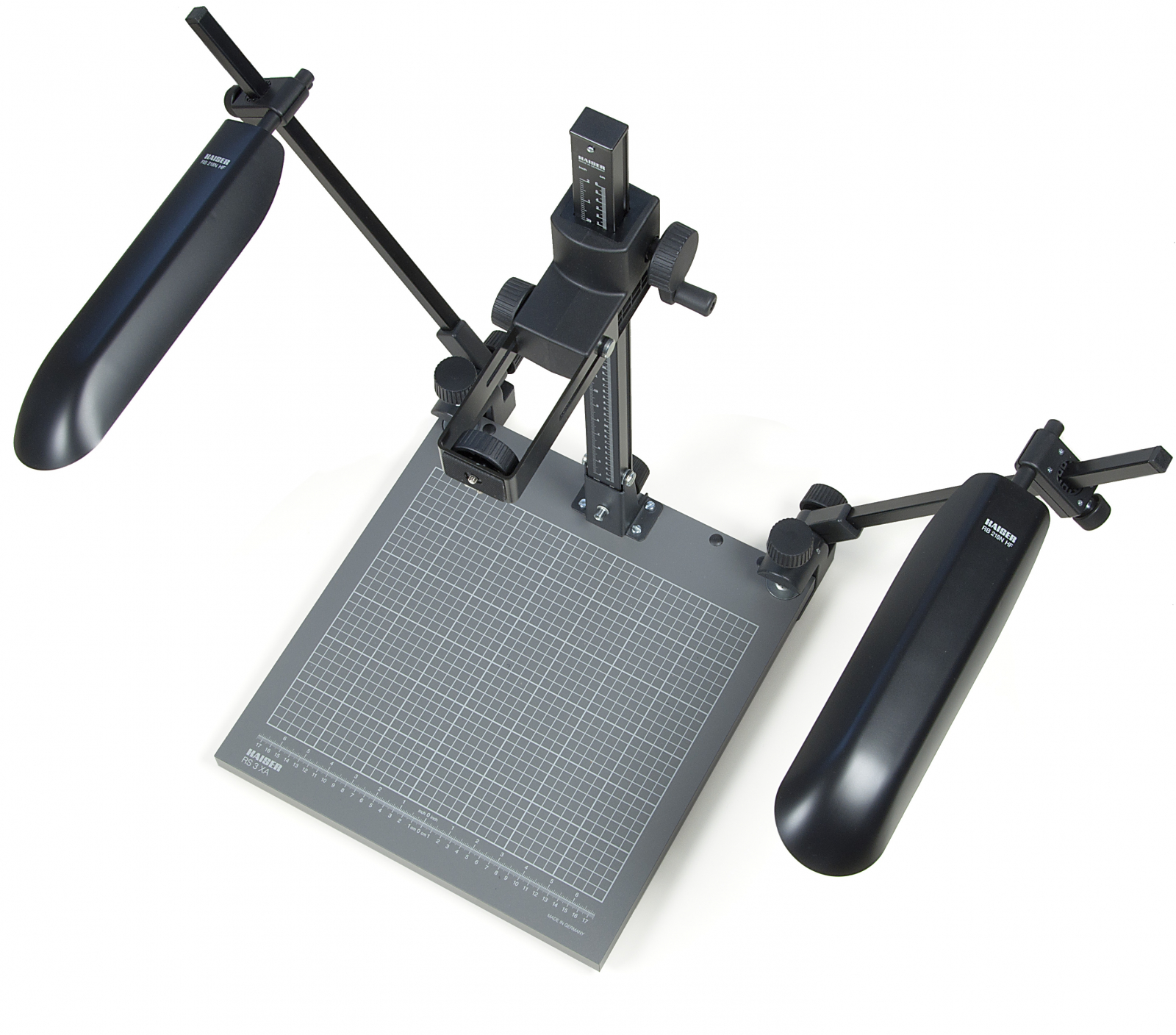

Kaiser Fototechnik 5304 Copy Stand RS 2 NCP
Portable copy stand with RB 218N HF Lighting Unit (5464).
- Non-reflective matt grey baseboard with printed fine grid and cm/inch scale.
- Matt-black anodised aluminium section tube column with cm/inch scale.
- Hand-cranked height adjustment by friction drive in plastic bearings.
- With horizontally adjustable camera arm to change the distance to the column, moves approx. 7 cm (2.7 in.) back and forth. 1/4? mounting thread.
- Column folds down on baseboard.
- Baseboard (WxHxD): approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 in.)
- Column height: approx. 60 cm (23.6 in.)
- Maximum load: 1.5 kg (3.3 lbs)
- RB 218N HF Lighting unit with an all-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.
- Two small light banks, each equipped with a cold light fluorescent lamp, tiltable and adjustable in height.
- Angle of vertical arms adjustable by lock joint.
- Mounted with strong die-cast clamp bases.
- Clamp width 48 mm (1.9 in.)
- Lamps: 2 x 18 watt
- Color temperature: 5400 K
- CRI: 90-100
- Replacement lamp: 5458
- Comes in strong carrying case 67 x?47 x?23 cm (26.4 x?18.5 x 9.0 in.) with handle and shoulder strap.
Accessories
?
$2,155.00
