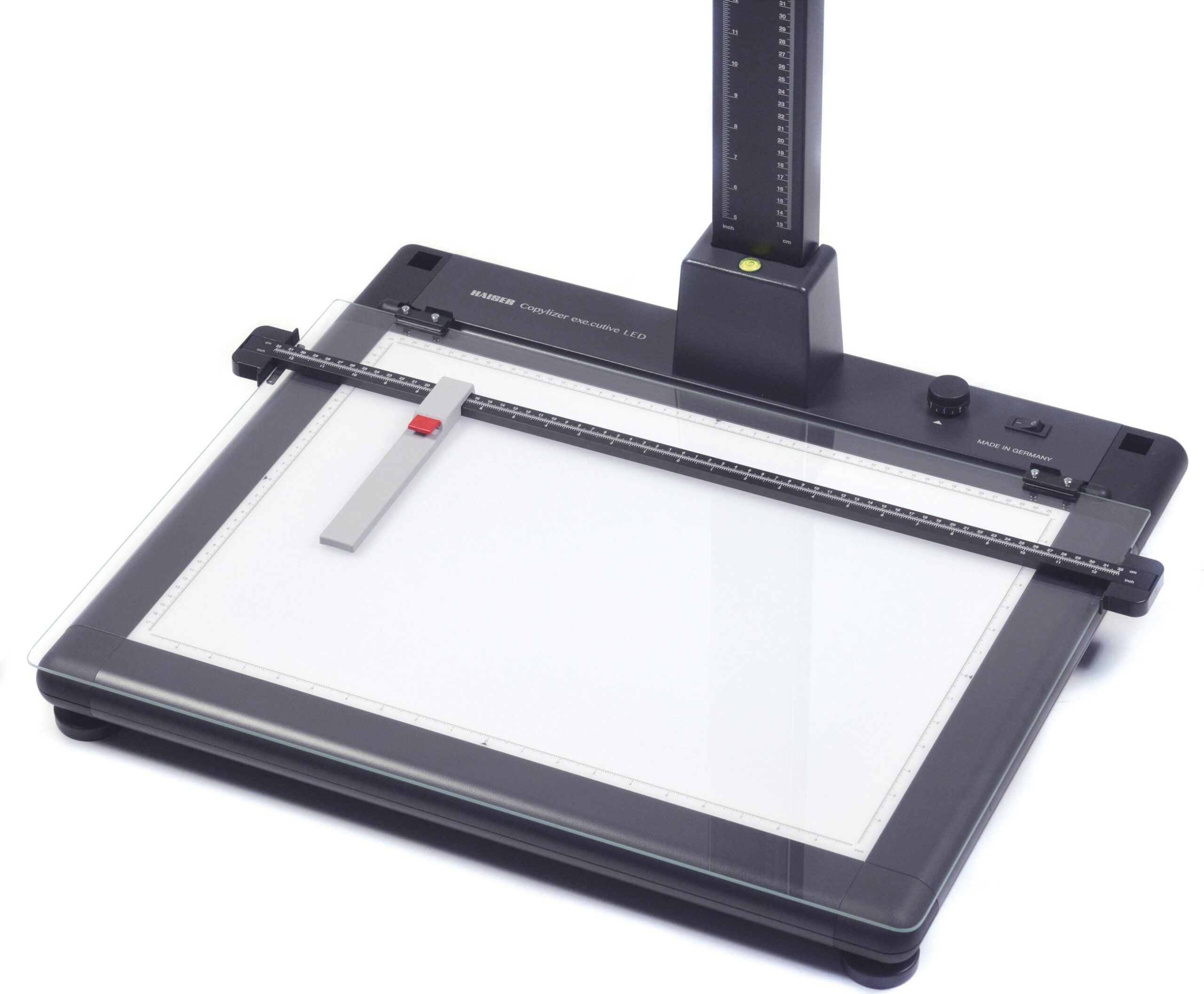

Kaiser Fototechnik 5292 Glass Plate
For Copylizer exe.cutive and exe.cutive illumina base plates.
Made of high-quality crystal glass to press “wavy” originals. Can be fitted to the hinge of the illumina base and is easily lifted. With adjustable stop guides.
$860.00
Related products
-
Enlargers and copy stands
Kaiser Fototechnik 4427 socket for 70 mm column
For mounting a column with 70 x 35 mm (2.8 x 1.4 in.) cross section to table boards or work plates or on a 5712 copy table or a 5630 table frame.
- Built-in spirit level.
- Includes fastening screw for the column and installation material (metal counter plate and four M6x40 screws for boards from 28 to 32 mm (1.1 x 1.3 in.) thickness).
SKU: KFO-KF-4427 -
Enlargers and copy stands
Kaiser Fototechnik 4475 “microdrive” column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
SKU: KFO-KF-4475 -
Enlargers and copy stands
Kaiser Fototechnik 4476 Column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
SKU: KFO-KF-4476 -
Enlargers and copy stands
Kaiser Fototechnik 5244 Illumina base plate exe.cutive LED
Can be combined with components of the Kaiser R1 system.
- Trans-illuminator with 270 SMD LEDs, 5600 Kelvin daylight, color rendering index (CRI) = 95, serviceable illuminated area 50.6 x 36 cm (19.9 x 14.2 in., > tabloid format), illuminance approx. 8300 cd/m_, brightness continuously dimmable, flicker-free operation.
- Mounting fixtures for optional RB 5270 DX (5278) and RB 525 AS (5284) surface lighting units.
- Height-adjustable feet.
- Column base with spirit level for 70 mm (2.8″) wide column.
- Dust hood for column included.
- Outside dimensions (WxD): approx. 63 x 55 cm (24.8 x 21.6 in.)
SKU: KFO-KF-5244 -
Enlargers and copy stands
Kaiser Fototechnik 4478 Column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
4407: Height adjusted by gear rack, with weight compensation by built-in roller spring, additional 1:6 fine drive. Locking screw for fixing height adjustment. Height: 80 cm (31.5 in.)
In combination together with the?Metal Plate?5504?and the camera arm 5523 also useable as a Kaiser?Vertical Stand (see image no. 2, 3, 4).
4474: Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, height 1 m (40 in.)?4475: Height adjusted by gear rack with weight compensation by built-in roller spring, additional 1:6 fine drive. Locking screw for fixing height adjustment. Height 1 m (40 in.)?
In combination together with the?Metal Plate?5504?and the camera arm 5523 also useable as a Kaiser?Vertical Stand (see image no. 2, 3, 4).4476: same as 4475, but without fine drive.?
4478: With 2 mounts for camera arms. Height adjusted by gear rack, upper mount with weight compensation by built-in roller spring, both mounts with locking screw for fixing height adjustment. Height: 1 m (40 in.)
4408: Height adjusted by gear rack, weight compensated by built-in roller spring, locking screw for fixing height adjustment. Height 1.2 m (47 in.)?
4409: Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, locking screw for fixing height adjustment. Height: 1.5 m (60 in.)
?
SKU: KFO-KF-4478
