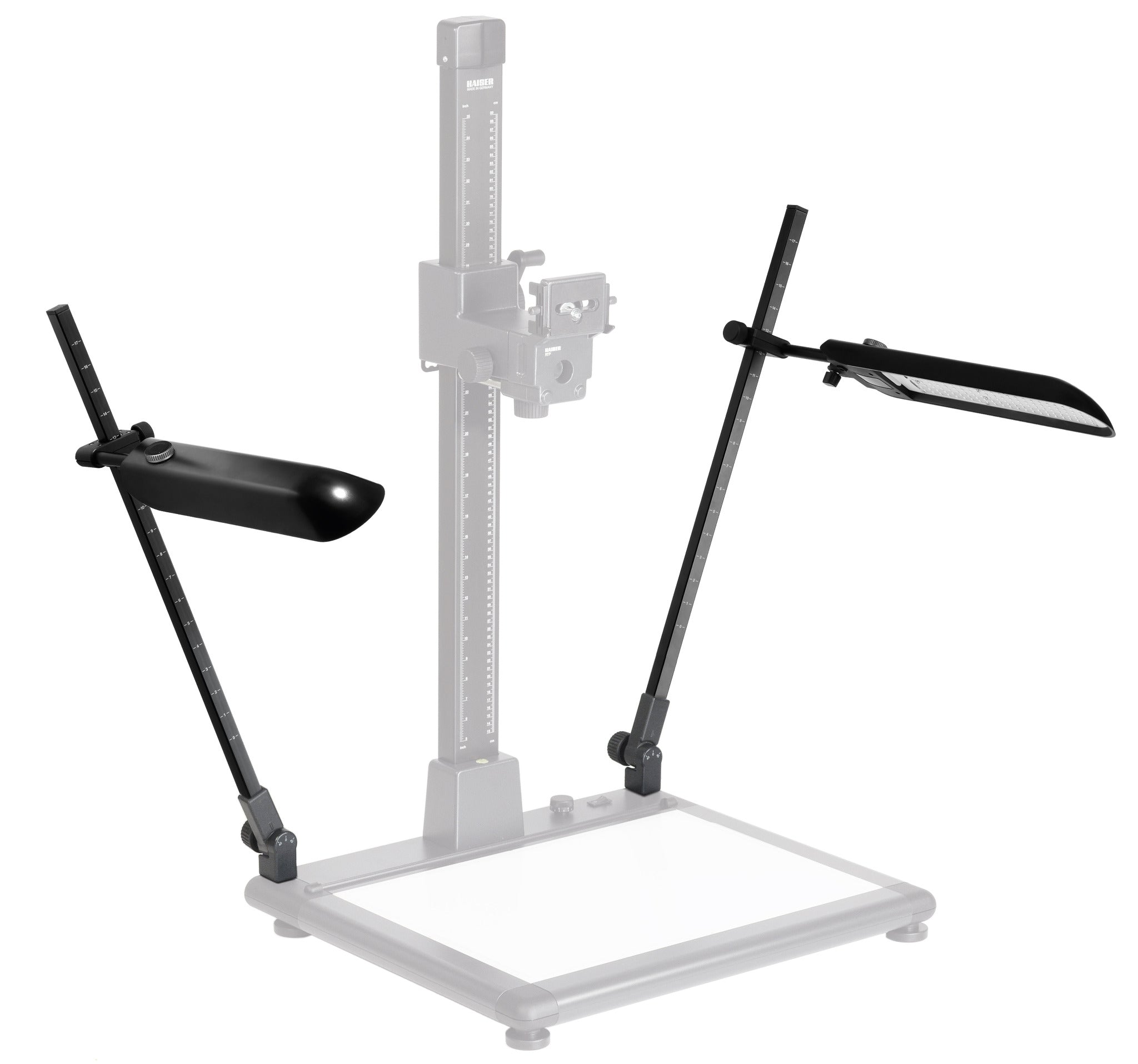

Kaiser Fototechnik 5278 LED Copylizer Lighting Unit
LED reflected light illuminating unit for Copylizer (5215) and exe.cutive LED Illumina Base Plate (5244) with two light banks for even and soft illumination.
- Each light equipped with 161 selected white SMD LEDs.
- Emitted light has absolutely no IR and UV content.
- DC operation provides for flicker free light without residual ripple.
- Lights continuously dimmable, separately or in conjunction.
- Removable diffusing cover (5466).
- Lights can be tilted, swiveled and adjusted in height.
- Vertical lamp arms with height markings, tiltable with detents.
- Attaches to Copylizer/Illumina Base Plate with articulated joint bases.
- Comes with mains adapter.
Specs
- LED array: 2 x 161 SMD LEDs
- Color temperature: approx. 6000 K
Color rendering index: CRI > 93 - Angle of radiation: 110?
- Max. illumination* w/o diffusing cover: 3000 lux
??????????????????????????????? with diffusing cover: 2400 lux
*measured with highest possible evenness of illumination of a 16.5 x 11.5? flat subject - Power consumption: 2 x 27 W
- Operating voltage: 12 V
- Light emitting area of one light: 33 x 8.5 cm (13 x 3.3 in.)
- The RB 5270 DX Copylizer Lighting Unit can also be attached as a reflected light illuminating set to the “TopTable PRO” Basic Support (5921).
Accessories
Downloads
$1,810.00
